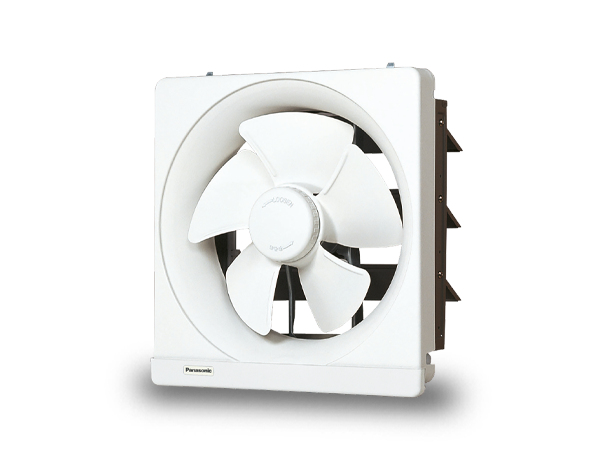

Metallic Series
FV-20AS2
-
220/50hz
-
Air Volume
-
516 m³/h
304 CFM
-
-
Consumption [W]
-
17
-
-
RPM [min⁻¹]
-
1,220
-
-
Noise [dB(A)]
-
37.5
-
-
-
220/60hz
-
Air Volume
-
612 m³/h
360 CFM
-
-
Consumption [W]
-
21.5
-
-
RPM [min⁻¹]
-
1,390
-
-
Noise [dB(A)]
-
40.6
-
-
-
230/50hz
-
Air Volume
-
528 m³/h
311 CFM
-
-
Consumption [W]
-
18.1
-
-
RPM [min⁻¹]
-
1,235
-
-
Noise [dB(A)]
-
38.1
-
-
-
240/50hz
-
Air Volume
-
540 m³/h
318 CFM
-
-
Consumption [W]
-
19.5
-
-
RPM [min⁻¹]
-
1,250
-
-
Noise [dB(A)]
-
38.4
-
-
-
Weight [kg]
-
3.3
-
-
Installation Space [mm]
-
250 x 250
-
FV-25AS2
-
220/50hz
-
Air Volume
-
858 m³/h
505 CFM
-
-
Consumption [W]
-
25
-
-
RPM [min⁻¹]
-
1,200
-
-
Noise [dB(A)]
-
39.1
-
-
-
220/60hz
-
Air Volume
-
954 m³/h
562 CFM
-
-
Consumption [W]
-
30.5
-
-
RPM [min⁻¹]
-
1,212
-
-
Noise [dB(A)]
-
40.6
-
-
-
230/50hz
-
Air Volume
-
864 m³/h
509 CFM
-
-
Consumption [W]
-
27.3
-
-
RPM [min⁻¹]
-
1,225
-
-
Noise [dB(A)]
-
39.3
-
-
-
240/50hz
-
Air Volume
-
888 m³/h
523 CFM
-
-
Consumption [W]
-
29.5
-
-
RPM [min⁻¹]
-
1,240
-
-
Noise [dB(A)]
-
39.7
-
-
-
Weight [kg]
-
3.8
-
-
Installation Space [mm]
-
300 x 300
-
FV-30AS2
-
220/50hz
-
Air Volume
-
1,182 m³/h
696 CFM
-
-
Consumption [W]
-
29.5
-
-
RPM [min⁻¹]
-
1,046
-
-
Noise [dB(A)]
-
39.2
-
-
-
220/60hz
-
Air Volume
-
1,164 m³/h
685 CFM
-
-
Consumption [W]
-
34.5
-
-
RPM [min⁻¹]
-
1,091
-
-
Noise [dB(A)]
-
39
-
-
-
230/50hz
-
Air Volume
-
1,248 m³/h
735CFM
-
-
Consumption [W]
-
31.7
-
-
RPM [min⁻¹]
-
1,100
-
-
Noise [dB(A)]
-
40.6
-
-
-
240/50hz
-
Air Volume
-
1,290 m³/h
759 CFM
-
-
Consumption [W]
-
34
-
-
RPM [min⁻¹]
-
1,130
-
-
Noise [dB(A)]
-
41.3
-
-
-
Weight [kg]
-
4.4
-
-
Installation Space [mm]
-
350 x 350
-
Note
-
For info on test conditions, please refer to the technical sheet.
