PM-PB8ULVR-W

8MP Varifocal Bullet IP Camera 4.3X Motorized Zoom

Panasonic Cameras are developed to deliver high-performance security solutions, safeguarding homes, shops, and offices with advanced technology and reliable surveillance. Integrated with intelligent analytics, the cameras can automatically detect and respond to specific security events such as line crossing, abandoned or missing objects, and more. These proactive features provide real-time alerts enhancing security and offering users greater peace of mind. The built-in Region of Interest (ROI) functionality allows users to prioritize Critical zones within the camera’s field of view.

Features

Key Features

• 8MP Varifocal bullet network camera
• 4.3x Optical Zoom
• 120dB Wide Dynamic Range
• Color Night Vision: Color: 0.015lux @F1.4, AGC ON
• IR range: 50~70m
• IP67 protection from dust and water
• Advanced encryption and access control
• NDAA

Key Features

4K Resolution

8MP 4K Ultra HD resolution delivers crystal-clear images with lifelike detail, ensuring no moment goes unnoticed.
*Image shown is for illustration purposes only.
4K Resolution

IP67 Weatherproof

Built to withstand dust and heavy rain, IP67-rated cameras offer reliable outdoor performance in extreme conditions.
IP67 Weatherproof

True WDR Technology

Wide Dynamic Range balances bright and dark areas, delivering clear images even in challenging lighting conditions.
True WDR Technology

Superior Night Vision

Advanced infrared technology enables clear video monitoring even in total darkness, ensuring round-the-clock security.
Superior Night Vision

Mobile App Access

Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Mobile App Access

Specs

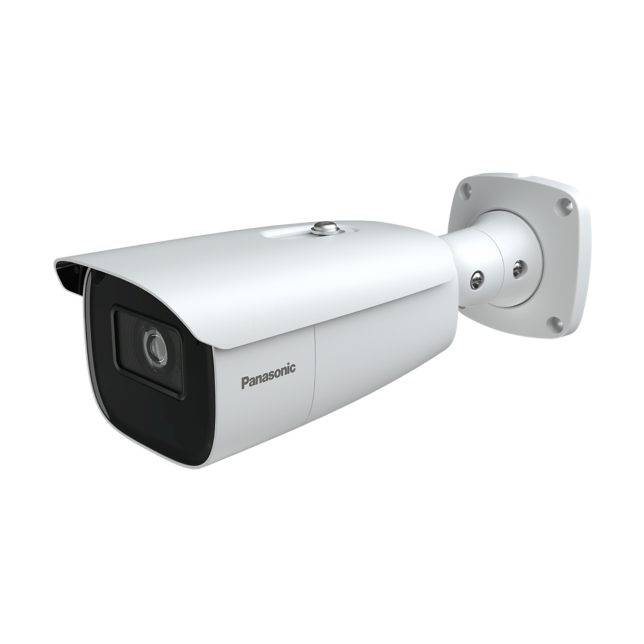

Photo of PM-PB8ULVR-W

8MP Varifocal bullet network camera

4.3x Optical Zoom

120dB Wide Dynamic Range

Color Night Vision: Color: 0.015lux @F1.4, AGC ON

IR range: 50~70m

CAMERA

  • Type

    • 8MP Varifocal Bullet Network Camera
  • Image Sensor

    • 1/2.8" CMOS
  • Max Resolution

    • 8MP (3840×2160)
  • Electronic Shutter

    • 1/3s~1/100000 s
  • Min. Illumination

    • Color: 0.015lux @F1.4, AGC ON
  • IR Distance / Light Range

    • 50~70m

Lens

  • Focal length

    • 2.8~12mm@F1.4
  • Focus

    • Motorized
  • Iris Type

    • DC AUTO
  • Optical zoom

    • 4.3x (Motorized zoom )
  • Lens Mount

    • Ø 14
  • Angular Field of View

    • H.FoV: 102°~32°
      V.FoV: 54°~17°
      D.FoV:120°~ 37°
  • Day & Night

    • ICR


  • Video Compression

    • Mainstream: H.265+/H.265/H.264+/H.264
      Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG
  • Supported Resolution

    • 8MP (3840x2160)
      6MP (3072x2048)
      5MP (2592x1944)
      4MP (2592x1520)
      2K (2560x1440)
      3MP (2304x1296)
      1080P (1920×1080)
      720P (1280×720)
      D1(704×480)
      640×480
      480×240
      CIF(352×288)
  • Number of Supported Stream

    • 3
  • Mainstream

    • 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps)
      50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps)
  • Sub Stream

    • 60Hz: 1080P (1~25fps)/720P/D1/640×480/480×240/CIF (1~30fps)
      50Hz: 1080P/720P/D1/640×480/480×240/CIF (1~25fps)
  • Third Stream

    • 60Hz: 720P/D1/480×240/CIF (1~30fps)
      50Hz: 720P/D1/480×240/CIF (1~25fps)
  • Bit Rate

    • 64Kbps~12Mbps
  • Bit Rate Type

    • VBR/CBR
  • Image Settings

    • ROI
      Saturation
      Brightness
      Hue
      Contrast
      Wide Dynamic
      Sharpness
      Image Mirror
      Image Flip
      NR
      etc. adjustable through client software or web browser
  • Audio Compression

    • G711A/U
  • Region Of Interest

    • Each ROI to be configured separately

Operational

  • Wide Dynamic Range(WDR)

    • 120dB
  • Back Light Compensation (BLC)

    • Yes
  • High Light Compensation (HLC)

    • Yes
  • Defog

    • -
  • Digital Noise Reduction (DNR)

    • Yes
  • S/N ratio

    • ≥ 50dB
  • Angle Adjustment

    • Pan: 0°~360°
      Tilt: 0°~90°
      Rotation: 0°~360°

INTERFACES

  • Network

    • RJ 45 10M/100M self-adaptive Ethernet port
  • Video

    • CVBS output (BNC x1)
  • Audio

    • 1CH audio input
      1CH audio output
  • Storage

    • Built-in micro SD card slot, up to 256GB
  • Alarm

    • 1CH alarm input
      1CH alarm output
  • RS485

    • -

DORI DISTANCE

  • Lens

    • 2.8~12mm(W)
      2.8~12mm(T)
  • Detect

    • 85m(278ft)
      289m(948ft)
  • Observe

    • 34m(111ft)
      116m(380ft)
  • Recognize

    • 17m(56ft)
      58m(190ft)
  • Identify

    • 8m(26ft)
      29m(95ft)

INTELLIGENT ANALYTICS

  • Statistics

    • Yes, with NVR or SD Card
  • Audio Exception Detection

    • Yes
  • Face Detection

    • Yes
  • Face Recognition and Matching

    • Yes, with NVR
  • Video Metadata(Human/Vehicle Attributes / Two Wheelers)

    • Simultaneously captures human body
      Motor vehicle and non-motor vehicle
      Extracts 13 human features
      4 motor vehicle features
      1 non-motor vehicle feature

Other Analytics

  • Motion Detection

    • -
  • Smart Alarm

    • Motion detection
      SMD
      SD card full, SD card error
      IP address conflict
      Cable disconnection
      Video exception (scene change, video blur and abnormal color detection)
  • Smart Event

    • Line crossing
      Region intrusion
      Entrance/exiting detection (human/motor vehicle/non-motor vehicle classification)
      Abandoned/missing object detection
      Loitering detection
      Illegal parking detection
      Target counting by line
      Target counting by area
      Heat map

FUNCTIONS

  • Remote Monitoring

    • Web browser
      NVR
      Panasonic VMS 2.X
      Mobile APP
  • Web Browser

    • Chrome 89.0+
      Edge 89.0+
      Firefox 87.0+
      Safari 14.0+
  • Online Connection

    • Support simultaneous monitoring for up to 10 users
      Support multi-stream real time transmission
  • Network Protocol

    • UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPS, HTTP POST,P2P, QoS
  • Interface Protocol

    • ONVIF Profile S/G/M/T
  • Other Functions

    • Watermark
      IP Address Filtering
      Video Mask
      Heartbeat
      ANR
      Cloud Upgrade
      Corridor Pattern
  • Security

    • Video encryption
      Firmware encryption
      Configuration encryption
      Illegal login lock
      IP address filtering
      802.1x authentication
      Basic and digest authentication for HTTP/RTSP
      NDAA

General

  • Power Supply

    • DC12V/PoE
  • PoE

    • Yes , IEEE802.3af/at
  • Power Consumption

    • <12W
  • Weather Protection

    • IP67 protection from dust and water
  • Operating Environment

    • -30°C~60°C (-22°F~140°F)
      Humidity: less than 95% (non-condensing)
  • Storage Environment

    • -30°C~65°C (-22°F~149°F)
      Humidity: less than 95% (non-condensing)
  • Dimensions (mm)

    • 272.3×94.9×88.9
  • Weight (net)

    • Approx. 1.04KG
  • Installation

    • Ceiling mounting
      Wall mounting
  • Certificate

    • EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020
      Safety: EN IEC 62368-1:2020+A11:2020
      RoHS: 2011/65/EU
  • Footnote / Disclaimer

    • Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
      Product dimensions and masses are approximate. Specifications are subject to change without notice.
