PM-VB4ULFT-W

4MP Fixed Bullet True Colour IP Camera

Panasonic’s latest AI-powered security cameras deliver twice the computing power compared to conventional models, unlocking superior performance across surveillance and image processing. At the heart of this innovation is the AI-ISP (Image Signal Processor), which dramatically enhances picture quality through advanced real-time optimization. Combined with an ultra-large F1.0 aperture and a stacked large-format CMOS sensor, the camera excels in capturing vivid, full-color images - even in near-total darkness, down to 0.0001 Lux. These cameras are engineered for intelligent efficiencies.
Add to WishlistRemove from Wishlist
PM-VB4ULFT-W
SHOP NOW

Features

Key Features

• 4MP Fixed bullet true colour Network camera
• 120dB Wide Dynamic Range
• Color Night Vision: Color: 0.0001 lux @F1.0, AGC ON
• 20~30m white light view distance
• IP67 protection from dust and water
• Advanced encryption and access control
• NDAA
Download Datasheet

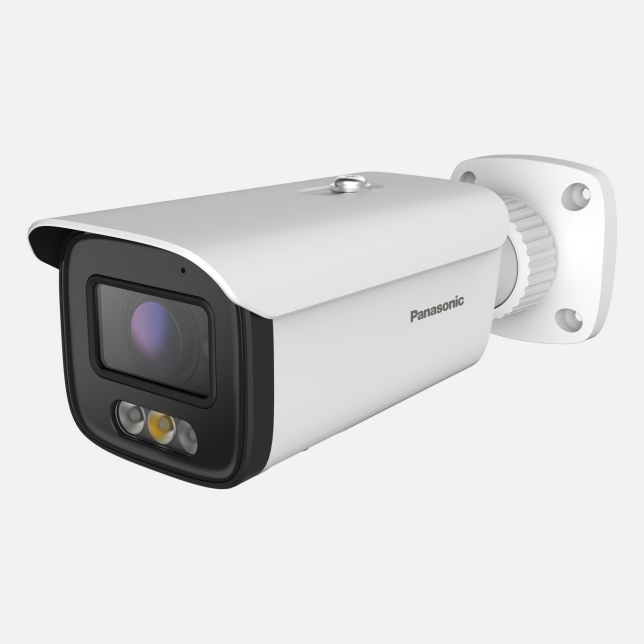

Key Features

4MP Resolution

4MP resolution captures sharper images with enhanced detail, ideal for identifying faces and objects at greater distances.
*Image shown is for illustration purposes only.
4MP Resolution

IP67 Weatherproof

Built to withstand dust and heavy rain, IP67-rated cameras offer reliable outdoor performance in extreme conditions.
IP67 Weatherproof

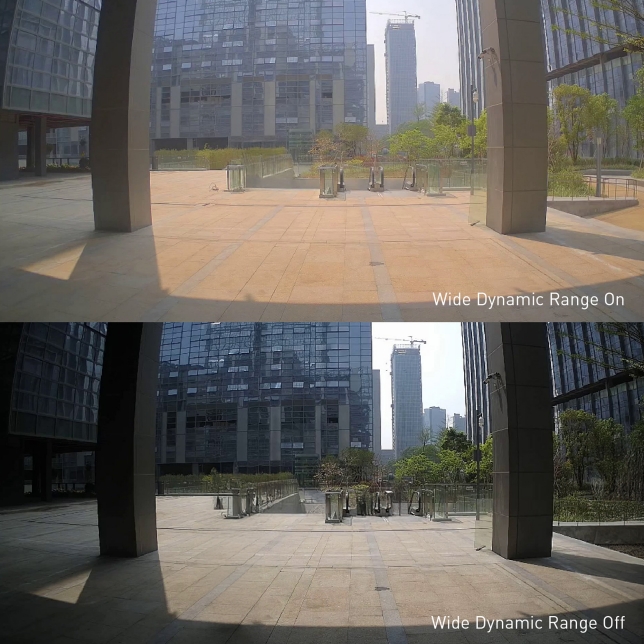

True WDR Technology

Wide Dynamic Range balances bright and dark areas, delivering clear images even in challenging lighting conditions.
True WDR Technology

True Color at Night

Captures rich, lifelike color visuals even in total darkness—bringing every detail to light for clearer, more natural night imagery.
True Color at Night

Mobile App Access

Stay connected anytime with our intuitive mobile app for live viewing, playback, and instant alerts from anywhere.
Download the App
Mobile App Access

Specs

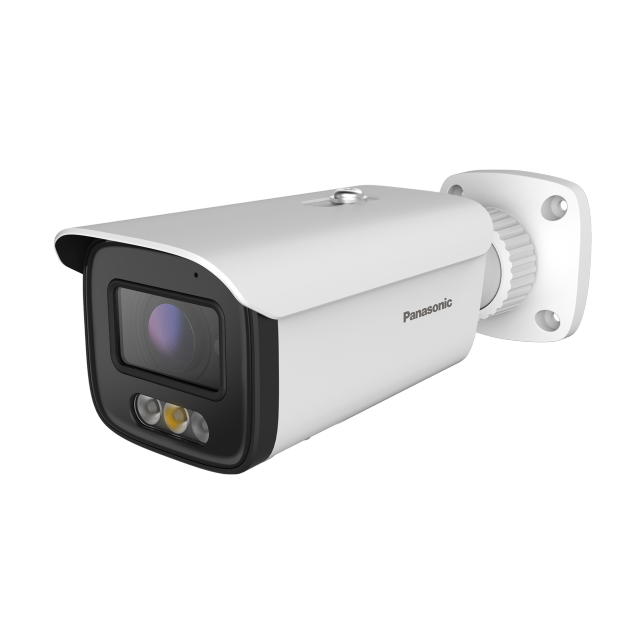

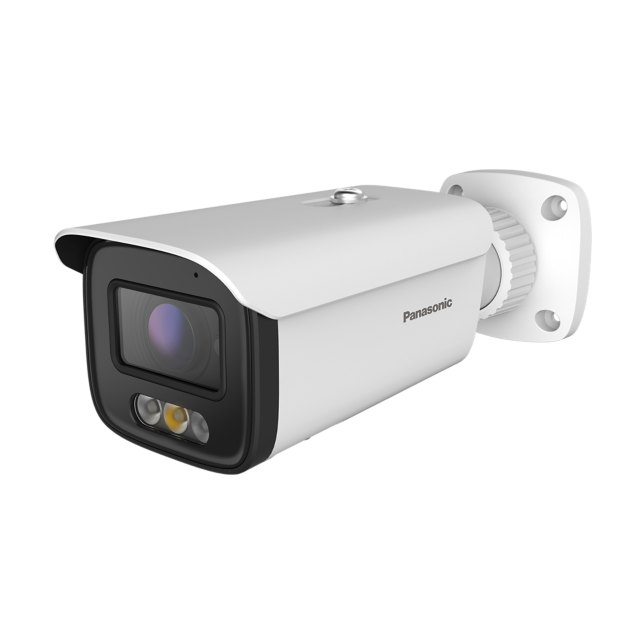

Photo of PM-VB4ULFT-W

4MP Fixed bullet true colour Network camera

120dB Wide Dynamic Range

Color Night Vision: Color: 0.0001 lux @F1.0, AGC ON

20~30m white light view distance

IP67 protection from dust and water

CAMERA

  • Type

    • 4MP Fixed Bullet True Colour Network Camera

  • Image Sensor

    • 1/1.79" CMOS

  • Max Resolution

    • 4MP (2688×1520)

  • Electronic Shutter

    • 1/3s ~ 1/100000s

  • Min. Illumination

    • Color: 0.0001 lux @F1.0, AGC ON

  • IR Distance / Light Range

    • 20~30m white light view distance

Lens

  • Focal length

    • 2.8mm@F1.0

  • Focus

    • Fixed

  • Iris Type

    • Fixed Iris

  • Lens Mount

    • M12

  • Angular Field of View

    • H.FoV: 112°
      V.FoV:61°
      D.FoV:132°

  • Day & Night

    • -


  • Video Compression

    • Mainstream: H.265+/H.265/H.264+/H.264
      Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG

  • Supported Resolution

    • 4MP (2688x1520)
      2K (2560x1440)
      1080P (1920×1080)
      720P (1280×720)
      D1(704×480)
      VGA (640×480)
      640×360
      480×240
      CIF(352×288)

  • Number of Supported Stream

    • 3

  • Mainstream

    • 60Hz: 4MP/2K/1080P (1~30fps)
      50Hz: 4MP/2K/1080P (1~25fps)

  • Sub Stream

    • 60Hz: 720P/D1/640x360/VGA/CIF/480×240 (1~30fps)
      50Hz: 720P/D1/640x360/VGA/CIF/480×240 (1~25fps)

  • Third Stream

    • 60Hz: 720P/D1/640x360/VGA/CIF/480×240 (1~30fps)
      50Hz: 720P/D1/640x360/VGA/CIF/480×240 (1~25fps)

  • Bit Rate

    • 32Kbps~8Mbps

  • Bit Rate Type

    • VBR/CBR

  • Image Settings

    • ROI
      Saturation
      Brightness
      Hue
      Contrast
      Wide Dynamic
      Sharpness
      Image Mirror
      Image Flip
      NR
      etc.adjustable through client software or web browser

  • Audio Compression

    • G711A/U

  • Region Of Interest

    • Each ROI to be configured separately

Operational

  • Wide Dynamic Range(WDR)

    • 120dB

  • Back Light Compensation (BLC)

    • Yes

  • High Light Compensation (HLC)

    • Yes

  • Defog

    • -

  • Digital Noise Reduction (DNR)

    • Yes

  • S/N ratio

    • ≥50dB

  • Angle Adjustment

    • Pan: 0°~360°
      Tilt: 0°~90°
      Rotation: 0°~360°

INTERFACES

  • Network

    • RJ 45 10M/100M self-adaptive Ethernet port

  • Video

    • -

  • Audio

    • 1CH audio input
      1CH built-in MIC

  • Storage

    • Built-in micro SD card slot, up to 512GB

  • Alarm

    • -

  • RS485

    • -

DORI DISTANCE

  • Lens

    • 2.8mm

  • Detect

    • 57m(187ft)

  • Observe

    • 23m(75ft)

  • Recognize

    • 11m(36ft)

  • Identify

    • 6m(20ft)

INTELLIGENT ANALYTICS

  • Statistics

    • -

  • Audio Exception Detection

    • Yes

  • Face Detection

    • Yes

Other Analytics

  • Motion Detection

    • -

  • Smart Alarm

    • Motion detection
      SMD
      SD card full, SD card error
      IP address conflict
      Network disconnection
      Video exception (scene change, video blur and abnormal detection)

  • Smart Event

    • Line crossing
      Region intrusion
      Entrance/exiting detection(human/motor vehicle/non-motor vehicle classification)
      Abandoned/missing object detection
      Target counting by line

FUNCTIONS

  • Remote Monitoring

    • Web browser
      NVR
      Panasonic VMS 2.X
      Mobile APP

  • Web Browser

    • Chrome 89.0+
      Edge 89.0+
      Firefox 87.0+
      Safari 14.0+

  • Online Connection

    • Support simultaneous monitoring for up to 10 users
      Support multi-stream real time transmission

  • Network Protocol

    • UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP
      PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS
      HTTP POST, P2P, QoS

  • Interface Protocol

    • ONVIF Profile S/G/M/T

  • Other Functions

    • Watermark
      Video Mask
      Heartbeat
      Image Distortion Correction
      Corridor Pattern
      ANR
      Cloud Upgrade
      Disarming

  • Security

    • Video encryption
      Firmware encryption
      Configuration encryption
      Illegal login lock
      IP address filtering
      802.1x authentication
      Basic and digest authentication for HTTP/RTSP
      NDAA

General

  • Power Supply

    • DC12V/PoE

  • PoE

    • Yes , IEEE802.3af

  • Power Consumption

    • < 6.5W

  • Weather Protection

    • IP67 protection from dust and water

  • Operating Environment

    • -30°C~60°C (-22°F~140°F)
      Humidity: less than 95% (non-condensing)

  • Storage Environment

    • -30°C~65°C (-22°F~149°F)
      Humidity: less than 95% (non-condensing)

  • Dimensions (mm)

    • 218.1x72.9x 73.1

  • Weight (net)

    • Approx. 0.64KG

  • Installation

    • Ceiling mounting
      Wall mounting

  • Certificate

    • EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020
      Safety: EN IEC 62368-1:2020+A11:2020
      RoHS: 2011/65/EU

  • Footnote / Disclaimer

    • Disclaimer: Panasonic accepts no responsibility or liability for the performance of the network, nor for any third-party products used in conjunction with this system.
      Product dimensions and masses are approximate. Specifications are subject to change without notice.
