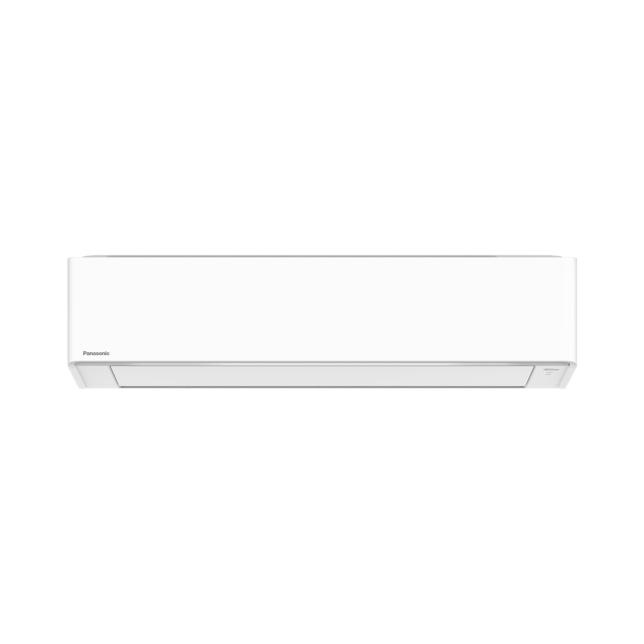

CS-PU24AKH
Instantly Cool Spaces On Demand
Panasonic Standard Inverter CS-PU24AKH features POWERFUL Mode for instant powerful cooling with just a push of a button. AEROWINGS directs airflow faster and further across the room. Achieve energy efficiency without compromising comfort with ECO Mode with A.I. Control, Inverter technology, and R32 refrigerant.
လုပ်ဆောင်ချက်
Better Living, Together with Energy-saving and Eco-friendly Technologies
Panasonic air conditioners have excellent energy efficiency with the use of energy-saving Inverter technology and environmentally friendly R32 refrigerant. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. A smarter, greener choice with energy-saving technologies for a sustainable living.
Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling even during start-up.
*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.
Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.
Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
အသေးစိတ်အချက်များ
အရွယ်အစားနှင့် အလေးချိန်
- အမြင့်
- 295mm
- အကျယ်
- 1,060mm
- အနက်
- 249mm
- အလေးချိန်
- 12kg
- POWERFUL Mode
- Inverter
- ECO Mode with A.I. Control
- AEROWINGS
- R32 Refrigerant
- Quiet Mode
- Sleep Mode
POWERFUL Mode lets you enjoy instant powerful cooling during start-up
Intelligently balances energy savings and comfort using ECO Mode with A.I. Control
AEROWINGS concentrates cool air for further and faster airflow across the room
Energy savings with Inverter and environmentally friendly R32 refrigerant
Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment
Cooling Capacity (min-max) (kW)
-
6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h)
-
21,300 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW)
-
11.83 (15.28-11.78) Btu/hW
EER (min-max) (W/W)
-
3.47 (4.48-3.45) W/W
Voltage (V)
-
220-240 V
Current (A)
-
8.3-7.6 A
Power Input (min-max) (W)
-
1,800 (250-2,080) W
Moisture Removal (L/h)
-
3.5 L/h
Moisture Removal (Pt/h)
-
7.4 Pt/h
Indoor Unit Air Circulation
-
19.9 m³/min (700 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)
-
45/34/29 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)
-
295 mm x 1,060 mm x 249 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)
-
11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)
-
314 mm x 1,168 mm x 383 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)
-
12-3/8 inch x 46 inch x 15-3/32 inch
Indoor Unit Net Weight
-
12 kg (26 lb)
Outdoor Unit Air Circulation
-
34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H)
-
51 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)
-
619 mm x 824 mm x 299 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)
-
24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)
-
684 mm x 967 mm x 425 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)
-
26-15/16 inch x 38-3/32 inch x 16-3/4 inch
Outdoor Unit Net Weight
-
32 kg (71 lb)
Refrigerant Pipe Diameter (Liquid Side)
-
ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)
-
ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)
-
10 m
Pipe Extension (Maximum Pipe Length)
-
30 m
Pipe Extension (Maximum Elevation Length)
-
20 m
Pipe Extension (Additional Refrigerant Gas*)
-
15 g/m
Power Supply
-
Indoor
Odour Removing Function
-
Yes
24-Hour Dual ON & OFF Real Setting Timer
-
Yes
LCD Wireless Remote Control
-
Yes
Wired Remote Control
-
Optional
Powerful Mode
-
Yes
Sleep Mode
-
Yes
Quiet Mode
-
Yes
Soft Dry Operation Mode
-
Yes
Airflow Direction Control (Up & Down)
-
Yes
Manual Horizontal Airflow Direction Control
-
Yes
Inverter Control
-
Yes
Refrigerant Type
-
R32
ECO Mode with A.I.
-
Yes
Random Auto Restart
-
Yes (32 Restart Patterns)
Blue Fin Condenser
-
Yes
Long Piping (max.)
-
30 m
Top Panel Maintenance Access
-
Yes
Self-Diagnostic Function
-
Yes
Note
-
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
