R32 Non-Inverter Fresh Series Ceiling Ducted

A slim-type model with a interchangeable air intake that remains concealed in the ceiling

R32 Non-Inverter Fresh Series Ceiling Ducted units are suitable for premises with concealed or false ceilings, such as business centers. The rear air intake is standard.

Please Select Your User Type

R32 Non-Inverter Fresh Series Ceiling Ducted

Features

Btu/h (rated)	18,000	24,000	30,000	36,000	48,000	60,000
Phase	1Ø Phase	1Ø Phase	1Ø Phase	3Ø Phase	3Ø Phase	3Ø Phase
Indoor Unit	S-18PFB1H5C	S-24PFB1H5B	S-30PFB1H5B	S-36PFB1H5B	S-48PFB1H5B	S-60PFB1H5B
Outdoor Unit	U-18PNB1H5	U-24PNB1H5	U-30PNB1H5	U-36PNB1H8	U-48PNB1H8	U-60PNB1H8

Precise Control, Easy Comfort

Panasonic Fresh Series remote controllers are designed with user convenience in mind. Multiple settings are available so airflow and air quality can be regulated according to preferences.

Compact Outdoor Unit

Compact outdoor units are built to be compact with versatile piping and draining methods and offer side-by-side installation capability.

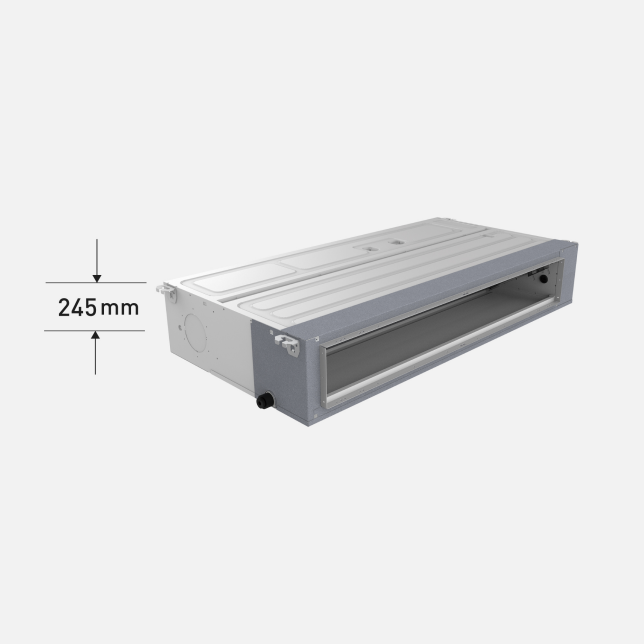

Easily Installed in Limited Spaces

The unit has a height of only 245 mm*, so it allows installation in limited ceiling spaces. The lightweight, attractive design simplifies installation and matches virtually all room interiors.

Specs

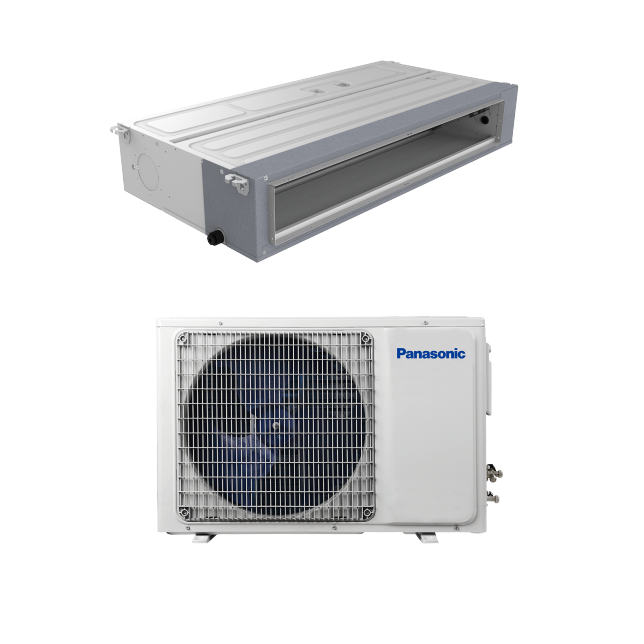

S-18PFB1H5C_U-18PNB1H5

S-24PFB1H5B_U-24PNB1H5

S-30PFB1H5B_U-30PNB1H5

S-36PFB1H5B_U-36PNB1H8

S-48PFB1H5B_U-48PNB1H8

S-60PFB1H5B_U-60PNB1H8

Fresh Series
R32

Interchangeable air intake

The slim design makes height only 245 mm

Precise control, easy comfort

Wired remote controller included

	S-18PFB1H5C_U-18PNB1H5	S-24PFB1H5B_U-24PNB1H5	S-30PFB1H5B_U-30PNB1H5	S-36PFB1H5B_U-36PNB1H8	S-48PFB1H5B_U-48PNB1H8	S-60PFB1H5B_U-60PNB1H8
Power Source	220-240 V, 1 phase - 50 Hz	220-240 V, 1 phase - 50 Hz	220-240 V, 1 phase - 50 Hz	380-415 V, 3 phase - 50 Hz	380-415 V, 3 phase - 50 Hz	380-415 V, 3 phase - 50 Hz
Indoor	S-18PFB1H5C	S-24PFB1H5B	S-30PFB1H5B	S-36PFB1H5B	S-48PFB1H5B	S-60PFB1H5B
Outdoor	U-18PNB1H5	U-24PNB1H5	U-30PNB1H5	U-36PNB1H8	U-48PNB1H8	U-60PNB1H8
Cooling Capacity: Rated	5.28 kW, 18,000 Btu/h	7.03 kW, 24,000 Btu/h	8.79 kW, 30,000 Btu/h	10.55 kW, 36,000 Btu/h	14.07 kW, 48,000 Btu/h	17.58 kW, 60,000 Btu/h
Current	7.50 A	10.40 A	12.50 A	6.69 A	8.35 A	10.00 A
Power Input: Rated	1.73 kW	2.34 kW	2.74 kW	3.6 kW	4.67 kW	5.71 kW
COP/EER	3.05 W/W, 10.41 Btu/hW	3.00 W/W, 10.24 Btu/hW	3.21 W/W, 10.95 Btu/hW	2.93 W/W, 10.00 Btu/hW	3.01 W/W, 10.27 Btu/hW	3.08 W/W, 10.51 Btu/hW
External Static Pressure	50 Pa	50 Pa	50 Pa	50 Pa	80 Pa	80 Pa
Indoor Unit: Air Volume (Hi/Mi/Lo)	13.3/12.5/11.3 m³/min, 471/441/400 cfm	20.6/18.3/16.5 m³/min, 727/646/583 cfm	24.8/21.8/20.8 m³/min, 876/770/735 cfm	24.8/21.8/20.8 m³/min, 876/770/735 cfm	32.1/27.1/24.3 m³/min, 1,134/957/858 cfm	32.1/27.1/24.3 m³/min, 1,134/957/858 cfm
Indoor Unit: Sound Pressure Level (Hi/Mi/Lo)	38/36/32 dB (A)	39/36/33 dB (A)	41/38/35 dB (A)	41/38/35 dB (A)	44/43/39 dB (A)	44/43/39 dB (A)
Indoor Unit: Sound Power Level (Hi/Mi/Lo)	46/44/40 dB	47/44/41 dB	51/48/45 dB	51/48/45 dB	54/52/49 dB	54/52/49 dB
Indoor Unit: Dimension	H245 × W700 × D700 mm	H245 × W1,000 × D700 mm	H245 × W1,000 × D700 mm	H245 × W1,000 × D700 mm	H245 × W1,400 × D700 mm	H245 × W1,400 × D700 mm
Indoor Unit: Package Dimension	H300 × W930 × D830 mm	H300 × W1,230 × D830 mm	H300 × W1,230 × D830 mm	H300 × W1,230 × D830 mm	H300 × W1,630 × D830 mm	H300 × W1,630 × D830 mm
Indoor Unit: Net Weight/Gross Weight	22.0/26.0 kg	32.0/37.0 kg	32.0/37.0 kg	32.0/37.0 kg	40.0/47.0 kg	40.0/47.0 kg
Outdoor Unit: Sound Pressure Level	53 dB (A)	54 dB (A)	56 dB (A)	56 dB (A)	57 dB (A)	58 dB (A)
Outdoor Unit: Sound Power Level	64 dB	65 dB	66 dB	66 dB	67 dB	68 dB
Outdoor Unit: Dimension	H545 x W800 x D315 mm	H655 x W825 x D310 mm	H700 x W900 x D350 mm	H805 x W970 x D395 mm	H805 x W970 x D395 mm	H1,325 x W940 x D370 mm
Outdoor Unit: Package Dimension	H620 x W920 x D400 mm	H725 x W945 x D435 mm	H770 x W1,020 x D430 mm	H890 x W1,105 x D495 mm	H890 x W1,105 x D495 mm	H1,440 x W1,080 x D430 mm
Outdoor Unit: Net Weight/Gross Weight	36.0/39.0 kg	44.0/47.5 kg	53.0/57.0 kg	62.0/66.0 kg	72.0/76.0 kg	93.0/103.0 kg
Outdoor Unit: Piping Connection (Gas Pipe)	12.7 mm (1/2 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)	19.05 mm (3/4 inch)
Outdoor Unit: Piping Connection (Liquid Pipe)	6.35 mm (1/4 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)
Outdoor Unit: Pipe Length (Max)	30 m	30 m	30 m	50 m	50 m	50 m
Outdoor Unit: Elevation Difference	20 m	20 m	20 m	30 m	30 m	30 m
Outdoor Unit: Maximum Chargeless Length (Max)	5 m	5 m	5 m	5 m	5 m	5 m
Outdoor Unit: Additional Gas	30 g/m	50 g/m	50 g/m	50 g/m	50 g/m	50 g/m
Outdoor Unit: Operating Range, Outdoor (Min-Max)	17-49 °C	17-49 °C	17-49 °C	17-49 °C	17-49 °C	17-49 °C
