Eco Inverter YU Series (AKH-1)

Retail sales price:from RM 1,684.00

SHOP NOW

Energy Labels

Model Number CS-YU9AKH-1_CU-YU9AKH-1 CS-YU12AKH-1_CU-YU12AKH-1 CS-YU18AKH-1_CU-YU18AKH-1 CS-YU24AKH-1_CU-YU24AKH-1 CS-YU30AKH-1_CU-YU30AKH-1
Horsepower 1.0 HP 1.5 HP 2.0 HP 2.5 HP 3.0 HP
Energy Efficiency Label

Eco Inverter YU Series (AKH-1)

Efficient Savings, Convenient Cooling

Panasonic Eco Inverter YU Series (AKH-1) leverages Inverter technology to deliver outstanding efficiency, while the intelligent ECO Mode with A.I. Control seamlessly balances comfort and energy savings. Enjoy instant, powerful cooling with just a push of the POWERFUL mode button. Manage your air conditioners directly from your mobile device with the Panasonic Comfort Cloud App (optional network adaptor required). Experience the perfect blend of cooling convenience and eco-performance.
  • Panasonic Comfort Cloud App
  • POWERFUL Mode
  • Inverter
  • ECO Mode with A.I. Control
Zoom In
Zoom Out
Close
Eco Inverter YU Series (AKH-1)
Retail sales price:from RM 1,684.00

Specs

CS-YU9AKH-1_CU-YU9AKH-1

Photo of CS-YU9AKH-1_CU-YU9AKH-1

CS-YU12AKH-1_CU-YU12AKH-1

Photo of CS-YU12AKH-1_CU-YU12AKH-1

CS-YU18AKH-1_CU-YU18AKH-1

Photo of CS-YU18AKH-1_CU-YU18AKH-1

CS-YU24AKH-1_CU-YU24AKH-1

Photo of CS-YU24AKH-1_CU-YU24AKH-1

CS-YU30AKH-1_CU-YU30AKH-1

Photo of CS-YU30AKH-1_CU-YU30AKH-1
  • Panasonic Comfort Cloud AppPanasonic Comfort Cloud App
  • POWERFUL ModePOWERFUL Mode
  • InverterInverter
  • ECO Mode with A.I. ControlECO Mode with A.I. Control
  • BIG FLAPBIG FLAP
  • AEROWINGSAEROWINGS
  • R32 RefrigerantR32 Refrigerant
  • Quiet ModeQuiet Mode
  • Sleep ModeSleep Mode

Energy savings with Inverter technology

Balances energy savings and comfort using ECO Mode with A.I. Control

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-YU9AKH-1_CU-YU9AKH-1 CS-YU12AKH-1_CU-YU12AKH-1 CS-YU18AKH-1_CU-YU18AKH-1 CS-YU24AKH-1_CU-YU24AKH-1 CS-YU30AKH-1_CU-YU30AKH-1
Cooling Capacity (min-max) (kW) 2.65 (1.00-2.78) kW 3.52 (1.15-3.62) kW 5.30 (1.30-5.60) kW 6.80 (1.50-7.04) kW 8.80 (1.70-9.10) kW
Cooling Capacity (min-max) (Btu/h) 9,040 (3,410-9,480) Btu/h 12,000 (3,920-12,300) Btu/h 18,100 (4,430-19,100) Btu/h 23,200 (5,120-24,000) Btu/h 30,000 (5,800-31,000) Btu/h
EER (min-max) (Btu/hW) 11.30 (14.21-10.53) Btu/hW 10.00 (13.52-9.76) Btu/hW 10.90 (13.84-10.16) Btu/hW 11.90 (14.63-11.43) Btu/hW 10.34 (14.50-9.69) Btu/hW
EER (min-max) (W/W) 3.31 (4.17-3.09) W/W 2.93 (3.97-2.87) W/W 3.19 (4.06-2.98) W/W 3.49 (4.29-3.35) W/W 3.03 (4.25-2.84) W/W
CSPF (W/W) 4.38 W/W (3★) 3.98 W/W (3★) 4.84 W/W (4★) 4.92 W/W (4★) -
Voltage (V) 230 V 230 V 230 V 230 V 230 V
Current (A) 3.80 A 5.70 A 7.30 A 8.60 A 12.70 A
Power Input (min-max) (W) 800 (240-900) W 1,200 (290-1,260) W 1,660 (320-1,880) W 1,950 (350-2,100) W 2,900 (400-3,200) W
Moisture Removal (L/h) 1.6 L/h 2.0 L/h 2.9 L/h 3.9 L/h 5.0 L/h
Moisture Removal (Pt/h) 3.4 Pt/h 4.2 Pt/h 6.1 Pt/h 8.2 Pt/h 10.6 Pt/h
Indoor Unit Air Circulation 10.3 m³/min (365 ft³/min) 11.0 m³/min (390 ft³/min) 12.6 m³/min (445 ft³/min) 19.9 m³/min (700 ft³/min) 25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo) 38/26/21 dB(A) 40/28/21 dB(A) 44/34/28 dB(A) 45/34/28 dB(A) 51/41/38 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 290 mm x 765 mm x 214 mm 290 mm x 765 mm x 214 mm 290 mm x 765 mm x 214 mm 295 mm x 1,060 mm x 249 mm 309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-7/16 inch x 30-1/8 inch x 8-7/16 inch 11-7/16 inch x 30-1/8 inch x 8-7/16 inch 11-7/16 inch x 30-1/8 inch x 8-7/16 inch 11-5/8 inch x 41-3/4 inch x 9-13/16 inch 12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Net Weight 8 kg (18 lb) 8 kg (18 lb) 9 kg (20 lb) 12 kg (26 lb) 15 kg (33 lb)
Indoor Unit Gross Weight 9 kg (20 lb) 9 kg (20 lb) 10 kg (22 lb) 15 kg (33 lb) -
Outdoor Unit Air Circulation 26.7 m³/min (940 ft³/min) 24.3 m³/min (860 ft³/min) 39.3 m³/min (1,390 ft³/min) 34.9 m³/min (1,230 ft³/min) 51.4 m³/min (1,810 ft³/min)
Outdoor Unit Noise Level (H) 48 dB(A) 51 dB(A) 52 dB(A) 53 dB(A) 54 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 511 mm x 650 mm x 230 mm 511 mm x 650 mm x 230 mm 619 mm x 824 mm x 299 mm 619 mm x 824 mm x 299 mm 695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch) 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Net Weight 17 kg (37 lb) 19 kg (42 lb) 27 kg (60 lb) 30 kg (66 lb) 40 kg (88 lb)
Outdoor Unit Gross Weight 19 kg (42 lb) 21 kg (46 lb) 30 kg (66 lb) 33 kg (73 lb) -
Refrigerant Type R32 R32 R32 R32 R32
Refrigerant Amount 420 g 610 g 690 g 870 g 1,230 g
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 12.70 mm (1/2 inch) ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m 7.5 m 10 m 10 m 10 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m 30 m
Pipe Extension (Maximum Elevation Length) 15 m 15 m 20 m 20 m 20 m
Pipe Extension (Additional Refrigerant Gas*) 10 g/m 10 g/m 15 g/m 15 g/m 25 g/m
Power Supply Indoor Indoor Indoor Indoor Outdoor
Odour Removing Function Yes Yes Yes Yes Yes
Removable, Washable Panel Yes Yes Yes Yes Yes
Wi-Fi Optional (Network adaptor required) Optional (Network adaptor required) Optional (Network adaptor required) Optional (Network adaptor required) Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes Yes
Wired Remote Control Optional Optional Optional Optional Optional
Powerful Mode Yes Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes Yes Yes
Manual Horizontal Airflow Direction Control Yes Yes Yes Yes Yes
Inverter Control Yes Yes Yes Yes Yes
ECO Mode with A.I. Yes Yes Yes Yes Yes
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes Yes
Long Piping (maximum) 20 m 20 m 30 m 30 m 30 m
Top Panel Maintenance Access Yes Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes Yes
Note *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Documents

Features

Cool Efficiency, Energy-Saving with Inverter Technology

Cool Efficiency, Energy-Saving with Inverter Technology

Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

LEARN MORE

Note: Up to 41% energy savings based on the comparison of the 2.5HP Eco Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings while providing consistent cooling comfort.

Intelligently Balances Energy Savings and Comfort

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

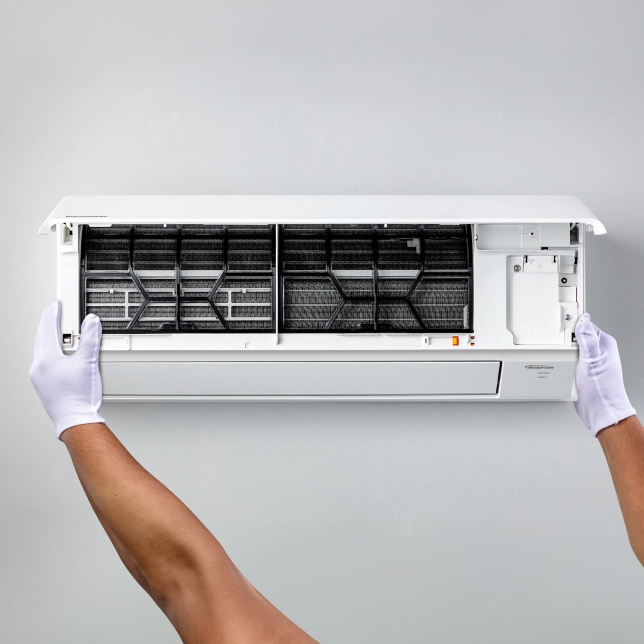

Installation and Servicing Made Easier

Panasonic air conditioners come with many design innovations and improvements. No more struggling to disassemble components, not being able to see what you’re doing, squeeze in pipes or having to juggle tools with one hand. Working with Panasonic air conditioners is now faster, easier and simpler than ever.
Installation and Servicing Made Easier

Instant Powerful Cooling with a Push of a Button

POWERFUL mode cools your room faster, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.
Instant Powerful Cooling with a Push of a Button

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Range

Model

Horsepower

1.0 HP

1.5 HP

2.0 HP

2.5 HP

3.0 HP

Cooling Capacity

2.65 kW

3.52 kW

5.30 kW

6.80 kW

8.80 kW

9,040 Btu/h

12,000 Btu/h

18,100 Btu/h

23,200 Btu/h

30,000 Btu/h

Indoor Unit

CS-YU9AKH-1

CS-YU12AKH-1

CS-YU18AKH-1

CS-YU24AKH-1

CS-YU30AKH-1

Outdoor Unit

CU-YU9AKH-1

CU-YU12AKH-1

CU-YU18AKH-1

CU-YU24AKH-1

CU-YU30AKH-1

Retail Sales Price

RM 1,684.00

RM 2,187.00

RM 3,450.00

RM 3,898.00

RM 4,770.00
