Seri-Para Communication Box for each Indoor Unit

Contact Us
Go To Pro Club
Twitter Facebook Addthis

CZ-CAPBC2

Interfaces for External Control
(Digital connection)

Control and status monitoring is possible for each individual indoor unit (or any external electrical device up to 250 V AC, 10 A) by contact signal.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CAPBC2
Contact Us

Specs

CZ-CAPBC2

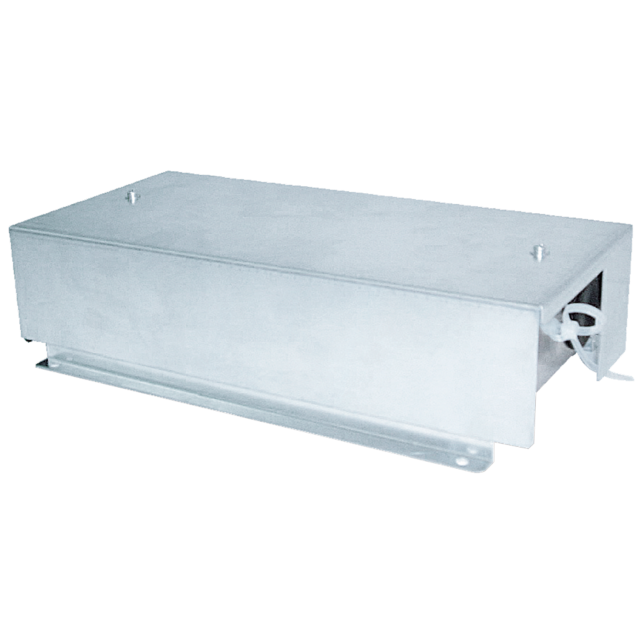

Photo of CZ-CAPBC2

Control and status monitoring is possible for individual indoor unit (1 group).

In addition to operation and stop, there is a digital input function for air speed and operation mode.

Temperature setting and measuring of the indoor suction temperature can be performed from central monitoring.

The analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm.

Power is supplied from the T10 terminal of the indoor units.

Separate power supply also is possible (in case of suction temperature measuring).

CZ-CAPBC2
Power DC12V
Power consumption 1.2W, 0.1A
Operating environment conditions Temperature: -10 to 50°C; Humidity: 20 to 80%;for indoor use only
External dimensions (mm) 256.0 (w) x 136.0 (d) x 63.8 (h)
Weight 0.9 kg
