CZ-CAPC3

Adaptor for ON/OFF Control of ERV or 3rd Party Devices

Control and status monitoring is possible for individual indoor unit (or any external electrical device up to 250V AC, 10A) by contact signal.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CAPC3
Contact Us

Specs

CZ-CAPC3

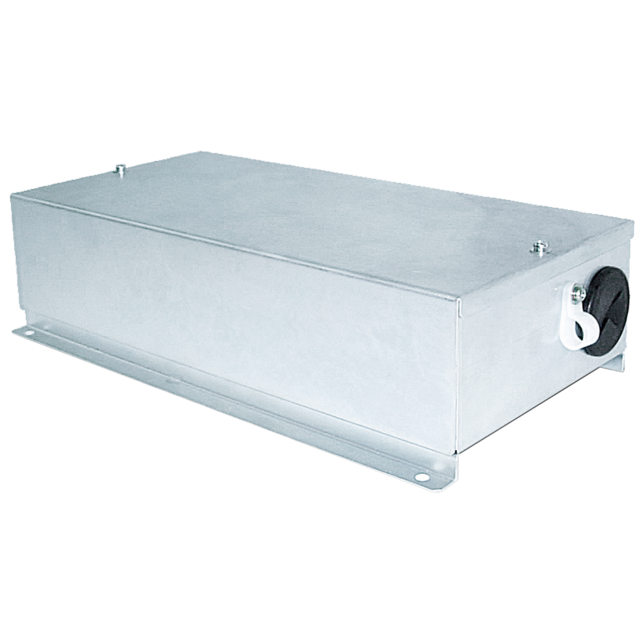

Photo of CZ-CAPC3

Control and status monitoring is possible for each individual indoor unit by contact signal.

Control and status monitoring is possible for each individual any external electrical device up to 250 V AC, 10 A by contact signal.

CZ-CAPC3
Dimensions (mm) (H) 140 × (W) 280 × (D) 60
Weight 950 g
Temperature/Humidity range 0 °C to 40 °C / 20% to 80%(Indoor use only)
Rated voltage/Rated frequency Single phase 100 – 240 V / 50 – 60 Hz
Power consumption Max. 3.0 W

Documents

Combination

ERV

ERV Standard Series

Continuous 24-hour ventilation brings fresh air into the house and expels stale air. An Energy Recovery Ventilator minimises air conditioning energy-loss, creating a highly efficient and energy-saving ventilation environment.

Controller and Accessory

CZ-64ESMC3

Controls 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)

CZ-ANC3

Collective control of 16 groups of indoor units and individual group (unit) control are also possible.

CZ-256ESMC3

This unit is a centralized air conditioning management system designed for your advanced requirements in various types of buildings, such as offices, hotels and more.

CZ-CSWKC2

P-AIMS (Panasonic - Air Conditioning Intelligent Management System) is a system for integrated monitoring and control of air conditioners using a network from a personal computer. Combining basic software with optional software realizes integrated monitoring and control of all types of building equipment.

CZ-CAPRA1

Realizing full control of split air-conditioning system by centralised controllers on S-Link.

VRF and GHP

2-Way Cooling or Heating FSV-EX ME2 Series

The FSV system ME2 Series is designed for outstanding energy-saving performance, powerful operation, high reliability, and comfort surpassing anything that was previously possible.

2-Way Cooling or Heating Mini-FSV LE Series

The Mini-FSV system LE Series is designed for light commercial and residential use with extraordinary energy-saving performance and a high external static pressure of 35Pa.

2-Way GE3 Series

The Panasonic Gas Heat Pump (GHP) VRF system powerfully and efficiently generates high-quality air whilst conserving energy by reducing power consumption. The system also saves energy by suppressing peak-time electricity consumption.

F3 Type Mid Static Adaptive Ducted

F3 Type Mid Static Adaptive Ducted units are slim and boast excellent performance, making them ideal for installation environments with low ceilings and vertical installations. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

M1 Type Slim Low Static Ducted

M1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

Z1 Type Slim Low Static Ducted Twenty Series

Z1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

E2 Type High Static Ducted/High Fresh Air Ducted

E2 Type High Static Ducted/High Fresh Air Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation (except for S-180ME2E5).

E1 Type High Static Ducted

E1 Type High Static Ducted units offer improved design flexibility for extended duct layouts thanks to their increased external static pressure.

H1 Type High Fresh Air Ducted

H1 Type High Static Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation.

K2 Type Wall Mounted

K2 Type Wall Mounted units boast a stylish design and are compact and lightweight, making them easy to install. Their quiet operation makes them ideal for small offices, hotel rooms, and hospital rooms.

U2 Type 4-Way Cassette

U2 Type 4-Way Cassette units have a flat design and a built-in drain pump that allows for flexible installation and design options that blend in with interiors and buildings. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

Y3 Type 4-Way Mini Cassette

Y3 Type 4-Way Mini Cassette units feature a design compact enough to fit into a 60 × 60 cm ceiling grid with easy installation. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

L1 Type 2-Way Cassette

L1 Type 2-Way Cassette units are very thin, compact, and light, allowing for flexibility in installation. The fan has been redesigned to achieve its size and weight reductions.

D1 Type 1-Way Cassette

D1 Type 1-Way Cassette units feature a slim design that can be installed in small ceiling spaces. The quiet yet powerful fan blows air to the floor from a ceiling height of up to 4.2 m.

T2 Type Ceiling Mounted

T2 Type Ceiling Mounted units offer excellent energy-saving performance and comfortable long-distance airflow distribution, making them ideal for stores and schools.

P1 Type Floor Standing

P1 Type Floor Standing units have a compact design and are an ideal solution for providing perimeter air conditioning. A standard wired controller can be integrated into the units.

R1 Type Concealed Floor Standing

R1 Type Concealed Floor Standing units are only 229 mm deep and can be easily concealed in the perimeter area for powerful and effective air conditioning.

Single Split Packaged Air Conditioner

R32 Inverter NX Series Deluxe 4-Way Cassette

R32 Inverter NX Series Deluxe 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark3 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Standard 4-Way Cassette

R32 Inverter NX Series Standard 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark2 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Ceiling Exposed

R32 Inverter NX Series Ceiling Exposed units provide a new level of air quality thanks to the further and wider airflow distribution of the nanoe X Generator Mark2, as well as extra convenience with a new IoT remote controller.

R32 Inverter NX Series Adaptive Ducted

R32 Inverter NX Series Adaptive Ducted units provide a new level of air quality thanks to the nanoe X Generator Mark2, extra convenience with a new IoT remote controller, and flexibility with the ability to be installed vertically in addition to horizontally.

R32 Inverter NX Series Deluxe

The higher energy efficiency of the R32 refrigerant provides superior energy savings. This series also ensures powerful operation even in extremely hot environments.

R32 Inverter NX Series Standard

The higher energy efficiency of the R32 refrigerant provides superior energy savings. These outdoor units are designed to fit into any space or layout.

Split Air Conditioner (Connecting adaptor required)

R32 Non-Inverter 4-Way Cassette

R32 Non-Inverter 4-Way Cassettes deliver industry-leading powerful airflow and a cleaner environment thanks to nanoe™ X. With their ease of installation and sleek exterior, they are a perfect match for modern interiors. They are also more environmentally friendly thanks to their use of R32 refrigerant.

R410A Non-Inverter 4-Way Cassette

R410A Non-Inverter 4-Way Cassettes deliver a cleaner environment thanks to nanoe™ X. With their ease of installation and sleek exterior, they are a perfect match for modern interiors.

R410A Non-Inverter Ceiling Exposed

R410A Non-Inverter Ceiling Exposed units provide comfort and far and wide airflow distribution, making them perfect for retail stores and schools.

R410A Non-Inverter Ceiling Ducted

R410A Non-Inverter Ceiling Ducted units are suitable for premises with concealed or false ceilings, such as business centers. They offer remarkable overall cooling of the entire room.

R410A Inverter Mini Cassette

R410A Inverter Mini Cassettes equipped with a 4-way airflow system offer energy-saving performance. They are compact and particularly suitable for small- to medium-sized offices and restaurants.

R410A Non-Inverter Mini Cassette

R410A Non-Inverter Mini Cassettes are compact and particularly suitable for small- to medium-sized offices and restaurants.

Features

Interface Adaptor

Control and status monitoring is possible for each individual indoor unit (or any external electrical device up to 250 V AC, 10 A) by contact signal.
1) ON/OFF controller, CZ-ANC3
Interface Adaptor
