Optional Interface Adaptor for Split Air-Conditioners with Centralised Controllers

Contact Us
Go To Pro Club
Twitter Facebook Addthis

CZ-CAPRA1

Connecting RAC/PAC Range to S-Link (Commercial Systems)

Realizing full control of split air-conditioning system by centralised controllers on S-Link.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CAPRA1
Contact Us

Specs

CZ-CAPRA1

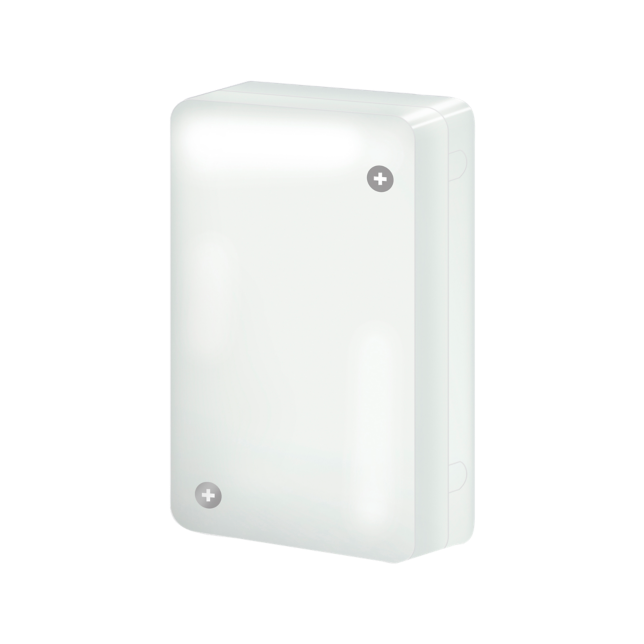

Photo of CZ-CAPRA1

Basic operation items ; ON/OFF, mode select, Temperature setting, Fan speed, Flap setting, etc.

External input: ON/OFF control signal, Abnormal stop signal.

External output for Relay * : Operation status [ON/OFF], Alarm status output.

* Because current CN-CNT connector can not provide the power for external output relay, additional input power for external relay is necessary.

CZ-CAPRA1
Dimensions (mm) (H) 120 x (W) 70 x (D) 32.5
Weight 155 g
Temperature/Humidity range 0 ˚C to 40 ˚C /
20 % to 80 % (no condensation)
*Indoor use only.
Power Source DC12 V (supplied with room air conditioner)

Documents

Combination

R32 Non-Inverter 4-Way Cassette

R32 Non-Inverter 4-Way Cassettes deliver industry-leading powerful airflow and a cleaner environment thanks to nanoe™ X. With their ease of installation and sleek exterior, they are a perfect match for modern interiors. They are also more environmentally friendly thanks to their use of R32 refrigerant.

R410A Non-Inverter 4-Way Cassette

R410A Non-Inverter 4-Way Cassettes deliver a cleaner environment thanks to nanoe™ X. With their ease of installation and sleek exterior, they are a perfect match for modern interiors.

R410A Non-Inverter Ceiling Exposed

R410A Non-Inverter Ceiling Exposed units provide comfort and far and wide airflow distribution, making them perfect for retail stores and schools.

R410A Non-Inverter Ceiling Ducted

R410A Non-Inverter Ceiling Ducted units are suitable for premises with concealed or false ceilings, such as business centers. They offer remarkable overall cooling of the entire room.

R410A Inverter Mini Cassette

R410A Inverter Mini Cassettes equipped with a 4-way airflow system offer energy-saving performance. They are compact and particularly suitable for small- to medium-sized offices and restaurants.

R410A Non-Inverter Mini Cassette

R410A Non-Inverter Mini Cassettes are compact and particularly suitable for small- to medium-sized offices and restaurants.

Features

Integrates Any Unit in Big System Control

This is the connecting adaptor for RAC/PAC range to Panasonic communication bus line for commercial systems (S-Link).
Full control is now possible by Panasonic centralised controllers.
1) Centralised controller
Integrates Any Unit in Big System Control
