CZ-CAPWFC1

Network Adaptor for Commercial Air Conditioner

Optional Wireless LAN adaptor allows connection of multiple indoor units to Panasonic Comfort Cloud App, which provides controlling and monitoring functions from your mobile devices.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CAPWFC1
Contact Us

Specs

CZ-CAPWFC1

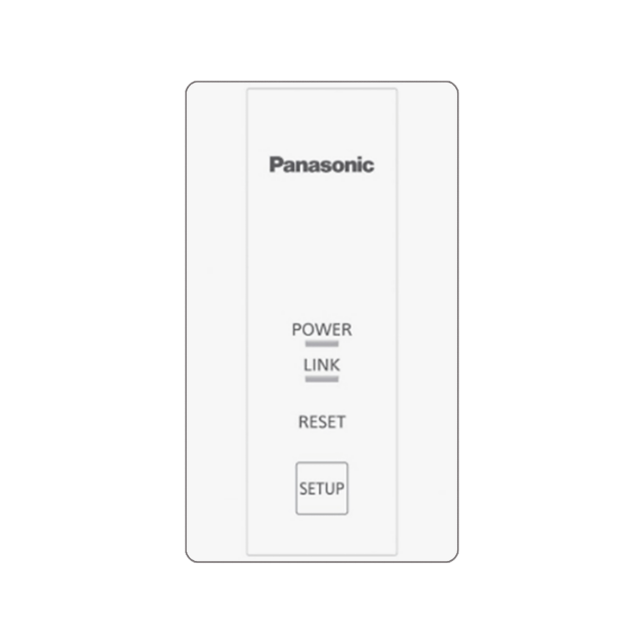

Photo of CZ-CAPWFC1

This network adaptor allows you to control and monitor the Commercial Air Conditioning system from smartphones or tablets.

Wiring length is 1.9 m and connects to indoor unit through T10 connector and R1/R2 terminal connectors.

* Connectivity and available features vary by model. Please contact your local dealers for compatible models.

CZ-CAPWFC1
Input Voltage DC12 V (supplied from the T10 connector of the indoor unit)
Power consumption Max: 2.4 W
Size (mm) (H) 120 × (W) 70 × (D) 25
Weight 190 g (including communication lines)
Interface Wireless LAN
Wireless LAN standard IEEE 802.11 b/g/n
Frequency range 2.4 GHz band
Encryption WPA2-PSK (TKIP/AES)
Temperature/Humidity range 0 ˚C to 55 ˚C / 20 % to 80 % (no condensation)
*Indoor use only

Documents

Combination

Single Split Packaged Air Conditioner

R32 Inverter NX Series Deluxe 4-Way Cassette

R32 Inverter NX Series Deluxe 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark3 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Standard 4-Way Cassette

R32 Inverter NX Series Standard 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark2 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Ceiling Exposed

R32 Inverter NX Series Ceiling Exposed units provide a new level of air quality thanks to the further and wider airflow distribution of the nanoe X Generator Mark2, as well as extra convenience with a new IoT remote controller.

R32 Inverter NX Series Adaptive Ducted

R32 Inverter NX Series Adaptive Ducted units provide a new level of air quality thanks to the nanoe X Generator Mark2, extra convenience with a new IoT remote controller, and flexibility with the ability to be installed vertically in addition to horizontally.

VRF/Mini VRF

F3 Type Mid Static Adaptive Ducted

F3 Type Mid Static Adaptive Ducted units are slim and boast excellent performance, making them ideal for installation environments with low ceilings and vertical installations. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

M1 Type Slim Low Static Ducted

M1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

Z1 Type Slim Low Static Ducted Twenty Series

Z1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

E2 Type High Static Ducted/High Fresh Air Ducted

E2 Type High Static Ducted/High Fresh Air Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation (except for S-180ME2E5).

E1 Type High Static Ducted

E1 Type High Static Ducted units offer improved design flexibility for extended duct layouts thanks to their increased external static pressure.

H1 Type High Fresh Air Ducted

H1 Type High Static Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation.

K2 Type Wall Mounted

K2 Type Wall Mounted units boast a stylish design and are compact and lightweight, making them easy to install. Their quiet operation makes them ideal for small offices, hotel rooms, and hospital rooms.

U2 Type 4-Way Cassette

U2 Type 4-Way Cassette units have a flat design and a built-in drain pump that allows for flexible installation and design options that blend in with interiors and buildings. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

Y3 Type 4-Way Mini Cassette

Y3 Type 4-Way Mini Cassette units feature a design compact enough to fit into a 60 × 60 cm ceiling grid with easy installation. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

L1 Type 2-Way Cassette

L1 Type 2-Way Cassette units are very thin, compact, and light, allowing for flexibility in installation. The fan has been redesigned to achieve its size and weight reductions.

D1 Type 1-Way Cassette

D1 Type 1-Way Cassette units feature a slim design that can be installed in small ceiling spaces. The quiet yet powerful fan blows air to the floor from a ceiling height of up to 4.2 m.

T2 Type Ceiling Mounted

T2 Type Ceiling Mounted units offer excellent energy-saving performance and comfortable long-distance airflow distribution, making them ideal for stores and schools.

P1 Type Floor Standing

P1 Type Floor Standing units have a compact design and are an ideal solution for providing perimeter air conditioning. A standard wired controller can be integrated into the units.

R1 Type Concealed Floor Standing

R1 Type Concealed Floor Standing units are only 229 mm deep and can be easily concealed in the perimeter area for powerful and effective air conditioning.

Features

Get your CAC System Connected to the Cloud

Panasonic CZ-CAPWFC1 network adaptor, allows connection of one or a group of indoor units to Panasonic Comfort Cloud App, which provides control, monitoring, scheduling and error alerts.
