CZ-CFUNC2

Serial Interface for 3rd Party External Controller

Optional adaptor for 3rd party BMS connection with CZ-CFUNC2 is possible.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CFUNC2
Contact Us

Specs

CZ-CFUNC2

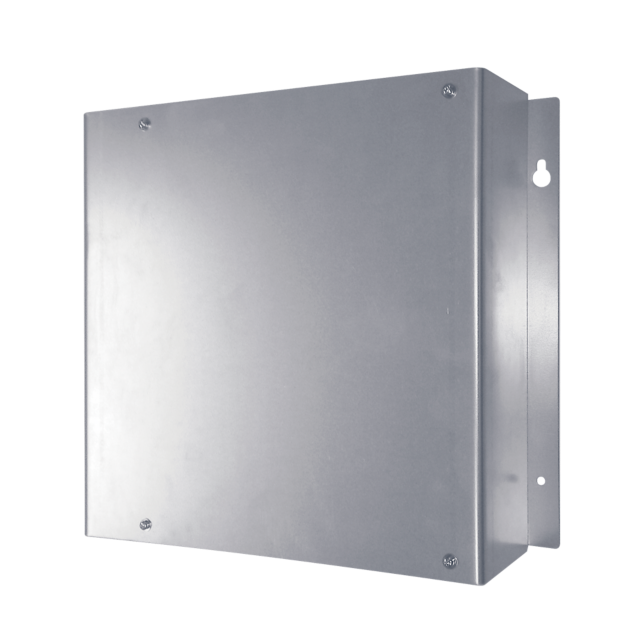

Photo of CZ-CFUNC2

Up to 128 indoor units can be connected to one communication adaptor.

A/C unit settings: Unit ON/OFF, Mode-change, Temperature, Central control setting, etc.

A/C unit status: Unit ON/OFF status, Operation mode, Set temperature, Central control setting, etc.

CZ-CFUNC2
Rated voltage Single phase 100-240V~
Rated frequency 50-60 Hz
Power consumption 5.6 W max
Operating temperature –10 to +50°C
Operating humidity 20 to 80% (no condensation)

Documents

Combination

Single Split Packaged Air Conditioner

R32 Inverter NX Series Deluxe 4-Way Cassette

R32 Inverter NX Series Deluxe 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark3 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Standard 4-Way Cassette

R32 Inverter NX Series Standard 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark2 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Ceiling Exposed

R32 Inverter NX Series Ceiling Exposed units provide a new level of air quality thanks to the further and wider airflow distribution of the nanoe X Generator Mark2, as well as extra convenience with a new IoT remote controller.

R32 Inverter NX Series Adaptive Ducted

R32 Inverter NX Series Adaptive Ducted units provide a new level of air quality thanks to the nanoe X Generator Mark2, extra convenience with a new IoT remote controller, and flexibility with the ability to be installed vertically in addition to horizontally.

VRF and GHP

2-Way Cooling or Heating FSV-EX ME2 Series

The FSV system ME2 Series is designed for outstanding energy-saving performance, powerful operation, high reliability, and comfort surpassing anything that was previously possible.

2-Way Cooling or Heating Mini-FSV LE Series

The Mini-FSV system LE Series is designed for light commercial and residential use with extraordinary energy-saving performance and a high external static pressure of 35 Pa.

2-Way GE3 Series

The Panasonic Gas Heat Pump (GHP) VRF system powerfully and efficiently generates high-quality air whilst conserving energy by reducing power consumption. The system also saves energy by suppressing peak-time electricity consumption.

F3 Type Mid Static Adaptive Ducted

F3 Type Mid Static Adaptive Ducted units are slim and boast excellent performance, making them ideal for installation environments with low ceilings and vertical installations. They also offer the next level of air quality thanks to the nanoe X Generator Mark3, effective even in large spaces.

M1 Type Slim Low Static Ducted

M1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

Z1 Type Slim Low Static Ducted Twenty Series

Z1 Type Slim Low Static Ducted Twenty Series units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

E2 Type High Static Ducted/High Fresh Air Ducted

E2 Type High Static Ducted/High Fresh Air Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation (except for S-180ME2E5).

E1 Type High Static Ducted

E1 Type High Static Ducted units offer improved design flexibility for extended duct layouts thanks to their increased external static pressure.

H1 Type High Fresh Air Ducted

H1 Type High Static Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation.

K2 Type Wall Mounted

K2 Type Wall Mounted units boast a stylish design and are compact and lightweight, making them easy to install. Their quiet operation makes them ideal for small offices, hotel rooms, and hospital rooms.

U2 Type 4-Way Cassette

U2 Type 4-Way Cassette units have a flat design and a built-in drain pump that allows for flexible installation and design options that blend in with interiors and buildings. They also offer the next level of air quality thanks to the nanoe X Generator Mark3, effective even in large spaces.

Y3 Type 4-Way Mini Cassette

Y3 Type 4-Way Mini Cassette units feature a design compact enough to fit into a 60 × 60 cm ceiling grid with easy installation. They also offer the next level of air quality thanks to the nanoe X Generator Mark3.

L1 Type 2-Way Cassette

L1 Type 2-Way Cassette units are very thin, compact, and light, allowing for flexibility in installation. The fan has been redesigned to achieve its size and weight reductions.

D1 Type 1-Way Cassette

D1 Type 1-Way Cassette units feature a slim design that can be installed in small ceiling spaces. The quiet yet powerful fan blows air to the floor from a ceiling height of up to 4.2 m.

T2 Type Ceiling Mounted

T2 Type Ceiling Mounted units offer excellent energy-saving performance and comfortable long-distance airflow distribution, making them ideal for stores and schools.

P1 Type Floor Standing

P1 Type Floor Standing units have a compact design and are an ideal solution for providing perimeter air conditioning. A standard wired controller can be integrated into the units.

R1 Type Concealed Floor Standing

R1 Type Concealed Floor Standing units are only 229 mm deep and can be easily concealed in the perimeter area for powerful and effective air conditioning.

Features

Example of 3rd party BMS connection with CZ-CFUNC2

A) RS-485/RS-232C Adaptor (Field supply). B) BMS Manufacturer Adaptor (Field supply). C) Communication Adaptor. D) Max. 16 system Connectable I/D units: Max. 512. E) Max. 64 I/D. 1) RS-485/RS-232C. 2) Group Control. 3) Remote Controller.
* Consult your authorized dealer for details.
Example of 3rd party BMS connection with CZ-CFUNC2
