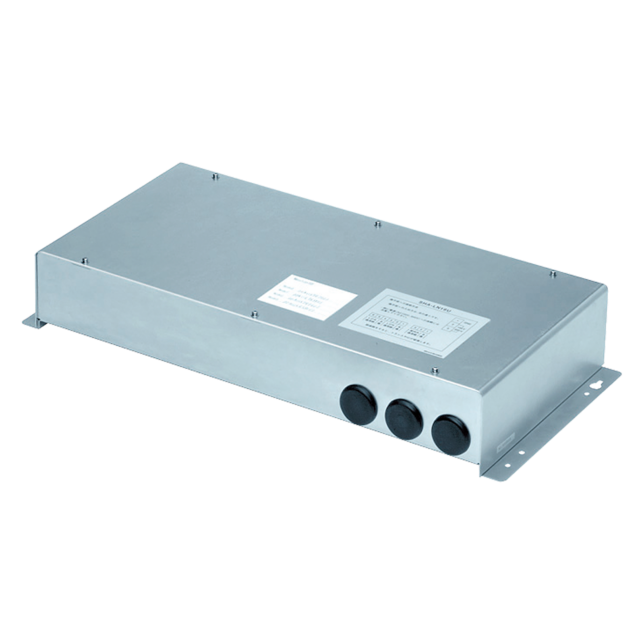

BMS LonWorks Connection Adaptor
Serial Interface for LonWorks Network
Please Select Your User Type
This interface is a communications converter for connecting LonWorks to the control network of FSV.
From the host connected to LonWorks, basic settings and status monitoring is possible for up to 16 groups.
A/C unit settings from the LonWorks communicator.
Settings for each group of indoor units: Start/stop, Temp setting, Operation mode, Option 1/2 settings.
Settings for all units: Emergency stop.
A/C unit status notifications made to the LonWorks communicator: Start/stop, Temp setting, Operation mode, etc.
|Connects to||LonWorks network
FTT-10 A transceiver device
|Power||Single-phase, 100-120/ 200-240V~, 50-60Hz|
|Power consumption||11 W max.|
|Service environment conditions||Temp. 0 to 40 ºC, humidity 20 to 80%
*Indoor use only
|External dimensions||Height 79 x Width 500 x Depth 215 mm|
|Weight||Approx. 3.3 kg|
