CZ-64ESMC3

Everything in Control, Up to 64 Indoor Units

Controls 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-64ESMC3
Contact Us

Specs

CZ-64ESMC3

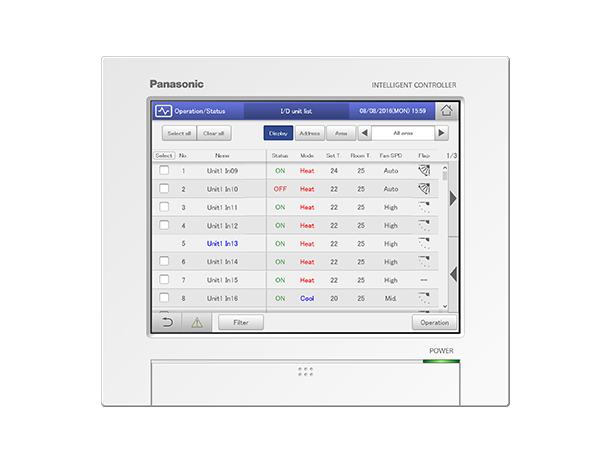

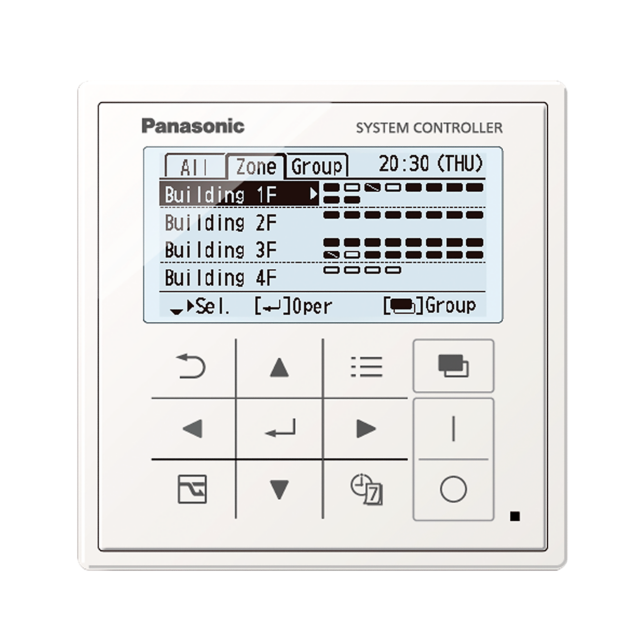

Photo of CZ-64ESMC3

Controls up to 64 indoor units, 64 groups in one place.

ON/OFF, operation mode, fan speed, air flow direction, operation monitoring, alarm monitoring, ventilation, etc.

Available for joint use with other controllers.

Weekly timer function.
5 types of energy saving functions.

A control mode corresponding to the use condition can be selected from 10 patterns.

CZ-64ESMC3
Dimensions (mm) (H) 120 x (W) 120 x (D) 16 + 51.9
Weight 520 g
Temperature/Humidity range 0 °C to 40 °C / 20 % to 80 % (no condensation)
*Indoor use only.
Power Source Single phase 100-240 V ~ 50-60 Hz
Power consumption Max. 1.3 W
Clock Precision ± 30 seconds/month (at normal temperature 25 °C)
*Adjust periodically.
Clock Holding time 100 hours (when fully charged)
*Approx. 8 hours are required for full charge.
Number of connected indoor units Up to 64 groups (64 units)
