CZ-CSWKC2

Large Scale Building Under Your Control

P-AIMS (Panasonic - Air Conditioning Intelligent Management System) is a system for integrated monitoring and control of air conditioners using a network from a personal computer. Combining basic software with optional software realizes integrated monitoring and control of all types of building equipment.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CSWKC2
Contact Us

Features

Suitable for Large Scale Buildings

Perfect solution for commercial facilities. Standard remote control for all indoor units. Various timer schedule programs can be set on the calendar. Detailed information display for alarms. CSV file output with alarm history, operating status. Automatic data backup to HDD.
Suitable for Large Scale Buildings

Example of System Configuration

One PC installed with the “P-AIMS” can connect up to 1024 indoor units in total. (Each line : Max 8 communication adaptors and up to 512 indoor units)
1)User PC 2)USB line 3)Converter for each line (Max 8 line/Field supply) 4)RS485 (Polarised) 5)Communication adaptor
A,B,n) Air Conditioning units in building
Example of System Configuration

P-AIMS Optional Software

CZ-CSWAC2 for Load Distribution

Load distribution calculation for each tenant
• Air-conditioner load distribution ratio is calculated for each unit (tenant) with used energy consumption data (m3, kWh).
• Calculated data is stored with CSV type file.
CZ-CSWAC2 for Load Distribution

CZ-CSWWC2 for Web Application

Web access & control from remote station
• Accessing P-AIMS software from remote PC.
• You can monitor/operate FSV systems by using web browser.
CZ-CSWWC2 for Web Application

CZ-CSWGC2 for Object Layout Display

Whole system can be controlled visually
• Operating status monitor is available on the layout display.
• Object layout and indoor unit locations can be checked at once.
• Each unit can be controlled by a virtual remote controller on the display.
• Max 4 layout screens can be shown at one time.
CZ-CSWGC2 for Object Layout Display

CZ-CSWBC2 for BACnet™ Software Interface

Connectable to BMS system
• Can communicate with other equipment by BACnet™ protocol.
• FSV systems can be controlled by both BMS and P-AIMS.
• Max 255 indoor units can be connected to 1 PC (that has P-AIMS basic & BACnet™ software).
1)BMS/Central control PC 2)Client PC 3)Router A)AC control B)Security control C)Safety control D)Elec./Light control E)Elevator control
CZ-CSWBC2 for BACnet™ Software Interface

Specs

CZ-CSWKC2

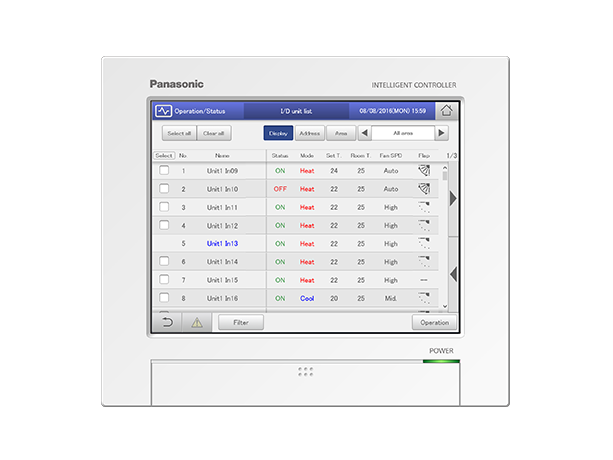

Photo of CZ-CSWKC2

Up to 1,024 indoor units can be controlled by one PC.

Standard remote control for all indoor units. Multiple timer schedule programs can be set on the calendar.

Detailed information display for alarms. CSV file output with alarm history and operating status. Automatic data backup to HDD.

Upgradeable with 4 optional software depending on individual requirements.

Ideal for large areas/buildings such as shopping centers, universities, office buildings, etc.

CZ-CSWKC2
Operating System • Windows 10 Pro 64bit
• Windows 8.1 Professional 64bit
CPU • Intel Core™ i5-6500 3.20GHz or higher (Recommended computer)
• Intel Core™ i7-7700 3.60GHz or higher (When installing Layout Display Software or using 512 or more indoor units)
Memory 8GB or larger
HDD SSD (Solid State Drive) 250GB or larger
Monitor (Built-in speaker) • 1920 × 1080 (full HD) Recommended (1280 × 1024 (SXGA) minimum)
• 1920 × 1080 (full HD) Required when installing Layout Display Software
External HDD 500GB or larger (An external power supply type is preferable because the HDD will be used for backing up data.)
LAN Network adaptor equipped machine (when Web Software or BACnet Communication Software installed)
UPS (Field Supply) Select a UPS with a sine output wave form
