Building Management System Controller

SHOP NOW
Contact Us

SER8150

VRF Smart Connectivity+

Through thorough energy management, Panasonic’s VRF Smart Connectivity+ is a state-of-the-art solution providing energy saving and comfort as well as simple installation, operation, and running.

Please Select Your User Type

Zoom In
Zoom Out
Close
SER8150
Contact Us

Features

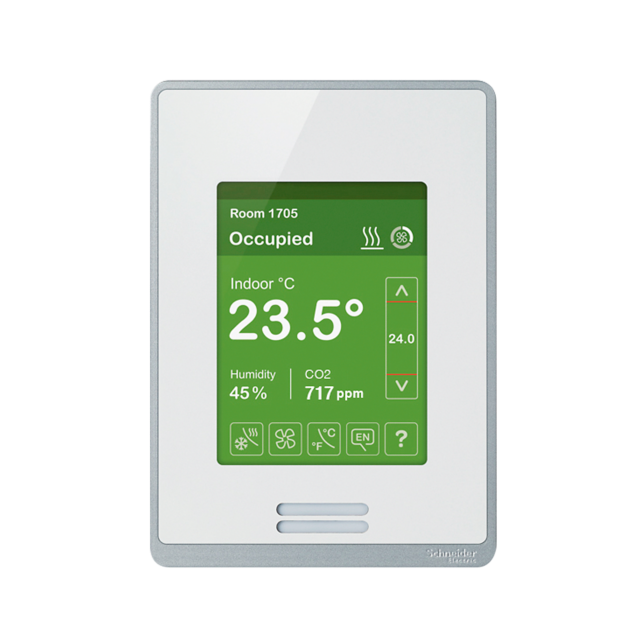

VRF Smart Connectivity+

VRF Smart Connectivity+ offers efficient energy management with high IAQ (indoor air quality). Simplified Plug & Play installation with BMS connection for better energy consumption management.

LEARN MORE
VRF Smart Connectivity+

Specs

SER8150

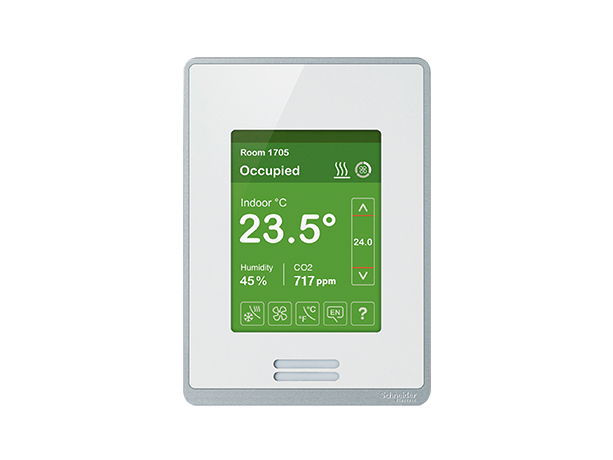

Photo of SER8150

Single powered component and communicates directly to the FSV indoor unit from a single cable with two conductors.

The touch screen offers a customizable user experience with selection of languages, units, air direction, and screen colours.

Custom messages can be displayed on-screen using BACnet objects when the controller is integrated to a BACnet system.

SER8150
Dimensions (cm/in) Height: 12 / 4.72
Width: 8.6 / 3.39
Depth: 2.7 / 1.06
Power Requirements 16 Vdc from Panasonic R-R IDU
connectors
50/60 Hz, 4VA, Class 2 Supply
Range from Indoor Unit Recommended 500ft (150 m)
Operating Conditions 0 °C to 50°C (32°F to122°F)
0% to 95% R.H. non-condensing
Storage Conditions -30°C to 50°C (-22°F to 122°F)
0% to 95% R.H. non-condensing
Temperature Sensor Local 10 K NTC type 2 thermistor
Temperature Sensor Resolution ± 0.1°C (± 0.2°F)
Temperature Sensor Accuracy ± 0.5°C (± 0.9°F ) @ 21°C (70°F) typical calibrated
Humidity Sensor and Calibration Single point calibrated bulk polymer type sensor
