Air Curtain Standard Series


Standard Series

Shut Out from Your Shop
Hot Air, Insects and Dust

By using Air Curtain to minimize air exchange between the air outdoor and indoor, and Hot air, insects and dust infiltration too. Panasonic AirCurtains enables resulting in superior shut-out ability.

Please Select Your User Type

Zoom In
Zoom Out


High Air Velocity so Effective

An air curtain’s shut-out ability is determined by the air velocity at the center of its airflow. The powerful discharge of Panasonic Air Curtains enables them to maintain a high level of air velocity within the curtain’s efficient distance, resulting in superior shut-out ability.
High Air Velocity so Effective

Air Stream to Create a Barrier

Shop doors are frequently opened and closed; therefore, air curtains are effective. - Heating/ Cooling Retention - Odor Shielding - Insect-proof Effect - Dust-proof Effect
Air Stream to Create a Barrier

Easy Maintenance

The Cross Flow Fan can generate air current between the fan and front cover forming movement of dust that reduces accumulation of dust on the fan blade. Simple structure allows convenient cleaning of the fan - just detach the front cover and metal plate to clean product interior.
Easy Maintenance

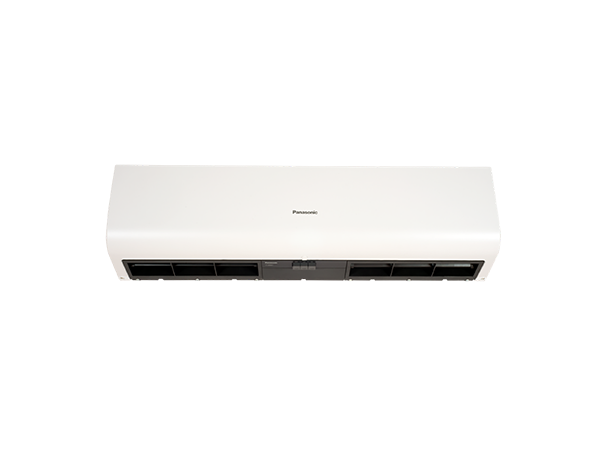

Photo of FY-3009U1


Photo of FY-3012U1


Photo of FY-4009U1


Photo of FY-4012U1

FY-08ESNP Length: 900mm Efficient dist. : 2.5M

FY-10ESNP Length: 900mm Efficient dist. : 3M

FY-10ELNP Length: 1200mm Efficient dist. : 3M

FY-08ELNP Length: 1200mm Efficient dist. : 2.5M

FY-3009U1 FY-3012U1 FY-4009U1 FY-4012U1
Air Volume [m³/h] Hi[CMH] [50Hz]1150(240V)/1120(230V)/1100(220V)
Air Volume [m³/h] Hi[CFM] [50Hz]677(240V)/659(230V)/647(220V)
Consumption - Hi [W] [50Hz]86(240V)/81(230V)/76(220V)
Current [A] [50Hz]0.37(240V)/0.36(230V)/0.35(220V)
Noise - Hi [dB(A)] [50Hz]48.5(240V)/49.5(230V)/50.5(220V)
Weight [kg] 12.5 15 13.5 16
