Panasonic IP Video Intercom System

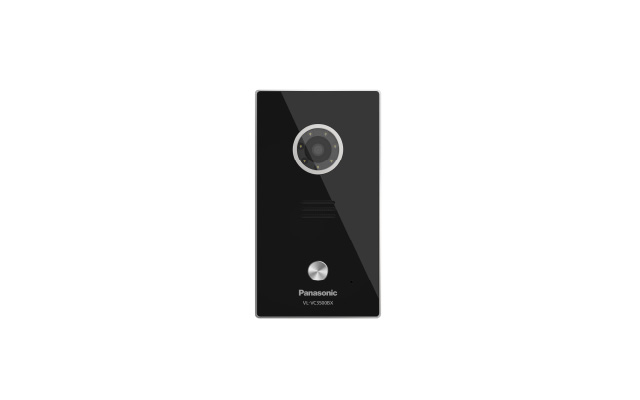

Door Station VL-VC3500BX
System Parameters | |
|---|---|
Operation system | Linux |
Flash | 16MB |
RAM | 64MB |
Display Parameters | |
Size | — |
Operation Method | Mechanical Keys |
Resolution | — |
Video Parameters | |
Video Compression | H.264 |
Video Pixel | VGA, 720P |
Camera Pixel | 2.0M pixels CMOS sensor |
Minimum Illuminance Required | 0.01lx (within approx. 50cm from the camera lens) |
Camera Quantity | Single Camera |
HDR | — |
Viewing Angle | 78°(H) / 58°(V) |
Lighting Method | White coloured LED lights |
Audio Parameters | |
Audio Compression | G.711 |
Speaker | 8Ω / 0.5W |
Microphone | -54 ± 2dB |
Face Recognition | |
Face Capacity | — |
IC Card | |
Card Capacity | — |
Frequency | — |
Network Parameters | |
Wiring | UTP (Cat 5e or higher) |
Protocol | IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP |
Device Interfaces | |
Network Interface | RJ45, 10BASE-T/100BASE-TX |
Power Out Port | — |
RS485 | Reserved |
Relay Output | 1 |
Fire Detect Port | — |
Lock Release | 1 |
Door Status Port | 1 |
Wiegand Port | — |
General | |
Power Source | Power distributor (VL-PC3800BX) or |
Operating Voltage | 12 to 27VDC |
Current Rating | DC 12V, 500mA; DC 27V, 220mA |
Power Consumption | Standby: 3.0W, Operating: 6.0W |
Installation Method | Flush mount |
Colour | Black |
Dimensions (H x W x D) | Approx. 168mm x 93mm x 32mm |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +70°C |
Operating Humidity | Up to 90% (non-condensing) |
IP rating (Ingress Protection) | IP54 |
IK rating (Impact Protection) | IK04 |
Talking Method | Hands-free |
Display Language | — |
Motion Detect | — |
External Material | AL + Tempered glass |
Weight | Without package: 350g |
