DMW-XLR2E
XLR Microphone Adaptor DMW-XLR2E
XLR microphone adaptor for 4ch audio recording, high-resolution sound recording and 32-bit float recording. Compatible with the LUMIX GH7 (DC-GH7).
![](/content/dam/pim/my/en/DM/DMW-XL/DMW-XLR2/ast-2413975.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
32-bit Float Recording*
The camera delivers 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.
*Compatible model as of June 2024: LUMIX GH7 (DC-GH7) .
![32-bit Float Recording*](/content/dam/pim/my/en/DM/DMW-XL/DMW-XLR2/ast-2413954.jpg.pub.thumb.644.644.jpg)
Specs

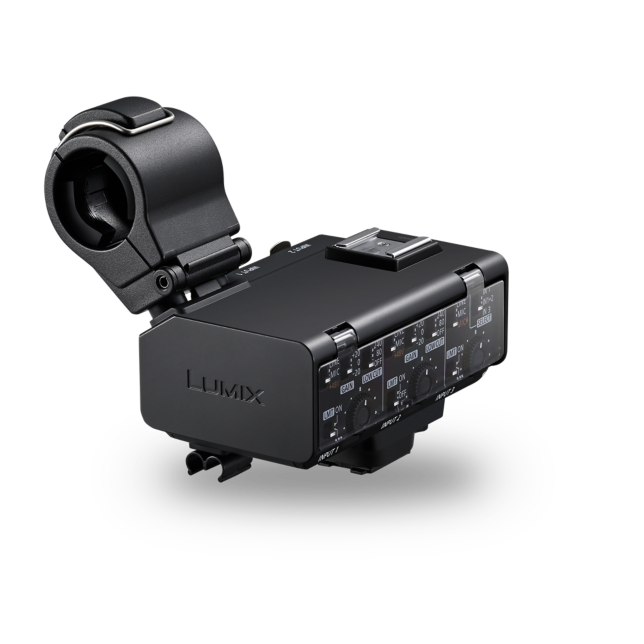

![Photo of XLR Microphone Adaptor DMW-XLR2E](/content/dam/pim/my/en/DM/DMW-XL/DMW-XLR2/ast-2413974.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 106.2mm
- Width
- 94.6mm
- Depth
- 92.0mm
- Weight
- 192g
With microphone holder. The size without the microphone holder is 60.9 x 61.2 x 92 mm, and it weighs 158g. All values are approximate.
32-bit float recording with the LUMIX GH7
4ch audio and High-Res audio recording
Microphone holder
Φ3.5 stereo mini jack
Physical switches and dials for easy control
INPUT1 / INPUT2
-
Input Terminal
-
XLR 3-pin (female)
-
-
Standard Input Level
-
LINE: 0 dBu
MIC, +48V: -40 dBu
(0 dBu=0.775 Vrms)
-
-
Standard Recording Level
-
-12 dBFS (at the standard input)
-
-
Frequency Characteristic
-
20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
-
-
Phantom Power Source
-
48V
-
INPUT3
-
Input Terminal
-
φ3.5mm stereo mini jack
-
-
Standard Input Level
-
LINE: -10 dBV
MIC, MIC (plug-in power): -40 dBV
(0 dBV=1 Vrms)
-
-
Standard Recording Level
-
-12 dBFS (at the standard input)
-
-
Frequency Characteristic
-
20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)
-
-
Plug-in Power
-
2.5V
-
Sampling Frequency Bit Length / Number of Recording Channels
-
Linear Recording
-
48kHz/24-bit/2ch, 96kHz/24-bit/2ch
(Select one of INPUT1, INPUT1+2, or INPUT3)
48kHz/24-bit/4ch
-
-
Float Recording
-
48kHz/32-bit/2ch, 96kHz/32-bit/2ch
(Select one of INPUT1, INPUT1+2, or INPUT3)
48kHz/32-bit/4ch
-
Dimensions (W x H x D)
-
Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder)
Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder)
(excluding the projecting parts)
Weight
-
Approx. 158 g / 0.35 lb (without microphone holder)
Approx. 192 g / 0.43 lb (with microphone holder)
Operating Temperature
-
-10℃ to 40℃ (14℉ to 104℉)
Operating Humidity
-
10 - 80 %RH
Standard Accessories
-
Cable Holder, Microphone Holder, Pouch
