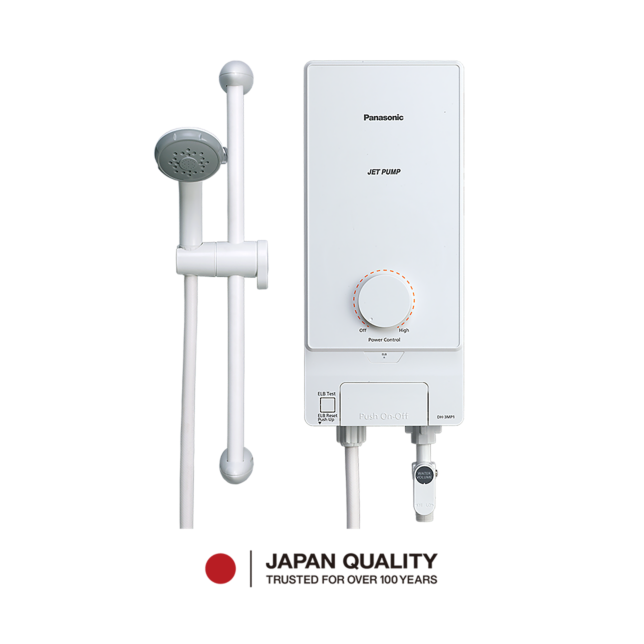

M Series DC Pump Home Shower DH-3MP1MW
Retail Sales Price:RM 627.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
M Series DC Pump Home Shower DH-3MP1MW
Luxurious, Safe and comfortable Shower Everyday
M series provides a range of new trendy designs. Simple and straight forward control panel home shower which allows you to experience luxurious, safe and comfortable shower everyday.
Features
Low Noise Operation
Low Noise DC Pump
The DC pump gives you both a powerful water flow and low noise operation. You can feel free to take a shower late at night or after the family has gone to sleep.
The DC pump gives you both a powerful water flow and low noise operation. You can feel free to take a shower late at night or after the family has gone to sleep.
*Made In Japan DC pump
Maintaining Cleanliness
The antibacterial material containing Ag+ (silver) prevents mold generation. It prevents mold in the shower head, which often occurs in the humid environment of the bathroom, so the shower head remains constantly clean.
9-Safety Points
1 Insulated Structure
• Comply with IEC 60529 for protection
• provided by enclosure against access to hazardous parts with a finger and foreign objects
• Prevent electrical shock
• provided by enclosure against access to hazardous parts with a finger and foreign objects
• Prevent electrical shock
2 Water Splash Proof Case Cover
• Comply with IEC 60529 (IP25) for protection
• The joint between the front plate and back plate has a water-resistant design
• Prevent fire/electrical shock
• The joint between the front plate and back plate has a water-resistant design
• Prevent fire/electrical shock
3 Non-Flammable Material Compliance
• UL-94-V0 Classification Material
• Self extinguish, noncombustible material for external casing (Front Plate/Back Plate)
• Prevent fire
• Self extinguish, noncombustible material for external casing (Front Plate/Back Plate)
• Prevent fire
4 One Push ON/OFF Switch / Main Switch ON/OFF
• Switch off both main power line and water supply line directly
*The R Series only switches ON/OFF the main power line.
• Prevent burning and electric shock
*The R Series only switches ON/OFF the main power line.
• Prevent burning and electric shock
5 Manual Reset Thermostat
• Cut off power supply in the event of component failure resulting in continuous heating in abnormal conditions
• Prevent fire
• Prevent fire
6 Durable Copper Heater Unit*¹ / Reinforced Polyamide Heater Unit*²
• Self extinguish, non-combustible
• material for container
• Heat Resistant
• Prevent fire
*¹ 3ND1, 3NDP1, 4HP1, 3NS2, 3NP2, 3NS1
*² 3MP2, 3MP1, 3MT1, 3MS1, 3RP1, 3RL1
• material for container
• Heat Resistant
• Prevent fire
*¹ 3ND1, 3NDP1, 4HP1, 3NS2, 3NP2, 3NS1
*² 3MP2, 3MP1, 3MT1, 3MS1, 3RP1, 3RL1
7 Auto Thermal Cut-Out (55°C)
• Cut off power supply in the event of water temperature exceeds hazards limit
• Prevent from burns (first-degree burn)
• Prevent from burns (first-degree burn)
8 Built-in Earth Leakage Breaker (ELB)
• Mechanical Type, Double Pole Switch
• Double safety as it cuts off both neutral and live line completely if electricity leakage occurs
• Power supply cuts off automatically when unit has current leakage
• Prevent electric shock
• Double safety as it cuts off both neutral and live line completely if electricity leakage occurs
• Power supply cuts off automatically when unit has current leakage
• Prevent electric shock
9 Water Flow Sensor
• Cut off power supply if the water flow is too low which can lead to water temperature from becoming very hot
• Prevent over-heating
• Prevent over-heating
Japan Technology
Control Circuit Board
Temperature Sensor
ELB
DC Pump*
Triac*
Frequently Asked Questions
Step 1: Press the ELB button.
Step 2: The ELB Reset Lever should slide down and the current supply is actively cut off. Step 3: Push up the ELB Reset Lever. The ELB indicator LED will light up, indicating the set is ON.
Step 2: The ELB Reset Lever should slide down and the current supply is actively cut off. Step 3: Push up the ELB Reset Lever. The ELB indicator LED will light up, indicating the set is ON.
Regularly checking the ELB once a month is important to protect users and avoid potential harm, including property damage, severe injury, or death.
The main switch controls the Live line of the internal circuit. For safety, especially if the ELB fails and there's an issue with the electricity supply, turning off the main switch is crucial. It ensures that no electricity flows through the product, preventing any electrical hazard risk.
Use a soft brush to clean the holes on the Shower Head. It is recommended to clean weekly.
Specs
Size and Weight
- Height
- 420mm
- Width
- 185mm
- Depth
- 85mm
- Weight
- 2.8kg
*Please check the minimum space requirements for installation.
9 Safety Features- Fire & Burn Resistant
- Shock Resistant
- Heat Resistant
- Prevents Bacteria
- Water Resistant
Rated Power : 3.6 kW
Power Supply : 240 V , 50 Hz
Protects against fire & electrical hazards with 9 safety features
Protects against bacteria with Ag+ Crystal Material
Adjustable water texture with 3-way shower head
Strong water flow and low-noise operation with Made In Japan DC Pump
Jet-Pump / Non-Jet-Pump
-
Jet-Pump
Power Supply [V]
-
240 a.c.
Power Consumption [kW]
-
3.6
Booster Pump
-
DC Pump
Water Power Stop System
-
One Push Stop System
Water Pressure
-
Max
-
380kPa
-
-
Min
-
4.9kPa
-
Power Selection
-
Electric Power Control
Water Temperature Control
-
Inlet Temp. ~Max
Body Dimension - H x W x D [mm]
-
420 x 185 x 85
Weight [kg]
-
2.8
Color
-
White
LCD Display
-
No
e-Cycle
-
No
Duration Selection
-
No
Cool Temp. Selection
-
No
e-Hybrid
-
Bubble
-
No
-
-
Beat
-
No
-
Shower Head Design
-
Round
Shower Head
-
Type of Shower Spray
-
3-Way
-
-
Anti Bacteria Shower Plate
-
Yes
-
Safety Device
-
9 Safety Points
Features
-
Sliding Rail
-
No
-
-
Shower Tray
-
No
-
-
Filter
-
No
-
