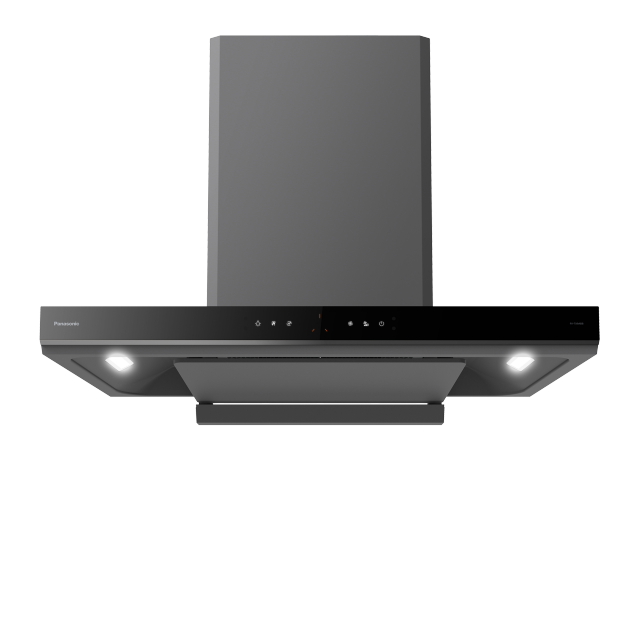

Premium T-shape Range Hood
FV-TX9ABBMPQ
Retail Sales Price:RM 2,999.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
T-Shape Range Hood
FV-TX9ABB
Cleaner Air. Design that Harmonises.
Enjoy the meals you love without worrying about smoke, grease, or lingering smells. Combines powerful suction to keep the home fresh, self-cleaning to save time on maintenance, and a sleek design that blends seamlessly into modern kitchens.
* All images are for illustrative purposes only.
Features

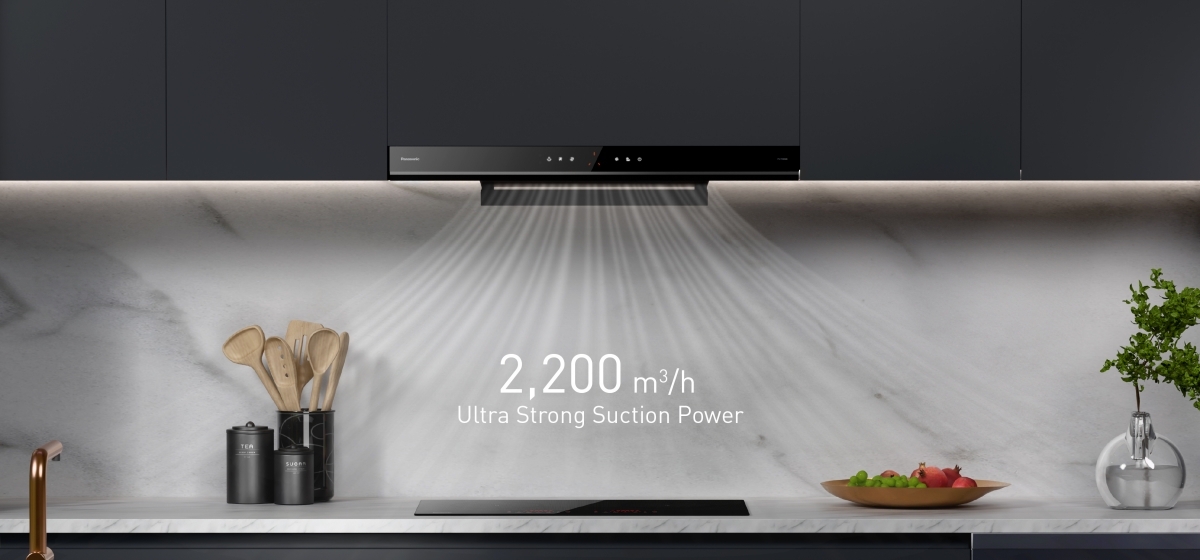

Clears Smoke Fast When You Cook
Powered by a BLDC inverter motor, it delivers up to 2,200 m³/h of ultra-strong suction with boost mode for heavy cooking. Clears smoke fast to keep your kitchen fresh and odour-free.

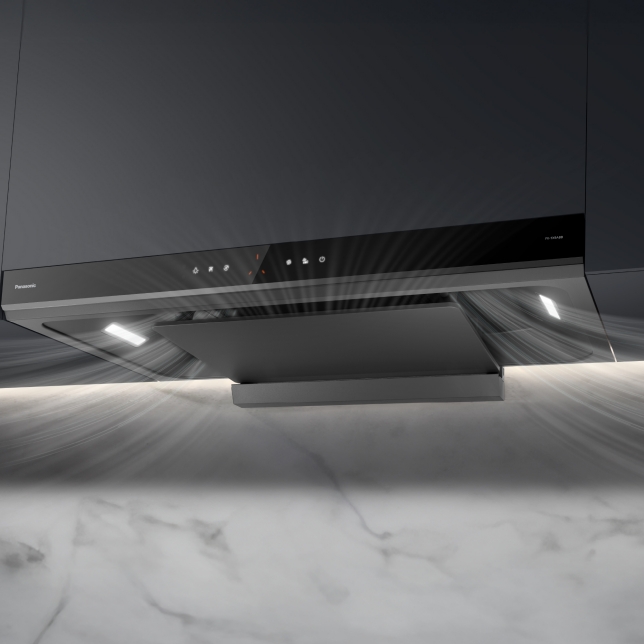

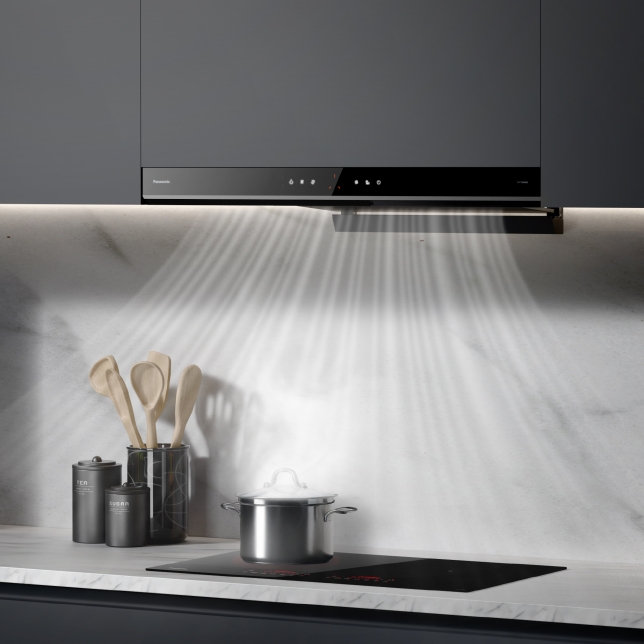

Wider Coverage, Less Smoke
360° 3D suction with a 900 mm wide cavity captures smoke and odours before they spread into the kitchen.

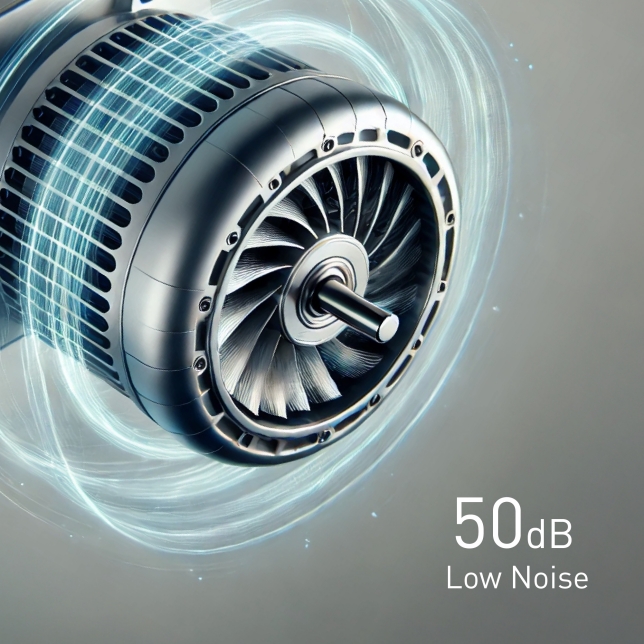

Enjoyable Cooking with Less Noise
BLDC motor runs smoothly with lower energy use. Noise-reduction design keeps conversations comfortable while you cook.
Made Easy While You Cook & Clean
1 Hands-Free Control with a Wave
Gesture control lets you adjust settings without touching greasy or wet surfaces.

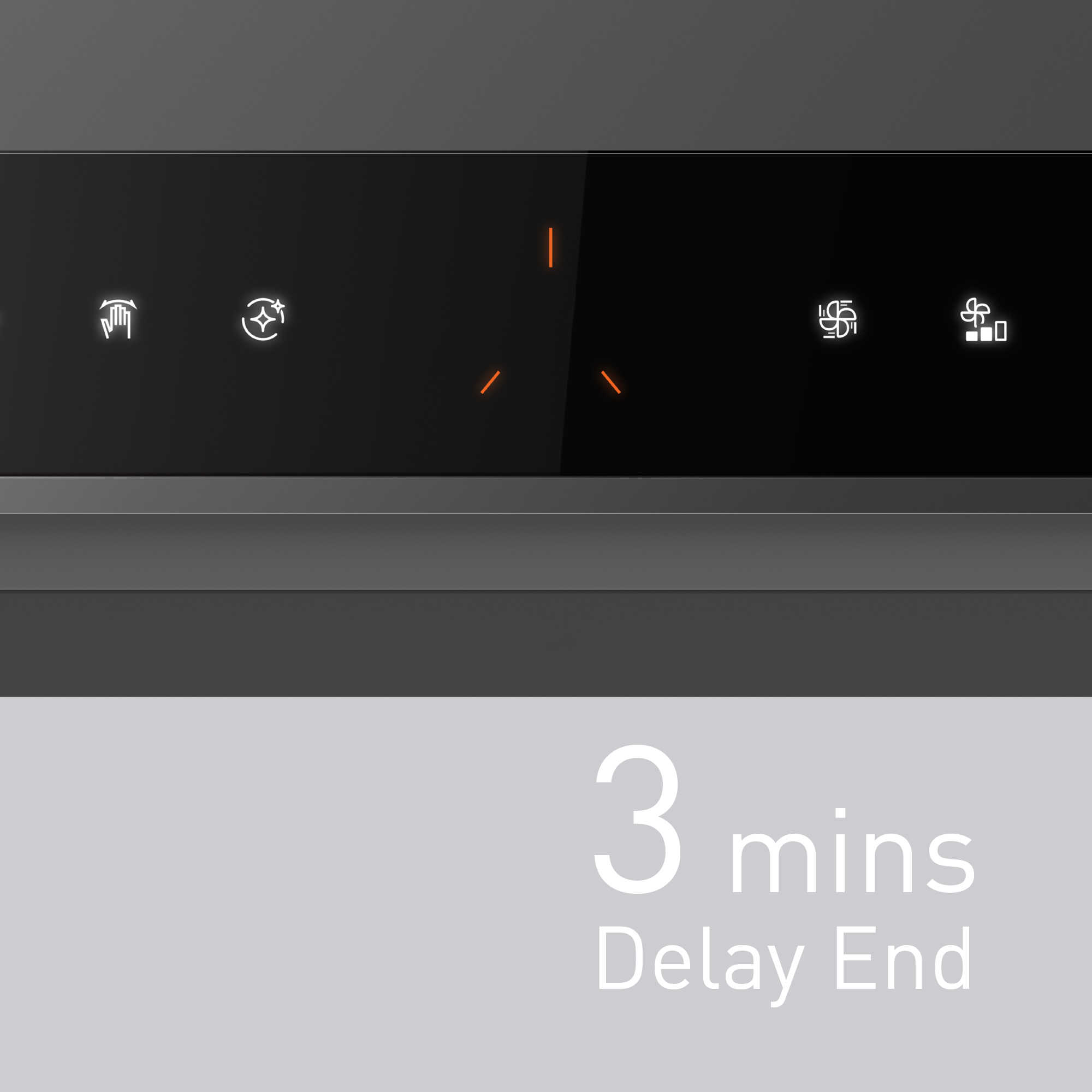

2 Stays On After Cooking
A 3-minute Delay End continues to extract lingering smoke and odours, keeping the kitchen fresh even after you leave the stove.
3 Cleans Itself, Easier Maintenance
Dry self-cleaning spins off oil with high-speed fan rotation, reducing manual scrubbing and lowering maintenance.

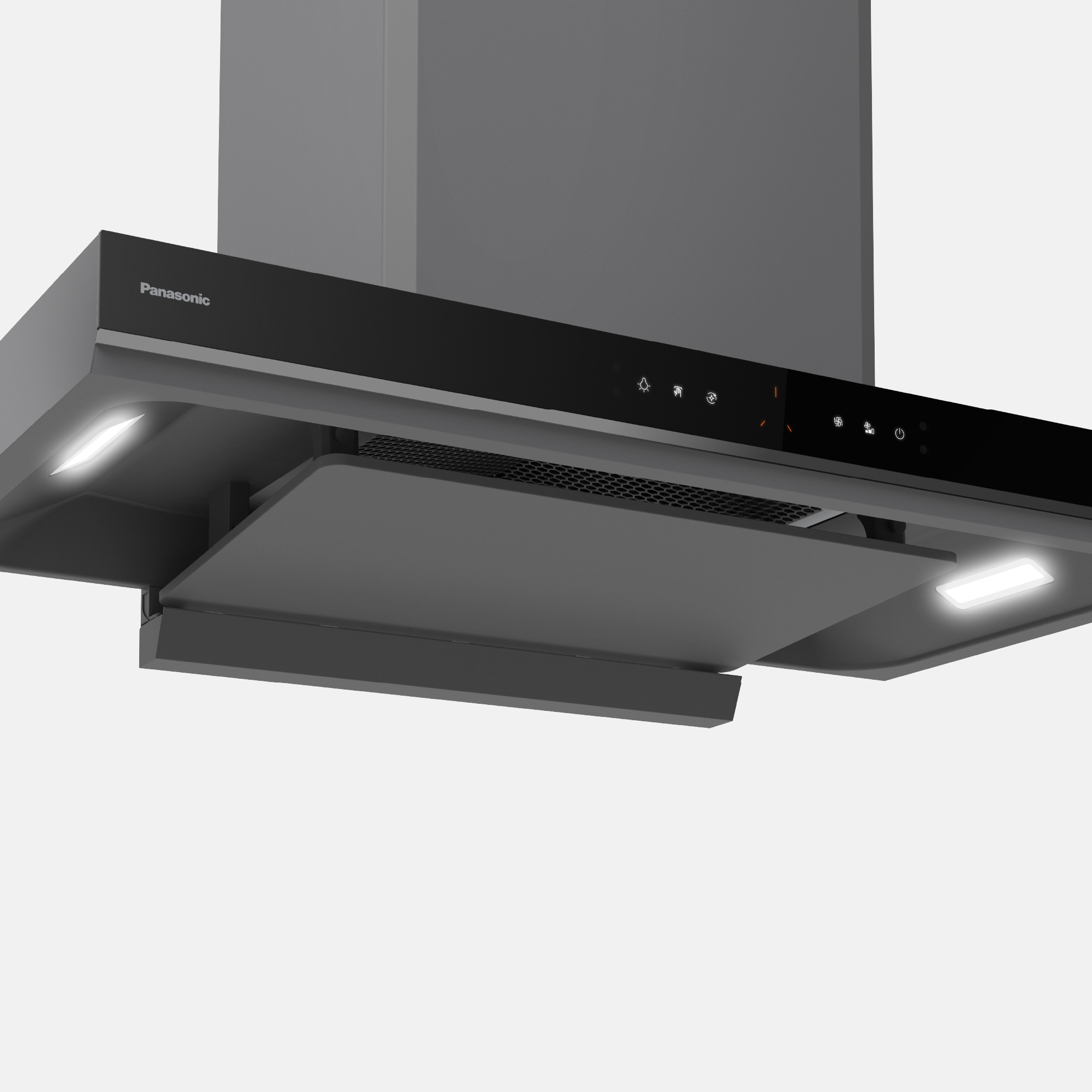

4 See Clearly While You Cook
Dual LED lights illuminate the cooking area evenly, ensuring a brighter workspace even when ceiling lights are blocked by cabinets or the hood.

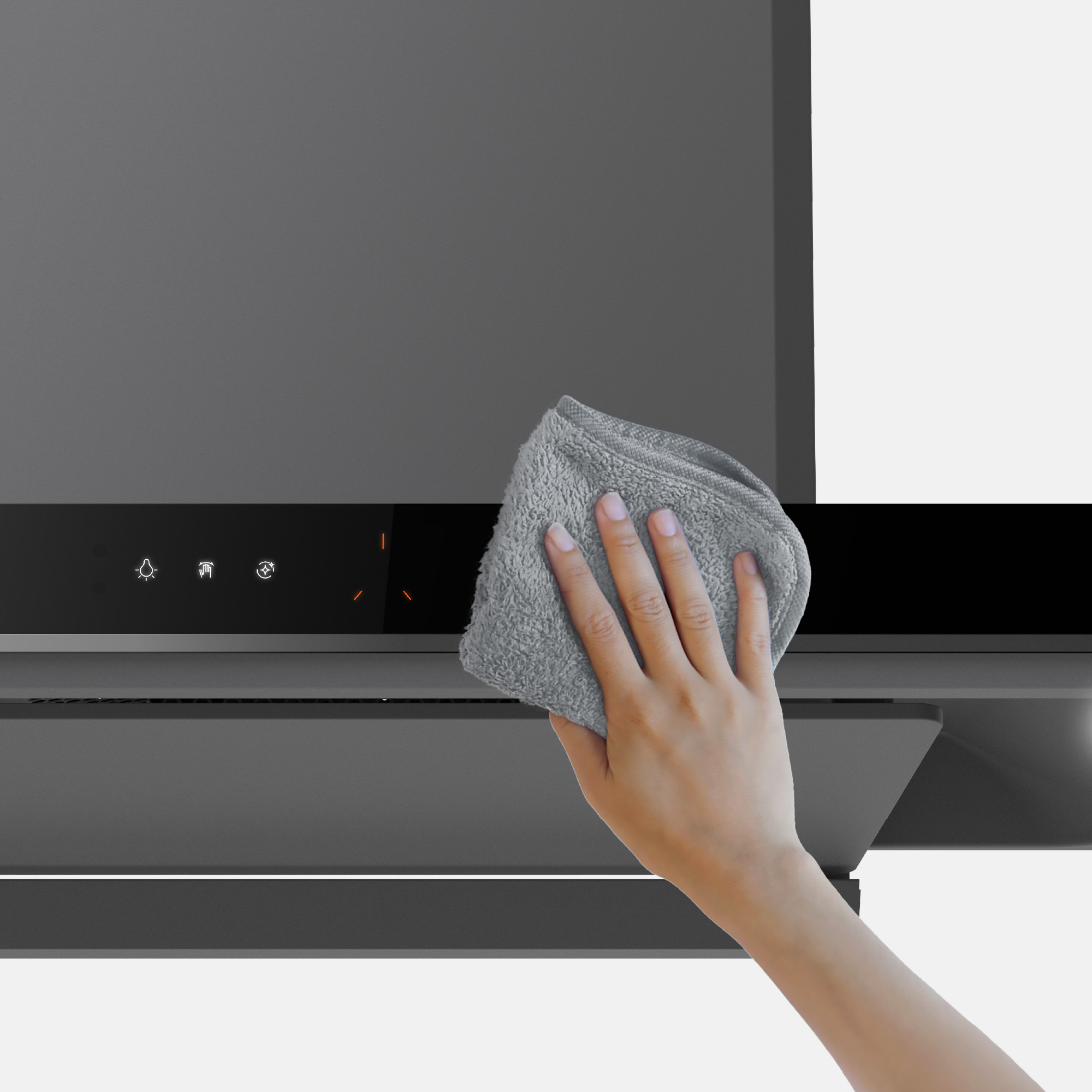

5 Easy-to-Wipe Glass Panel
Durable full-flat tempered glass, with no grease traps, makes daily cleaning simple.

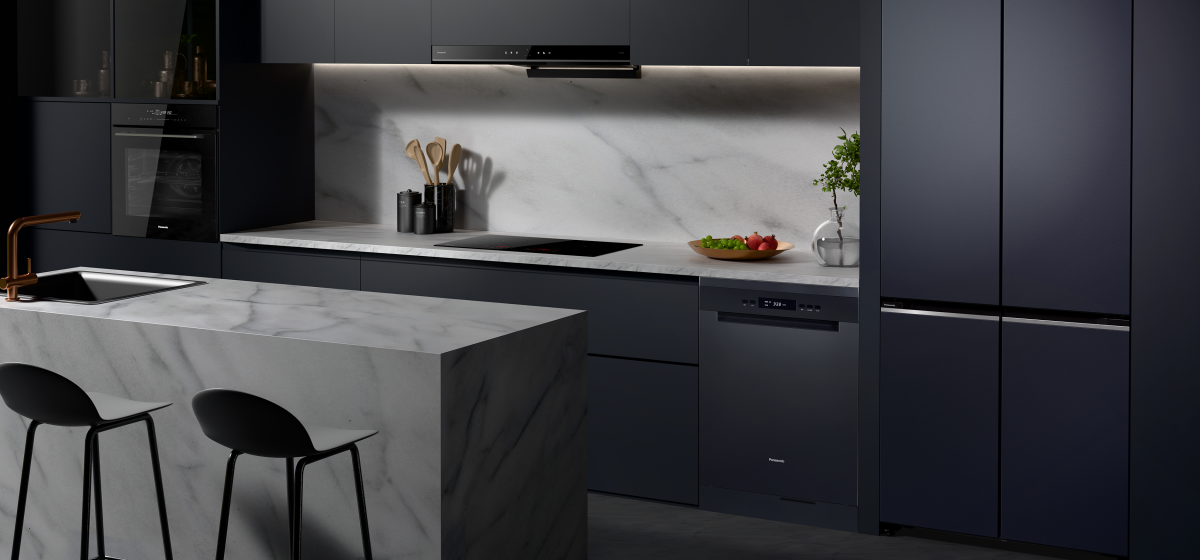

Modern Simplicity, Thoughtful Details
Sleek black finish and slim T-shape body blend seamlessly into contemporary kitchens. Pair it with the matching slim cooking hob for a cohesive kitchen look.
Explore the Matching Hob

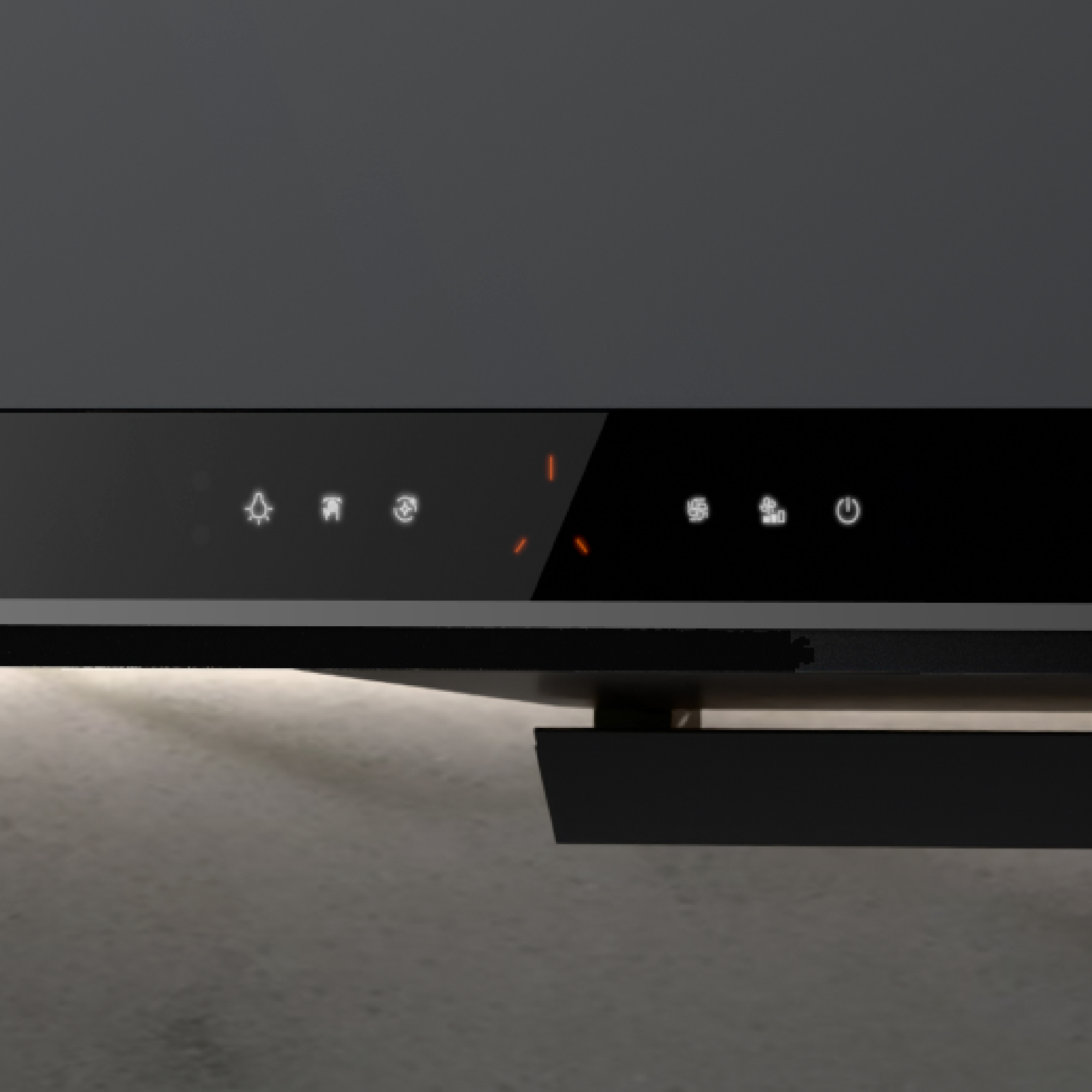

Seamless Glass Surface
Full-flat tempered glass gives a clean, refined look that is easy to wipe and maintain.

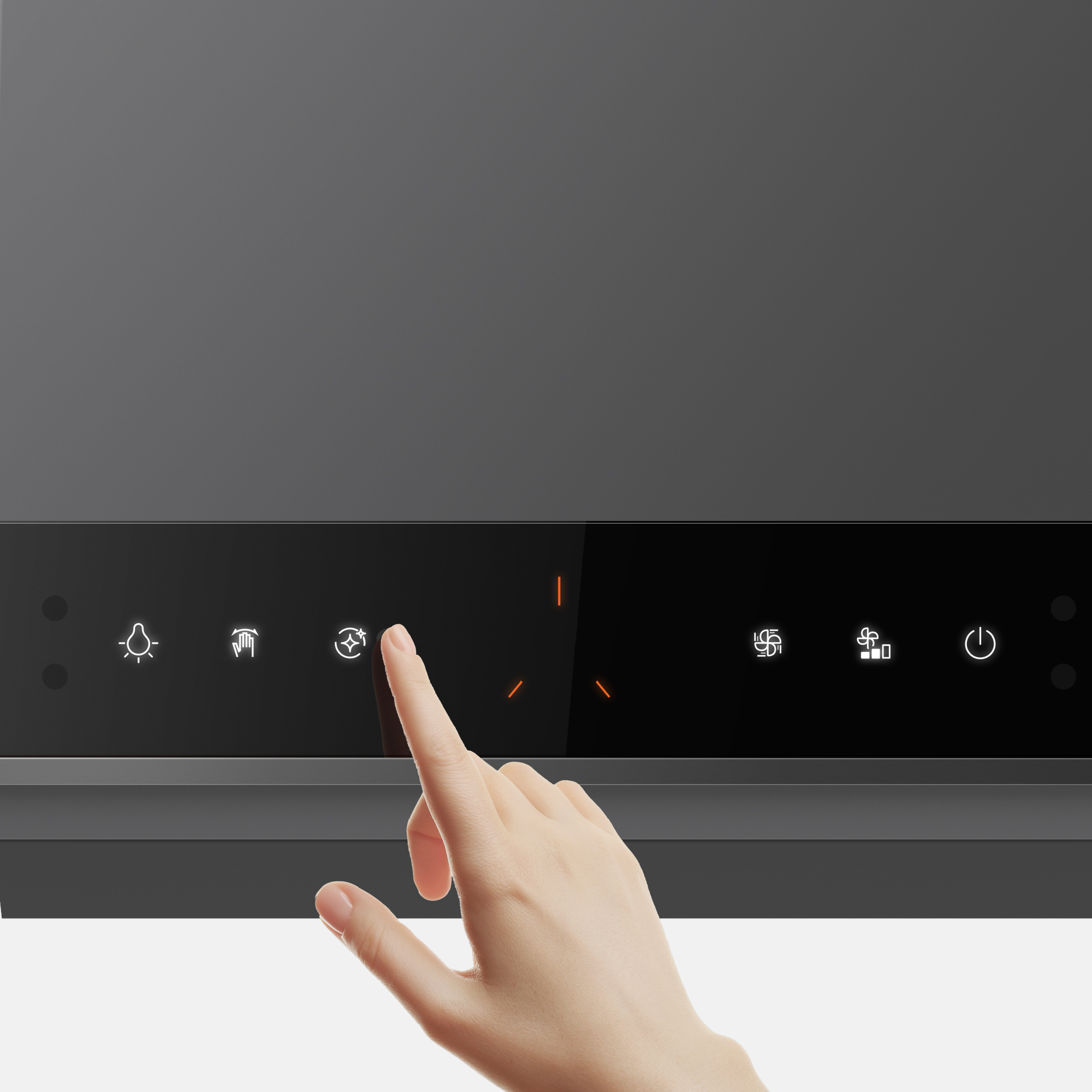

Refined Touch Panel & Finish
Minimal touch panel with subtle dual-tone accents and an aluminium strip harmonises with minimalist kitchen design.

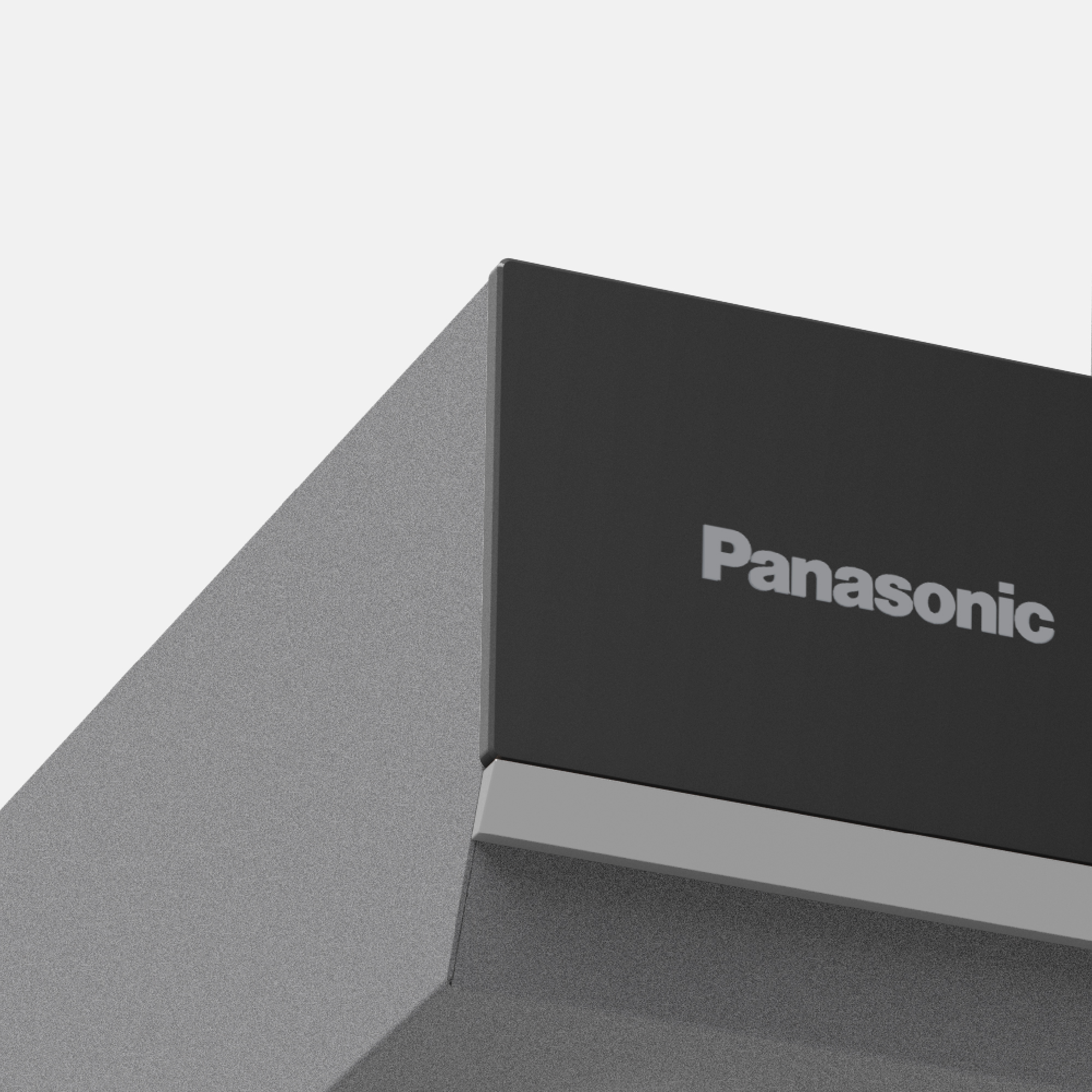

Bevelled & Angled Edge Design
Softly angled edges and bevelled detailing add subtle refinement that complements the clean lines of modern interiors.
Installation & Care Tips

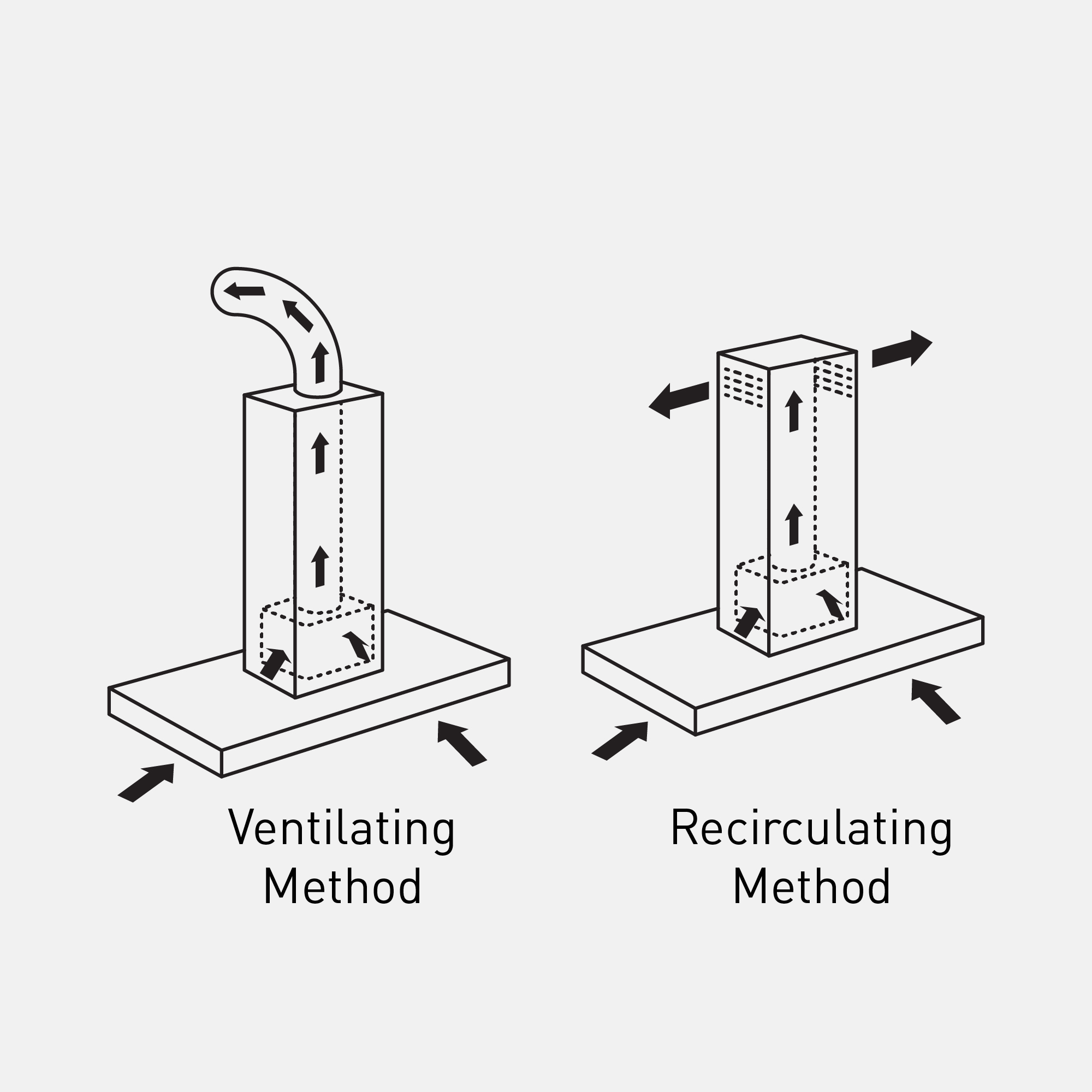

Ventilating Method generally offers stronger airflow, quieter operation, and does not require carbon filter replacement.
Recirculating Method is easier to set up as it doesn’t require drilling holes or fitting a vent.
Recirculating Method is easier to set up as it doesn’t require drilling holes or fitting a vent.

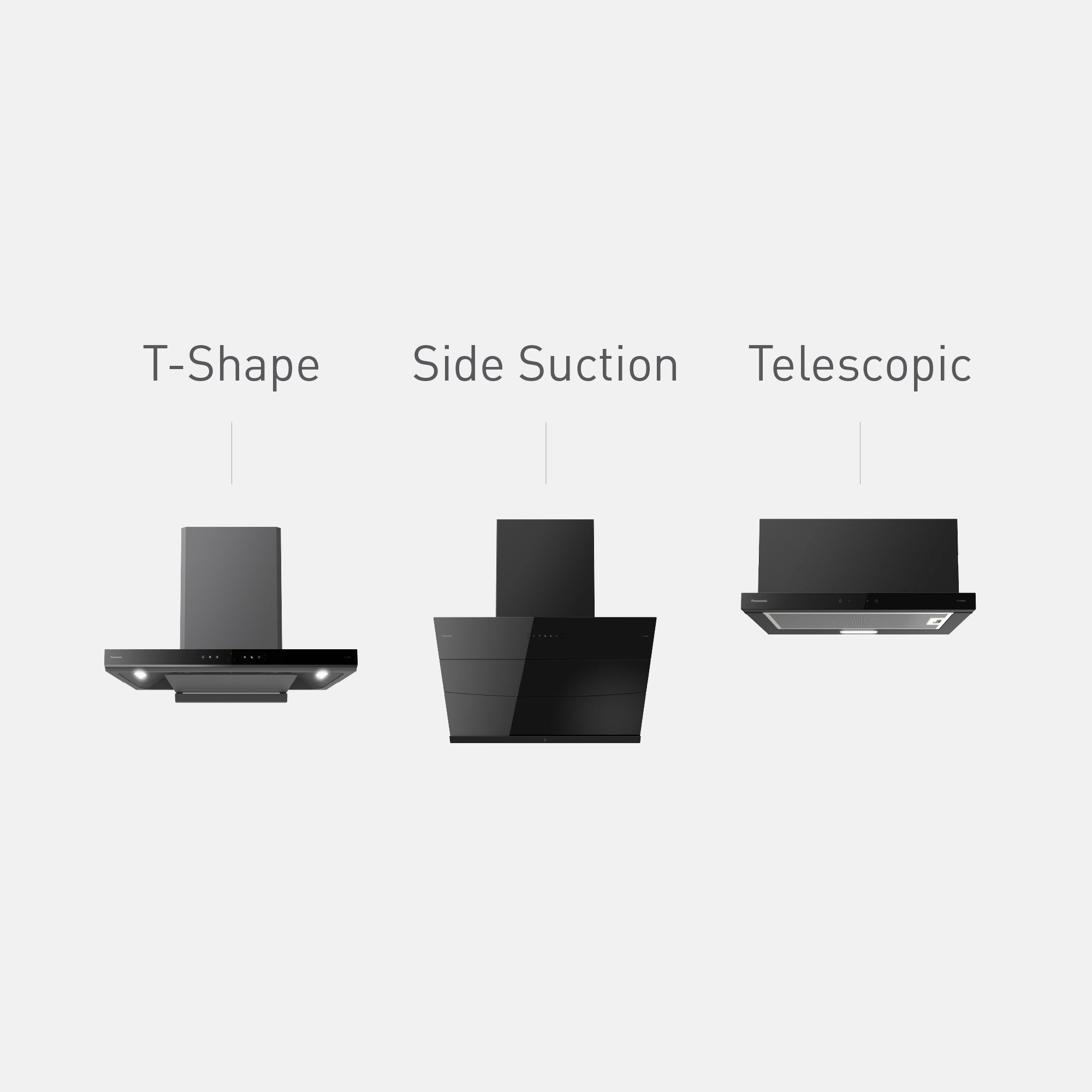

T-shape: Most popular, with powerful suction and versatile functions.
Side Suction: Slim, modern design that improves visibility and head movement.
Telescopic: Compact and ideal for a seamless kitchen fit.
Side Suction: Slim, modern design that improves visibility and head movement.
Telescopic: Compact and ideal for a seamless kitchen fit.
① Clean the filter and oil cup regularly (recommended once a month).
② Wipe the flat glass control panel with a mild cleaning agent to remove grease.
③ Use the Auto Clean function frequently after intensive cooking to remove oil build-up. (Available on selected models)
② Wipe the flat glass control panel with a mild cleaning agent to remove grease.
③ Use the Auto Clean function frequently after intensive cooking to remove oil build-up. (Available on selected models)

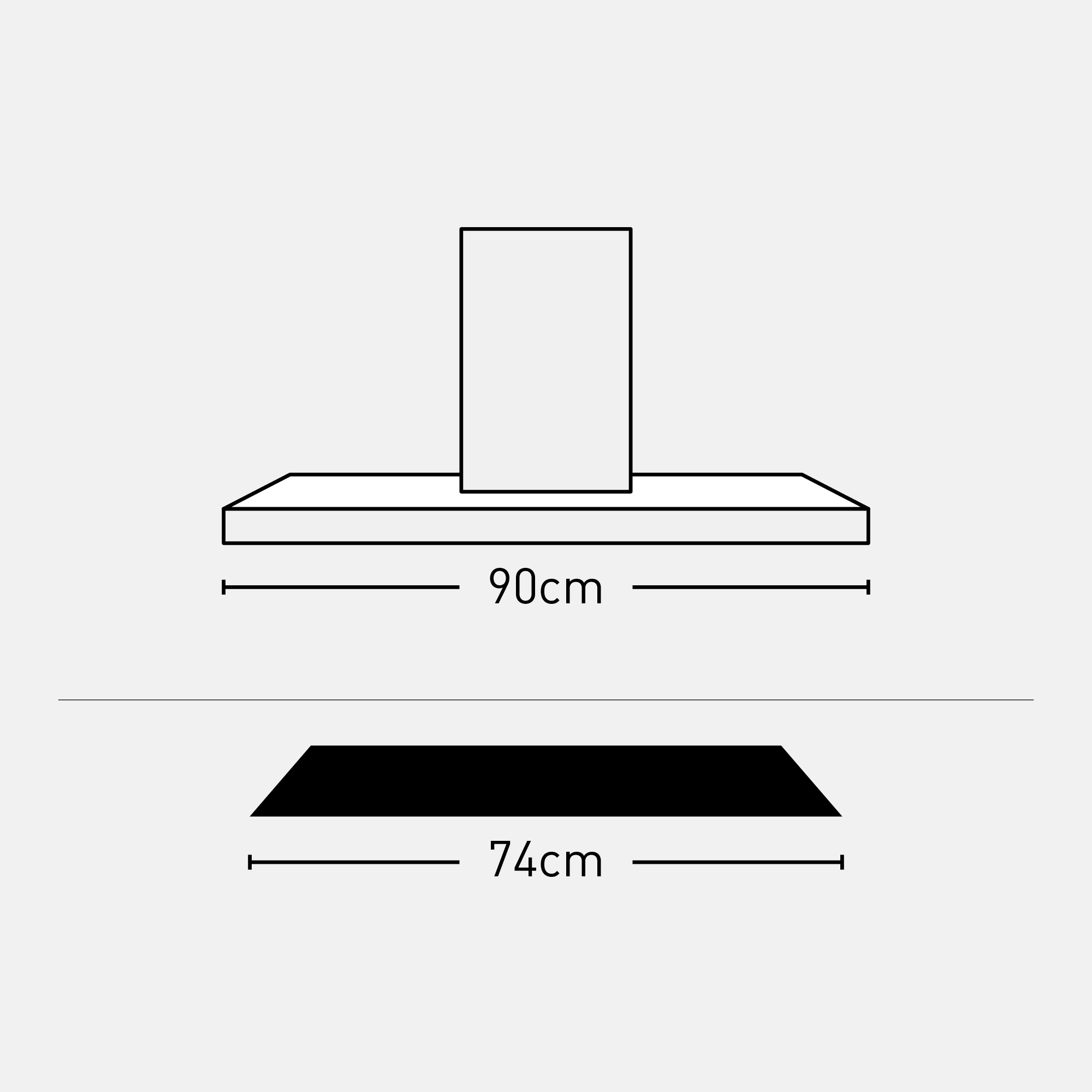

The hood should be wider than the hob for optimal suction coverage.
For example, a 74 cm-wide hob is best paired with a 90 cm hood.
For example, a 74 cm-wide hob is best paired with a 90 cm hood.

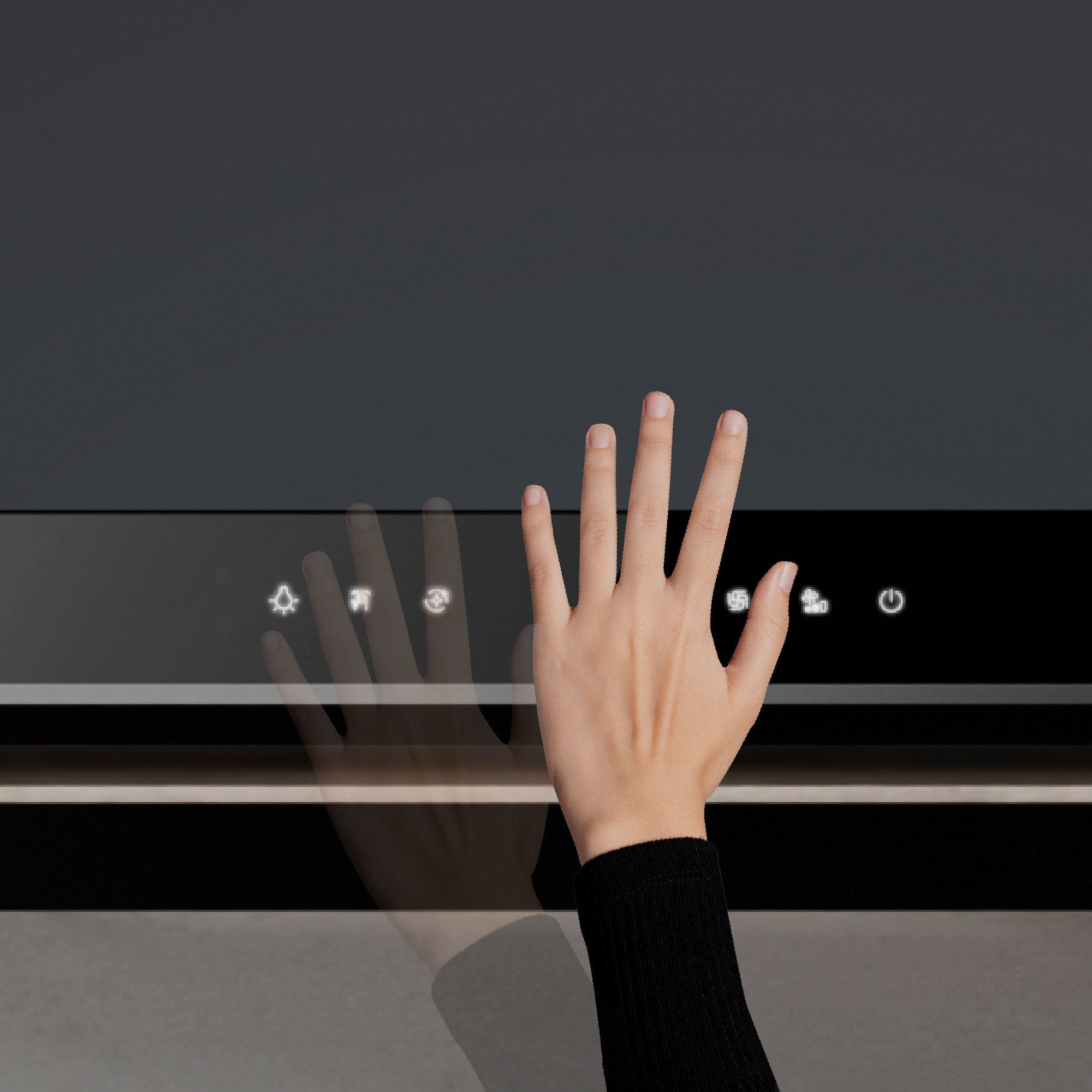

During standby or power-off mode, wave your hand from left to right across the gesture control sensors on both sides to start the fan.
To switch between speed levels, wave repeatedly.
To switch between speed levels, wave repeatedly.
Specs
Size and Weight
- Height
- 685mm
- Width
- 900mm
- Depth
- 495mm
- Weight
- 24kg

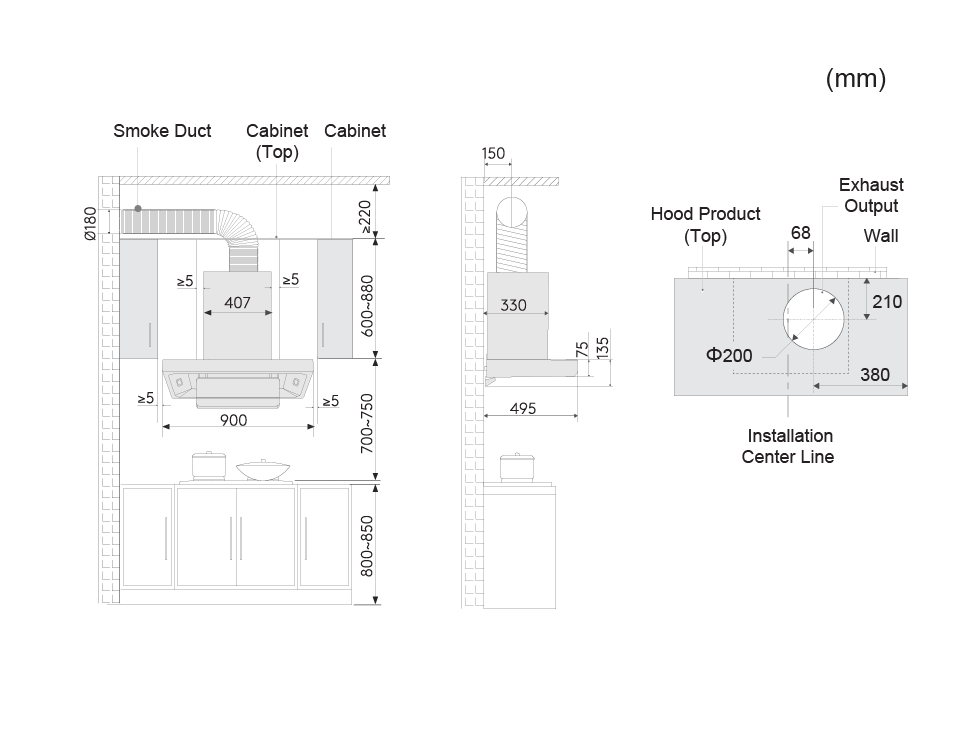

*Please check the minimum space requirements for installation.
Ultra Strong Suction Power- 360º Wide Coverage
- Hand Gesture Control
- Dry Self-Cleaning
- Efficient BDLC Inverter Motor
- Delay End
- Easy to Operate
- Easy to Clean
Powerful Suction Power
- 2,200 m³/h
Wider Coverage, Less Smoke
- 360° 3D Suction
Enjoyable Cooking with Less Noise
- BLDC Motor
Cleans Itself, Easier Maintenance
- Dry Self-Cleaning
Hands-Free Control with a Wave
- Hand gesture control
Modern Simplicity, Thoughtful Details
Power Supply
-
Single Phase 220-240 V, 50/60 Hz
Max. Power Consumption
-
BLDC: 113W (Boost: 353W)
Main Colour
-
Dark Grey (w/ glass)
Fan Speed
-
3+1 (Boost)
Control Mode
-
Touch
Hand Gesture Control
-
Yes
Suction Power*
-
2,200 m³/h
Operation Noise
-
50 dB
Self Cleaning
-
Yes
3 Mins Delay Off
-
Yes
Filter Type
-
Built-in Grease Baffle
Oil Cup
-
Yes
Diameter of Outer Smoke Duct
-
190 mm
Lighting
-
2x 1.5 W
Extraction Mode
-
Ducted Only
Product Dimensions (approx.)
-
(W) 900 × (D) 495 × (H) 685 mm
Height of Control Panel (approx.)
-
5.5cm / 7.5cm (w/ strip)
Net Weight (approx.)
-
24 Kg
Note
-
*Tested and measured internally with +/- <10% marginal discrepancy
** Smoke duct not included in box
