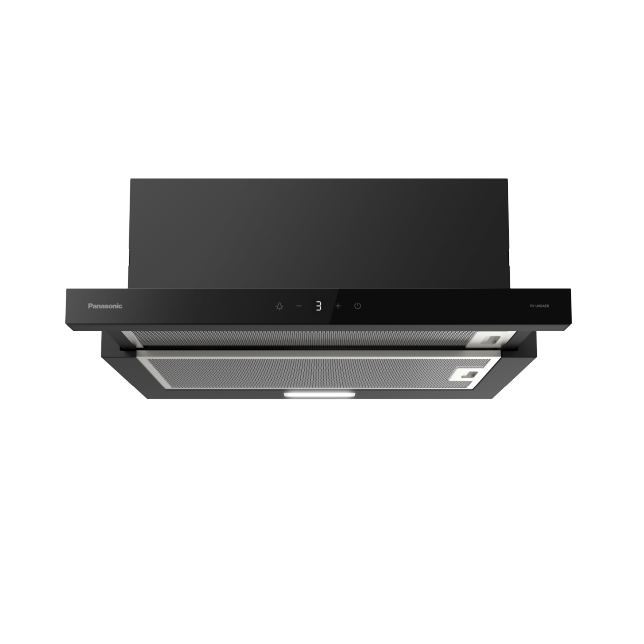

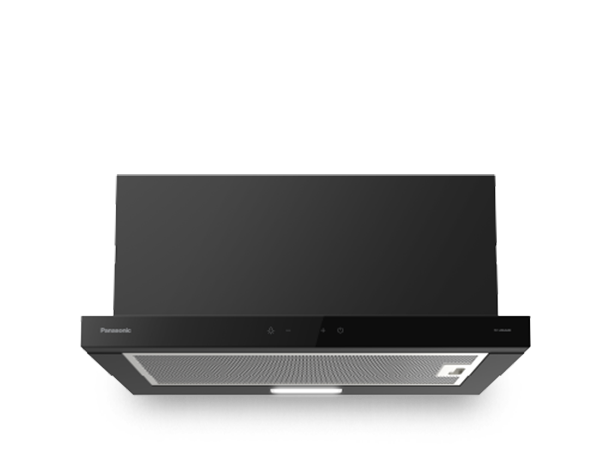

Wall-Mounted Compact Telescopic Hood
FV-UX6AE
Retail Sales Price:RM 1,199.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
Telescopic Hood
FV-UX6AE
Clear the Air. Cook What You Love.

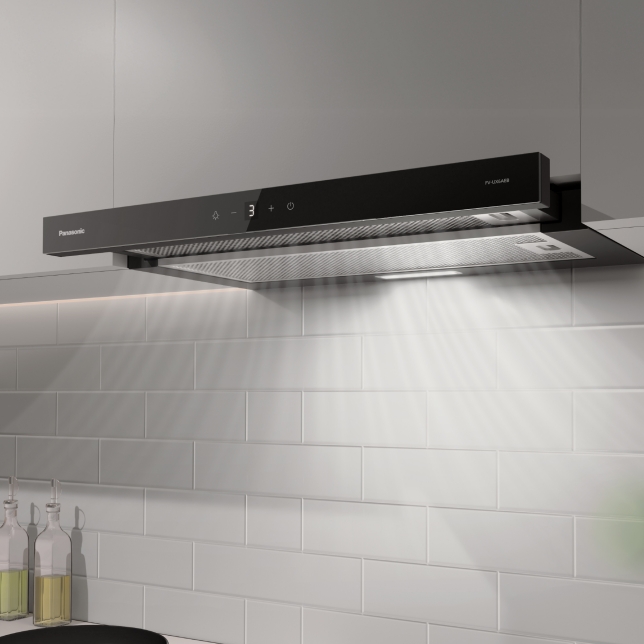

Enjoy stir-fries, soups, and everyday meals without filling your home with smoke or odours. The slim telescopic hood extends when needed and tucks away for a modern, open kitchen.
* All images are for illustrative purposes only.
Features

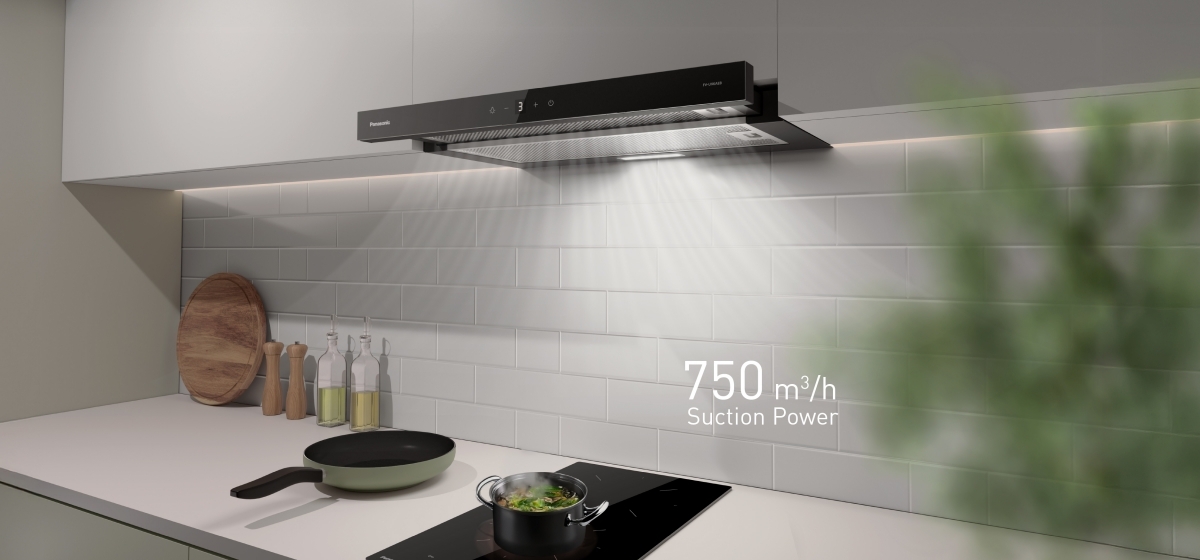

Powerful Suction for a Fresher Kitchen
750 m³/h airflow with an extendable panel captures smoke, odours, and airborne grease from everyday cooking, keeping your kitchen fresh and comfortable.

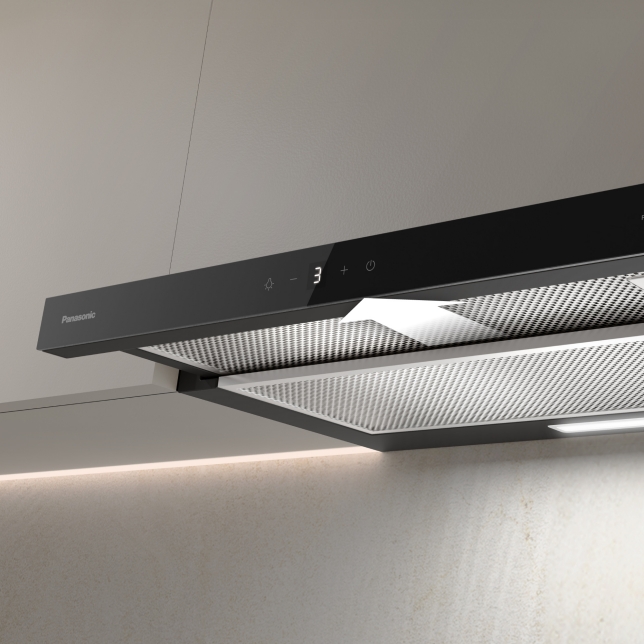

Wider Coverage, Less Smoke
An extendable panel captures more steam and fumes from large pots and pans during stir-fries, grilling, or other intensive cooking.

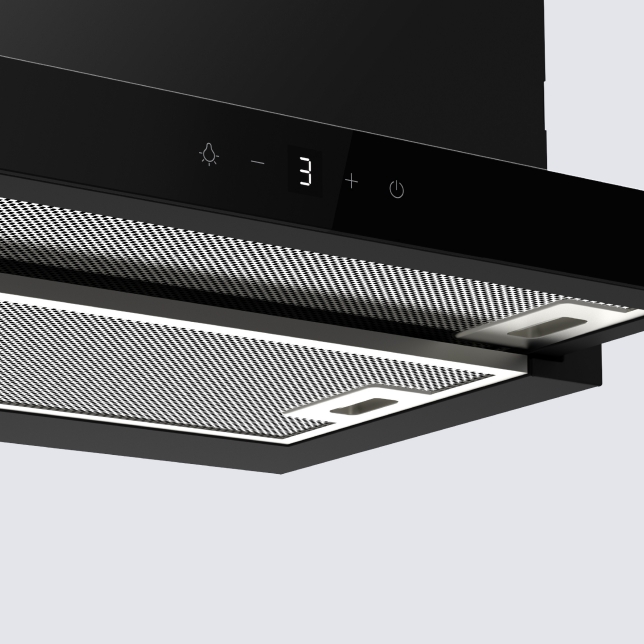

Cleaner Cooking Every Day
Durable 2x 4-layer metal filters trap grease effectively to keep your kitchen clean. They are also dishwasher-safe for convenient, high-temperature cleaning.
Simple Features that Support Everyday Cooking

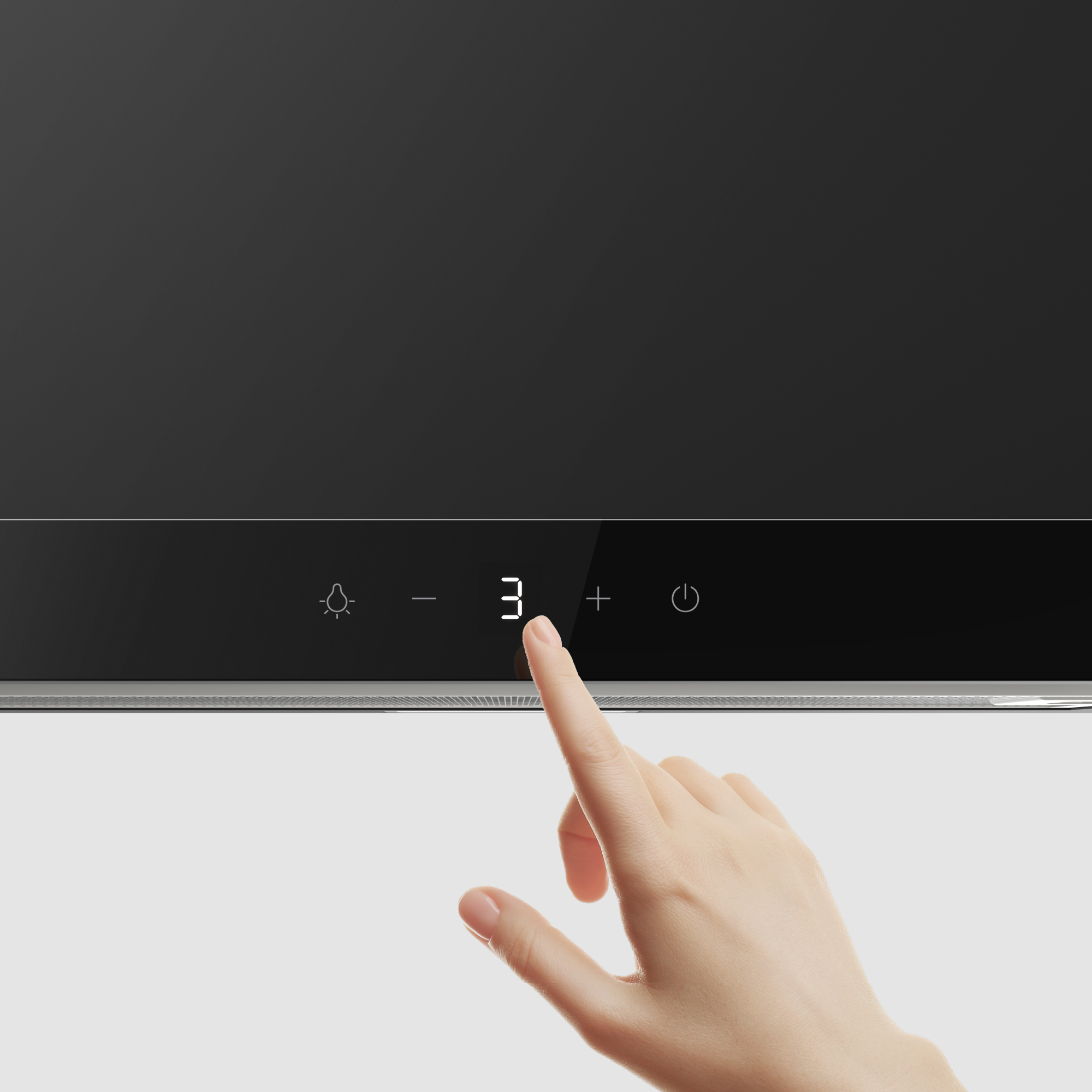

1 Easy Touch Control
Adjust fan speed and lighting with a quick tap, keeping cooking smooth and uninterrupted.

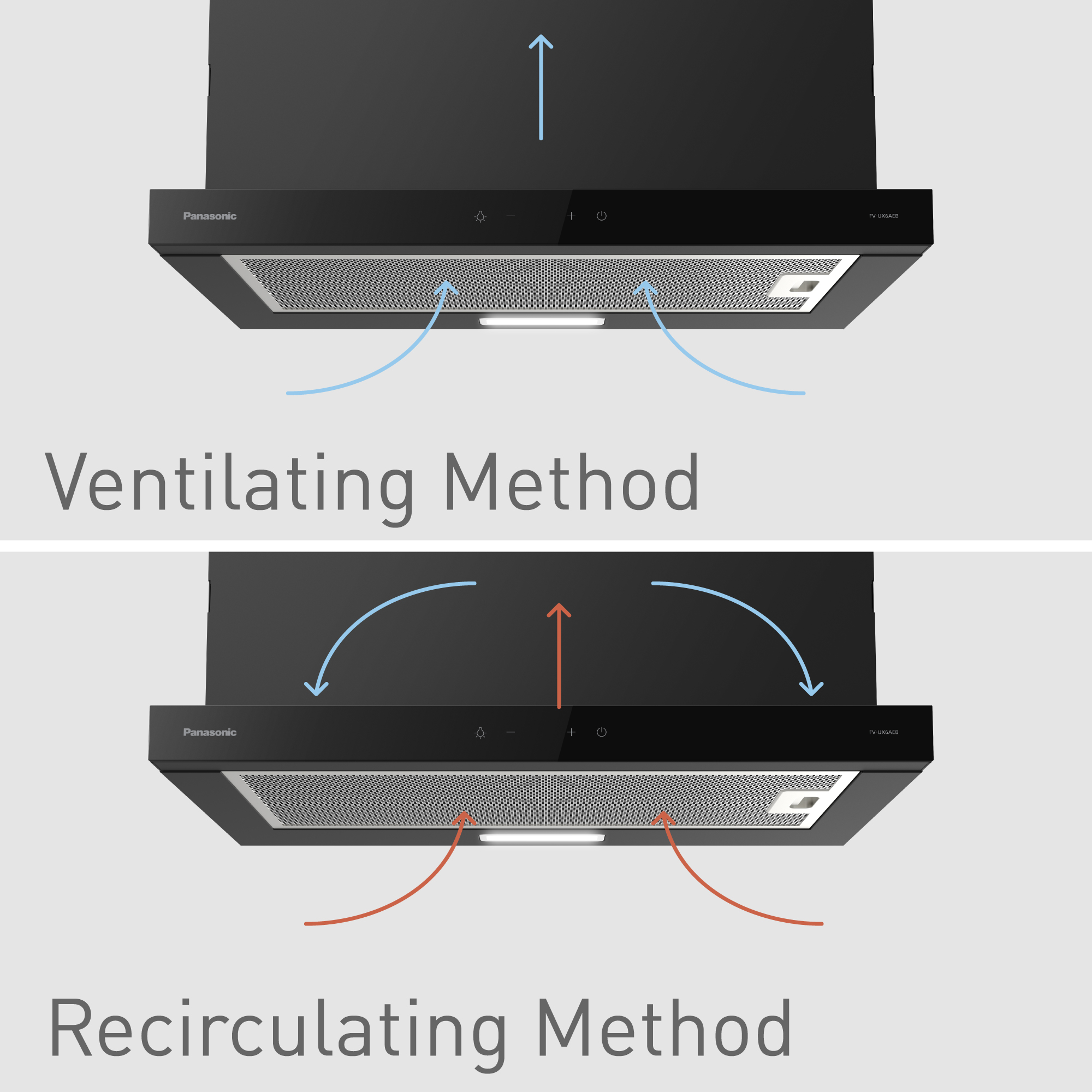

2 Flexible Installation
Choose ducted installation for houses where drilling a vent is possible, or recirculating for apartments without external vents. Flexible options that adapt easily to your space.

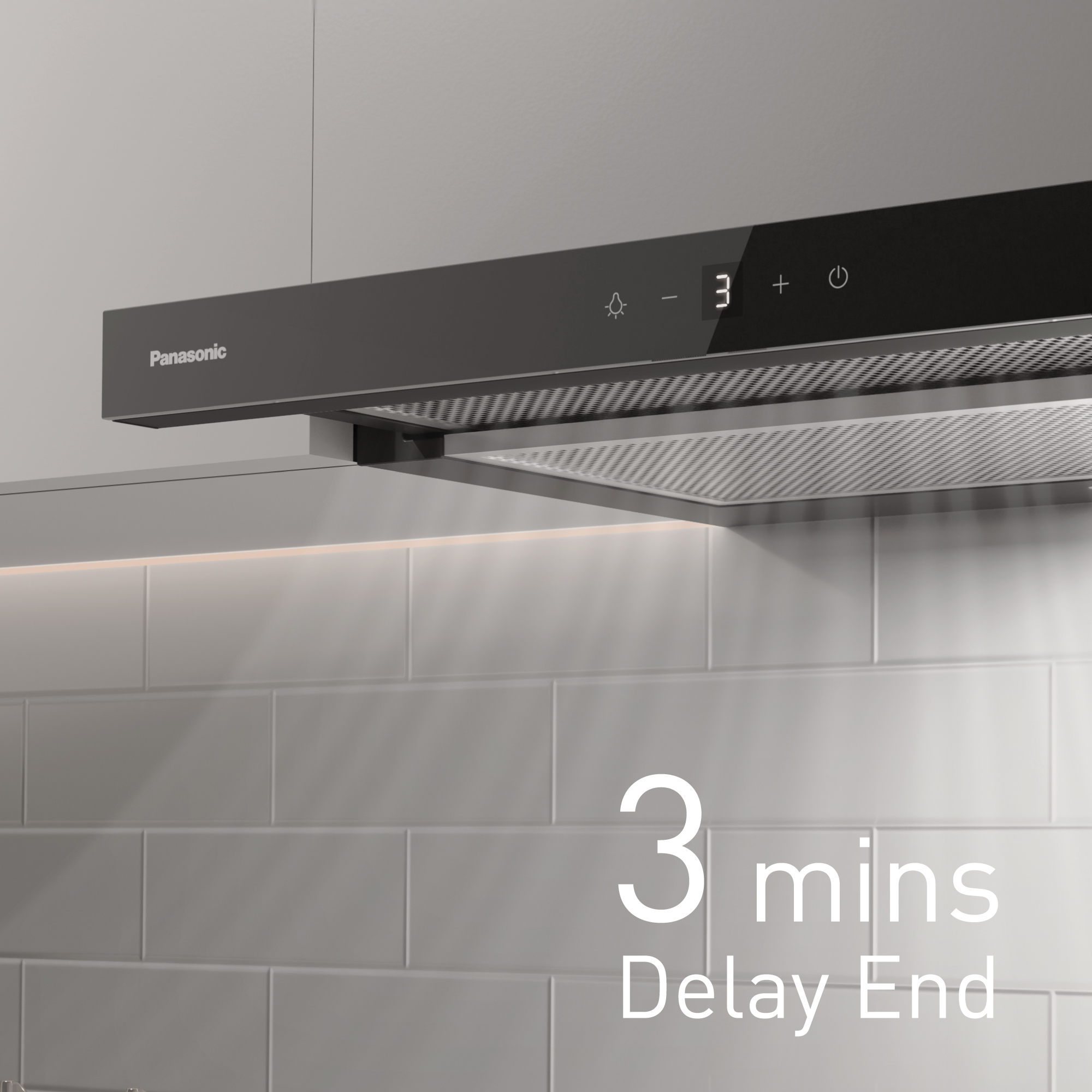

3 Stays On After Cooking
A 3-minute Delay End continues to extract lingering smoke and odours, keeping the kitchen fresh even after you leave the stove.

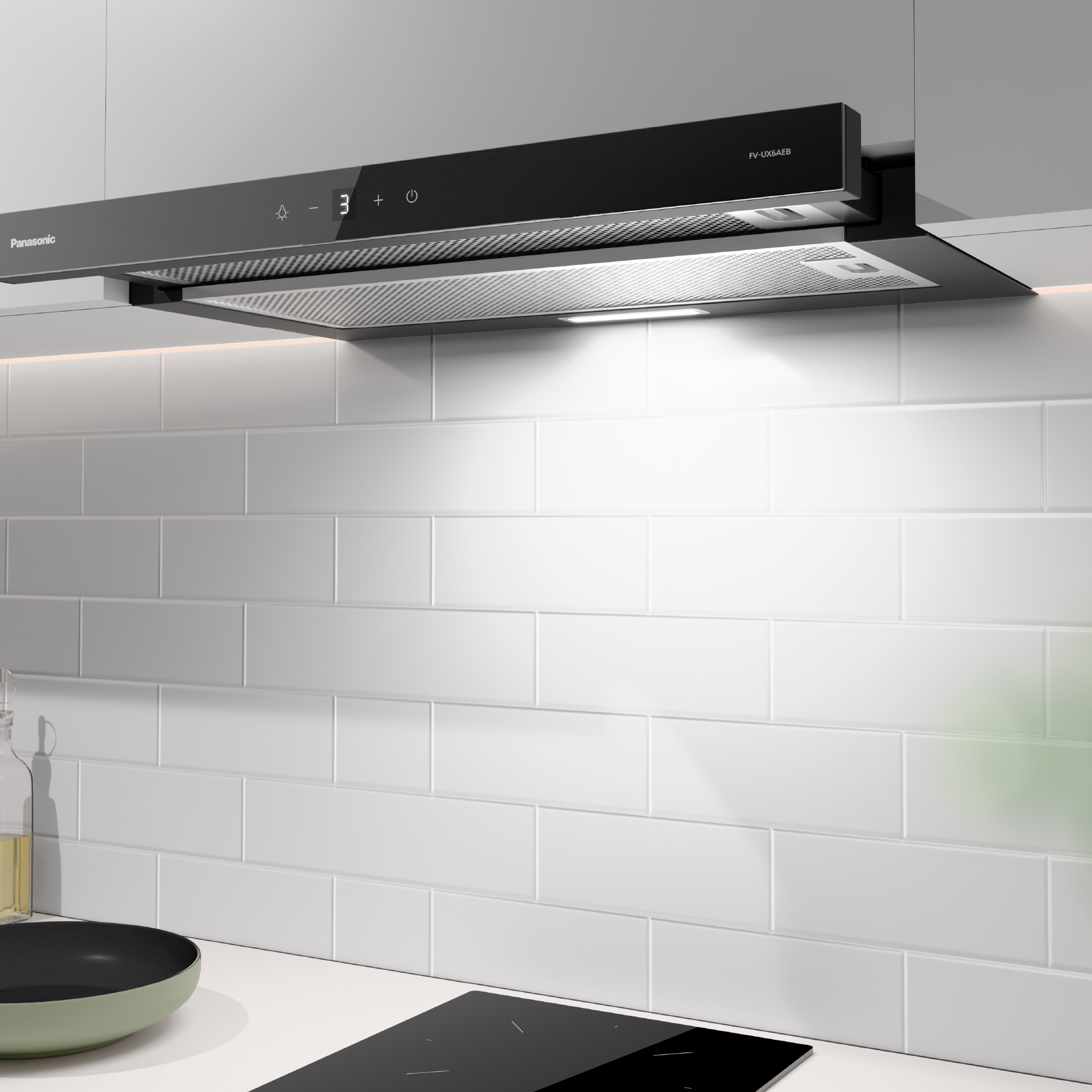

4 See Clearly While You Cook
A built-in LED lamp brightens your cooking area, giving you better visibility as you prepare meals.

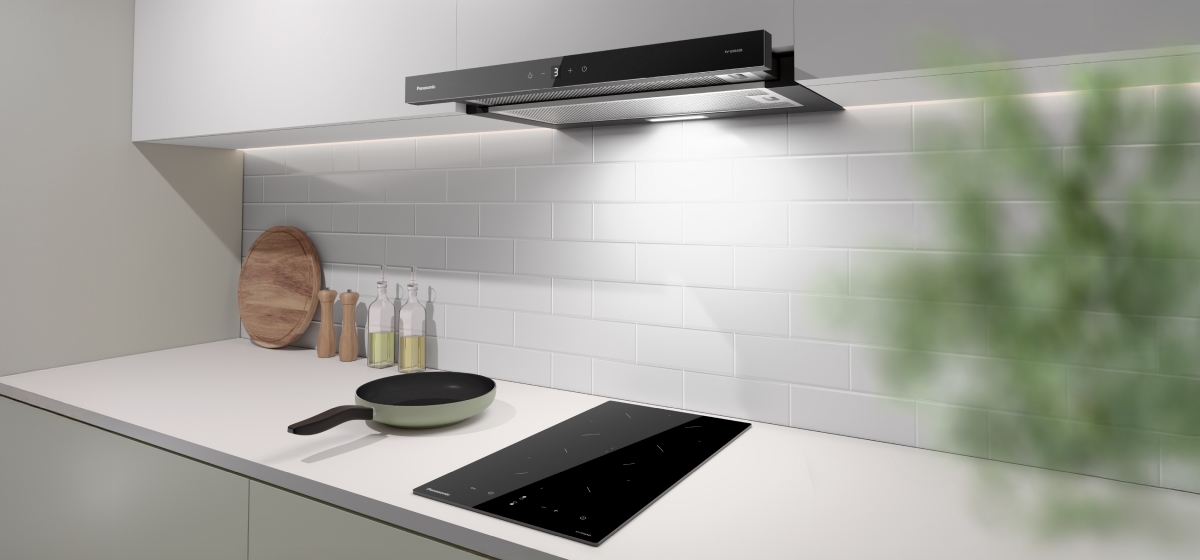

Ultra-Slim Design
At just 4.3 cm thin, it blends in seamlessly, keeping your kitchen feeling more open and spacious. Pair it with the matching slim cooking hob for a cohesive kitchen look.
Discover the Matching Hob

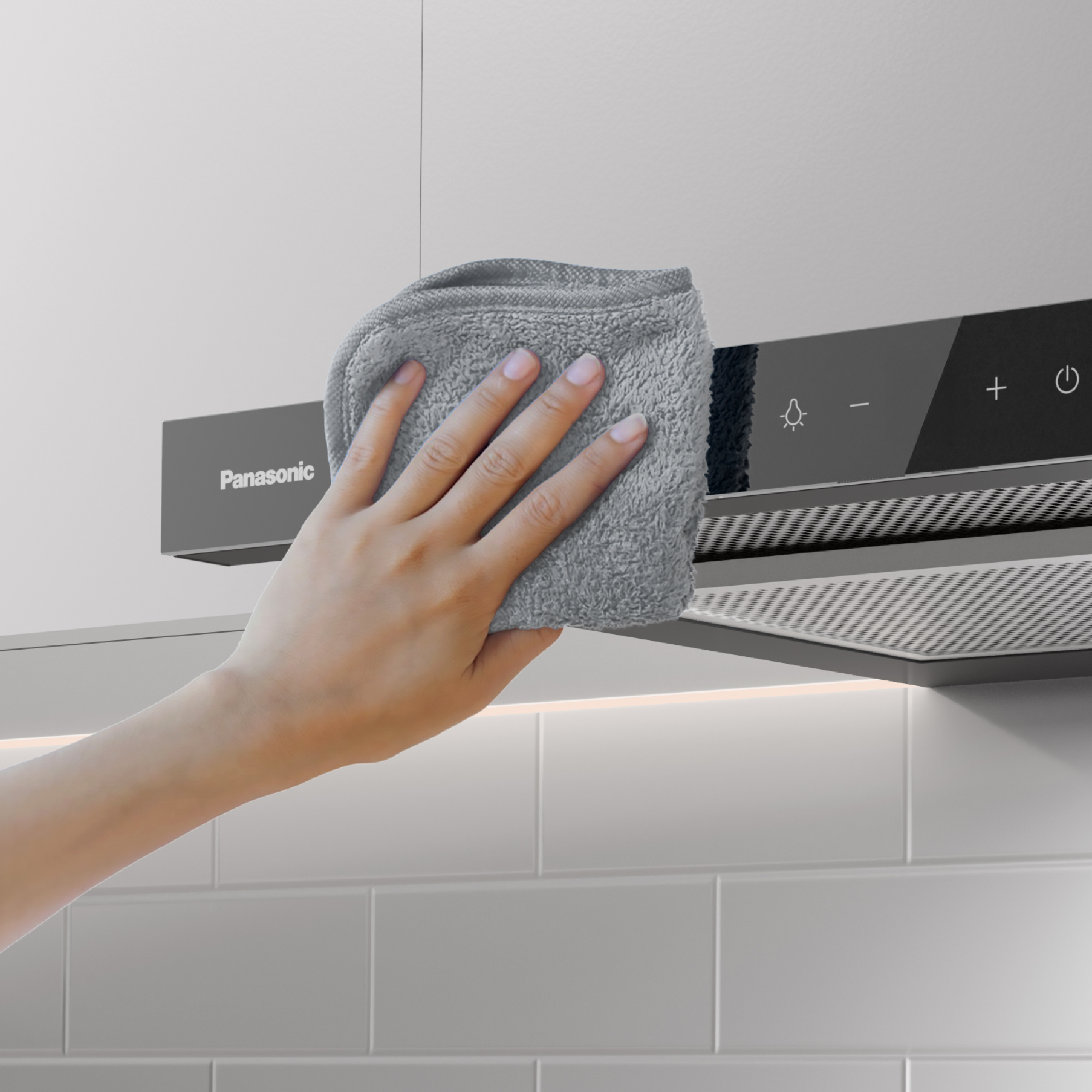

Full-Flat Tempered Glass
Sleek and durable, with no grooves to trap grease. Wipes down easily to keep your kitchen looking modern and tidy.

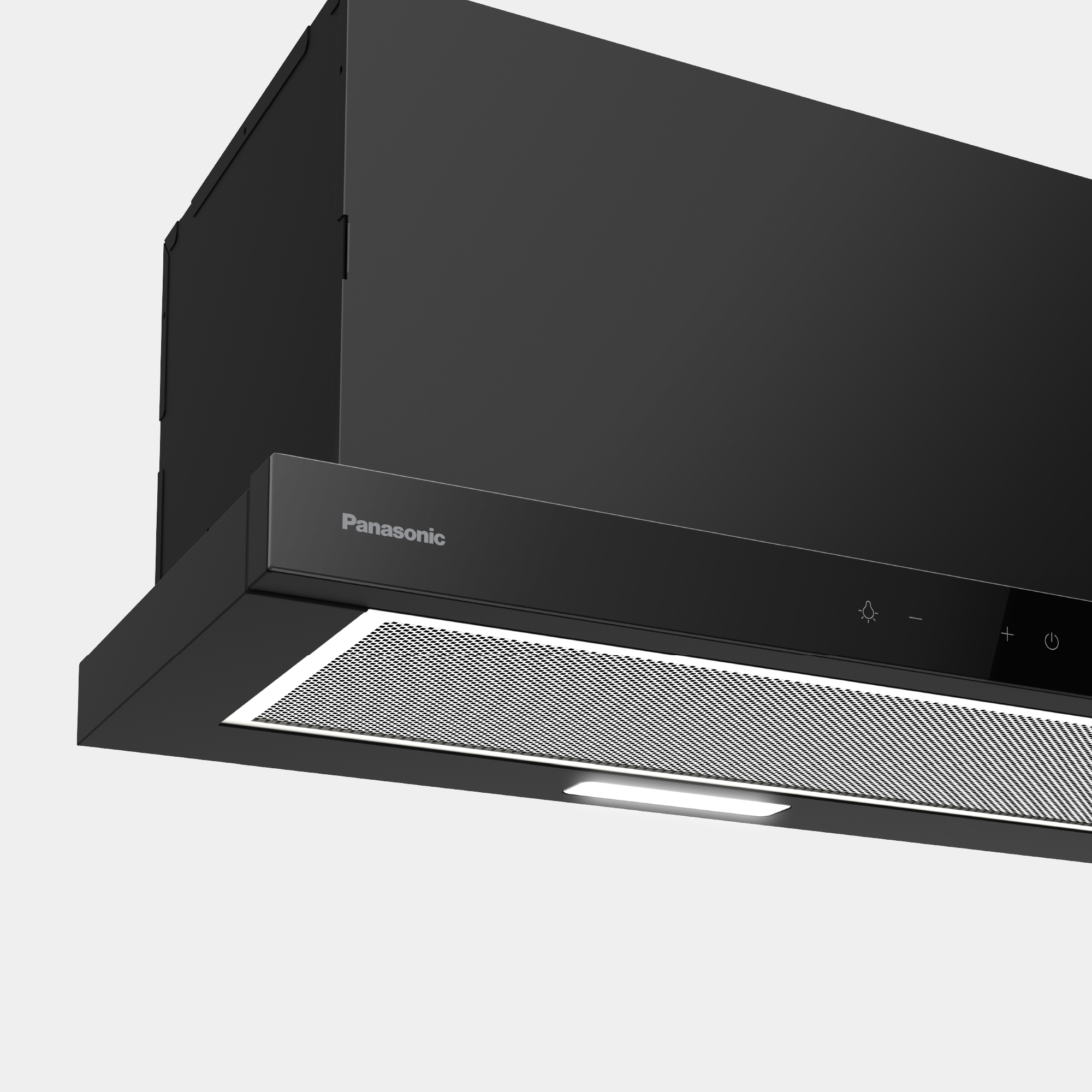

Immersive Black Design
A timeless black finish complements most kitchen interiors effortlessly, adding a touch of modern elegance.

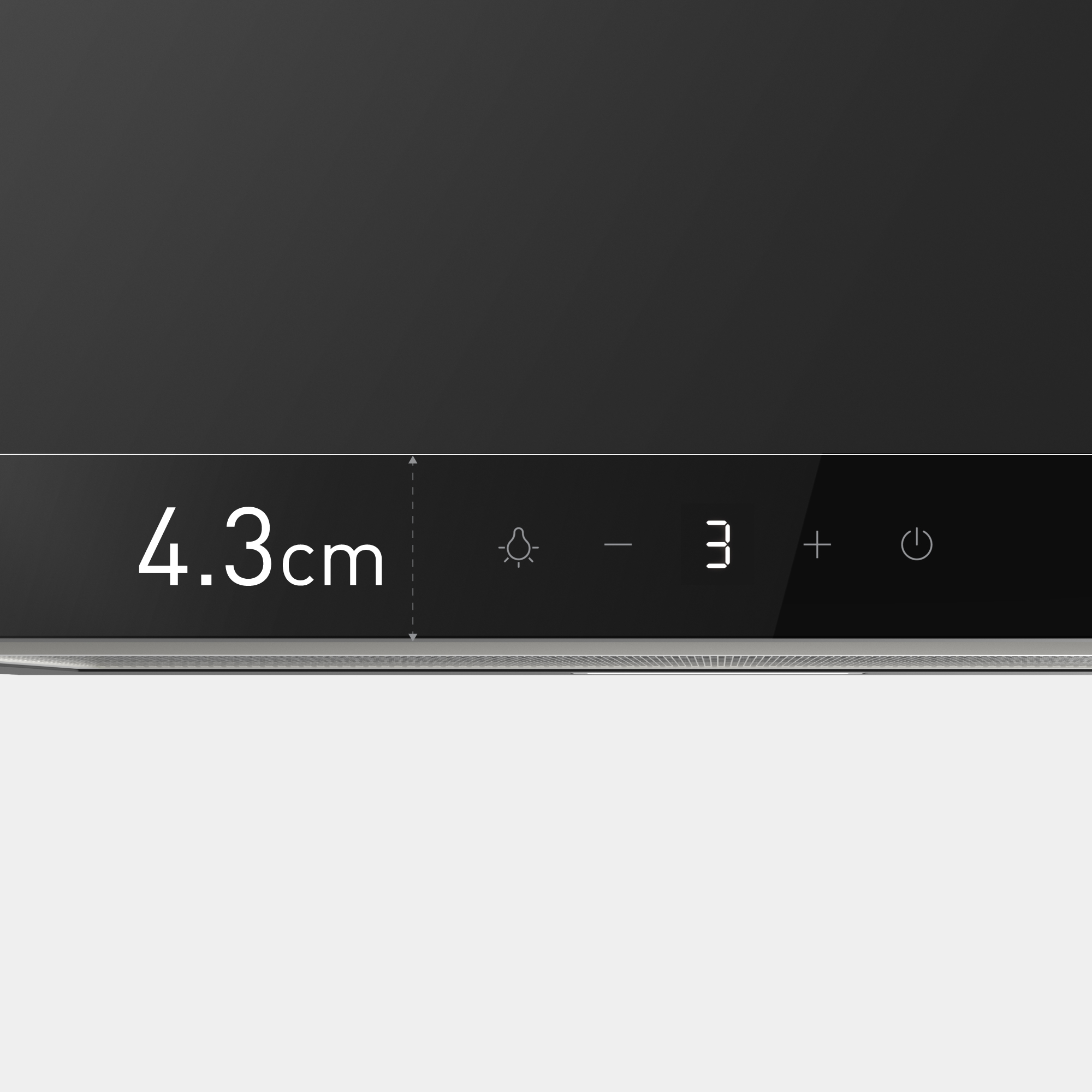

Minimalist Control Panel
A slim control panel sits flush within the hood, keeping the design neat and uncluttered.
Installation & Care Tips

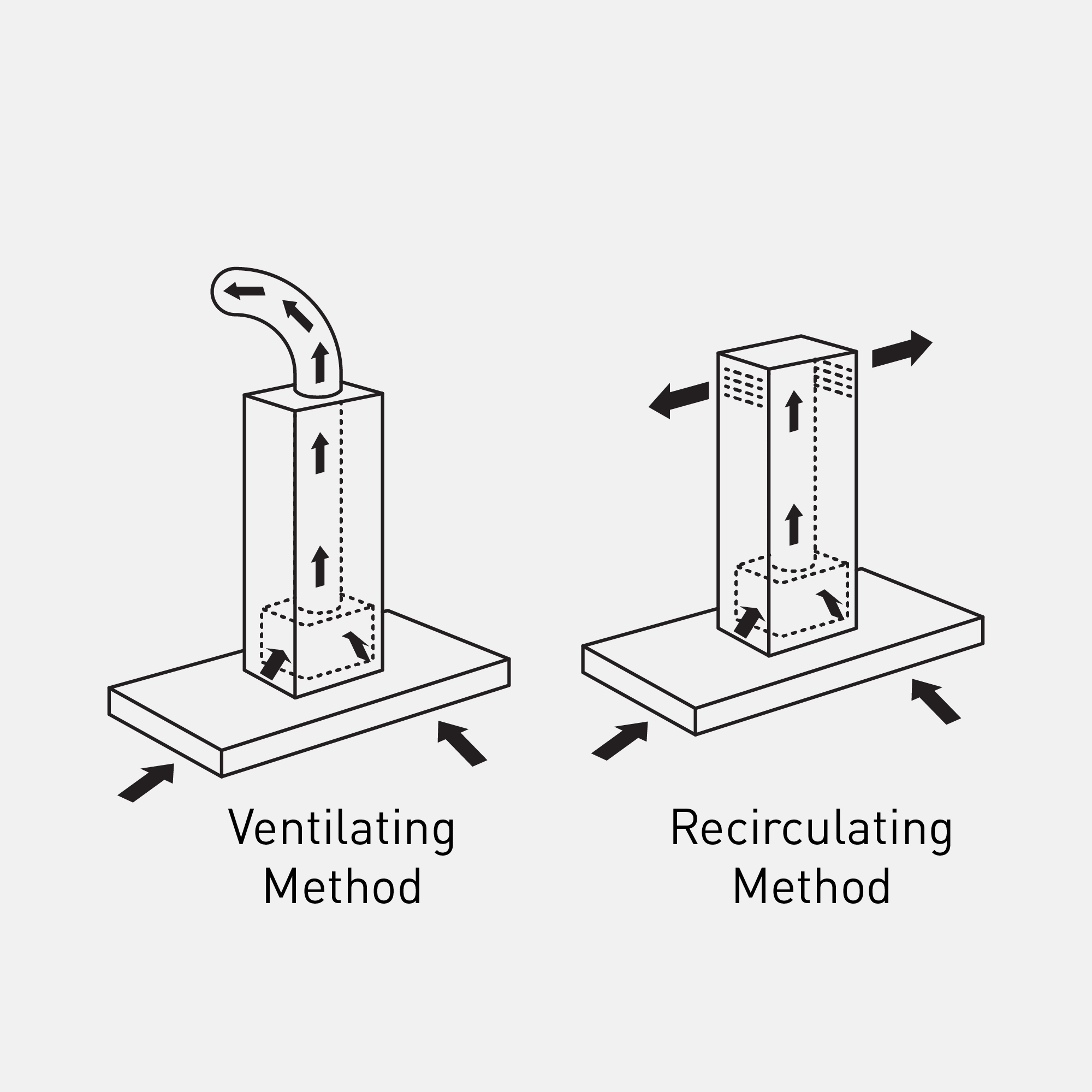

Ventilating Method generally offers stronger airflow, quieter operation, and does not require carbon filter replacement.
Recirculating Method is easier to set up as it doesn’t require drilling holes or fitting a vent.
Recirculating Method is easier to set up as it doesn’t require drilling holes or fitting a vent.

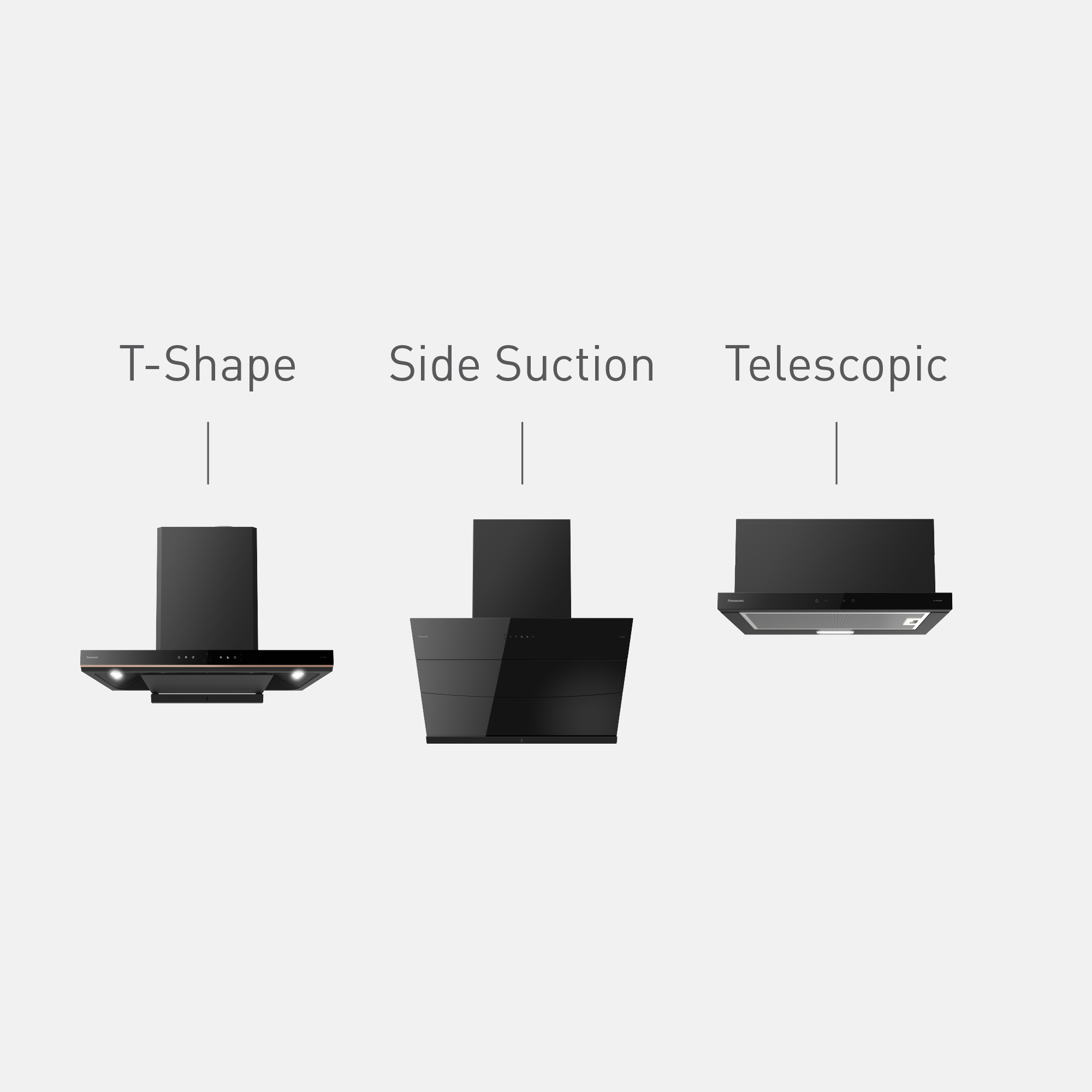

T-shape: Most popular, with powerful suction and versatile functions.
Side Suction: Slim, modern design that improves visibility and head movement.
Telescopic: Compact and ideal for a seamless kitchen fit.
Side Suction: Slim, modern design that improves visibility and head movement.
Telescopic: Compact and ideal for a seamless kitchen fit.
① Clean the filter and oil cup regularly (recommended once a month).
② Wipe the flat glass control panel with a mild cleaning agent to remove grease.
② Wipe the flat glass control panel with a mild cleaning agent to remove grease.

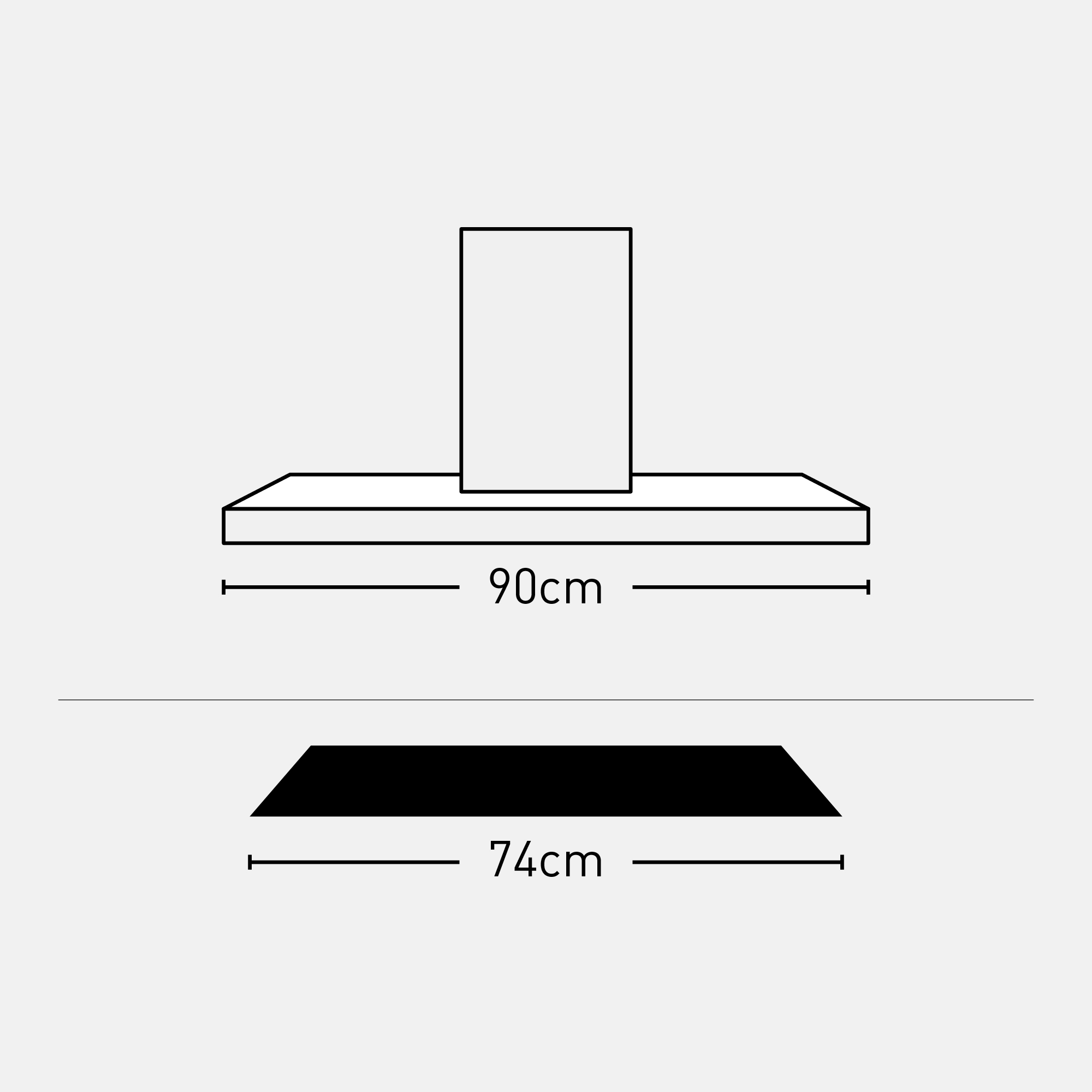

The hood should be wider than the hob for optimal suction coverage.
For example, a 74 cm-wide hob is best paired with a 90 cm hood.
For example, a 74 cm-wide hob is best paired with a 90 cm hood.

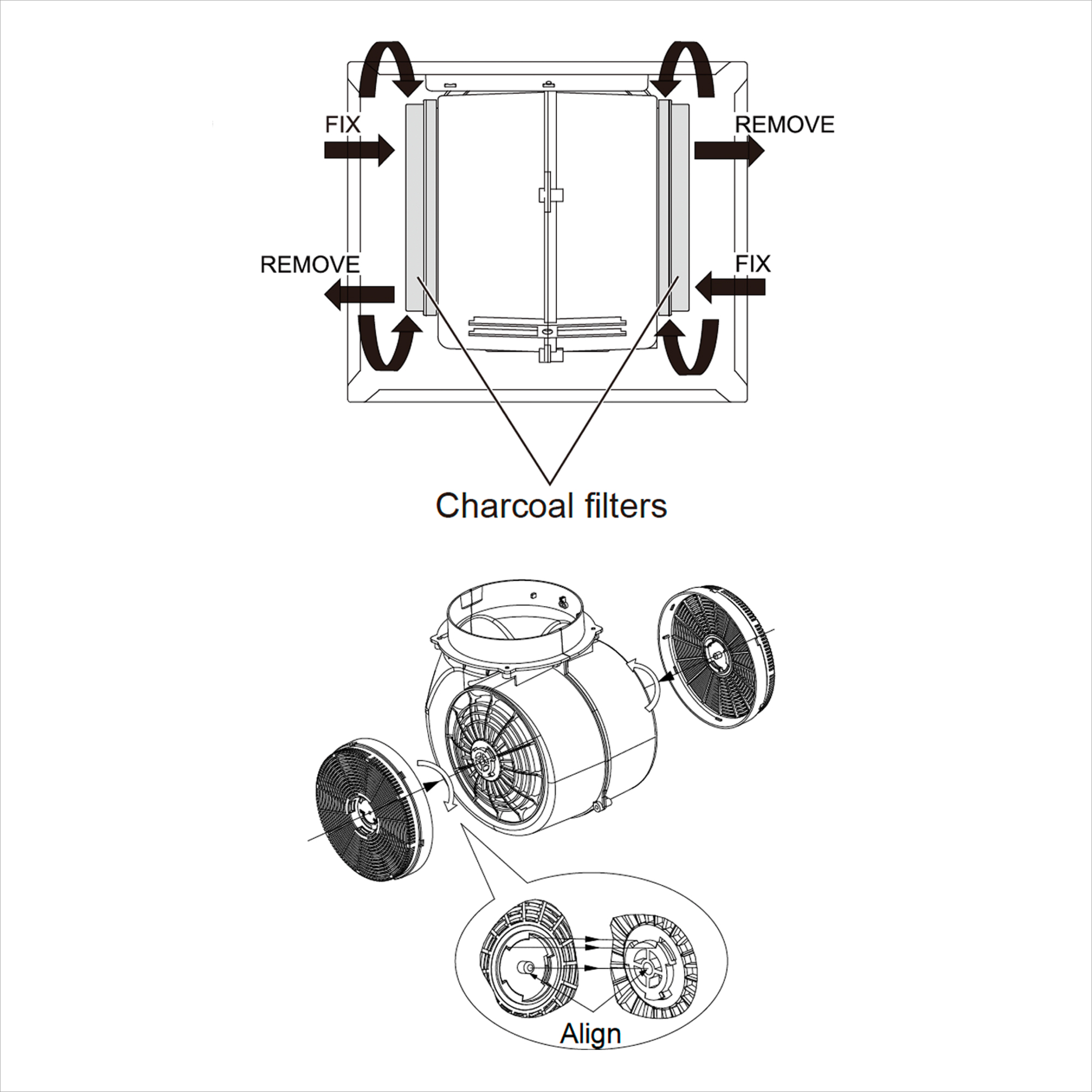

For users with the Recirculating Method, it is recommended to replace the charcoal filter every 3 months, or earlier if odours become stronger. Charcoal filters can be ordered through Panasonic Customer Service and replaced by yourself following the instruction manual, or with help from the service team.
Specs
Size and Weight
- Height
- 255mm
- Width
- 595mm
- Depth
- 310mm
- Weight
- 7.3kg

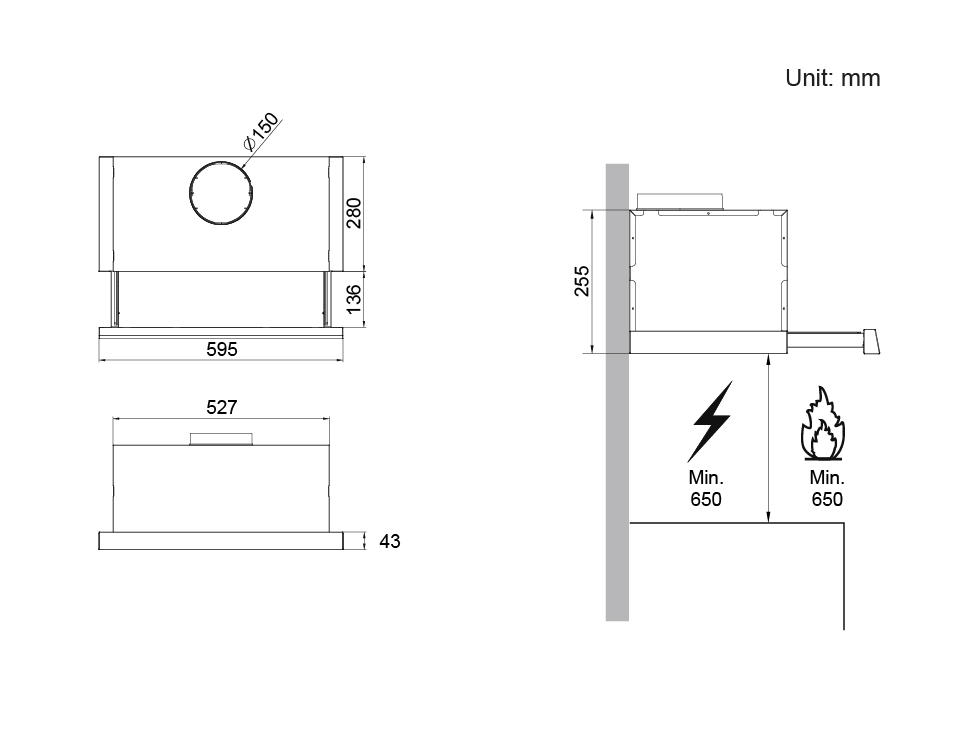

*Please check the minimum space requirements for installation.
Reliable Suction Power- Extendable Coverage
- Delay End
- Easy to Operate
- Easy to Clean
Reliable Suction Power
- 750 m3/h
Wider Coverage, Less Smoke
- Extendable Panel
Cleaner Cooking Every Day
- 2x 4-Layer Metal Filters
Stays On After Cooking
- 3-min Delay End
Ultra-Slim Design
- 4.3 cm Slim Control Panel
Power Supply
-
Single Phase 220-240 V, 50/60 Hz
Max. Power Consumption
-
105 W
Main Colour
-
Black (w/ Glass)
Fan Speed
-
3
Control Mode
-
Touch
Hand Gesture Control
-
-
Suction Power*
-
750 m³/h
Operation Noise
-
52 dB
Self Cleaning
-
-
3 mins Delay Off
-
Yes
Filter Type
-
2x 4-Layer Aluminum Mesh
Oil Cup
-
-
Diameter of Outer Smoke Duct
-
156mm**
Lighting
-
1 x 1.5W
Extraction Mode
-
Ducted/ Recirculating
Product Dimensions (approx.)
-
(W) 595 × (D) 310 × (H) 255 mm
Height of Control Panel (approx.)
-
4.3 cm
Net Weight (approx.)
-
7.9 kg
Notes
-
*Tested and measured internally with +/- <10% marginal discrepancy
** Smoke duct not included in box
