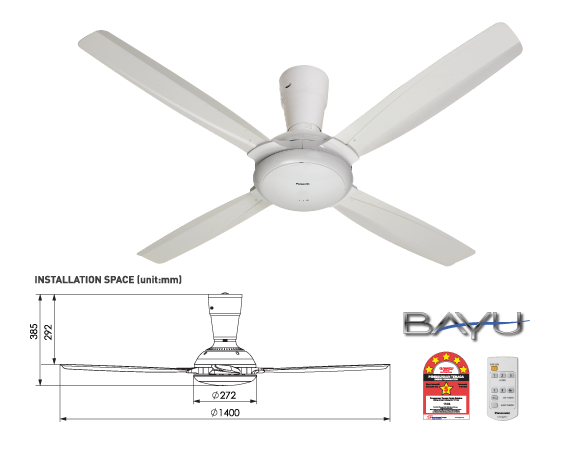

BAYU 4-Blade Ceiling Fan (56") F-M14C5VBWH

F-M14C5VBWH

A NEW, COOLING EXPERIENCE

The BAYU ceiling fan provides you with natural breeze and comfortable temperature management for your home.

· 4-blade design
· Enhanced safety features
· 3-preset speed selection
· 1, 3, 6 Hour Off Timer
· 3, 6 Hour Sleep Timer

close
^

Select color

Features

Convenient - Remote Controller


Ease of use

Control fan functions with a simple touch of your finger


Ease of flexibility

Preset your fan shut off after selected time range, regardless of selected speed.


On/Off Button

Press On/Off Button to activate or deactivate the ceiling fan.


Speed Button

From slow speed to cooling environment in three easy speeds selection.


Off Timer Button

1, 3, 6 hours Off Timer setting


Sleep Mode Button

1, 3, 6 Hour Sleep Timer function. To gradually reduce fan speed according to the time setting.


Cancel Button

To cancel Sleep mode or to cancel Off Timer

Caring - Sleep Mode


These fan are equipped with Sleep Mode, by which fan speed and timer will gradually reduce until the fan is off. This function not only creates an optimal sleeping environment but also enhances energy saving as well.


* Note:
Sleep mode is disabled at speed 1 and 1 hour setting.
Operation patter will be different subject to different model and setting, please refer to the operation instruction for details.

Safety Policy by Panasonic


Preventive Measures For Safety

Panasonic aims to minimize and reduce accidents to occur. Thus, Panasonic practices safety policy to prevent any dangerous mishaps.


To pursue a higher quality of life, ceiling fans are expected to have more functions and value added features. However, it is also crucial to consider the safety and reliability features of the fan when you select a ceiling fan.

Cut-off Safety Switch

Cut-off Safety Switch

Problem
If there is any damage at either the shaft or the bolt due to improper installation, abnormal wobbling from fan will occur when it operates. The damage will cause the shaft or the bolt to break if the fan continues to operate.

Preventive Measures
When there is excessive wobbling, the safety cut-off switch will be triggered and power supply will be cut off. The cut-off switch works by detaching the lever from the switch and the fan will stop.

If Motor stops
Stop using immediately and seek contact for qualified installers or authorized Panasonic service dealers for assistance.

Safety Blade Hook

Safety Blade Hook

Problem
The fan blade may detach from the fan motor should there be improper installation coupled with the fan blade wearing off, deformed blade shape or stronger wind blowing to the fan.

Preventive Measures
The broken blade will be visibly hanging with the aid of safety blade hook when the fan is functioning (as shown in the picture) as an indication.

If Blade breaks
Stop using immediately and seek contact for qualified installers or authorized Panasonic service dealers for assistance.

Safety Wire


Problem

Due to improper installation or should malfunction occur, the fan motor may detached from the pipe rod due to factors such as wearing of shaft bolt, etc.


Preventive Measures

The safety wire helps to secure the fan motor with the ceiling hook to prevent the motor from falling when the fan motor detaches from the pipe rod.


If need shorter/longer pipe

Contact qualified installers or authorized Panasonic service dealers for assistance.


Use the original pipe rod

Original pipe rod comes with the safety wire and safety cut-off switch in line with Panasonic safety policy. Also, do ensure the pipe rod is fully tightened to the motor shaft. (Bolt tightening torque is 800 – 1200 N.com)

Wobbling Reduction Mechanism


Problem

Constant wobbling will cause the bolt, motor shaft and pipe rod to wear off which may cause breakage or falling of the fan to happen should the condition worsened.


Preventive Measures

The newly developed anti-wobbling structure helps to reduce wobbling between bolt, motor shaft and pipe rod. It can minimize the parts from wearing off and prevents from detaching the fan.

Specs

BAYU 4-Blade Ceiling Fan (56") F-M14C5VBWH
Convenient
Remote Control
Dimension:
Width: 1400mm (56"), Height: 385mm
Colour
White

Products recently viewed

Products recently viewed

    Support

    Get Support

    for BAYU 4-Blade Ceiling Fan (56") F-M14C5VBWH

    Downloads
    PDF - 280 KB
    SirimCertificate-F-M14C5VBWH
