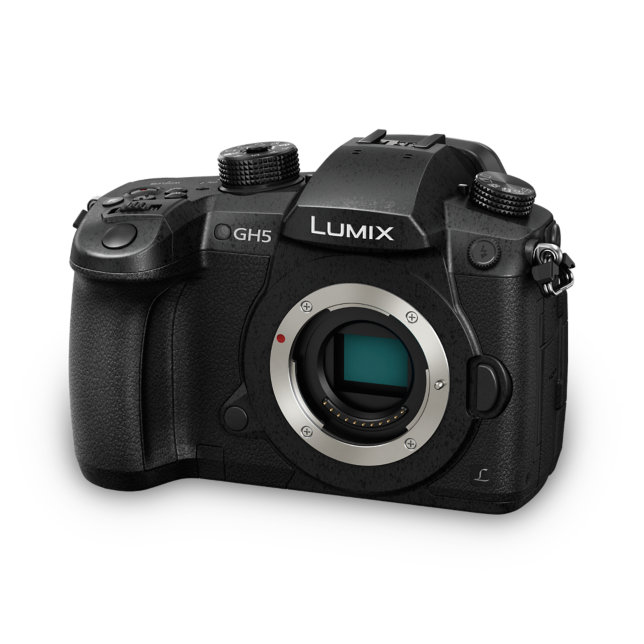

LUMIX GH5 Camera DC-GH5
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
DC-GH5
PHOTOS. VIDEOS. Explore New Frontiers.
Digital Live MOS sensor delivers the ultimate in LUMIX image quality. 4K 60p/50p video recording support a professional workflow. Explore new dimensions of photography and videography with the LUMIX GH5.
Features
20.3MP pixel-perfect shooter
The LUMIX GH5 packs a real punch with its high performance Digital Live MOS sensor sporting a whopping 20.3 megapixels and Venus Engine to achieve the ultimate picture quality. Together with the removal of the low-pass filter from the sensor, you can confidently capture the sharpest ever imagery with high dynamic range and artefact free. The LUMIX GH5 is a camera of beauty created by you and crafted by Panasonic engineering.
Unlimited video recording, multiple modes
The LUMIX GH5 offers the multiple recording modes utilized for cinema, broadcasting, and other professional applications. In addition to 4K 60p/50p, C4K 24p 4:2:2 10-bit ALL-Intra 400Mbps* and 4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps* recording, unlimited recording is offered on all settings.**
*Please update the firmware to version 2.0 or later. **On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop automatically to protect the camera.
4:2:2 10-bit internal/external simultaneous recording
The LUMIX GH5 is capable of 4:2:2 10-bit real-time image output to an external monitor or recorder via an optional HDMI cable (full size TypeA), while simultaneously providing an internal 4:2:2 10-bit recording*. It is suitable for professional video making that requires accurate monitoring of the imagery or high quality recording to external codec devices.
*4K 60p/50p is output only.
V-Log L recording (optional)
The Upgrade Software Key DMW-SFU1 (sold separately)* enables V-Log L recording. Since V-Log L has the same V-Gamut characteristics as V-Log, LUTs used with V-Log can be used in color grading. And footage from VariCam series cameras can be seamlessly included in the edit.**
*Please refer to the bundled instruction manual for the activation procedure. **V-Log/V-Gamut and LUTs
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html
High-resolution anamorphic recording
6K anamorphic video (4992x3744)* or 4K anamorphic video (3328x2496) is captured in the 4:3 aspect ratio. The Anamorphic Desqueeze Display function means you can shoot while confirming the cinemascope-size image on a monitor.
*Please update the firmware to version 2.0 or later.
Built-in microphone with NR structure
The LUMIX GH5 is equipped with a dedicated microphone in the camera body enabling clear sound quality.
5-stop Dual I.S. 2
It's difficult to handhold a camera at the best of times, but don't fret: with the 5-axis Dual I.S. 2 (Image Stabilizer), intelligent compensation comes to your aid. This is the equivalent to 5 doublings of exposure duration, meaning you can use a 5-stop slower shutter speed up to tele-end.* The LUMIX GH5 eliminates shake in both body and lens from wide-angle to telephoto setting. It also works in both photo and video recording, including 4K video. The astonishing power of the 5-axis Body I.S. corrects shake for all lenses, even those not equipped with O.I.S.
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50-140mm (35mm camera equivalent f=100-280mm) when H-FS14140 is used.
Ultra fast motion detection and focus
Panasonic's innovative DFD (Depth From Defocus) technology is constantly evolving and its just got even better. DFD allows the LUMIX GH5 to calculate focal lens movement by comparing depth of field values of two images at incredibly high speed. By combining the AF drive with a maximum read speed of 480 fps, the LUMIX GH5 can achieve ultra-high-speed Auto Focus in up to 0.05 seconds* and 9 fps burst shooting with AFC (12 fps burst shooting with AFS). A newly adopted motion detector accurately tracks fast moving subjects.
*In AFS, at wide-end with H-ES12060 (CIPA).
High performance shutter unit
The shutter unit is durable for approx. 200,000 times release*. Not only does it offer the highest shutter speed at max. 1/8000 to capture fast-moving 'spur-of-the-moment' shots but when used with fast aperture lenses - even outdoors - it gives impressive bokeh effect.
*Panasonic LUMIX in-house examination.
Tough body for a wide range of weather conditions
The magnesium alloy full die-cast frame is highly durable, while sealing helps protect every seam, dial, and button. The camera as a whole is dust- and splash-resistant* and designed for use at temperatures as low as -10 °C.
*Dust- and splash-resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Get Inspired
Specs
Size and Weight
- Height
- 98.1mm
- Width
- 138.5mm
- Depth
- 87.4mm
- Weight
- 725g
All values are approximate. Weight with SD card and battery. Lens is excluded. Dimensions exclude protrusions.
- Micro Four Thirds System Standard
- 20.3 Megapixels
- 4K Video Recording Capability
- 6K PHOTO
- 5-axis Dual I.S. 2 (Image Stabilizer)
- 3680k-dot OLED Live View Finder
- 1620k-dot Free-angle Monitor
- Splash, Dust and Freeze-resistant
- Wi-Fi
- Bluetooth
20.3-megapixel Digital Live MOS sensor with no low-pass filter
4K 60p/50p video recording and unlimited recording time
V-Log L recording (optional)
5-stop 5-axis Dual I.S. 2 (Image Stabilizer)
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Recording media
-
SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
-
-
Image sensor size
-
17.3 x 13.0 mm (in 4:3 aspect ratio)
-
-
Lens mount
-
Micro Four Thirds mount
-
IMAGE SENSOR
-
Type
-
Live MOS Sensor
-
-
Total pixels
-
21.77 Megapixels
-
-
Camera effective pixels
-
20.33 Megapixels
-
-
Color filter
-
Primary color filter
-
-
Dust reduction system
-
Supersonic wave filter
-
IMAGE STABILIZATION SYSTEM
-
Image stabilization system
-
Image sensor shift type (5-axis / 5-stop*), Dual I.S. (Dual I.S. 2 compatible)
* Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm), when H-FS12060 is used.
-
STILL IMAGE
-
Recording file format
-
JPEG (DCF, Exif 2.31), RAW
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
-
-
File size (Pixels)
-
4:3
-
5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
-
-
3:2
-
5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
-
-
16:9
-
5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
-
-
1:1
-
3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
-
-
MOTION PICTURE
-
Recording file format
-
MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC, H.265/HEVC (*6) (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch)
-
-
System frequency
-
59.94Hz, 50.00Hz, 24.00Hz
-
-
Aspect ratio
-
4:3, 3:2, 16:9, 1:1
-
-
Image quality
-
RAW, RAW+Fine, RAW+Standard, Fine, Standard
-
-
Color space
-
sRGB, AdobeRGB
-
-
MOV (*1) (*2)
-
59.94Hz
-
[C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[Full HD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[Full HD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
[Full HD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[Full HD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
[Full HD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
-
-
50.00Hz
-
[4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[Full HD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
[Full HD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[Full HD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
[Full HD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
-
-
24.00Hz
-
[C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
[Full HD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
[Full HD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
[Full HD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
-
-
-
MP4 (*2)
-
59.94Hz
-
[C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
[4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
[4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
[4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording) (*6)
[4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording) (*6)
[Full HD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[Full HD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
[Full HD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[Full HD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
[Full HD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[Full HD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
[Full HD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
[Full HD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
[Full HD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
-
-
50.00Hz
-
[4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
[4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
[4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording) (*6)
[Full HD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[Full HD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
[Full HD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[Full HD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
[Full HD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
[Full HD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
-
-
24.00Hz
-
[C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
[Full HD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
[Full HD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
[Full HD] 1920x1080, 24.00p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
-
-
-
AVCHD Progressive / AVCHD (*2)
-
59.94Hz
-
[Full HD] 1920x1080, 59.94p, 28Mbps (LongGOP) (Dolby)
[Full HD] 1920x1080, 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps)
[Full HD] 1920x1080, 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps)
[Full HD] 1920x1080, 23.98p, 24Mbps (LongGOP) (Dolby)
-
-
50.00Hz
-
[Full HD] 1920x1080, 50.00p, 28Mbps (LongGOP) (Dolby)
[Full HD] 1920x1080, 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)
[Full HD] 1920x1080, 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps)
-
-
-
Variable frame rate
-
59.94Hz
-
MOV/MP4(LPCM)/FHD/59.94p
2, 30, 56, 58, 60, 62, 64, 90, 120, 150, 180 fps
MOV/MP4(LPCM)/4K/29.97p, AVCHD/FHD/29.97p
2, 15, 26, 28, 30, 32, 34, 45, 60 fps
MOV/MP4(LPCM)/FHD/29.97p
2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, 105, 120, 135, 150, 165, 180 fps
MOV/MP4(LPCM)/4K/23.98p, AVCHD/FHD/23.98p
2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
MOV/MP4(LPCM)/FHD/23.98p
2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180 fps
-
-
50.00Hz
-
MOV/MP4(LPCM)/FHD/50.00p
2, 25, 46, 48, 50, 52, 54, 75, 100, 150, 180 fps
MOV/MP4(LPCM)/4K/25.00p, AVCHD/FHD/25.00p
2, 12, 21, 23, 25, 27, 30, 37, 60 fps
MOV/MP4(LPCM)/FHD/25.00p
2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 87, 100, 125, 150, 175, 180 fps
-
-
24.00Hz
-
MOV/MP4(LPCM)/C4K/24.00p, MOV/MP4(LPCM)/4K/24.00p
2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
MOV/MP4(LPCM)/FHD/24.00p
2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180 fps
-
-
-
High-Resolution Anamorphic mode, MP4 (4:3) (*2)
-
59.94Hz
-
4992x3744, 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (LPCM) (HEVC) (*6)
4992x3744, 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (LPCM) (HEVC) (*6)
-
-
50.00Hz
-
4992x3744, 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (LPCM) (HEVC) (*6)
-
-
24.00Hz
-
4992x3744, 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (LPCM) (HEVC) (*6)
-
-
-
Anamorphic 4K mode, MOV (4:3) (*1) (*2)
-
59.94Hz
-
3328x2496, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
3328x2496, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
3328x2496, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
3328x2496, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
3328x2496, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
3328x2496, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
3328x2496, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
-
-
50.00Hz
-
3328x2496, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
3328x2496, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
3328x2496, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
3328x2496, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
-
-
24.00Hz
-
3328x2496, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) (*6)
3328x2496, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) (*5)
3328x2496, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
-
-
-
Anamorphic 4K mode, MP4 (4:3) (*1)
-
59.94Hz
-
3328x2496, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
3328x2496, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
3328x2496, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
3328x2496, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
3328x2496, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
3328x2496, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
3328x2496, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
50.00Hz
-
3328x2496, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
3328x2496, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
3328x2496, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
3328x2496, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
24.00Hz
-
3328x2496, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) (*6)
3328x2496, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) (*5)
3328x2496, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
-
Continuous recordable time (Motion picture) (*2)
-
AVCHD [FHD/60p]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 150 min (LVF) with H-HSA12035 / H-FS12060
AVCHD [FHD/60i]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 160 min (LVF) with H-HSA12035 / H-FS12060
MP4 [4K/60p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060
MP4 [4K/30p]: Approx. 110 min (rear monitor), 110 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060
-
-
Actual recordable time (Motion picture) (*2)
-
AVCHD [FHD/60p]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 75 min (LVF) with H-HSA12035 / H-FS12060
AVCHD [FHD/60i]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 80 min (LVF) with H-HSA12035 / H-FS12060
MP4 [4K/60p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060
MP4 [4K/30p]: Approx. 55 min (rear monitor), 55 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060
-
WIRELESS
-
Wi-Fi
-
IEEE 802.11a/b/g/n/ac * 5GHz Wi-Fi is not available in some countries.
-
-
Bluetooth
-
Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
-
-
QR Code Connection
-
Yes
-
-
Password-less connection
-
Yes (ON / OFF selectable)
-
VIEWFINDER
-
Type
-
OLED Live View Finder (3,680k dots)
-
-
Field of view
-
Approx. 100%
-
-
Magnification
-
Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-¹
-
-
Eye point
-
Approx. 21 mm from eyepiece lens
-
-
Diopter adjustment
-
-4.0 - +3.0 (dpt)
-
-
Eye sensor
-
Yes
-
-
Eye sensor adjustment
-
High / Low
-
REAR MONITOR
-
Type
-
TFT LCD monitor with static touch control
-
-
Monitor size
-
Free-angle 3.2-inch (8.0cm) / 3:2 aspect / Wide viewing angle
-
-
Pixels
-
Approx. 1,620k dots
-
-
Field of view
-
Approx. 100%
-
-
Monitor adjustment
-
Brightness, Contrast, Saturation, Red-Green, Blue-Yellow
-
FOCUS
-
Type
-
Contrast AF system
-
-
DFD technology
-
Yes
-
-
Post Focus
-
Yes
-
-
Focus Stacking
-
Yes
-
-
Focus mode
-
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
-
-
AF mode
-
Face/Eye Detection / Tracking / 225-Area / Custom Multi / 1-Area / Pinpoint
(Full area touch is available) (Scalable AF frame size (by front/rear dial) and flexible AF position (by Joystick))
-
-
AF detective range
-
EV -4 - 18 (ISO100 equivalent)
-
-
AF assist lamp
-
Yes
-
-
AF lock
-
Yes (AF/AE LOCK button)
-
-
AF custom setting
-
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
-
-
Others
-
One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Center Weighted / Spot
-
-
Metering range
-
EV0-18 (F2.0 lens, ISO100 equivalent)
-
-
Exposure mode
-
Program AE, Aperture Priority AE, Shutter Priority AE, Manual
-
-
ISO sensitivity (Standard output sensitivity)
-
Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
-
-
Exposure compensation
-
1/3 EV step ±5EV (±3EV for motion picture)
-
-
AE lock
-
Yes (AF/AE LOCK button)
-
WHITE BALANCE
-
White balance
-
AWB / AWBc / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Color temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
Focal-plane shutter
-
-
Shutter speed
-
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: 1/16,000 - 1
Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (When using Synchro Scan)
-
-
Shutter life
-
Approx. 200,000 images
-
-
Self timer
-
10sec, 3 images / 2sec / 10sec
-
-
Remote control
-
Remote control with Bulb function by DMW-RSL1 (sold separately)
-
BRACKET
-
AE bracket
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
Aperture Bracket
-
3, 5 or all positions in 1 EV step
-
-
Focus Bracket
-
1 to 999 images, focus steps can be set in 5 levels
-
-
White balance bracket
-
3 exposures in blue/amber axis or in magenta/green axis, color temperature setting
-
BURST SHOOTING
-
Burst speed
-
[Mechanical shutter]
AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
[Electronic shutter]
AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
-
-
Number of recordable images
-
More than approx. 60 images (when there are RAW files with the particular speed)
More than approx. 600 images (when there are no RAW files)
(depending on memory card size, battery power, picture size, and compression)
-
6K PHOTO / 4K PHOTO (*2)
-
Burst speed
-
[6K PHOTO] 30 frames/sec
[4K PHOTO] 60 frames/sec, 30 frames/sec
-
-
Exif information
-
Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
-
-
Marking function
-
Yes (in 6K/4K Burst (S/S) mode)
-
-
Loop Rec function
-
Yes (in 6K (*6) /4K Burst (S/S) mode)
-
FLASH
-
Flash type
-
TTL External Flash (sold separately)
-
-
Flash mode
-
Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ only.
-
-
Synchronization speed
-
Less than 1/250 second
-
-
Flash output adjustment
-
1/3EV step ±3EV
-
-
Flash synchronization
-
1st. Curtain Sync, 2nd Curtain Sync.
-
-
Synchronization for flash dimming and exposure compensation
-
Yes
-
-
Wireless control
-
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
-
-
Flash sync socket
-
Yes
-
LIVE VIEW
-
Digital zoom
-
2x, 4x
-
-
Extra Tele Conversion
-
Still image: Max. 2x
4K PHOTO: 1.6x (4:3), 1.5x (3:2), 1.4x (16:9, 1:1)
Motion picture: 2.7x (FHD), 1.4x (4K)
-
-
Other functions
-
Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)
-
DIRECTION DETECTION FUNCTION
-
Direction detection function
-
Yes
-
FUNCTION BUTTON
-
REC
-
Wi-Fi / Q.MENU / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / Operation Lock / Dial Operation Switch / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Rate / 6K/4K PHOTO / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Post Focus / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / ON/OFF of each item in White Balance / ON/OFF of each item in Photo Style / AF Mode/MF / Rec/Playback Switch / Off / 4K Live Cropping / Motion Pic. Rec Format / Motion Pic. Rec Quality / Variable Frame Rate / Picture Mode in Rec. / Synchro Scan / Time Code Display / Mic. Directivity Adjust / Color Bars / WFM/Vector Scope / Focus Transition / LUT Monitor Display* / LUT HDMI Display* / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Rec Area / Video-Priority Display / Step Zoom / Zoom Speed / Restore to Default / Video Record (*6) / Destination Slot (*6) / Min. Shtr Speed (*6) / I.S. Lock (video) (*6) / Mic Level Adj. (*6) / HLG View Assist (HDMI) (*6) / Anamorphic Desqueeze Display (*6) / HLG View Assist (*6) / Video Guide Line (*6) / Constant Preview (*6) / Focus Ring Lock (*7) / E-Stabilization (Video) (*7) / Mic Rec Level Disp. (*7) / Live View Boost (*7) / Night Mode (*7)
*Upgrade Software Key DMW-SFU1 (sold separately) is required.
-
-
PLAY
-
Wi-Fi / LVF/Monitor Switch / Slot Change / 6K/4K Photo Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Print Set / Copy / Off / Restore to Default / Rec/Playback Switch (*6) / RAW Processing (*6) / 6K/4K PHOTO Bulk Saving (*6) / Anamorphic Desqueeze Display (*6) / HLG View Assist (*6) / HLG View Assist (HDMI) (*6) / LUT Monitor Display (*7)* / LUT HDMI Display (*7)* / Night Mode (*7)
*Upgrade Software Key DMW-SFU1 (sold separately) is required.
-
FILTER
-
Photo Style
-
Standard / Vivid / Natural / Monochrome / L. Monochrome / L. Monochrome D (*7) / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / Like709 (*8) / Hybrid Log Gamma (*6)* / V-LogL (*8)**
*When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required.
-
-
Creative Control
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect** / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only. **Not available in 4:2:2 10-bit video or 4K video recording.
-
MOTION PICTURE FUNCTION
-
Creative Video mode
-
Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure
-
-
Master pedestal level
-
31 steps
-
-
Luminance level
-
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
-
-
Wave form monitor / Vectorscope
-
Selectable
-
-
LUT display
-
LUT Monitor Display / LUT HDMI Display *Upgrade Software Key DMW-SFU1 (sold separately) is required.
-
-
Synchro scan
-
Yes
-
-
Time code
-
Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.)
-
-
SS/Gain operation
-
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
-
-
Color bars / 1kHz test tone
-
Yes (SMPTE / EBU / ARIB) / Yes
-
-
Photo style for motion picture
-
Cinelike D / Cinelike V / Like709 (*8) / Hybrid Log Gamma (*6)* / V-LogL (*8)**
*When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required.
-
-
Knee control
-
Yes (in Like709 mode)
-
PLAYBACK
-
Playback mode
-
30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, DPOF Print Set, RAW Processing, 6K/4K PHOTO Bulk Saving, 6K/4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Anamorphic Desqueeze Display (*6), HLG View Assist (*6), LUT Monitor Display (*7), LUT HDMI Display (*7), Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture
-
-
Protection
-
Single / Multi or Cancel
-
-
Erase
-
Single / Multi / All / Except Favorite
-
-
Direct print
-
PictBridge compatible
-
INTERFACE
-
USB
-
USB Type-C, Super Speed USB3.1 GEN1
-
-
HDMI (*3)
-
Monitor-through
-
4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10bit] or when [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:2 10bit]. When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the SD memory card in the camera unit.)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit], except for [4K 60p]/[4K/50p])
4:2:0 8bit (When [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:0 8bit].)
Auto / 4K/30p/25p / 1080p / 1080i / OFF
Information display ON/OFF (selectable)
Automatic down-conversion
HLG View Assist (HDMI) AUTO / MODE1 / MODE2 / OFF (selectable) (*6)
-
-
Playback
-
HDMI TypeA / VIERA Link, Audio: Stereo
59.94Hz: Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
50.00Hz: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
24.00Hz: Auto / C4K / 4K/24p / 1080p
-
-
-
Audio video output
-
No
-
-
Remote input
-
φ2.5mm for remote
-
-
External microphone input
-
φ3.5mm for external microphone
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
-
-
Headphone output
-
φ3.5mm for headphone
-
-
Microphone
-
Stereo, Wind Noise Canceller: OFF / Low / Standard / High / AUTO
-
-
High-res audio recording
-
Yes with DMW-XLR1 (sold separately)
-
-
Speaker
-
Monaural
-
-
SD card slot
-
Slot 1, Slot 2
-
POWER
-
Battery
-
Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (included)
-
-
Battery life (CIPA standard)
-
Approx. 410 images (rear monitor), 400 images (LVF), 1,000 images (Power Save LVF mode*) with H-FS12060
Approx. 410 images (rear monitor), 390 images (LVF), 1,000 images (Power Save LVF mode*) with H-HSA12035
Approx. 400 images (rear monitor), 380 images (LVF), 1,000 images (Power Save LVF mode*) with H-ES12060
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 3 sec.
-
-
Battery grip
-
DMW-BGGH5 (sold separately)
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
-
-
Weight
-
Approx. 725g / 1.60 lb (SD card, Battery, Body)
Approx. 645g / 1.42 lb (Body only)
Approx. 935g / 2.06 lb (SD card x 1, Battery, H-FS12060 lens included)
Approx. 1030g / 2.27 lb (SD card x 1, Battery, H-HSA12035 lens included)
Approx. 1045g / 2.30 lb (SD card x 1, Battery, H-ES12060 lens included)
-
OPERATING ENVIRONMENT
-
Operating temperature (*4)
-
-10°C to 40°C (14°F to 104°F)
-
-
Operating humidity
-
10%RH to 80%RH
-
STANDARD ACCESSORIES
-
Software
-
Recording
-
LUMIX Tether (*6)
・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
-
-
Playback / Editing
-
・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0XE is available for download at Panasonic website using computer connected to the Internet.
http://panasonic.jp/support/global/cs/soft/download/d_pfs10xe.html (For Windows)
・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
-
-
-
Standard accessories
-
Battery Charger (AC Cable included), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Syncro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap, Cable Holder, Lens Cap*, Lens Hood*, Lens Rear Cap* *Included with DC-GH5L kit, DC-GH5A kit and DC-GH5M kit.
-
NOTE
-
(*1) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
(*2) About motion picture recording / 6K PHOTO/4K PHOTO recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K], [MOV], [VFR] or [6K PHOTO/4K PHOTO].
(SD speed class is the speed standard regarding continuous writing.)
- Motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- Motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
(*3) For [4K 60p] [4K 50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".
(*4) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
(*5) Firmware must be updated to version 1.1 or later.
(*6) Firmware must be updated to version 2.0 or later.
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for 4K ALL-Intra video recording.
- Use of Panasonic SD Memory Card with Video Speed Class 90 is recommended for [Loop Rec] of [6K PHOTO].
・4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
(*7) Firmware must be updated to the latest version 2.3.
(*8) Firmware must be updated to the latest version 2.3. for shooting in modes other than Creative Video mode.
Different Size Products
Reviews
USER REVIEWS
Be the first to write a review.
