ZZP-SG0103C Panasonic XU Series Multi Split System-3 (BKZW) 9K + 9K + 18K BTU

Excellent

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

SEE YOUR WISHLIST

ZZP-SG0103C

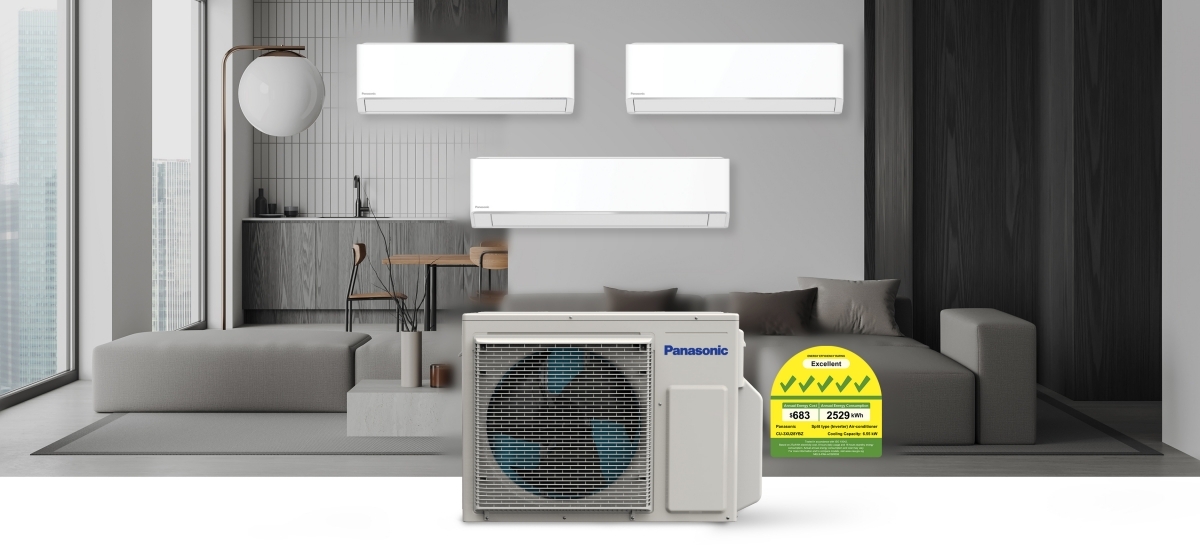

Panasonic XU Series Multi Split System-3 (BKZW) 9K + 9K + 18K BTU

This bundle includes:
1 x CU-3XU28YBZ (Outdoor Unit)
2 x CS-XU9BKZW (Indoor Unit)
1 x CS-XU18BKZW (Indoor Unit)

• Highest 5-tick energy efficiency rating.
• Outdoor unit offers a cooling capacity of up to 9.8kW and supports up to 3 indoor units.
• A single outdoor unit connects up to 3 indoor units with independent operational control.
• Increased cooling capacity of indoor units for large spaces or high occupancy.
• Wall-mounted X-Premium Inverter indoor unit equipped with 24-hour nanoe™ X protection to inhibit pollutants.
• Compact design and long piping provides greater installation flexibility for indoor units.
• Indoor units can be controlled with mobile devices when connected to the Internet and are compatible for voice control.
  • New Aerowings feature logo for the Panasonic CS-XU9XKZW single split aircon
Zoom In
Zoom Out
Close
Add to WishlistRemove from Wishlist
ZZP-SG0103C

Promotion

Promotion: Double Savings, Cool Comfort!

In preparation for the upcoming hot months, air conditioners are one of the key investments to stay cool. But they can also be costly to repair if something goes wrong. The 1+2 year extended general warranty promotion can give you extra peace of mind  by extending coverage beyond the standard warranty period.

*Purchases from Panasonic Official Online Store(www.panasonic.com/sg) are entitled for additional 1 year general warranty stacked from promotion. (Total: 2 + 1 + 1= 4 years)

FIND OUT MORE
Promotion: Double Savings, Cool Comfort!

Auto 1 Year Extended Warranty

Your Panasonic purchase just got even better! Enjoy a hassle-free auto registration of 1 year additional warranty when you purchase here on our Official Online Store! Valid for orders from 9 Sept onwards.

*Exclude Batteries, Accessories and Free Gift.
**Only for Purchases from Panasonic Official Online Store on www.panasonic.com/sg. Excluding Shopee, Lazada and Amazon Online Store.

FIND OUT MORE
Auto 1 Year Extended Warranty

Panasonic Online Store Benefit

Get more out of your purchase when you join as a Panasonic member. Enjoy exclusive offers, earn points, free shipping and free installation/disposal (Washer, Dryer, Fridge and Aircon).

*Terms and Conditions apply

FIND OUT MORE
Panasonic Online Store Benefit

Features

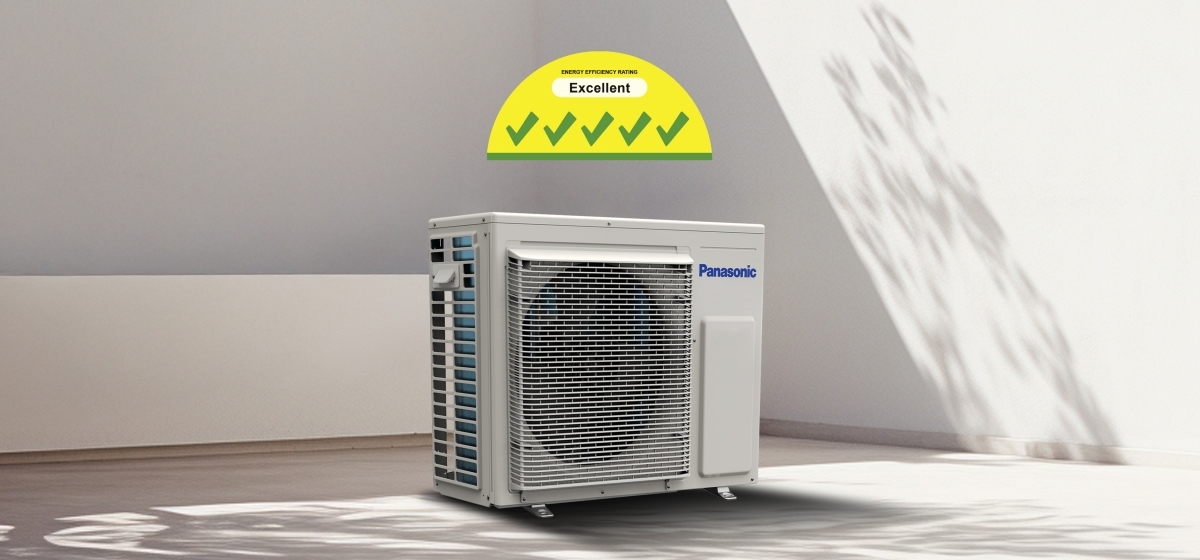

High Efficiency Multi-Split System

High Efficiency Multi-Split System
Panasonic’s XU Series Multi-Split System boasts the highest 5-tick energy efficiency rating, uses environmentally friendly R32 refrigerant and Inverter technology. Built for high durability, the system ensures long-lasting performance under various conditions, offering a flexible cooling solution for diverse needs.

Simple and Flexible Multi-Cooling System for Every Need

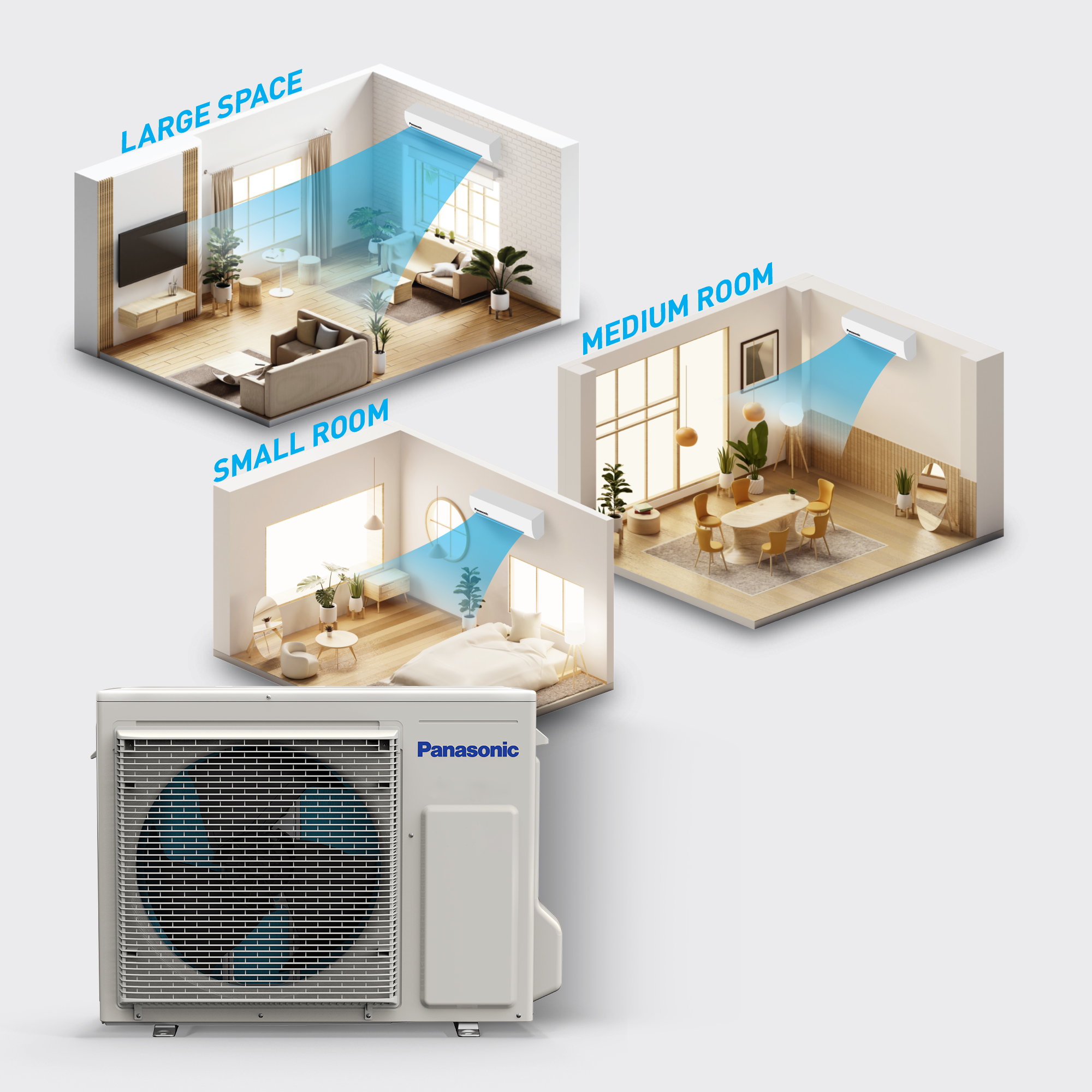

Wide Cooling Capacity Range, Greater Flexibility

Offering a maximum outdoor cooling capacity of up to 9.8kW and long piping of 60m, a single outdoor unit provides the flexibility to connect to indoor units of higher cooling capacity. This overcomes space and installation limits, allowing you to mix and match indoor units to suit different room sizes and layouts.
Wide Cooling Capacity Range, Greater Flexibility

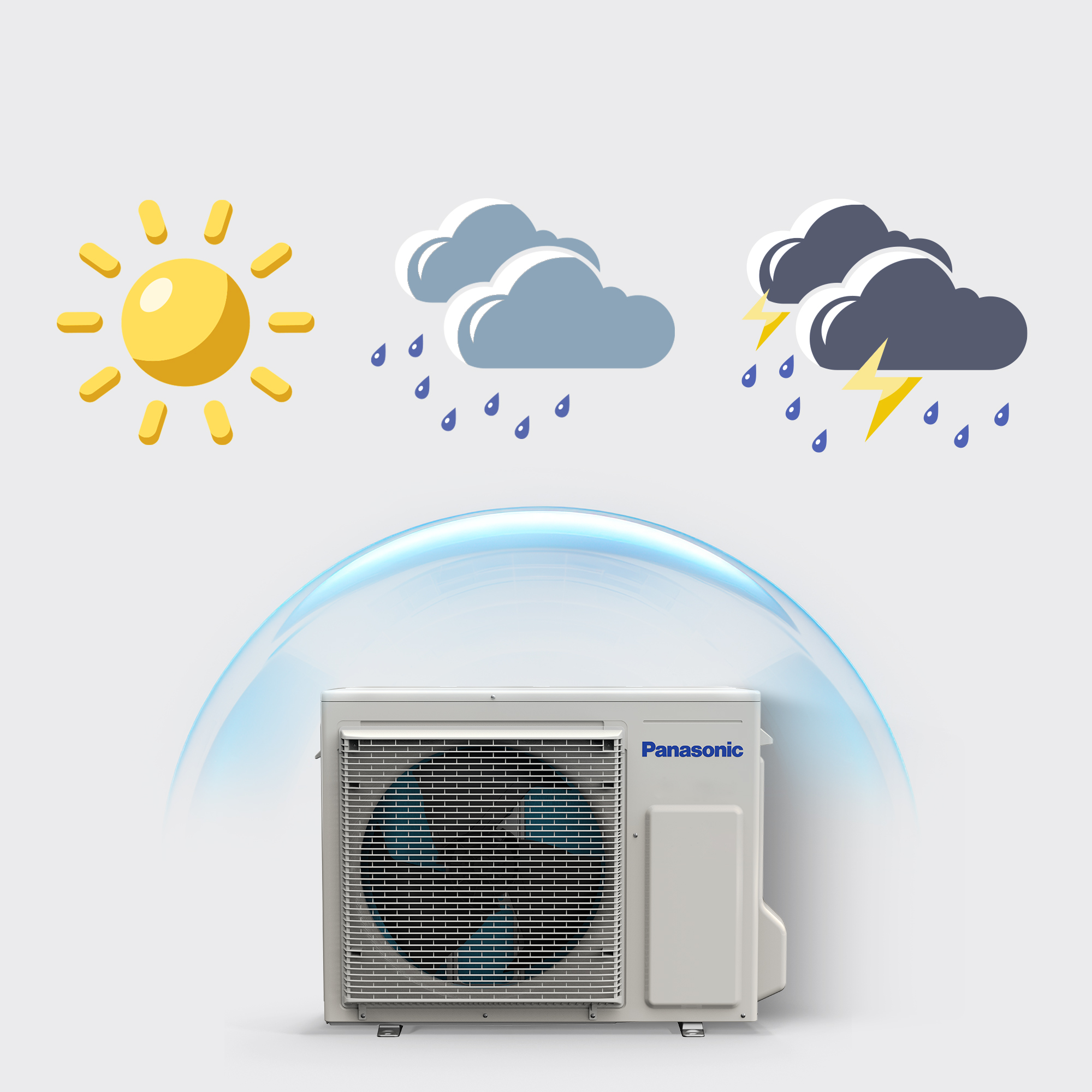

Resilient and Reliable Performance in Any Weather

Built to endure harsh conditions like rain, direct sunlight, and strong winds, Panasonic air conditioners deliver reliable performance year-round. By a corrosion-resistant Blue Fin condenser, a copper tube condenser for better heat transfer, a corrosion-resistant outdoor coating, and a water-resistant Printed Circuit Board (PCB) in the outdoor unit.
Resilient and Reliable Performance in Any Weather

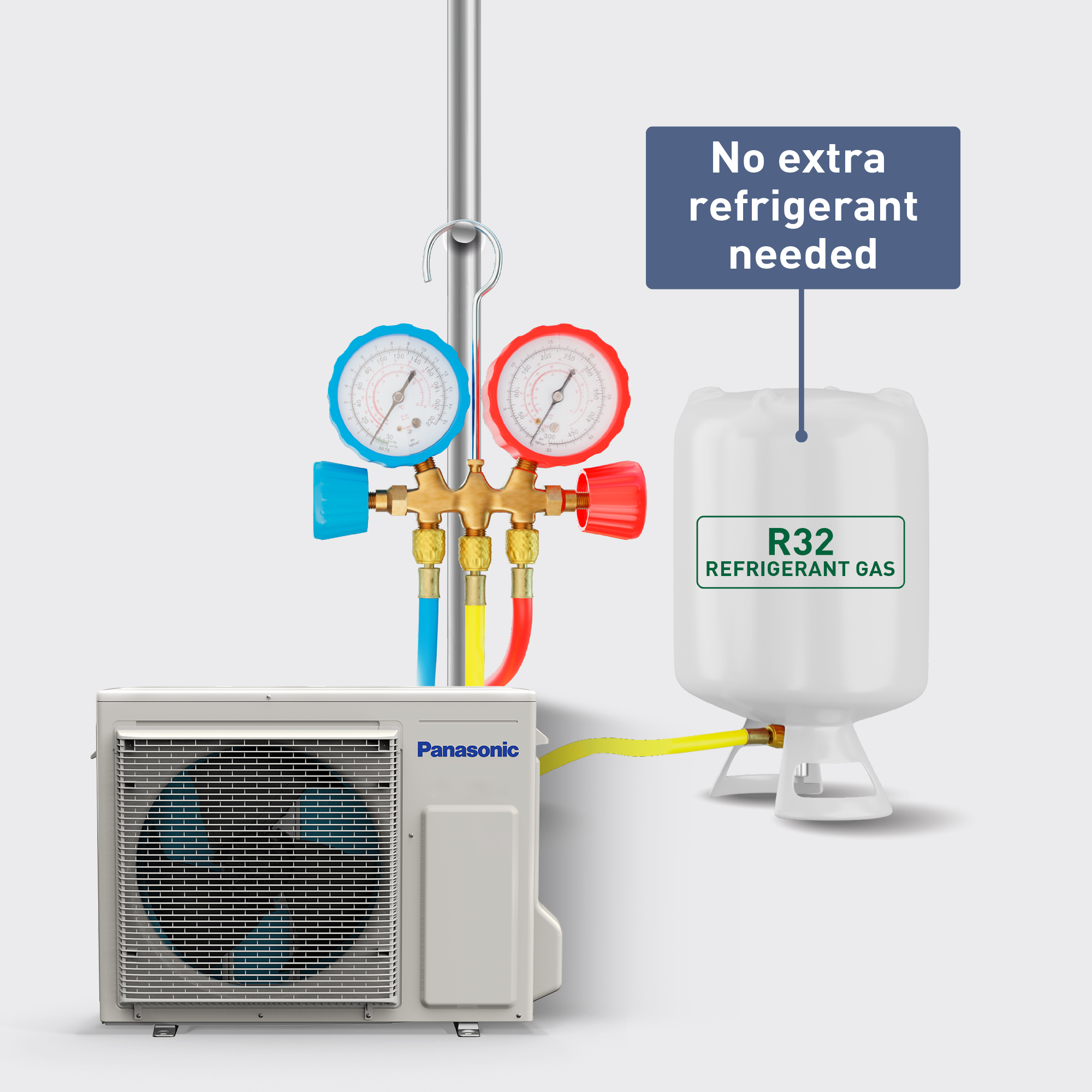

Easy and Cost-Effective Installation

Installation is now easier and more flexible. No additional refrigerant gas is needed during the initial setup, even if the pipe length exceeds the chargeless gas pipe length.
Easy and Cost-Effective Installation

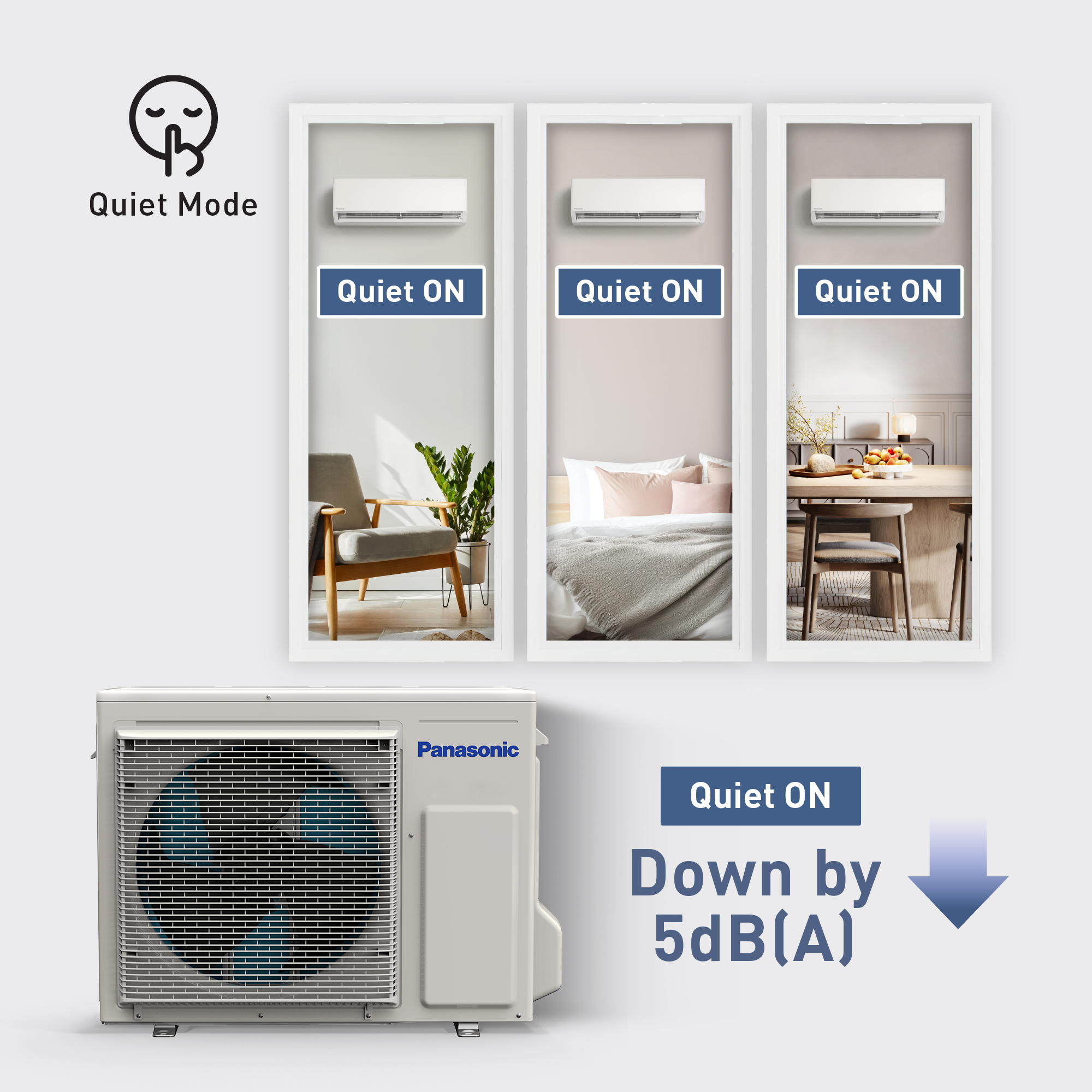

Quiet Outdoor Operation

When all connected indoor units are set to Quiet mode, the outdoor unit automatically activates Quiet operation. This reduces the outdoor noise level by up to 5dB(A), helping to maintain a peaceful environment.
Quiet Outdoor Operation

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

The indoor units, equipped with nanoe™ X technology, use the benefits of hydroxyl radicals to effectively inhibit adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living spaces, providing a cleaner and comfortable space for you and your loved ones - making your home a safe haven 24/7.

LEARN MORE

*Energy consumption may vary depending on models.

Effectiveness of nanoe X Generator Mark 3

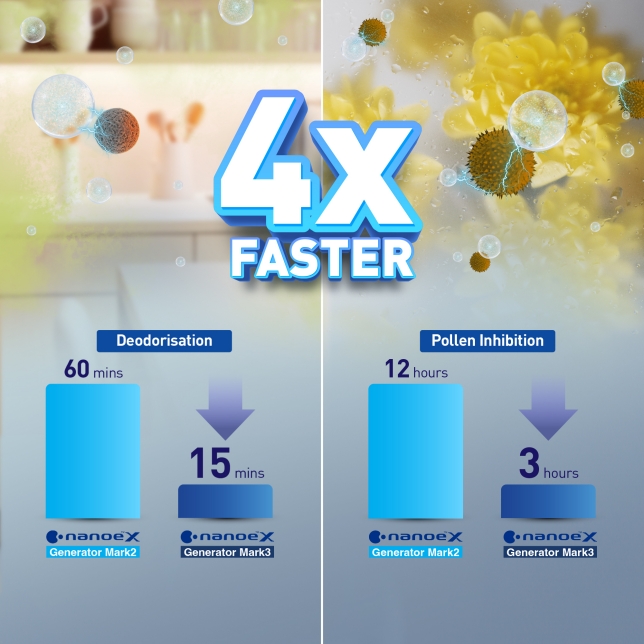

4x Faster Odours Reduction and Pollens Inhibition

Equipped with the nanoe X Generator Mark 3 to offer greater effectiveness in deodorising odours and inhibiting pollens at 4x faster pace compared to the previous nanoe X Generator Mark 2.
(1) Deodorisation Test: •Testing organisation: Panasonic Product Analysis Center •Test subject: Adhered nonenal (body odour) • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 2 test result: Odour intensity reduced by 1.7 levels in 60 minutes (Test report No.: Y18HM059) • nanoe X Generator Mark 3 test result: Odour intensity reduced by 1.9 levels in 15 minutes (Test report No.: H21HM005-1)
(2) Pollen Inhibition Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered cedar pollen • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 2 test result: Inhibited 99% in 12 hours (Test report No.: L19YA009) • nanoe X Generator Mark 3 test result: Inhibited 99% in 3 hours (Test report No.: H21YA017-1)
LEARN MORE
4x Faster Odours Reduction and Pollens Inhibition

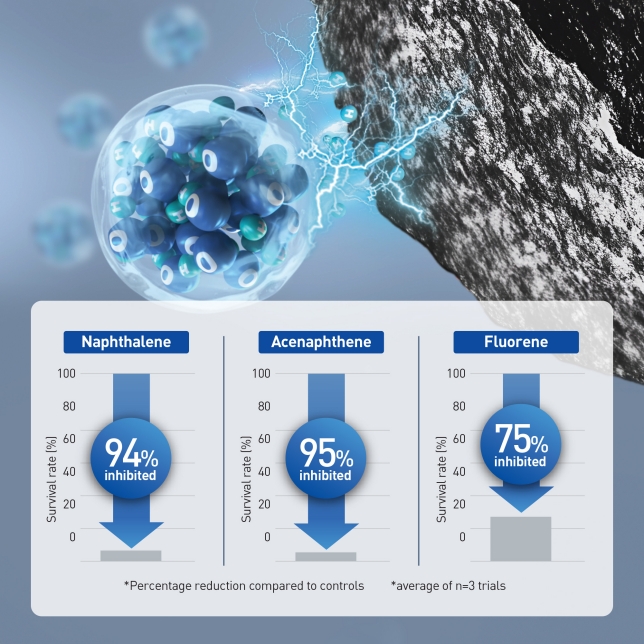

Effective Inhibit Hazardous Substances Contained in PM2.5

nanoe™ X has been verified to effectively inhibit up to 95% of polycyclic aromatic hydrocarbons (PAHs) found in PM2.5, a component of smoke pollution (haze).
*The data contains information subject to collaborative research data from Malaysia-Japan International Institute of Technology. Veracity of claims may vary based on scientific findings.
LEARN MORE
Effective Inhibit Hazardous Substances Contained in PM2.5

Clean and Fresh Environment Every Day

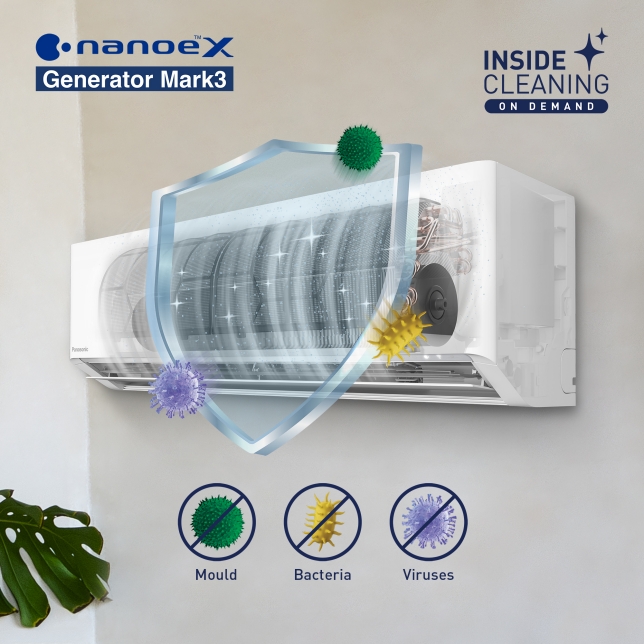

Fresh Clean Air From the Inside

The Inside Cleaning function works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants deep inside the indoor unit while ensuring it is always dry and clean. Activating it is easy with a simple press and hold.
LEARN MORE
Fresh Clean Air From the Inside

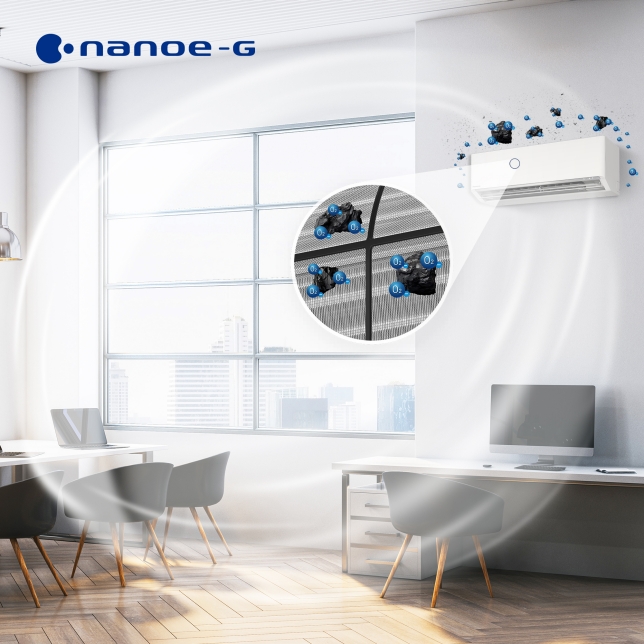

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
LEARN MORE
Effective in Removing 99% of Dust Particles

Multi-Zone Control with Comfort Cloud App

Multi-Zone Control with Comfort Cloud App

Conveniently manage multiple air conditioning units across different areas of your home using your mobile devices with the Comfort Cloud App via the internet. It's also compatible with leading voice assistants for enhanced smart control, offering an effortless experience with simple voice commands.

LEARN MORE

Healthy Airflow for Your Cooling Comfort

Long Air Distance with AEROWINGS

AEROWINGS delivers faster and efficient cooling with further airflow for cool air circulation. Customisable air swing featuring 4-way auto swing allows you to easily adjust the air swing to left and right, up and down direction, maximising comfort in your space.
LEARN MORE
Long Air Distance with AEROWINGS

Faster Cooling with iAUTO-X

iAUTO-X provides faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh), enabling the compressor to reach maximum frequency quickly from start-up for cooling comfort instantly. Reactivate iAUTO-X whenever the room is getting warmer due to the increase of occupants in it, keeping everyone comfortable at all times.
Faster Cooling with iAUTO-X

Convenient Control at Your Fingertips

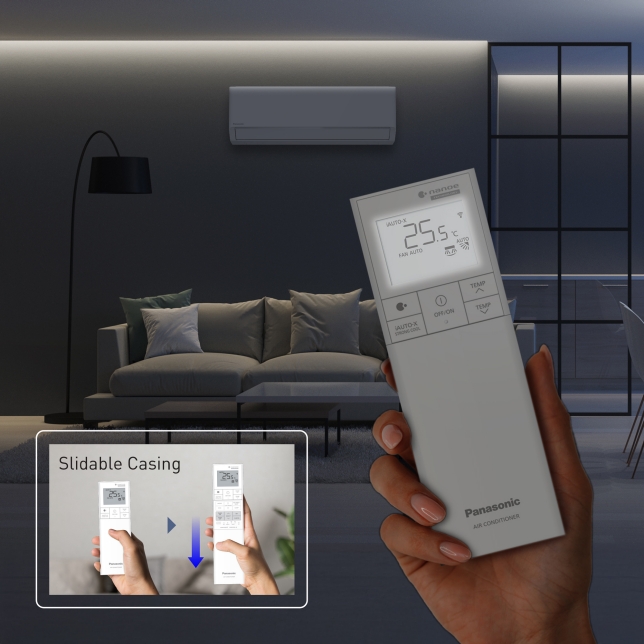

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys. It features a backlit interface for clear visibility in low-light environments, and a slidable casing that protects the buttons while adding a sleek, modern touch.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

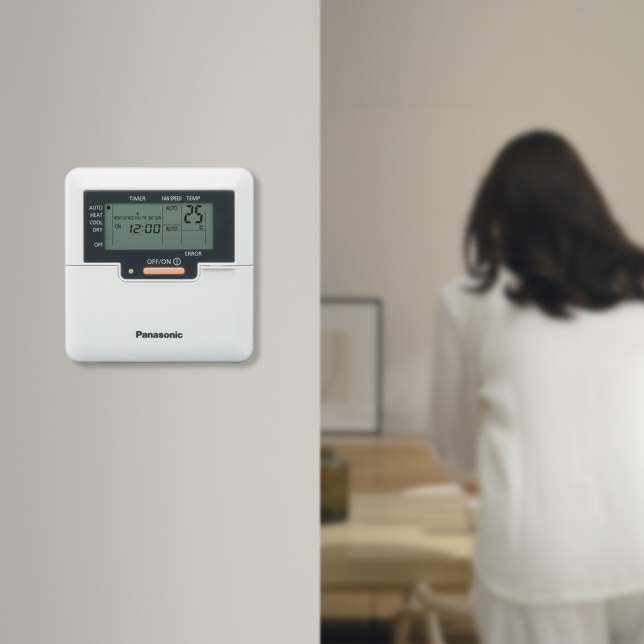

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Specs

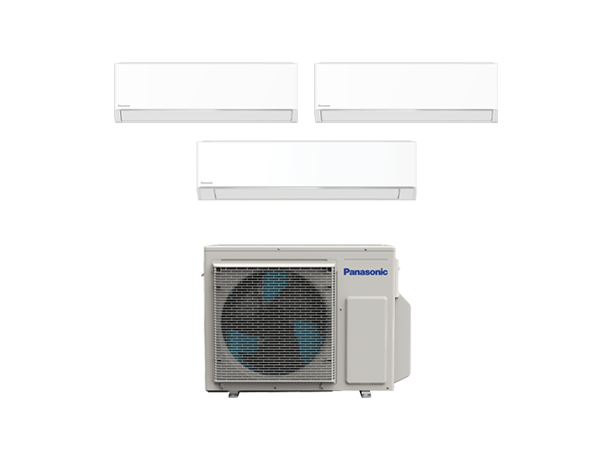

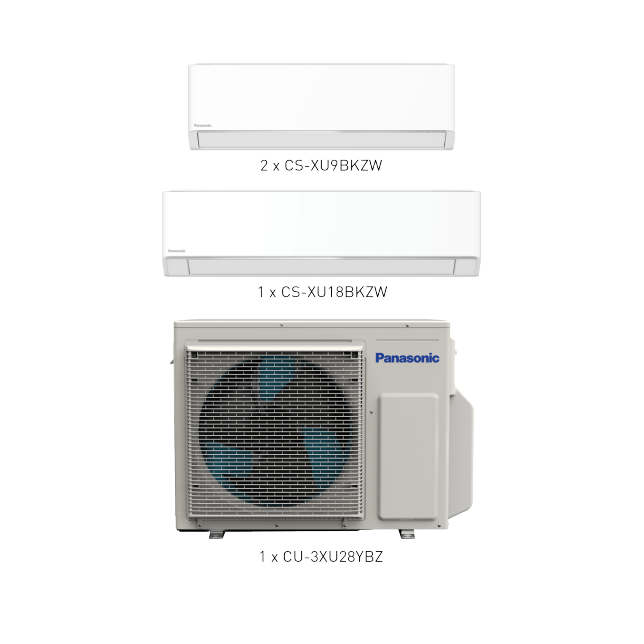

Photo of ZZP-SG0103C Panasonic XU Series Multi Split System-3 (BKZW) 9K + 9K + 18K BTU

Highest 5-tick energy efficiency rating

Cooling capacity of up to 9.8kW and can connect up to 3 indoor units with independent operational control

Indoor units equipped with 24-hour nanoe™ X protection to inhibit pollutants

Compact design and long piping provides greater installation flexibility for indoor units

Indoor units can be controlled with mobile devices with built-in Wi-Fi and Comfort Cloud App, compatible for voice control

Basic Specification

  • Model name

    • ZZP-SG0103C

  • Outdoor Unit

    • CU-3XU28YBZ

  • Indoor Unit

    • CS-XU9BKZW x 2 units,
      CS-XU18BKZW x 1 unit

  • Outdoor Unit Cooling Capacity (min-max) kW

    • 6.60 (2.80-9.80) kW

  • Outdoor Unit Cooling Capacity (min-max) Btu/h

    • 22,500 (9,500-33,400) Btu/h

  • Power Source

    • Single Phase, 220-240V, 50Hz

  • Maximum Connectable Capacity (kW)

    • 12.7 kW

  • Maximum Connectable Indoor (units)

    • 3 units

  • Running Current (A)

    • 6.2-5.7 A

  • Power Input (min-max) (W)

    • 1,340 (520-2,500) W

  • EER (min-max) (Btu/hW)

    • 16.79 (18.37-13.36) Btu/hW

  • COP (min-max) (W/W)

    • 4.93 (5.38-3.92) W/W

  • Weighted COP (W/W)

    • 5.70 W/W

  • Outdoor Unit Sound Pressure Level (H/L)

    • 53/48 dB(A)

  • Maximum Current (A)

    • 16.2 A

  • Starting Current (A)

    • 6.2 A

  • Compressor Output (W)

    • 1,500 W

  • Outdoor Unit Dimensions (H x W x D) (mm)

    • 695 mm x 875 (+95) mm x 320 mm

  • Outdoor Unit Net Weight

    • 50 kg

  • Refrigerant Pipe Diameter (Liquid Side)

    • ø 6.35 mm x 3

  • Refrigerant Pipe Diameter (Gas Side)

    • ø 9.52 mm x 3

  • Pipe Extension (Maximum Pipe Length) (1 Room)

    • 30 m

  • Pipe Extension (Maximum Pipe Length) (Total)

    • 60 m

  • Pipe Extension (Maximum Elevation Length)

    • 15 m

  • Pipe Extension (Additional Refrigerant Gas)

    • Chargeless

Indoor Unit

  • CS-XU9BKZW

    • Cooling Capacity (min-max) (kW)
      • 2.8 kW
    • Cooling Capacity (min-max) (Btu/h)
      • 9,550 Btu/h
    • Power Source
      • Single Phase, 220-240V, 50Hz
    • Sound Pressure Level (H/L)
      • 44/28 dB(A)
    • Indoor Unit Air Circulation
      • 12.0 m³/min (425 ft³/min)
    • Indoor Unit Dimensions (H x W x D) (mm)
      • 295 mm x 890 mm x 244 mm
    • Indoor Unit Dimensions (H x W x D) (inch)
      • 11-5/8 inch x 35-1/16 inch x 9-5/8 inch
    • Indoor Unit Net Weight
      • 10 kg (22 lb)
    • Refrigerant Pipe Diameter (Liquid Side)
      • ø 6.35 mm
    • Refrigerant Pipe Diameter (Gas Side)
      • ø 9.52 mm
    • Power Supply
      • Outdoor

  • CS-XU18BKZW

    • Cooling Capacity (min-max) (kW)
      • 5.0 kW
    • Cooling Capacity (min-max) (Btu/h)
      • 17,100 Btu/h
    • Power Source
      • Single Phase, 220-240V, 50Hz
    • Sound Pressure Level (H/L)
      • 46/34 dB(A)
    • Indoor Unit Air Circulation
      • 19.3 m³/min (680 ft³/min)
    • Indoor Unit Dimensions (H x W x D) (mm)
      • 295 mm x 1,060 mm x 249 mm
    • Indoor Unit Dimensions (H x W x D) (inch)
      • 11-5/8 inch x 41-3/4 inch x 9-13/16 inch
    • Indoor Unit Net Weight
      • 12 kg (26 lb)
    • Refrigerant Pipe Diameter (Liquid Side)
      • ø 6.35 mm
    • Refrigerant Pipe Diameter (Gas Side)
      • ø 12.70 mm
        (Pipe size reducer, CZ-MA1PA is to be used to reduce the connection size on the indoor unit from 1/2" to 3/8".)
    • Power Supply
      • Outdoor

Features

  • nanoe™ X

    • Yes (Generator Mark 3)

  • nanoe-G

    • Yes

  • Inside Cleaning on Demand

    • Yes

  • Odour Removing Function

    • Yes

  • Removable Washable Panel

    • Yes

  • Wi-Fi

    • Yes (Built-in)

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes

  • LCD Wireless Remote Control

    • Yes

  • Wired Remote Control

    • Yes (Optional)

  • iAUTO-X

    • Yes

  • Sleep Mode

    • Yes

  • Quiet Mode

    • Yes

  • Soft Dry Operation Mode

    • Yes

  • Personal Airflow Creation

    • Yes

  • Inverter Control

    • Yes

  • Eco Mode with A.I.

    • Yes (Temperature shift only)

  • Random Auto Restart

    • Yes (32 Restart Patterns)

  • Blue Fin Condenser

    • Yes

  • Top Panel Maintenance Access

    • Yes

  • Self-Diagnostic Function

    • Yes

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
