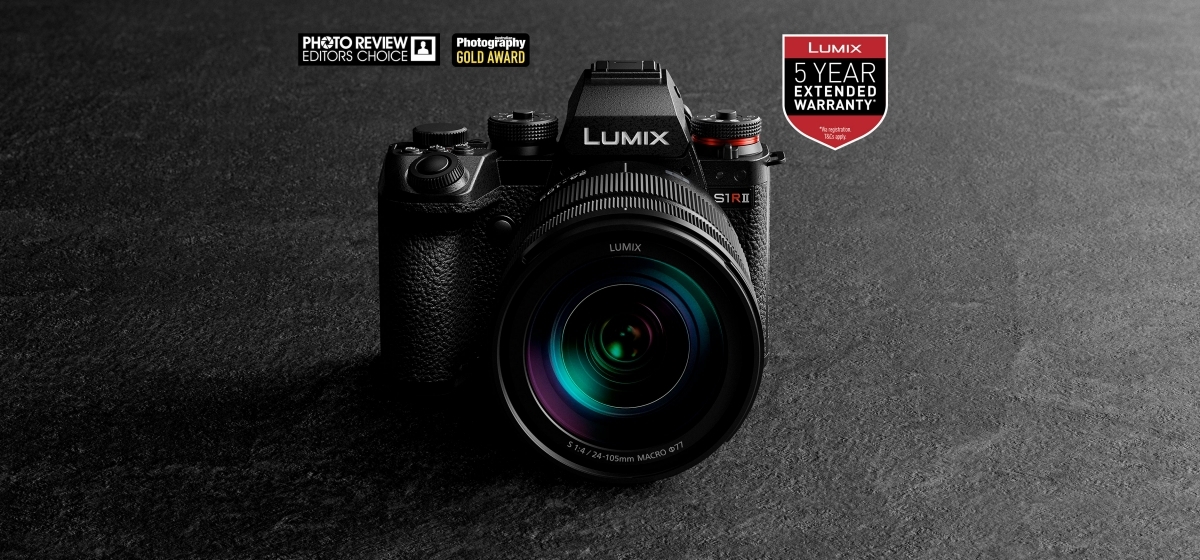

LUMIX S1RII Full-Frame Mirrorless Camera DC-S1RM2GN
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
DC-S1RM2GN
Discover Unseen Details.



Features
Going beyond photos and videos. Fueling the passion to create.

Exceptional photography power. Capture every moment in breathtaking 44.3MP.
Lifelike detail with the new 44.3MP sensor
・ 44.3-megapixel full-frame sensor
・ High Resolution mode with a 177-megapixel equivalent resolution

AFC 40 fps burst shooting
Capture every moment with stunning detail and speed. The LUMIX S1RII’s new sensor delivers both high resolution and rapid burst shooting, making it perfect for action-packed scenes like sports, wildlife, and children who won't sit still —where every second counts.
・ AFS/AFC 40 fps burst shooting with electronic shutter
・ AFS/AFC* 10 fps burst shooting with mechanical shutter
*When set to Speed Priority in H+ Burst Shooting mode.

Advanced video features. LUMIX’s first 8K video.
High-resolution and wide dynamic range
Bring your vision to life without limits. The LUMIX S1RII delivers stunning 8K video and wide dynamic range log recording, ensuring cinematic quality in every shot. You can also capture every detail in breathtaking slow motion, turning ordinary moments into extraordinary stories.
・ 8.1K (17:9) / 8K (16:9) 10-bit, 5.9K 60p 10-bit, C4K 120p 10-bit
・ ProRes RAW HQ internal recording
・ 14 stops of V-Log and V-Gamut (When the Dynamic Range Expansion (Log) is ON.)

Powerful video production support
The LUMIX S1RII is packed with powerful tools to elevate your video production. With features like the False Colour function and the new LUMIX Flow app, you get the support you need for smooth, confident shooting. Plus, with the optional microphone adaptor, you can capture professional-grade 32-bit float audio for perfect sound every time.
・ False Colour, Waveform, Vector Scope, Histogram, and more
・ LUMIX Flow app supporting scenario-based video production
・ 32-bit float recording (Optional DMW-XLR2 is required.)

The class-leading autofocus and image Stabilisation
Phase Hybrid AF with advanced AI technology
The LUMIX S1RII takes autofocus to the next level with its evolved Phase Hybrid AF, offering lightning-fast, pinpoint precision and exceptional tracking. Thanks to advanced AI technology, it accurately recognises and follows your subject, even in challenging scenarios like fast-paced sports or crowded scenes—ensuring you never miss the perfect shot.
・ Phase Hybrid AF
・ Advanced AI technology
・ Human/Animal/Car/Motorcycle/Bike/Train/Airplane recognition

8.0-stop 5-axis I.S. technology* / Active I.S. technology
The LUMIX S1RII ensures steady, smooth framing for both photos and videos, even when shooting handheld. For video, it significantly reduces micro jitters and shake caused by movement such as walking or running, delivering professional-quality footage on the go. Plus, with the new cropless mode, you can make the most of your wide-angle lens, giving you greater flexibility in your shots.
・ 8.0-stop 5-axis B. I.S.* / 7.0-stop 5-axis Dual I.S. 2**
・ Active I.S. + Advanced E.I.S. featuring Cropless mode
*Centre: 8.0-stop; Periphery: 7.0-stop. Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used. 5-axis.]
**Centre: 7.0-stop; Periphery: 7.0-stop. Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used. 5-axis.]
***This feature can be set using a LUMIX S Series lens.

Intuitive control that sync with the creator's work
A highly adaptable monitor for any style
The newly developed compact tilt and free-angle rear monitor offers ultimate flexibility, allowing you to compose shots from any angle while keeping the cable plugged in—ideal for seamless video production. Outdoors, the high-resolution OLED viewfinder with approximately 5.76M dots ensures natural, precise framing, even in bright conditions, so you can shoot with complete confidence.
・ 1,840k-dot tilt and free-angle rear monitor
・ 5,760k-dot OLED Real View Finder

Compact body without compromising operability
The LUMIX S1RII is designed with precision, featuring ergonomically placed buttons, dials, and a joystick for effortless control. Its refined, compact design weighs just 795g, offering a perfect balance of portability and intuitive operability, so you can shoot comfortably for longer without compromise.
・ Optimal placement of buttons and dials
・ Joystick designed for smooth operation
・ Seamlessly extend telephoto with the Crop Zoom and the Hybrid Zoom

Outstanding reliability and efficiency
Built to withstand extremes from -10°C to 40°C
・ Dust/Splash/Freeze resistant design
・ Magnesium alloy body

Compatible with a variety of recording media
・ Slot 1: CFexpress Type B card
・ Slot 2: SD Memory Card (UHS-I/UHS-II UHS Speed Class 3, UHS-II Video Speed Class 90)
・ USB-SSD recording

Compatible with a wide range of software
The LUMIX S1RII empowers your creative workflow with a wide range of compatible software. The LUMIX Lab app allows for seamless editing and uploading in one step, streamlining your content creation. Capture One provides professional-grade tools for high-quality photography, while LUMIX Flow app makes video production more accessible. With Frame.io Camera to Cloud, sharing and collaborating on content becomes effortless, giving you the flexibility to work from anywhere and share results instantly.
・ LUMIX Lab app / LUMIX Flow app
・ Compatible with Capture One tethering
・ Compatible with Frame.io Camera to Cloud

Commitment to a Sustainable Future
LUMIX is prioritising the environment by taking meaningful steps towards sustainability, such as phasing out packaging plastic and polystyrene. This commitment is important not only for reducing waste but also for inspiring a more eco-conscious approach within the industry, ensuring that creativity and innovation don’t come at the expense of the planet.

Get Inspired
Specs

Size and Weight
- Height
- 102.3mm
- Width
- 134.3mm
- Depth
- 91.8mm
- Weight
- 795g
All values are approximate. Lens is excluded. Weight with shoe cover, battery and SD card. Body only 712g. Dimensions exclude protrusions.
L-Mount
44.3 megapixels
AFS/AFC 40 fps burst shooting
Phase Hybrid AF
8K 30p video, 5.9K 60p video
ProRes RAW HQ video
1840k-dot tilt and free-angle monitor
5760k-dot OLED Live View Finder
5-axis Dual I.S. 2
Splash, dust and freeze-resistant
LUMIX Lab app
LUMIX Flow app
44.3-megapixel full-frame sensor
AFS/AFC 40 fps burst shooting with electronic shutter
LUMIX’s first 8.1K (17:9) / 8K (16:9) video
Phase Hybrid AF with advanced AI technology
The class-leading image Stabilisation
Newly developed 1,840k-dot tilt and free-angle rear monitor
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Lens mount
-
L-Mount
-
IMAGE SENSOR
-
Type
-
35mm full-frame (35.8mm x 23.9mm) CMOS sensor
-
-
Camera effective pixels / Total pixels
-
44.3 megapixels / 45.9 megapixels
-
-
AR (Anti Reflection) coating
-
Yes
-
-
Aspect ratio / Colour filter
-
3:2 / Primary colour filter
-
-
Dust reduction system
-
Image sensor shift type
-
-
Shutter Behavior at Power Off
-
ON / OFF
-
LATITUDE
-
14 stops (V-Log) (Dynamic Range Expansion (Log) ON)
13 stops (V-Log) (Dynamic Range Expansion (Log) OFF)
STILL IMAGE
-
Recording file format
-
JPEG (DCF, Exif 3.0), RAW
-
-
Aspect ratio
-
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
-
-
File size (Pixels) / When using full-frame lenses
-
3:2
-
8144x5424(L) / 5808x3872(M) / 4128x2752(S) / 1920x1280(XS) / 16288x10848(XL)* / 11504x7664(LL)* *High Resolution mode.
-
-
4:3
-
7232x5424(L) / 5168x3872(M) / 3664x2752(S) / 1712x1280(XS) / 14464x10848(XL)* / 10224x7664(LL)* *High Resolution mode.
-
-
16:9
-
8144x4584(L) / 5808x3272(M) / 4128x2320(S) / 1920x1080(XS) / 16288x9168(XL)* / 11504x6480(LL)* *High Resolution mode.
-
-
1:1
-
5424x5424(L) / 3872x3872(M) / 2752x2752(S) / 1280x1280(XS) / 10848x10848(XL)* / 7664x7664(LL)* *High Resolution mode.
-
-
65:24
-
8144x3008(L)
-
-
2:1
-
8144x4072(L)
-
-
-
File size (Pixels) / When using APS-C
-
3:2
-
5360x3568(L) / 3840x2560(M) / 2688x1792(S) / 1920x1280(XS)
-
-
4:3
-
4752x3568(L) / 3424x2560(M) / 2384x1792(S) / 1712x1280(XS)
-
-
16:9
-
5360x3016(L) / 3840x2160(M) / 2688x1512(S) / 1920x1080(XS)
-
-
1:1
-
3568x3568(L) / 2560x2560(M) / 1792x1792(S) / 1280x1280(XS)
-
-
-
Image quality
-
RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
-
-
Colour space
-
sRGB, AdobeRGB
-
MOTION PICTURE
-
Recording file format
-
MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW
MP4: H.264/MPEG-4 AVC, H.265/HEVC
-
-
Audio format
-
4ch Audio Recording: OFF
-
MOV
Linear format: LPCM (2ch stereo 48kHz/24-bit, 96kHz/24-bit*)
Float format**: LPCM (2ch stereo 48kHz/32-bit, 96kHz/32-bit)
*When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). **When attaching DMW-XLR2 (sold separately).
MP4
Linear format: AAC (2ch stereo 48kHz/16-bit)
-
-
4ch Audio Recording: XLR*
-
MOV
Linear format: LPCM (4ch monaural 48kHz/24-bit)
Float format: LPCM (4ch monaural 48kHz/32-bit)
*When attaching DMW-XLR2 (sold separately).
-
-
4ch Audio Recording: XLR*+Camera
-
MOV
Linear format: LPCM (4ch monaural 48kHz/24-bit, 96kHz/24-bit**)
*When attaching DMW-XLR2 (sold separately). **When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).
-
-
-
System frequency
-
59.94Hz / 50.00Hz / 24.00Hz
-
-
Image area of video
-
Full / APS-C / PIXEL/PIXEL
-
-
Proxy
-
ON / OFF
Proxy Rec Quality: H / M / L
Real Time LUT (Proxy): ON / OFF
*When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [Streaming].
-
-
MOV (*¹) (*²) (*³) / 59.94Hz / FULL
-
[8.1K] 8128x4288 (17:9)
-
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[8K] 7680x4320 (16:9)
-
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[6.4K] 6432x4288 (3:2)
-
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.9K] 5888x3312 (16:9)
-
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[4K] 3840x2160 (16:9)
-
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[FHD] 1920x1080 (16:9)
-
119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL (*⁶)
-
[5.9K] 5888x3312 (16:9)
-
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[4K] 3840x2160 (16:9)
-
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
-
MOV (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4.7K] 4736x3552 (4:3)
-
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[4K] 3840x2160 (16:9)
-
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[FHD] 1920x1080 (16:9)
-
119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) (*³) / 50.00Hz / FULL
-
[8.1K] 8128x4288 (17:9)
-
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[8K] 7680x4320 (16:9)
-
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[6.4K] 6432x4288 (3:2)
-
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.9K] 5888x3312 (16:9)
-
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[4K] 3840x2160 (16:9)
-
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[FHD] 1920x1080 (16:9)
-
100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL (*⁶)
-
[5.9K] 5888x3312 (16:9)
-
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[4K] 3840x2160 (16:9)
-
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
-
MOV (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4.7K] 4736x3552 (4:3)
-
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[4K] 3840x2160 (16:9)
-
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[FHD] 1920x1080 (16:9)
-
100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) (*³) / 24.00Hz / FULL
-
[8.1K] 8128x4288 (17:9)
-
24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[8K] 7680x4320 (16:9)
-
24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[6.4K] 6432x4288 (3:2)
-
24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.9K] 5888x3312 (16:9)
-
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[4K] 3840x2160 (16:9)
-
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[FHD] 1920x1080 (16:9)
-
120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL (*⁶)
-
[5.9K] 5888x3312 (16:9)
-
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[4K] 3840x2160 (16:9)
-
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
-
MOV (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4.7K] 4736x3552 (4:3)
-
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[4K] 3840x2160 (16:9)
-
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
-
-
[FHD] 1920x1080 (16:9)
-
120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
-
-
-
MP4 (*¹) (*²) / 59.94Hz / FULL
-
[8K] 7680x4320 (16:9)
-
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
-
-
[4K] 3840x2160 (16:9)
-
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
[FHD] 1920x1080 (16:9)
-
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
-
MP4 (*¹) (*²) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4K] 3840x2160 (16:9)
-
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
[FHD] 1920x1080 (16:9)
-
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
-
MP4 (*¹) (*²) / 50.00Hz / FULL
-
[8K] 7680x4320 (16:9)
-
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
-
-
[4K] 3840x2160 (16:9)
-
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
[FHD] 1920x1080 (16:9)
-
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
-
MP4 (*¹) (*²) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4K] 3840x2160 (16:9)
-
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
[FHD] 1920x1080 (16:9)
-
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
-
MP4 (*¹) (*²) / 24.00Hz / FULL
-
-
-
-
MP4 (*¹) (*²) / 24.00Hz / APS-C / PIXEL/PIXEL
-
-
-
-
ProRes (*¹) (*²) (*³) / 59.94Hz / FULL
-
[5.8K] 5760x3040 (17:9)
-
29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM)
29.97p, 1.3Gbps (ProRes 422) (LPCM)
23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM)
23.98p, 1.0Gbps (ProRes 422) (LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*⁴)
59.94p, 1.3Gbps (ProRes 422) (LPCM) (*⁴)
29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*⁴)
29.97p, 648Mbps (ProRes 422) (LPCM) (*⁴)
23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*⁴)
23.98p, 519Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*⁴)
59.94p, 1.2Gbps (ProRes 422) (LPCM) (*⁴)
29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*⁴)
29.97p, 608Mbps (ProRes 422) (LPCM) (*⁴)
23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*⁴)
23.98p, 486Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
119.88p, 901Mbps (ProRes 422 HQ) (LPCM)
119.88p, 601Mbps (ProRes 422) (LPCM)
59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*⁴)
59.94p, 302Mbps (ProRes 422) (LPCM) (*⁴)
29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*⁴)
29.97p, 151Mbps (ProRes 422) (LPCM) (*⁴)
23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*⁴)
23.98p, 121Mbps (ProRes 422) (LPCM) (*⁴)
-
-
-
ProRes (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL (*⁶)
-
[5.8K] 5760x3040 (17:9)
-
29.97p, 4.2Gbps (ProRes RAW HQ) (LPCM)
29.97p, 2.8Gbps (ProRes RAW) (LPCM)
29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM)
29.97p, 1.3Gbps (ProRes 422) (LPCM)
23.98p, 3.4Gbps (ProRes RAW HQ) (LPCM)
23.98p, 2.2Gbps (ProRes RAW) (LPCM)
23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM)
23.98p, 1.0Gbps (ProRes 422) (LPCM)
-
-
-
ProRes (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4.7K] 4736x3552 (4:3)
-
29.97p, 1.8Gbps (ProRes 422 HQ) (LPCM)
29.97p, 1.2Gbps (ProRes 422) (LPCM)
23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM)
23.98p, 986Mbps (ProRes 422) (LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*⁴)
59.94p, 1.3Gbps (ProRes 422) (LPCM) (*⁴)
29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*⁴)
29.97p, 648Mbps (ProRes 422) (LPCM) (*⁴)
23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*⁴)
23.98p, 519Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*⁴)
59.94p, 1.2Gbps (ProRes 422) (LPCM) (*⁴)
29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*⁴)
29.97p, 608Mbps (ProRes 422) (LPCM) (*⁴)
23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*⁴)
23.98p, 486Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
119.88p, 901Mbps (ProRes 422 HQ) (LPCM)
119.88p, 601Mbps (ProRes 422) (LPCM)
59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*⁴)
59.94p, 302Mbps (ProRes 422) (LPCM) (*⁴)
29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*⁴)
29.97p, 151Mbps (ProRes 422) (LPCM) (*⁴)
23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*⁴)
23.98p, 121Mbps (ProRes 422) (LPCM) (*⁴)
-
-
-
ProRes (*¹) (*²) (*³) / 50.00Hz / FULL
-
[5.8K] 5760x3040 (17:9)
-
25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM)
25.00p, 1.1Gbps (ProRes 422) (LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*⁴)
50.00p, 1.1Gbps (ProRes 422) (LPCM) (*⁴)
25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*⁴)
25.00p, 541Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*⁴)
50.00p, 1.0Gbps (ProRes 422) (LPCM) (*⁴)
25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*⁴)
25.00p, 507Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
100.00p, 757Mbps (ProRes 422 HQ) (LPCM)
100.00p, 505Mbps (ProRes 422) (LPCM)
50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*⁴)
50.00p, 252Mbps (ProRes 422) (LPCM) (*⁴)
25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*⁴)
25.00p, 126Mbps (ProRes 422) (LPCM) (*⁴)
-
-
-
ProRes (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL (*⁶)
-
[5.8K] 5760x3040 (17:9)
-
25.00p, 3.5Gbps (ProRes RAW HQ) (LPCM)
25.00p, 2.3Gbps (ProRes RAW) (LPCM)
25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM)
25.00p, 1.1Gbps (ProRes 422) (LPCM)
-
-
-
ProRes (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4.7K] 4736x3552 (4:3)
-
25.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
25.00p, 1.0Gbps (ProRes 422) (LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*⁴)
50.00p, 1.1Gbps (ProRes 422) (LPCM) (*⁴)
25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*⁴)
25.00p, 541Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*⁴)
50.00p, 1.0Gbps (ProRes 422) (LPCM) (*⁴)
25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*⁴)
25.00p, 507Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
100.00p, 757Mbps (ProRes 422 HQ) (LPCM)
100.00p, 505Mbps (ProRes 422) (LPCM)
50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*⁴)
50.00p, 252Mbps (ProRes 422) (LPCM) (*⁴)
25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*⁴)
25.00p, 126Mbps (ProRes 422) (LPCM) (*⁴)
-
-
-
ProRes (*¹) (*²) (*³) / 24.00Hz / FULL
-
[5.8K] 5760x3040 (17:9)
-
24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
24.00p, 1.0Gbps (ProRes 422) (LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*⁴)
24.00p, 519Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*⁴)
24.00p, 487Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
120.00p, 908Mbps (ProRes 422 HQ) (LPCM)
120.00p, 606Mbps (ProRes 422) (LPCM)
24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*⁴)
24.00p, 121Mbps (ProRes 422) (LPCM) (*⁴)
-
-
-
ProRes (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL (*⁶)
-
[5.8K] 5760x3040 (17:9)
-
24.00p, 3.4Gbps (ProRes RAW HQ) (LPCM)
24.00p, 2.2Gbps (ProRes RAW) (LPCM)
24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
24.00p, 1.0Gbps (ProRes 422) (LPCM)
-
-
-
ProRes (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL (*⁶)
-
[4.7K] 4736x3552 (4:3)
-
24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
24.00p, 987Mbps (ProRes 422) (LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*⁴)
24.00p, 519Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*⁴)
24.00p, 487Mbps (ProRes 422) (LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
120.00p, 908Mbps (ProRes 422 HQ) (LPCM)
120.00p, 606Mbps (ProRes 422) (LPCM)
24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*⁴)
24.00p, 121Mbps (ProRes 422) (LPCM) (*⁴)
-
-
SLOW & QUICK
-
MOV (*¹) (*²) / 59.94Hz / FULL
-
[5.9K] 5888x3312 (16:9)
-
29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) / 59.94Hz / APS-C
-
[C4K] 4096x2160 (17:9)
-
59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
59.94p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
29.97p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
23.98p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) / 50.00Hz / FULL
-
[5.9K] 5888x3312 (16:9)
-
25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) / 50.00Hz / APS-C
-
[C4K] 4096x2160 (17:9)
-
50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
50.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
25.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) / 24.00Hz / FULL
-
[5.9K] 5888x3312 (16:9)
-
24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[5.8K] 5760x3040 (17:9)
-
24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-
-
[C4K] 4096x2160 (17:9)
-
24.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
24.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
24.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
-
MOV (*¹) (*²) / 24.00Hz / APS-C
-
[C4K] 4096x2160 (17:9)
-
24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[4K] 3840x2160 (16:9)
-
24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
[FHD] 1920x1080 (16:9)
-
24.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
24.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
-
-
EXTERNAL USB-SSD RECORDING (*⁷)
-
Yes (ON / OFF)
STREAMING
-
Wi-Fi / Protocol
-
RTMPS
-
-
Wi-Fi / 59.94Hz
-
[FHD] 1920x1080
-
59.94p, 8Mbps (H.264)
29.97p, 6Mbps / 3Mbps (H.264)
-
-
[HD] 1280x720
-
59.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
-
-
-
Wi-Fi / 50.00Hz
-
[FHD] 1920x1080
-
50.00p, 8Mbps (H.264)
25.00p, 6Mbps / 3Mbps (H.264)
-
-
[HD] 1280x720
-
50.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)
-
-
-
USB Tethering / Protocol
-
RTMPS
-
-
USB Tethering / 59.94Hz
-
[4K] 3840x2160
-
29.97p, 12.5Mbps (H.264)
-
-
[FHD] 1920x1080
-
59.94p, 16Mbps / 8Mbps (H.264)
29.97p, 6Mbps / 3Mbps (H.264)
-
-
[HD] 1280x720
-
59.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
-
-
-
USB Tethering / 50.00Hz
-
[4K] 3840x2160
-
25.00, 12.5Mbps (H.264)
-
-
[FHD] 1920x1080
-
50.00p, 16Mbps / 8Mbps (H.264)
25.00p, 6Mbps / 3Mbps (H.264)
-
-
[HD] 1280x720
-
50.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)
-
-
VIEWFINDER
-
Type
-
OLED Live View Finder
-
-
Pixels
-
Approx. 5.76 million dots
-
-
Field of view / Magnification
-
Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m⁻¹, when the aspect ratio is set to 3:2
-
-
Eye point / Diopter adjustment
-
Approx. 21 mm at infinity; -1.0 m⁻¹ / -4.0 - +2.0 (dpt)
-
-
Eye sensor
-
Yes
-
-
Display speed
-
120fps* / 60fps *During live view in photo recording mode.
-
REAR MONITOR
-
Type
-
TFT LCD monitor with static touch control
-
-
Monitor size
-
Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
-
-
Pixels
-
Approx. 1.84 million dots
-
-
Field of view
-
Approx. 100%
-
FOCUS (*⁸)
-
Type
-
Phase Detection AF system / Contrast AF system
-
-
DFD technology
-
Yes
-
-
Focus mode
-
AFS (Single) / AFC (Continuous) / MF
-
-
AF mode
-
Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Except when Pinpoint is set. Target Parts can also be set.
-
-
AF detective range
-
EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
-
-
AF custom setting
-
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
-
-
AF assist light
-
Yes
-
-
AF lock
-
Set the Fn button in custom menu to AF lock
-
-
Focus ring control
-
Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
-
-
Others
-
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, Focus Frame Moving Speed, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), AFS Behavior in Video Mode, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume, AF Micro Adjustment
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Centre Weighted / Spot / Highlight Weighted
-
-
Metering range
-
EV0-18 (F2.0 lens, ISO100 equivalent)
-
-
Recording mode
-
Mode dial
-
Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Custom 1, 2, 3, 4, 5 / Intelligent Auto
-
-
Photo/Video/S&Q switch
-
Photo Mode / Video Mode / Slow&Quick Mode
-
-
Custom mode
-
The settings can be registered for each of the photo, video, and S&Q modes.
-
-
-
Exposure compensation
-
1/3 EV step ±5EV (±3EV for motion picture)
-
-
ISO sensitivity (Standard output sensitivity)
-
Still image
-
[Normal]
Auto / 40* / 80-51200 / 102400* (1/3 or 1 EV step) *Extended ISO
[V-Log]
Auto / 100* / 200-51200 (1/3 or 1 EV step) *Extended ISO
-
-
Motion picture
-
[Normal]
Auto / 40* / 80-51200 / 102400* (1/3 or 1 EV step) *Extended ISO
[V-Log]
When Dynamic Range Expansion (log) OFF: Auto / 100* / 200-51200 (1/3 or 1 EV step) *Extended ISO
When Dynamic Range Expansion (log) ON: Auto / 200* / 400-51200 (1/3 or 1 EV step) *Extended ISO
[HLG]
Auto / 320-51200 / 102400* (1/3 or 1 EV step) *Extended ISO
-
-
-
Dual Native ISO
-
[Normal]
Auto (Base ISO 80 / 400): Auto / 40* / 80-51200 / 102400* *Extended ISO
Low (Base ISO 80): Auto / 40* / 80-800 *Extended ISO
High (Base ISO 400): Auto / 200* / 400-51200 / 102400* *Extended ISO
[V-Log / Dynamic Range Expansion (log) OFF]
Auto (Base ISO 200 / 1000): Auto / 100* / 200-51200 *Extended ISO
Low (Base ISO 200): Auto / 100* / 200-2000 *Extended ISO
High (Base 1000): Auto / 500* / 1000-51200 *Extended ISO
[V-Log / Dynamic Range Expansion (log) ON]
Auto (Base ISO 400 / 2000): Auto / 200* / 400-51200 *Extended ISO
Low (Base ISO 400): Auto / 200* / 400-4000 *Extended ISO
High (Base 2000): Auto / 1000* / 2000-51200 *Extended ISO
[HLG]
Auto (Base ISO 320 / 1600): Auto / 320-51200 / 102400* *Extended ISO
Low (Base ISO 320): Auto / 320-3200
High (Base ISO 1600): Auto / 1600-51200 / 102400* *Extended ISO
[Cinelike A2 / Cinelike D2 / Cinelike V2]
Auto (Base ISO 160 / 800): Auto / 80* / 160-51200 / 102400* *Extended ISO
Low (Base ISO 160): Auto /80* / 160-1600 *Extended ISO
High (Base ISO 800): Auto / 400* / 800-51200 / 102400* *Extended ISO
-
-
Synchro scan
-
Still image / Motion picture
-
-
AE lock
-
Set the Fn button in custom menu to AE lock
-
IMAGE STABILISATION SYSTEM
-
B.I.S.
-
5-axis
Centre: 8.0-stop, Periphery: 7.0-stop
*Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used.]
-
-
Dual I.S. 2
-
5-axis
Centre: 7.0-stop, Periphery: 7.0-stop
*Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used.]
-
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Colour temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
Focal-plane shutter
-
-
Silent mode / Shutter type
-
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
-
-
Shutter speed
-
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter Image Priority mode: Bulb (Max. 60 sec), 1/8,000 - 60
Electronic shutter Speed Priority mode: Bulb (Max. 60 sec), 1/16,000 - 60
Motion picture: 1/10,000 - 1/25*
Motion picture M mode / MF mode: 1/10,000 - 1/2*
*To set the shutter speed longer than the frame rate, please set Shutter Speed Limiter function to OFF.
-
-
Self timer
-
10sec, 3 images / 2sec / 10sec / Custom Time
-
-
Remote control
-
Remote control by DMW-RS2 (sold separately)
-
BRACKET
-
AE bracket
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
Aperture bracket
-
3, 5 or all positions
-
-
Focus bracket
-
Yes
-
-
White balance bracket
-
3 images in blue/amber axis or in magenta/green axis, colour temperature setting
-
BURST SHOOTING
-
Burst speed
-
Mechanical shutter / Electronic front curtain shutter
-
H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
H+ Image Priority: 9 frames/sec (AFC)
H+ Speed Priority: 10 frames/sec (AFC)
M: 5 frames/sec (AFS/AFC/MF) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
-
-
Electronic shutter
-
SH: 40 frames/sec (AFS/AFC/MF)
SH PRE: 40 frames/sec (AFS/AFC/MF)
H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
H+ Image Priority: 9 frames/sec (AFC)
H+ Speed Priority: 10 frames/sec (AFC)
M: 5 frames/sec (AFS/AFC/MF) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
-
-
-
Number of recordable images
-
H/H+/M/L*
RAW+JPEG: More than 60 images
RAW: More than 70 images
JPEG: More than 80 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".
SH
RAW / RAW+JPEG / JPEG: 70 images
-
FLASH
-
Flash type
-
Sold separately
-
-
Synchronization speed
-
Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
-
-
Flash mode
-
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
-
-
Flash output adjustment
-
1/3EV step ±3EV
-
-
Flash synchronization
-
1st Curtain Sync, 2nd Curtain Sync.
-
-
Wireless control
-
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
-
COLOUR SETTINGS
-
Photo Style
-
Photo Style
-
Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike A2 / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select.
-
-
Picture adjustment
-
Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / Dual Native ISO / ISO / WB / LUT / LUT 1 / LUT 2 / LUT Opacity / LUT 1 Opacity / LUT 2 Opacity
*Adjustable settings vary depending on the Photo Style mode, whether a LUT is applied, and the base Photo Style of the applied LUT.
-
-
-
Filter
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
-
-
LUT Library
-
Supported file types: .vlt, .cube
Vlog_709 / Set 1-39 (Set 1-3: Sample LUT)
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT can be applied from these settings.
-
ZOOM FUNCTION
-
Hybrid zoom
-
Still image / Motion picture
-
-
Crop zoom
-
Still image / Motion picture
-
MOTION PICTURE FUNCTION
-
Time lapse shot
-
Yes
-
-
Stop motion animation
-
Yes
-
-
Live cropping
-
Yes
-
-
SS/Gain operation
-
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
-
-
Luminance level
-
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0-1023 / 64-940 / 64-1023
-
-
Master pedestal level
-
31 steps
-
-
Colour bars / Test tone
-
Yes (SMPTE / EBU / ARIB) / Yes
-
-
LUT view assist
-
Monitor / HDMI
-
-
HLG view assist
-
Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
-
-
Anamorphic desqueeze display
-
2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
-
-
False Colour
-
Yes
-
-
Wave form monitor / Vectorscope
-
Selectable
-
-
Knee control
-
Yes (in Like709 mode)
-
-
Other functions
-
Red REC Frame Indicator, Streaming Blue Frame Indicator
-
VERTICAL POSITION INFORMATION
-
Still image / Motion picture (ON/OFF)
LEVEL GAUGE
-
Yes
FUNCTION BUTTON
-
REC
-
Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Apply LUT / REAL TIME LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Colour Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Control (Photo Mode) / Exposure Control (Video Mode) / Synchro Scan (Photo) / Synchro Scan (Video) / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / [Hybrid Zoom (Photo) / Crop Zoom / Live View Composite / Rec. File Format / Rec Quality / Rec Quality (My List) / Proxy Recording / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Audio Recording / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabiliser / E-Stabilisation (Video) / Boost I.S. (Video) / Image Area of Video / Hybrid Zoom(Video) / Crop Zoom / Focus Transition / Live Cropping / Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Video Mode) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / LUT Select(LUT View Assist) / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Image Flip (Monitor) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) / HLG View Assist (Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / False Colour / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Streaming / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Same Setting as Photo Mode / Restore to Default
-
-
PLAY
-
Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Video Mode) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / Send Images to Frame.io / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
-
INTERFACE
-
USB
-
USB Type-C® (USB 10Gbps)
-
-
HDMI (*⁹)
-
HDMI
-
HDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
-
-
Monitor-through
-
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
-
-
Playback
-
59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback.
-
-
-
Remote input
-
φ2.5mm
-
-
Audio
-
Build-in microphone
-
Stereo
Wind Noise Canceller: OFF / Standard / High
-
-
External microphone / External audio device input
-
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
-
-
XLR microphone
-
Yes with DMW-XLR2 (sold separately)
-
-
4ch mic input
-
Yes with DMW-XLR2 (sold separately)
-
-
Speaker
-
Monaural
-
-
Headphone output
-
φ3.5mm
-
-
-
Card slot
-
Slot 1: CFexpress Type B Card
Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
-
TC IN/OUT
-
Count up
-
Rec Run / Free Run
-
-
Time code mode
-
Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
-
-
HDMI time code output
-
ON / OFF
-
FAN
-
Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *SLOW setting cannot be used depending on the video recording quality. **OFF can not be set when in Video mode.
LAMP
-
Tally Lamp (front/rear) / Card Access Light / Charging Light/Network Connection Light
WIRELESS
-
Wi-Fi
-
2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA/AP) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
-
-
Bluetooth
-
Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
-
DUST AND SPLASH RESISTANT*
-
Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
-
Battery
-
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
-
-
Battery life (CIPA standard)
-
When using CFexpress Card
-
Approx. 340 images (rear monitor), 280 images (LVF), 950 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22
*Using a Nextorage CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-
-
When using SD memory card
-
Approx. 350 images (rear monitor), 280 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22
*Using a Nextorage SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-
-
-
Continuous recordable time (Motion picture) (*¹)
-
When using CFexpress Card
-
MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105
MP4 [FHD/30p (FULL)]: Approx. 80 min with S-R24105
-
-
When using SD memory card
-
MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105
MP4 [FHD/30p (FULL)]: Approx. 80 min with S-R24105
-
-
-
Actual recordable time (Motion picture) (*¹)
-
When using CFexpress Card
-
MP4 [4K/60p (FULL)]: Approx. 25 min with S-R24105
MP4 [FHD/30p (FULL)]: Approx. 40 min with S-R24105
-
-
When using SD memory card
-
MP4 [4K/60p (FULL)]: Approx. 25 min with S-R24105
MP4 [FHD/30p (FULL)]: Approx. 40 min with S-R24105
-
-
-
Battery grip
-
DMW-BG2 (sold separately)
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions)
Approx. 134.3 x 102.3 x 187.8 mm / 5.29 x 4.03 x 7.40 inch (with S-R24105, excluding protrusions)
-
-
Weight
-
Approx. 795g / 1.75 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
Approx. 712g / 1.57 lb (Body, Hot Shoe Cover) (excluding body cap)
-
OPERATING ENVIRONMENT
-
Operating temperature
-
-10℃ to 40℃ (14℉ to 104℉)
・The performance of the battery (number of pictures that can be taken/available recording time) may decrease temporarily at temperatures between -10℃ to 0℃ (14℉ to 32℉).
・When using in low temperatures (-10℃ to 0℃ (14℉ to 32℉)), attach a Panasonic lens with a minimum recommended operating temperature of -10℃ (14℉).
-
-
Operating humidity
-
10%RH to 80%RH
-
STANDARD ACCESSORIES
-
Software
-
LUMIX Lab / LUMIX Flow
・This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
LUMIX Tether
・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
-
-
Standard accessories
-
DC-S1RM2 Kit
Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector
DC-S1RM2M Kit
Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Lens Cap, Lens Hood, Lens Rear Cap
・The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
Note
-
(*1) About motion picture recording
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, S&Q video with ALL-Intra, or ProRes: CFexpress card
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.8K]: 640GB
- The recording time varies depending on the shooting format and the operating conditions. It will stop automatically once the internal temperature gets too high.
(*2) HLG is selectable in [4:2:2 10bit] or [4:2:0 10bit].
(*3) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).
(*4) Proxy video recording is available.
(*5) Proxy video recording is available. When Proxy Recording is set to ON, Crop Zoom is not available.
(*6) When Image Area of Video is set to PIXEL/PIXEL, Crop Zoom is not available.
(*7) Please use DC Coupler DMW-DCC18 (sold separately) or Battery Grip DMW-BG2 / Battery Pack DMW-BLK22 (sold separately) when using the following settings. For video and S&Q video when set as MOV/MP4 with exceeding a resolution of C4K; or ProRes video with frame rate of 31 fps or above and exceeding a resolution of C4K.
(*8) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 4K 60p (C4K/4K 100p/120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting above 4K 60p (C4K/4K 100p/120p).
(*9) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
To output motion pictures with 4K 120p/100p or 8K30p/25p/24p, use an Ultra High Speed HDMI cable (Type A - Type A plug).
Related Products
Reviews
USER REVIEWS

Customer Reviews
