Smart Controller with Built-In Bluetooth® Functions

SHOP NOW
Contact Us
Go To Pro Club

CZ-RTC6BL

Smart Control, Smarter Comfort with CONEX

CONEX is the ultimate control system for commercial air conditioning, offering advanced features for customized comfort and energy efficiency.
  • CONEX
  • Bluetooth®

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-RTC6BL
Contact Us

Specs

CZ-RTC6BL

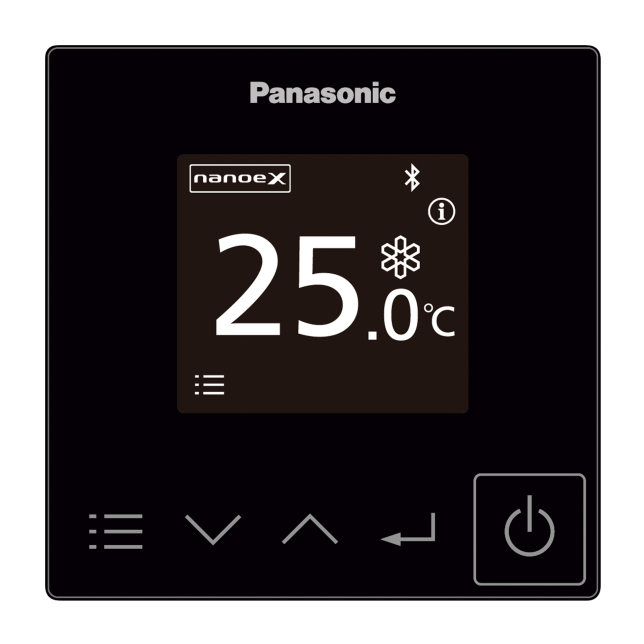

Photo of CZ-RTC6BL
  • CONEXCONEX
  • Bluetooth®Bluetooth®

Clean face with full flat & black LCD display. Compact body, only 86x86 mm.

Control comfort with your smartphone. Flexible control options with bluetooth® function.

Panasonic H&C Control App for daily remote control operation with easy initial settings.

Panasonic H&C Diagnosis App for diagnosis and trouble shooting of your air conditioning system.

Panasonic clean air technology nanoe™ X and energy-saving ECONAVI control functions.

CZ-RTC6BL
Dimensions (mm) (H) 86 × (W) 86 × (D) 25
Weight 0.09 kg
Temperature/Humidity range 0 ˚C to 40 ˚C / 20% to 80% (No condensation)
*Indoor use only.
Power Source DC16 V (supplied from indoor unit)
Clock Precision ± 30 seconds/month (at normal temperature 25 ˚C)
*Adjust periodically.
Clock Holding time 24 hours (When fully charged) (at normal temperature 25 ˚C)
*Approx. 8 hours are required for full charge.
Number of connected indoor units Indoor unit: Up to 8 units (Within group-controlling)
OS version on the mobile device for “Panasonic H&C Control App” iOS: 10.0 or later
Android™: 6.0 or later
Bluetooth® version 4.2 or later
Note • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
• iOS is the name of the OS of Apple Inc. IOS is a trademark or registered trademark of Cisco in the US and other countries which has been licensed for use.
• Apple and the Apple logo are trademarks of Apple Inc. that are registered in the US and other countries. App Store is a service mark of Apple Inc.
• Android™, Google Play™ and Google Play™ logos are registered trademarks of Google LLC.

Documents

Combination

Single Split Packaged Air Conditioner

R32 Inverter NX Series Deluxe 4-Way Cassette

R32 Inverter NX Series Deluxe 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark3 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Standard 4-Way Cassette

R32 Inverter NX Series Standard 4-Way Cassettes, featuring 360° comfortable airflow, are equipped with the nanoe X Generator Mark2 to provide a new level of air quality. A new IoT remote controller also provides greater accessibility and convenience.

R32 Inverter NX Series Ceiling Exposed

R32 Inverter NX Series Ceiling Exposed units provide a new level of air quality thanks to the further and wider airflow distribution of the nanoe X Generator Mark2, as well as extra convenience with a new IoT remote controller.

R32 Inverter NX Series Adaptive Ducted

R32 Inverter NX Series Adaptive Ducted units provide a new level of air quality thanks to the nanoe X Generator Mark2, extra convenience with a new IoT remote controller, and flexibility with the ability to be installed vertically in addition to horizontally.

VRF/Mini VRF

F3 Type Mid Static Adaptive Ducted

F3 Type Mid Static Adaptive Ducted units are slim and boast excellent performance, making them ideal for installation environments with low ceilings and vertical installations. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

M1 Type Slim Low Static Ducted

M1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

Z1 Type Slim Low Static Ducted Twenty Series

Z1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

E2 Type High Static Ducted/High Fresh Air Ducted

E2 Type High Static Ducted/High Fresh Air Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation (except for S-180ME2E5).

E1 Type High Static Ducted

E1 Type High Static Ducted units offer improved design flexibility for extended duct layouts thanks to their increased external static pressure.

H1 Type High Fresh Air Ducted

H1 Type High Static Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation.

K2 Type Wall Mounted

K2 Type Wall Mounted units boast a stylish design and are compact and lightweight, making them easy to install. Their quiet operation makes them ideal for small offices, hotel rooms, and hospital rooms.

U2 Type 4-Way Cassette

U2 Type 4-Way Cassette units have a flat design and a built-in drain pump that allows for flexible installation and design options that blend in with interiors and buildings. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

Y3 Type 4-Way Mini Cassette

Y3 Type 4-Way Mini Cassette units feature a design compact enough to fit into a 60 × 60 cm ceiling grid with easy installation. They also offer a new level of air quality thanks to the nanoe X Generator Mark3.

L1 Type 2-Way Cassette

L1 Type 2-Way Cassette units are very thin, compact, and light, allowing for flexibility in installation. The fan has been redesigned to achieve its size and weight reductions.

D1 Type 1-Way Cassette

D1 Type 1-Way Cassette units feature a slim design that can be installed in small ceiling spaces. The quiet yet powerful fan blows air to the floor from a ceiling height of up to 4.2 m.

T2 Type Ceiling Mounted

T2 Type Ceiling Mounted units offer excellent energy-saving performance and comfortable long-distance airflow distribution, making them ideal for stores and schools.

P1 Type Floor Standing

P1 Type Floor Standing units have a compact design and are an ideal solution for providing perimeter air conditioning. A standard wired controller can be integrated into the units.

R1 Type Concealed Floor Standing

R1 Type Concealed Floor Standing units are only 229 mm deep and can be easily concealed in the perimeter area for powerful and effective air conditioning.

Features

Smart Comfort with CONEX

Experience unparalleled control and convenience with Panasonic’s Bluetooth-enabled Mobile Applications.
1) H&C Control App: Detailed operation and maintenance settings for end users and installers.
2) H&C Diagnosis App: Diagnosis and troubleshooting tools for service partners.
Smart Comfort with CONEX

Panasonic H&C Control App

Comfort Day to Day Operations

Panasonic H&C Control App: User-friendly day-to-day
operations via bluetooth®.
Comfort Day to Day Operations

Intuitive Operation for Easy Configuration

H&C Control App makes complex initial set-up visually touch and feel easy and responds swiftly to clients’ requests via Bluetooth® using a smartphone or tablet.
Intuitive Operation for Easy Configuration

Panasonic H&C Diagnosis App

Diagnosis from both Indoor and Outdoor*

With CONEX, operation status can be checked and failure can be diagnosed from both indoor and outdoor units even when site access may be difficult for either indoor or outdoor unit.
* A service checker interface is required to diagnose from outdoors.
Diagnosis from both Indoor and Outdoor*

Service Checker Interface*

The service checker interface provides easy access to service parameters and the diagnosis history data from the outdoor unit via Bluetooth®.
* Available as a spare part, compatible with PAC NX Series.
Service Checker Interface*

Get Information Intuitively and Quickly

Easy access to real-time service parameters and the diagnosis history data allows for more accurate repairs. Actual real-time operation data can be toggled between system and refrigerant circuit views, and previously recorded data can be viewed in the history. A comprehensive error code table and guide gives details of error codes and how to handle them.
Get Information Intuitively and Quickly

Activate to Purify Spaces All Day Long

Panasonic air purification function “nanoe™ X” can be turned ON or OFF with just the touch of a remote control button.
LEARN MORE
Activate to Purify Spaces All Day Long

Maximize Comfort and Energy-Saving

Along with ECONAVI sensor “CZ-CENSC1”, human activity levels can be detected for optimum energy saving operations, while maximizing comfort.
* This feature is available on certain models only.
Maximize Comfort and Energy-Saving
