CONEX Wired Remote Controller (Non-wireless)

CZ-RTC6W/CZ-RTC6

Stylish, Easy-to-Use Controller

A sleek, modern controller with nanoe™ X and ECONAVI control functions
  • CONEX
Zoom In
Zoom Out
Close

Specifications

CZ-RTC6W

  • Color: White: CZ-RTC6WWhite

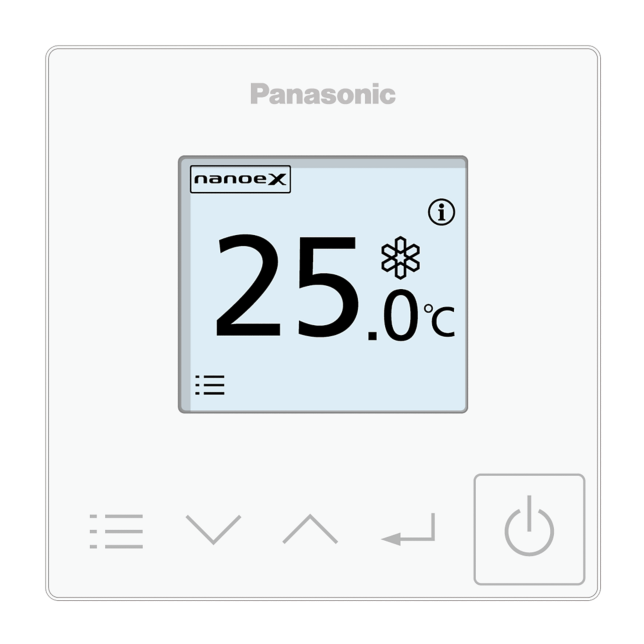

Photo of CZ-RTC6W

CZ-RTC6

  • Color: Black: CZ-RTC6Black

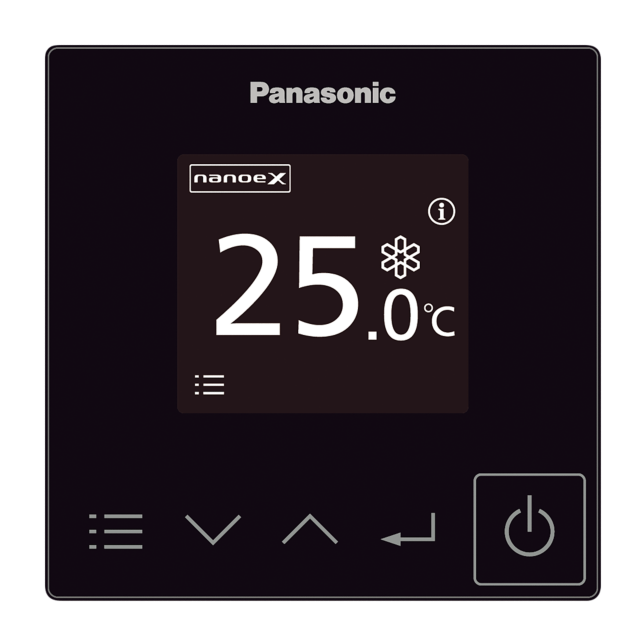

Photo of CZ-RTC6

Basic function: ON/OFF, mode setting, fan speed setting, temperature setting, air flow direction.

Number of indoor units which can be connected: 1 group, 8 units.

Use limitations: Up to 2 controllers can be connected per group. * No combination possible with CZ-RTC6(W)BLW.

Energy saving: Panasonic energy-saving technology ECONAVI.

Maintenance: Alarm history, alarm display, filter sign, auto-address, test run.

Others: Panasonic clean air technology nanoe™ X ON/OFF, key lock.

CZ-RTC6W CZ-RTC6

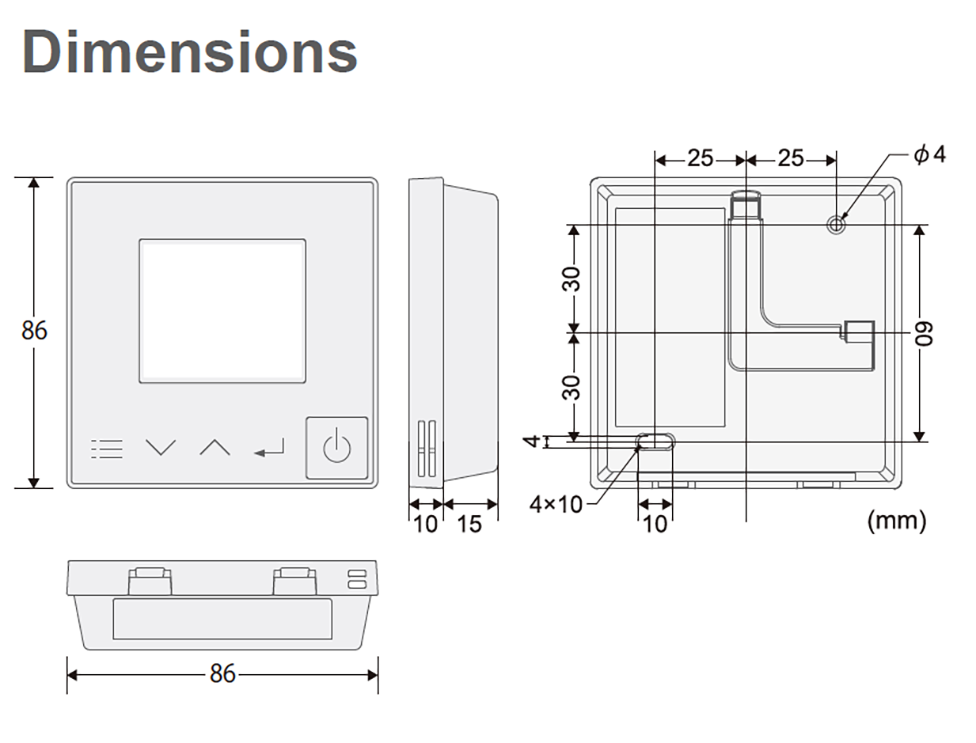

Dimensions (mm) H 86 × W 86 × D 25 H 86 × W 86 × D 25
Weight 0.09kg 0.09kg
Temperature/Humidity range 0 to 40˚C / 20 to 80% (No condensation)
*Indoor use only.
0 to 40˚C / 20 to 80% (No condensation)
*Indoor use only.
Power Source DC 16V (Supplied from indoor unit) DC 16V (Supplied from indoor unit)
Number of connected indoor units Indoor unit: Up to 8 units (Within group-controlling) Indoor unit: Up to 8 units (Within group-controlling)

Documents

Case Studies

Features

Activate for All-Day Space Purification

Panasonic air purification function “nanoe™ X” can be turned ON or OFF with just the touch of a remote control button.
Activate for All-Day Space Purification

Activity-Based Energy Control

The ECONAVI sensor detects human motion and operates in energy-saving mode according to activity level.
* ECONAVI Sensor CZ-CENSC1 required (sold separately).
* This feature is available on certain models only.
Activity-Based Energy Control
