2-Way Cooling or Heating Mini-FSV LE Series

For small-scale commercial and residential use

The Mini-FSV system LE Series is designed for light commercial and residential use with extraordinary energy-saving performance and a high external static pressure of 35 Pa.
  • R410A
  • Inverter
  • Heat Pump

Please Select Your User Type

Zoom In
Zoom Out
Close
2-Way Cooling or Heating Mini-FSV LE Series
Contact Us

Features

Extraordinary Energy-Saving Performance

Extraordinary Energy-Saving Performance
The operation efficiency has been improved using a highly efficient R410A refrigerant, a DC Inverter compressor, a DC motor, and a heat exchanger design.

Energy Savings Design

1. Panasonic’s inverter compressor to improve partial-load capacity.
2. 2 pieces of the printed circuit board for easy maintenance.
3. Large-size accumulator to maintain compressor reliability for extended max piping length.
4. DC fan motor for optimum air volume.
5. Newly designed fan blades to inhibit air turbulence and increase efficiency.
6. Redesigned heat exchanger & copper tubes to increase efficiency.
7. Centrifugal oil separator improves oil separation efficiency and reduces refrigerant pressure loss.
Energy Savings Design

Variable Evaporation Temperature (VET) for Energy Saving and Comfortable Air conditioning

The indoor and outdoor units work in tandem to control evaporation temperature, refrigerant volume, and airflow. This enables optimal air conditioning according to the number of people in the room and the indoor temperature, as well as energy savings and comfort.
Note: When fan speed is set to Auto.
LEARN MORE
Variable Evaporation Temperature (VET) for Energy Saving and Comfortable Air conditioning

Demand Response Ready

Simple Demand Response

Featuring inverter control technology, all Panasonic Mini FSV systems are Demand Response Management (DRM) ready. With this control, power consumption at times of peak load can be set in three steps to deliver optimum performance. This helps to reduce annual power consumption with minimal loss in comfort.
Note: Terminal block CZ-CAPDC3 is to be supplied separately.
Simple Demand Response

Flexible Demand Response

The setting is possible as 0% or in the range from 40 to 100% (in steps of 5%). At the time of shipping, the setting has been done to the three steps of 0%, 70%, and 100%.
Note: An outdoor Seri-Para l/O unit CZ-CAPDC2 is to be supplied separately. Demand timer setting for a high-spec remote controller is available.
Flexible Demand Response

High Durability

Wide Operating Range

Cooling operation is possible even when the outdoor temperature is as low as -10°C DB or as high as 46°C DB. The remote controller temperature can be set from 18°C up to 30°C*.
*Depending on the type of remote controller.
Note: Note: Cooling capacity depend on indoor/outdoor temperature. Please refer technical databook.
Wide Operating Range

Rust-resistant and Easy to Maintain

The anti-corrosion Blue Fin treatment of the heat exchanger provides greater resistance against corrosion. Panasonic also uses a copper tube condenser, which makes it easy to repair and maintain. All models are equipped with Blue Fin condenser.
Note: Selecting this unit does not completely eliminate the possibility of rust developing. For details concerning unit installation and maintenance, please consult an authorised dealer.
Rust-resistant and Easy to Maintain

Highly Flexible Installation and Design

･ Maximum total piping length 180 m (4/5/6 HP) / 300 m (8/10 HP).
･ Actual piping length 150 m.
･ Elevation difference of maximum 50 m in case of outdoor unit is higher than indoor unit.
･ Maximum 15 meters height difference between indoor units.
･ Up to 50 m of piping without additional gas charging (4/5/6 HP).
･ Up to 13 indoor units connectable in case of 8/10 HP.
･ High external static pressure of 35 Pa.
LEARN MORE
Highly Flexible Installation and Design

Specs

U-4LE2H4

Photo of U-4LE2H4

U-4LE2H7

Photo of U-4LE2H7

U-5LE2H4

Photo of U-5LE2H4

U-5LE2H7

Photo of U-5LE2H7

U-6LE2H4

Photo of U-6LE2H4

U-6LE2H7

Photo of U-6LE2H7

U-8LE1H7

Photo of U-8LE1H7

U-10LE1H7

Photo of U-10LE1H7
  • R410AR410A
  • InverterInverter
  • Heat PumpHeat Pump

High external static pressure 35 Pa

Wide operation range: Cooling: -10°C to 46°C DB

Refrigerant chargeless up to 50 m (LE2)

Diversity ratio 50-130%

Actual piping length: 150 m (total piping length: 300 m (LE1) / 180 m (LE2))

System difference of elevation: 50 m (outdoor unit above) / 40 m (below)

U-4LE2H4 U-4LE2H7 U-5LE2H4 U-5LE2H7 U-6LE2H4 U-6LE2H7 U-8LE1H7 U-10LE1H7
HP 4 HP 4 HP 5 HP 5 HP 6 HP 6 HP 8 HP 10 HP
Power Supply (50 Hz) 220/230/240 V, 1 phase 380/400/415 V, 3 phase 220/230/240 V, 1 phase 380/400/415 V, 3 phase 220/230/240 V, 1 phase 380/400/415 V, 3 phase 380/400/415 V, 3 phase 380/400/415 V, 3 phase
Power Supply (60 Hz) 220/230 V, 1 phase 380/400 V, 3 phase 220/230 V, 1 phase 380/400 V, 3 phase 220/230 V, 1 phase 380/400 V, 3 phase 380/400 V, 3 phase 380/400 V, 3 phase
Voltage 220/230/240 V 380/400/415 V 220/230/240 V 380/400/415 V 220/230/240 V 380/400/415 V 380/400/415 V 380/400/415 V
Capacity (Cooling) 12.1 kW, 41,300 Btu/h 12.1 kW, 41,300 Btu/h 14.0 kW, 47,800 Btu/h 14.0 kW, 47,800 Btu/h 15.5 kW, 52,900 Btu/h 15.5 kW, 52,900 Btu/h 22.4 kW, 76,500 Btu/h 28.0 kW, 95,600 Btu/h
Capacity (Heating) 12.5 kW, 42,700 Btu/h 12.5 kW, 42,700 Btu/h 16.0 kW, 54,600 Btu/h 16.0 kW, 54,600 Btu/h 16.5 kW, 56,300 Btu/h 16.5 kW, 56,300 Btu/h 25.0 kW, 85,300 Btu/h 28.0 kW, 95,600 Btu/h
EER/COP (Cooling) 5.08 W/W 5.08 W/W 4.61 W/W 4.61 W/W 4.27 W/W 4.27 W/W 4.20 W/W 3.59 W/W
EER/COP (Heating) 5.95 W/W 5.95 W/W 5.25 W/W 5.25 W/W 5.08 W/W 5.08 W/W 4.52 W/W 4.55 W/W
Dimension H996 x W980 x D370 mm H996 x W980 x D370 mm H996 x W980 x D370 mm H996 x W980 x D370 mm H996 x W980 x D370 mm H996 x W980 x D370 mm H1,500 x W980 x D370 mm H1,500 x W980 x D370 mm
Net Weight 106 kg 106 kg 106 kg 106 kg 106 kg 106 kg 132 kg 133 kg
Electrical Rating (Cooling - Running Current) 11.90/11.40/10.90 A 3.89/3.69/3.56 A 15.20/14.50/13.90 4.91/4.67/4.50 A 18.10/17.30/16.60 A 5.87/5.57/5.37 A 8.70/8.25/7.95 A 12.7/12.1/11.7 A
Electrical Rating (Cooling - Power Input) 2.38/2.38/2.38 kW 2.38/2.38/2.38 kW 3.04/3.04/3.04 kW 3.04/3.04/3.04 kW 3.63/3.63/3.63 kW 3.63/3.63/3.63 kW 5.33/5.33/5.33 kW 7.80/7.80/7.80 kg
Electrical Rating (Heating - Running Current) 10.60/10.10/9.70 A 3.47/3.28/3.18 A 15.20/14.60/14.0 A 4.93/4.68/4.51 A 16.20/15.50/14.90 A 5.25/4.99/4.81 A 9.05/8.60/8.25 A 10.0/9.55/9.20 A
Electrical Rating (Heating - Power Input) 2.10/2.10/2.10 kW 2.10/2.10/2.10 kW 3.05/3.05/3.05 kW 3.05/3.05/3.05 kW 3.25/3.25/3.25 kW 3.25/3.25/3.25 kW 5.53/5.53/5.53 kW 6.15/6.15/6.15 kW
Starting Current 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Air Flow Rate 69 m³/min, 1,150 L/s 69 m³/min, 1,150 L/s 72 m³/min, 1,200 L/s 72 m³/min, 1,200 L/s 74 m³/min, 1,233 L/s 74 m³/min, 1,233 L/s 150 m³/h, 2,500 L/s 160 m³/h, 2,667 L/s
Refrigerant Amount at Shipment R410A 6.70 kg R410A 6.70 kg R410A 6.70 kg R410A 6.70 kg R410A 6.70 kg R410A 6.70 kg R410A 6.30 kg R410A 6.60 kg
Piping Connection (Gas Pipe) Ø15.88 mm (Ø5/8 inch) Ø15.88 mm (Ø5/8 inch) Ø15.88 mm (Ø5/8 inch) Ø15.88 mm (Ø5/8 inch) Ø15.88 mm (Ø5/8 inch) Ø15.88 mm (Ø5/8 inch) Ø19.05 mm (Ø3/4 inch) Ø22.22 mm (Ø7/8 inch)
Piping Connection (Liquid Pipe) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch) Ø9.52 mm (Ø3/8 inch)
Ambient Temperature Operating Range (Cooling) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB) -10˚C (DB) ~ +46˚C (DB)
Ambient Temperature Operating Range (Heating) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB) -20˚C (WB) ~ +18˚C (WB)
Sound Pressure Level (Normal Mode) 52.0 dB (A) 52.0 dB (A) 53.0 dB (A) 53.0 dB (A) 54.0 dB (A) 54.0 dB (A) 59.0 dB (A) 62.0 dB (A)
Sound Pressure Level (Silent Mode 3) 45.0 dB (A) 45.0 dB (A) 46.0 dB (A) 46.0 dB (A) 47.0 dB (A) 47.0 dB (A) 52.0 dB (A) 55.0 dB (A)
Sound Power Level (Normal Mode) 69.0 dB 69.0 dB 71.0 dB 71.0 dB 73.0 dB 73.0 dB 80.0 dB 83.0 dB

Documents

Combination

F3 Type Mid Static Adaptive Ducted

F3 Type Mid Static Adaptive Ducted units are slim and boast excellent performance, making them ideal for installation environments with low ceilings and vertical installations. They also offer the next level of air quality thanks to the nanoe X Generator Mark3, effective even in large spaces.

M1 Type Slim Low Static Ducted

M1 Type Slim Low Static Ducted units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

Z1 Type Slim Low Static Ducted Twenty Series

Z1 Type Slim Low Static Ducted Twenty Series units have a slim design with a height of only 200 mm, making them ideal for small, compact spaces under the ceilings of buildings such as hotels.

K2 Type Wall Mounted

K2 Type Wall Mounted units boast a stylish design and are compact and lightweight, making them easy to install. Their quiet operation makes them ideal for small offices, hotel rooms, and hospital rooms.

U2 Type 4-Way Cassette

U2 Type 4-Way Cassette units have a flat design and a built-in drain pump that allows for flexible installation and design options that blend in with interiors and buildings. They also offer the next level of air quality thanks to the nanoe X Generator Mark3, effective even in large spaces.

Y3 Type 4-Way Mini Cassette

Y3 Type 4-Way Mini Cassette units feature a design compact enough to fit into a 60 × 60 cm ceiling grid with easy installation. They also offer the next level of air quality thanks to the nanoe X Generator Mark3.

R1 Type Concealed Floor Standing

R1 Type Concealed Floor Standing units are only 229 mm deep and can be easily concealed in the perimeter area for powerful and effective air conditioning.

E2 Type High Static Ducted/High Fresh Air Ducted

E2 Type High Static Ducted/High Fresh Air Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation (except for S-180ME2E5).

E1 Type High Static Ducted

E1 Type High Static Ducted units offer improved design flexibility for extended duct layouts thanks to their increased external static pressure.

H1 Type High Fresh Air Ducted

H1 Type High Static Ducted units offer improved design flexibility in extended duct layouts thanks to their increased external static pressure. They also provide 100% fresh air intake for ventilation.

L1 Type 2-Way Cassette

L1 Type 2-Way Cassette units are very thin, compact, and light, allowing for flexibility in installation. The fan has been redesigned to achieve its size and weight reductions.

D1 Type 1-Way Cassette

D1 Type 1-Way Cassette units feature a slim design that can be installed in small ceiling spaces. The quiet yet powerful fan blows air to the floor from a ceiling height of up to 4.2 m.

T2 Type Ceiling Mounted

T2 Type Ceiling Mounted units offer excellent energy-saving performance and comfortable long-distance airflow distribution, making them ideal for stores and schools.

P1 Type Floor Standing

P1 Type Floor Standing units have a compact design and are an ideal solution for providing perimeter air conditioning. A standard wired controller can be integrated into the units.

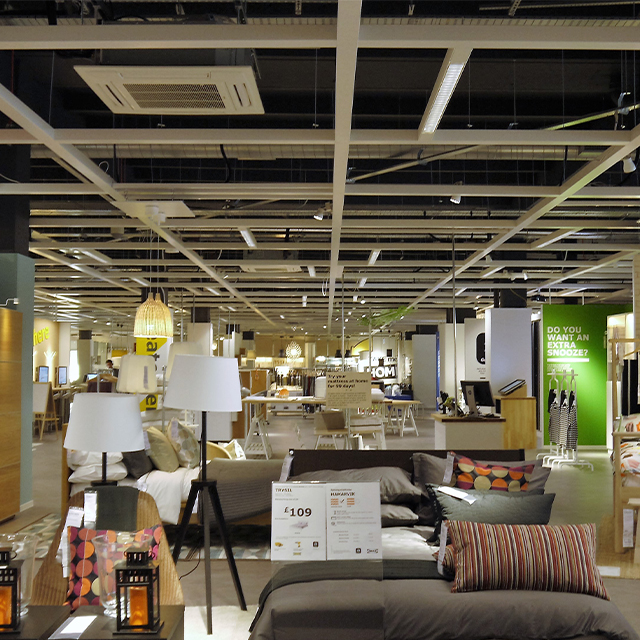

Case Studies
