Seri-Para Communication Box for Outdoor Unit

Contact Us
Go To Pro Club
Twitter Facebook Addthis

CZ-CAPDC2

Interfaces for External Control
(Digital connection)

Control up to 4 outdoor units. From the central control device, mode changing and batch operation/batch stop are possible. Required for demand control.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-CAPDC2
Contact Us

Specs

CZ-CAPDC2

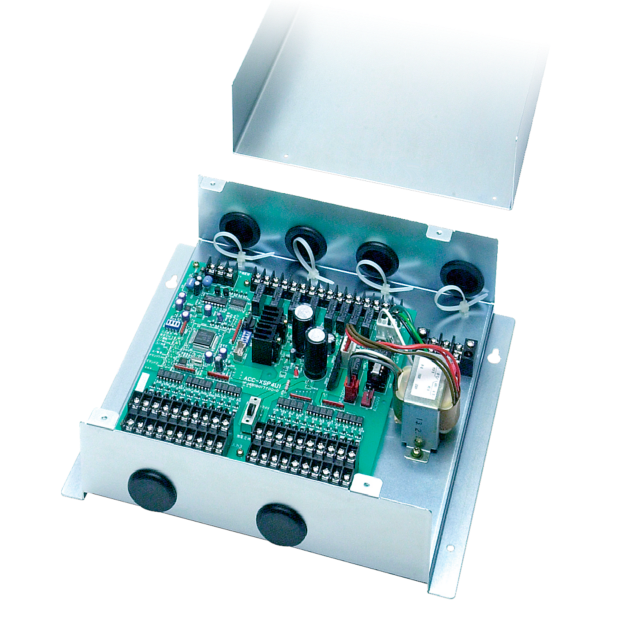

Photo of CZ-CAPDC2

Control up to 4 outdoor units.

From the central control device, mode changing and batch operation/batch stop are possible.

Required for demand control.

CZ-CAPDC2
Rated voltage Single-phase 110-120 / 220-240 V ~
Rated frequency 50-60 Hz
Power consumption Approx. 18 W
Weight 3.2 kg

Documents

Combination

VRF/Mini VRF

2-Way Cooling or Heating FSV-EX ME2 Series

The FSV system ME2 Series is designed for outstanding energy-saving performance, powerful operation, high reliability, and comfort surpassing anything that was previously possible.

2-Way Cooling or Heating Mini-FSV LE Series

The Mini-FSV system LE Series is designed for light commercial and residential use with extraordinary energy-saving performance and a high external static pressure of 35Pa.

GHP

2-Way GE3 Series

The Panasonic Gas Heat Pump (GHP) VRF system powerfully and efficiently generates high-quality air whilst conserving energy by reducing power consumption. The system also saves energy by suppressing peak-time electricity consumption.

Features

Interface Adaptor

Input: Batch operation/Batch stop (non-voltage contact/24V DC, pulse signal). Cooling/Heating (non-voltage contact/static signal). Demand 1/2 (non-voltage contact/static signal) (local stop by switching). Output: Operation output (non-voltage contact). Alarm output (non-voltage contact).
1)Central Control Device *Wiring length: Indoor/outdoor operation lines: Total length 1km. Digital signal: 100m or shorter.
Interface Adaptor
