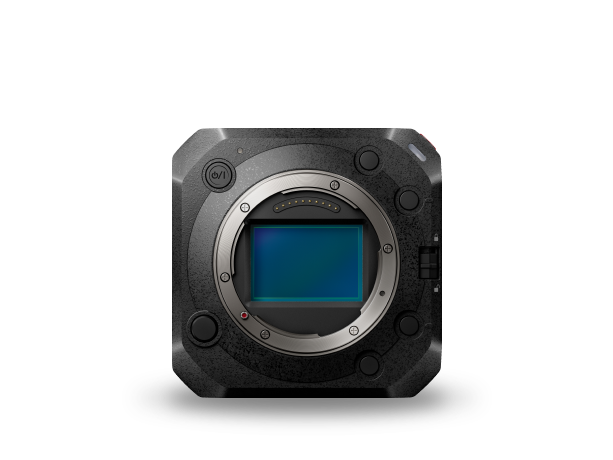

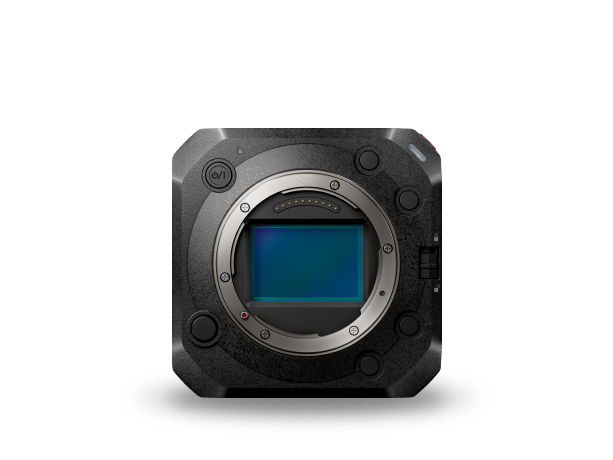

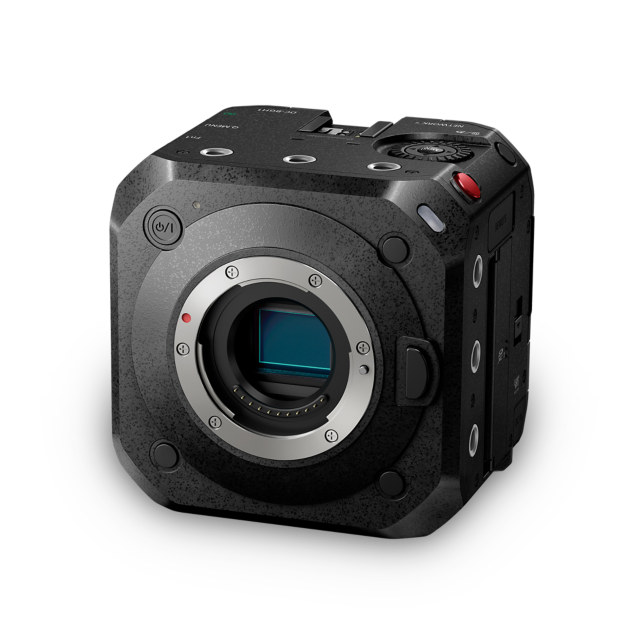

LUMIX Box-Style Camera DC-BGH1GC
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
DC-BGH1GC
Unbox Your Creativity
Box-Style mirrorless cinema and live camera featuring C4K 60p/50p, 10-bit video recording.
Features
Box-Style Cinema & Live Camera
Dual Native ISO, C4K/4K 60p/50p 10-bit recording, 13 stops of dynamic range thanks to V-Log L all in an easy to deploy Box-Style camera for increased shooting flexibility.
10.2MP Live MOS Sensor with Dual Native ISO Technology
The LUMIX BGH1 features a 10.2MP Live MOS sensor with Dual Native ISO technology for outstanding low-light video performance.
* The Micro Four Thirds™ name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
Wide Dynamic Range of 13 Stops with V-Log L
The LUMIX BGH1 features a wide dynamic range of 13 stops with V-Log L, while color graders can utilize the same LUTs they use with V-Log.
HDMI Live Output for Professional Film Creation
C4K/4K 60p/50p 10-bit Internal/External Recording
Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI Live Output external recording are supported.
RAW Video Data Output
The firmware update enables the output of maximum 59.94p 4K (4096x2160, 17:9) and Anamorphic 3.7K (3680x2760, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder. * The Blackmagic RAW can also be recorded on Video Assist 12G HDR.**
* Please update the firmware to version 2.0 or later. [Apple ProRes RAW] ・Selectable recording mode depends on the firmware version of Atomos Ninja V. ・Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V. ・Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ・All functions may not be available depending on the situation.
** Please update the firmware to version 2.3 or later. [Blackmagic RAW] ・Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. ・Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ・DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ・All functions may not be available depending on the situation.
** Please update the firmware to version 2.3 or later. [Blackmagic RAW] ・Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. ・Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ・DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ・All functions may not be available depending on the situation.
A LUMIX First: Simultaneous SDI/HDMI Output
You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering.
Heat Management = Unlimited Recording
The finest LUMIX heat-dissipation technology is applied to enable a compact, lightweight body with unlimited video recording in all shooting modes.
Flexible Expandability with Wired LAN Connection
Remote Control with LUMIX Tether for Multicam
Multiple camera recording enabled by Ethernet cable connection on LUMIX Tether for Multicam* software enables more efficient video production.
* LUMIX Tether for Multicam software will be released in the product shipment of BGH1.
A LUMIX First: Ethernet / PoE+ Compatible Camera
Simply by connecting the BGH1 via Ethernet cable, your camera will be powered over Ethernet* and allow multiple-camera remote control through the LUMIX Tether for Multicam software.
* IEEE802.3at compliant.
IP Streaming with PC (RTP/RTSP protocol)
To support a growing need of live streaming, the firmware version 2.0 or later provides an IP streaming function of high-quality image transmission to the social media platform over the Internet with PC connection through LAN cable. The wired LAN cabling will also enable an extended length of wiring within your shooting environment.
A LUMIX First: Genlock IN and Timecode IN/OUT
Supporting Genlock IN enables multiple-camera control and streaming. Used in combination with the timecode feature, it satisfies high-precision live video production.
A Range of Advanced Features
The LUMIX BGH1 offers a wide range of features that address the needs of video production professionals for high quality, ease of operation, and scalability.
Get Inspired
Specs
Size and Weight
- Height
- 93mm
- Width
- 93mm
- Depth
- 78mm
- Weight
- 545g
All values are approximate. Weight is the body only. Dimensions exclude protrusions.
- Micro Four Thirds System Standard
- 10.2 Megapixels
- 4K Video Recording Capability
- V-Log L
- HDMI Output and SDI Output
- Genlock IN and Timecode IN/OUT
- Ethernet and PoE+ Compatible
- Wi-Fi
- Bluetooth
10.2MP MOS sensor with Dual Native ISO technology
C4K/4K 60p/50p 10-bit internal/external simultaneous recording and unlimited recording time
Wide dynamic range of 13 stops with V-Log L
Ethernet / PoE+ (IEEE802.3at compliant) compatible
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Recording media
-
SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
-
-
Lens mount
-
Micro Four Thirds mount
-
IMAGE SENSOR
-
Type
-
Live MOS sensor (17.3 x 13.0 mm)
-
-
Camera effective pixels / Total pixels
-
10.28 megapixels / 11.93 megapixels
-
-
Aspect ratio / Color filter
-
4:3 / Primary color filter
-
-
Dust reduction system
-
-
-
LATITUDE
-
LATITUDE
-
13 stops (V-Log L)
-
STILL IMAGE
-
Recording file format
-
JPEG (DCF, Exif 2.31) *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
Aspect ratio
-
4:3
-
-
File size (Pixels)
-
3680x2760(L) / 2592x1944(M) / 1824x1368(S)
-
-
Image quality
-
Fine / Standard
-
-
Color space
-
sRGB
-
MOTION PICTURE
-
Recording file format
-
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
-
-
MOV (*2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
-
59.94Hz [C4K] 4096x2160
-
59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
59.94Hz [4K] 3840x2160
-
59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
-
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
59.94Hz [FHD] 1920x1080
-
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
50.00Hz [C4K] 4096x2160
-
50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
50.00Hz [4K] 3840x2160
-
50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
-
50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
50.00Hz [FHD] 1920x1080
-
50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
24.00Hz [C4K] 4096x2160
-
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
24.00Hz [4K] 3840x2160
-
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
-
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
24.00Hz [FHD] 1920x1080
-
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
-
-
-
MP4 (*2)
-
59.94Hz [4K] 3840x2160
-
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
59.94Hz [FHD] 1920x1080
-
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
50.00Hz [4K] 3840x2160
-
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
50.00Hz [FHD] 1920x1080
-
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
24.00Hz
-
-
-
-
VARIABLE FRAME RATE
-
MOV (*2)
-
59.94Hz [C4K] 4096x2160
-
29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
59.94Hz [4K] 3840x2160
-
29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
-
29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
59.94Hz [FHD] 1920x1080
-
59.94p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
29.97p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
23.98p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 201 or more.
-
-
50.00Hz [C4K] 4096x2160
-
25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
50.00Hz [4K] 3840x2160
-
25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
-
25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
50.00Hz [FHD] 1920x1080
-
50.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
25.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 201 or more.
-
-
24.00Hz [C4K] 4096x2160
-
24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
24.00Hz [4K] 3840x2160
-
24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
-
24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
24.00Hz [FHD] 1920x1080
-
24.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 201 or more.
-
-
HDMI RAW DATA OUTPUT (*5) (*6)
-
Compatible external devices
-
ATOMOS Ninja V 4K HDR Monitor-Recorder (*5)
*Selectable recording mode depends on the firmware version of Atomos Ninja V.
*Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V.
*Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
*All functions may not be available depending on the situation.
Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*6)
*Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR.
*Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
*DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
*All functions may not be available depending on the situation.
-
-
Rec quality
-
NTSC (59.94Hz)[4K] 4096x2160 (17:9)
-
59.94p, 12-bit (LPCM, High-Res Audio)
29.97p, 12-bit (LPCM, High-Res Audio)
23.98p, 12-bit (LPCM, High-Res Audio)
-
-
NTSC (59.94Hz)[Anamorphic 3.7K] 3680x2760 (4:3)
-
59.94p, 12-bit (LPCM, High-Res Audio)
29.97p, 12-bit (LPCM, High-Res Audio)
23.98p, 12-bit (LPCM, High-Res Audio)
-
-
PAL (50.00Hz)[4K] 4096x2160 (17:9)
-
50.00p, 12-bit (LPCM, High-Res Audio)
25.00p, 12-bit (LPCM, High-Res Audio)
-
-
PAL (50.00Hz)[Anamorphic 3.7K] 3680x2760 (4:3)
-
50.00p, 12-bit (LPCM, High-Res Audio)
25.00p, 12-bit (LPCM, High-Res Audio)
-
-
-
Audio format
-
LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).
-
IP STREAMING (*5)
-
Protocol
-
RTP / RTSP
-
-
Streaming quality
-
NTSC (59.94Hz)[4K] 3840x2160
-
59.94p, 50Mbps / 25Mbps (H.265)
59.94p, 50Mbps / 25Mbps (H.264)
29.97p, 25Mbps / 12.5Mbps (H.265)
29.97p, 25Mbps / 12.5Mbps (H.264)
-
-
NTSC (59.94Hz)[FHD] 1920x1080
-
59.94p, 20Mbps / 16Mbps (H.265)
59.94p, 16Mbps / 8Mbps (H.264)
29.97p, 12Mbps / 6Mbps (H.265)
29.97p, 6Mbps / 3Mbps (H.264)
-
-
NTSC (59.94Hz)[HD] 1280x720
-
59.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
-
-
PAL (50.00Hz)[4K] 3840x2160
-
50.00p, 50Mbps / 25Mbps (H.265)
50.00p, 50Mbps / 25Mbps (H.264)
25.00p, 25Mbps / 12.5Mbps (H.265)
25.00p, 25Mbps / 12.5Mbps (H.264)
-
-
PAL (50.00Hz)[FHD] 1920x1080
-
50.00p, 20Mbps / 16Mbps (H.265)
50.00p, 16Mbps / 8Mbps (H.264)
25.00p, 12Mbps / 6Mbps (H.265)
25.00p, 6Mbps / 3Mbps (H.264)
-
-
PAL (50.00Hz)[HD] 1280x720
-
50.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)
-
-
-
RTSP Port
-
ON / OFF
-
VIEWFINDER
-
VIEWFINDER
-
-
-
REAR MONITOR
-
REAR MONITOR
-
-
-
STATUS LCD
-
STATUS LCD
-
-
-
FOCUS
-
Type
-
Contrast AF system
-
-
DFD technology
-
Yes
-
-
Focus mode
-
AF / MF
-
-
AF mode
-
Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
AF detective range
-
EV -6 - 20 (F1.4, ISO100 equivalent, AF (Still image))
-
-
AF custom setting (Motion picture)
-
AF Speed, AF Sensitivity
-
-
AF lock
-
Set the Fn button in custom menu to AF lock
-
-
Focus ring control (*6)
-
Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
-
-
Others
-
AF-ON, Continuous AF, AF+MF, MF Guide, MF Assist, Focus Peaking, Focus Ring Lock, 1-Area AF Moving Speed, Lens Focus Resume
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Center Weighted / Spot / Highlight Weighted
-
-
Metering range
-
EV0-18 (F2.0 lens, ISO100 equivalent)
-
-
Exposure mode
-
Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
-
-
ISO sensitivity (Standard output sensitivity)
-
Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
-
-
Dual Native ISO
-
[Normal]
Native ISO: 160, 800
Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 80* / 100* / 160-800 *Extended ISO
High: Auto / 800-51200 / 102400* / 204800* *Extended ISO
[V-Log L]
Native ISO: 400, 2000
Auto: Auto / 400-25600
Low: Auto / 400-2000
High: Auto / 2000-25600
[HLG]
Native ISO: 320, 1600
Auto: Auto / 320-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 320-1600
High: Auto / 1600-51200 / 102400* / 204800* *Extended ISO
[Cinelike D2 / Cinelike V2]
Native ISO: 160, 800
Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 80* / 100* / 160-800 *Extended ISO
High: Auto / 800-51200 / 102400* / 204800* *Extended ISO
-
-
Exposure compensation
-
Motion picture: 1/3 EV step ±3EV
Still image: 1/3 EV step ±5EV *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
AE lock
-
Set the Fn button in custom menu to AE lock
-
IMAGE STABILIZATION SYSTEM
-
IMAGE STABILIZATION SYSTEM
-
-
-
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Color temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
-
-
-
Shutter speed
-
Motion picture: 1/16,000 - 1/2
Still image: 1/16,000 - 1 *Tethered photo shooting with LUMIX Tether for Multicam software
-
BURST SHOOTING
-
BURST SHOOTING
-
-
-
FLASH
-
FLASH
-
-
-
PHOTO STYLE
-
Photo Style
-
Motion picture: Standard / Vivid / Natural / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Still image: Standard / Vivid (*6) / Natural (*6) / Landscape (*6) / Portrait (*6) / Monochrome (*6) / L. Monochrome (*6) / L. Monochrome D (*6) / Cinelike D2 (*6) / Cinelike V2 (*6) / Like709 (*6) / V-Log L (*6) / My Photo Style 1-10 (*6) *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
Picture adjustment
-
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
*Adjustable settings vary depending on the Photo Style mode.
-
FILTER
-
FILTER
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color
-
OTHER FUNCTIONS
-
Vertical Position Information (*5)
-
ON / OFF
-
-
Master pedestal level
-
31 steps
-
-
Luminance level
-
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
-
-
LUT view assist
-
Rec / Playback: HDMI / SDI
-
-
HLG view assist
-
Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
-
-
Anamorphic desqueeze display
-
2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Rec: SDI
Playback: HDMI / SDI
-
-
Synchro scan
-
Yes
-
-
SS/Gain operation
-
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
-
-
Color bars / 1kHz test tone
-
Yes (SMPTE / EBU / ARIB) / Yes
-
-
Knee control
-
Yes (in Like709 mode)
-
-
Level Gauge
-
Yes
-
FUNCTION BUTTON
-
REC
-
Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*6) / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Image Area of Video / Digital Zoom / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Cursor Button Lock / DISP. / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Monochrome Live View / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control (*6) / Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
-
-
PLAY
-
Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / DISP. / Card Slot Change / Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default
-
OSD LANGUAGE
-
OSD LANGUAGE
-
English, Chinese (Traditional), Chinese (Simplified), Thai, Arabic, Persian, Vietnamese, Hindi
-
INTERFACE
-
USB
-
SuperSpeed USB 3.1 Gen1 Type-C
-
-
DC IN
-
DC 12V (11.4-12.6V), EIAJ Type4
-
-
HDMI (*3)
-
HDMI
-
HDMI TypeA
Audio: Stereo
-
-
Monitor-through
-
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
-
-
Playback
-
59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
-
-
-
SDI
-
SDI
-
BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI
Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB
-
-
Monitor-through
-
4:2:2 10bit
-
-
Playback
-
59.94Hz: 1080/59.94p LEVEL-A / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
50.00Hz: 1080/50.00p LEVEL-A / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
24.00Hz: 1080/24.00PsF
-
-
-
Ethernet
-
Remote Control: LAN Terminal (RJ-45)
Power Supply: PoE+ (IEEE802.3at compliant)
* Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
-
-
Remote input
-
φ2.5mm
-
-
Microphone
-
Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
-
-
Speaker
-
-
-
-
External microphone / external audio device input
-
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
-
-
XLR microphone
-
Yes with DMW-XLR1 (sold separately)
-
-
Headphone output
-
φ3.5mm
-
-
SD card slot
-
Slot 1, Slot 2
-
-
TC IN/OUT
-
Count up
-
Rec Run / Free Run
-
-
Time code mode
-
Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
-
-
HDMI time code output
-
ON / OFF
-
-
SDI time code output
-
ON / OFF
-
-
External TC setting
-
TC Synchronization / TC Output Reference
-
-
-
Genlock IN
-
Genlock IN
-
ON / OFF
-
-
Horizontal phase synchronization
-
-206 - +49
-
-
-
Fan
-
Auto1 / Auto2 / Normal / Slow
-
-
Lamp
-
Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED
-
WIRELESS
-
Wi-Fi
-
IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
-
-
Bluetooth
-
Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
-
POWER
-
Direct power supply
-
AC Adaptor (12V, 3A) (bundled)
Li-ion Battery Pack (7.28V) (sold separately)
PoE+ (IEEE802.3at compliant) (sold separately)
-
-
Battery
-
Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)
-
-
Continuous recordable time (Motion picture) (*2)
-
MP4 [4K/60p]: Approx. 270 min, MP4 [FHD/60p]: Approx. 300 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 420 min, MP4 [FHD/60p]: Approx. 480 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 560 min, MP4 [FHD/60p]: Approx. 640 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.
-
-
Actual recordable time (Motion picture) (*2)
-
MP4 [4K/60p]: Approx. 135 min, MP4 [FHD/60p]: Approx. 150 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 210 min, MP4 [FHD/60p]: Approx. 240 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 280 min, MP4 [FHD/60p]: Approx. 320 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
Approx. 93.0 x 93.0 x 78.0 mm / 3.66 x 3.66 x 3.07 inch (excluding protrusions)
-
-
Weight
-
Approx. 545g / 1.2 lb (Body only)
-
OPERATING ENVIRONMENT
-
Operating temperature(*4)
-
-10oC to 40oC (14oF to 104oF)
-
-
Operating humidity
-
10%RH to 80%RH
-
STANDARD ACCESSORIES
-
Software
-
LUMIX Tether for Multicam
・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
-
-
Standard accessories
-
AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover
・ The DC-BGGH1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
NOTE
-
NOTE
-
(*2) About motion picture recording
- Use a card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*3) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".
(*4) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
(*5) Firmware must be updated to version 2.0 or later.
(*6) Firmware must be updated to version 2.3.
-
