CS-Z80YKR

See product page

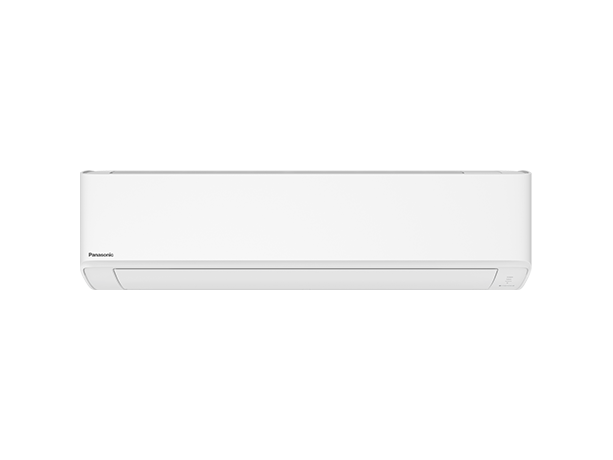

Photo of CS-Z80YKR

Model

  • Indoor (230V / 1 Phase / 50 Hz)

    • CS-Z80YKR

  • Outdoor

    • CU-Z80YKR

Cooling Basic Specification

  • Cooling Capacity (min-max)

    • 8.00 kW (2.30 kW - 9.00 kW)
      27,300 Btu/h (7,840 Btu/h - 30,700 Btu/h)

  • Air Flow (Indoor)

    • 367 L/s

  • Dehumid

    • 4.7 L/h

  • Electrical Data

    • Running Current

      • 10.1 A

    • Maximum Current

      • 15.0 A

    • Power Input (min-max)

      • 2.39 kW (0.46 kW - 3.03 kW)

  • AEER

    • 3.34 W/W

  • EER

    • 3.35 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.5 TCSPF

    • Average Climate

      • 3.5 TCSPF

    • Cold Climate

      • 3.5 TCSPF

  • Star Rating Commercial

    • Hot Climate

      • 4.5 TCSPF

    • Average Climate

      • 5.0 TCSPF

    • Cold Climate

      • 6.0 TCSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 51 dB (A)

    • Low

      • 38 dB (A)

    • Q-Low

      • 35 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 55 dB (A)

    • Q-Low

      • 50 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 67 dB (A)

    • Low

      • 54 dB (A)

    • Q-Low

      • 51 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 69 dB (A)

    • Q-Low

      • 64 dB (A)

  • Outdoor Unit Operating Range

    • -10 °C ~ +46 °C

Heating Basic Specification

  • Heating Capacity (min-max)

    • 9.00 kW (2.20 kW - 11.60 kW)
      30,700 Btu/h (7,500 Btu/h - 39,600 Btu/h)

  • Air Flow (Indoor)

    • 377 L/s

  • Electrical Data

    • Running Current

      • 9.8 A

    • Power Input (min-max)

      • 2.34 kW (0.43 kW - 3.42 kW)

  • ACOP

    • 3.83 W/W

  • COP

    • 3.85 W/W

  • Star Rating Residential

    • Hot Climate

      • 3.5 HSPF

    • Average Climate

      • 2.5 HSPF

    • Cold Climate

      • 2.0 HSPF

  • Star Rating Commercial

    • Hot Climate

      • 3.5 HSPF

    • Average Climate

      • 3.0 HSPF

    • Cold Climate

      • 2.5 HSPF

  • Indoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 50 dB (A)

    • Low

      • 38 dB (A)

    • Q-Low

      • 35 dB (A)

  • Outdoor Unit Sound Pressure Noise Level (measured according to JIS C9612)

    • High

      • 55 dB (A)

    • Q-Low

      • 50 dB (A)

  • Indoor Unit Sound Power Noise Level

    • High

      • 66 dB (A)

    • Low

      • 54 dB (A)

    • Q-Low

      • 51 dB (A)

  • Outdoor Unit Sound Power Noise Level

    • High

      • 69 dB (A)

    • Q-Low

      • 64 dB (A)

  • Outdoor Unit Operating Range

    • -15 °C ~ +24 °C

Other Specification

  • Net Weight

    • Indoor

      • 13 kg

    • Outdoor

      • 51 kg

  • Indoor Unit Dimensions

    • Height

      • 295 mm

    • Width

      • 1,040 mm

    • Depth

      • 244 mm

  • Outdoor Unit Dimensions

    • Height

      • 795 mm

    • Width

      • 875 mm

    • Depth

      • 320 mm

  • Refrigerant Pipe Diameter

    • Liquid Side

      • ø 6.35 mm (1/4 inch)

    • Gas Side

      • ø 15.88 mm (5/8 inch)

  • Piping

    • Pipe Extension Length (min-max)

      • 3 m ~ 30 m

    • Maximum Elevation Length

      • 20 m

    • Pipe Length For Additional Refrigerant Gas

      • 10 m

    • Additional Refrigerant Gas

      • 25 g/m

  • Power Supply

    • Outdoor

  • Refrigerant Type

    • R32

Comfort Features

  • iAUTO-X

    • Yes

  • ECO Mode With A.I.

    • Yes

  • Inverter Control

    • Yes

  • Sleep Mode

    • Yes

  • Quiet Mode

    • Yes

  • Fan Mode

    • Yes

  • Soft Dry Operation Mode

    • Yes

  • Hot Start Control

    • Yes

  • Auto Changeover (Inverter)

    • Yes

  • Personal Airflow Creation

    • Yes

Cleaner Air Features

  • nanoe™ X

    • Yes (Generator Mark 1)

  • Odour Removing Function

    • Yes

  • Removable Washable Panel

    • Yes

Convenience Features

  • 24-Hour Dual ON & OFF Real Setting Timer

    • Yes

  • Demand Response Enabling Device (DRED)

    • Yes

  • LCD Wireless Remote Control

    • Yes

  • Wi-Fi

    • Yes (Built-in)

  • Wired Remote Control

    • Optional

Reliability Features

  • Random Auto Restart

    • Yes (32 Restart Patterns)

  • Blue Fin Condenser

    • Yes

  • Long Piping (max.)

    • 30 m

  • Top Panel Maintenance Access

    • Yes

  • Self-Diagnostic Function

    • Yes

Note

  • Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
