R32 Inverter NX Series Under Ceiling

R32 Inverter NX Series Under Ceiling PT3

Delivers superior air purification and convenience with a new IoT remote controller

R32 Inverter NX Series Under Ceiling units provide further and wider airflow distribution as well as offering more efficient air protection with nanoe X Generator Mark2. These units have the extra convenience of a new IoT remote controller.

R32 Inverter NX Series Under Ceiling PT3

Features

Capacity (kW)	Cooling	6.0	6.8	9.5/10.0		12.1/12.5		13.4/13.6
Capacity (kW)	Heating	6.0	6.8/8.0	10.0/11.2		12.5/14.0		14.0/16.0
Phase		1Ø Phase	1Ø Phase	1Ø Phase	3Ø Phase	1Ø Phase	3Ø Phase	1Ø Phase	3Ø Phase
Indoor Unit		S-6071PT3E	S-6071PT3E	S-1014PT3E		S-1014PT3E		S-1014PT3E
Outdoor Unit (Deluxe)		-	U-71PZH3R5	U-100PZH3R5	U-100PZH3R8	U-125PZH3R5	U-125PZH3R8	U-140PZH3R5	U-140PZH3R8
Outdoor Unit (Compact)		U-60PZ4R5	U-71PZ4R5	U-100PZ4R5	U-100PZ4R8	U-125PZ4R5	U-125PZ4R8	U-140PZ4R5	U-140PZ4R8

More Efficient Air Protection with nanoe X Generator Mark2

24-hour nanoe™ X Air Purification

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

LEARN MORE

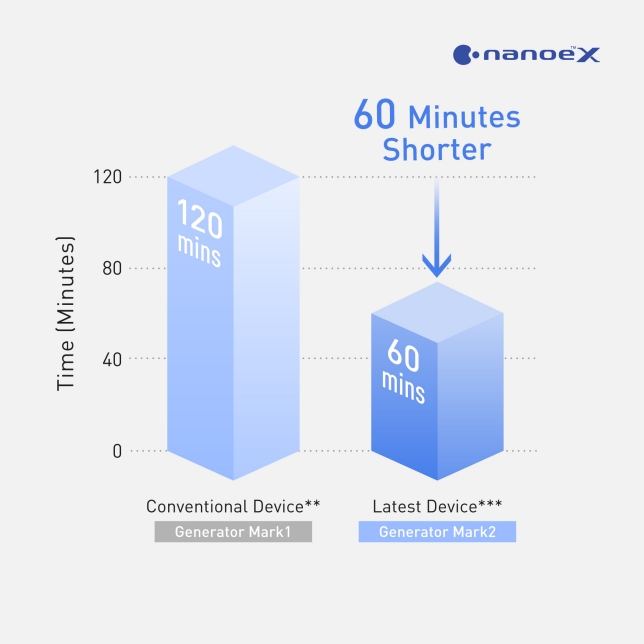

Effective at Eliminating Odours in Half the Time

The nanoe X Generator Mark2 reduces odours by as much as 1.8 levels* in just half the time of the conventional nanoe X Generator Mark1.

*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more.
[Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

Note: The test result is obtained using a 4-Way Cassette. **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark1 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 120 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01)

Effective at Eliminating Odours in Half the Time

Smart Power Saving with IoT

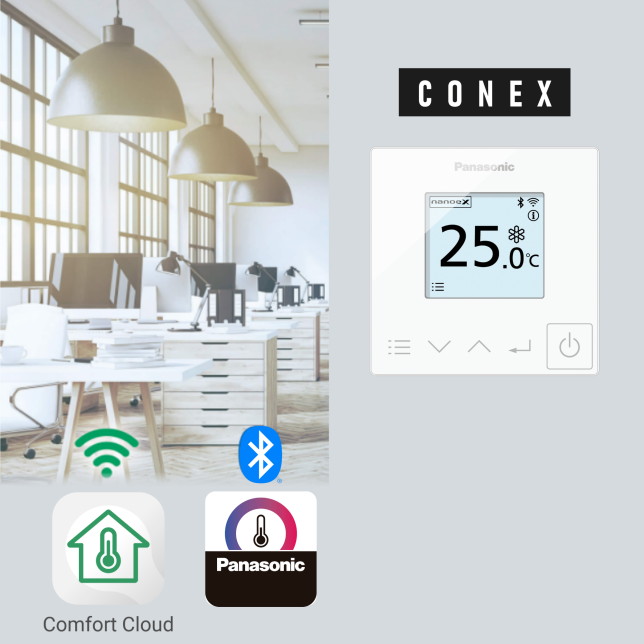

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

Note: A wireless remote controller is provided with the product.

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

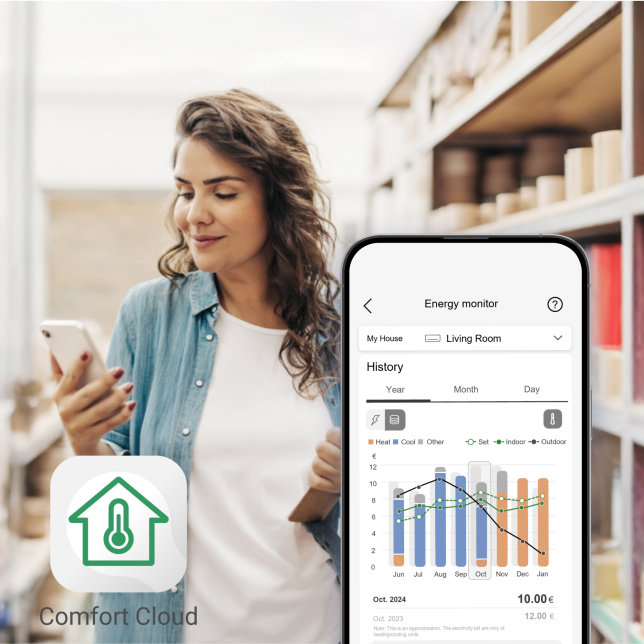

Smart Management of Power Consumption

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC2 External WLAN Adaptor or CZ-RTC6WBLW2/6BLW2 are required per unit.

LEARN MORE

Airflow Creates a Comfortable and Cool Environment

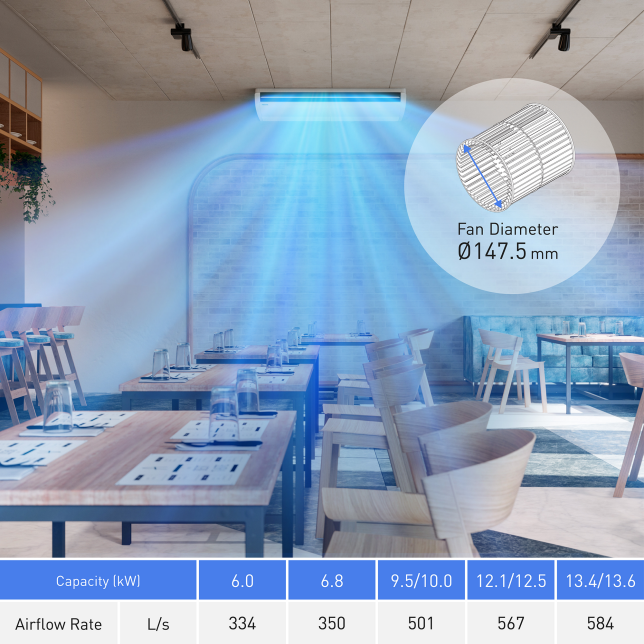

Cools the Area Quickly

Optimization of the shape of the casing and fan ensures bigger airflow. Powerful airflow delivered instantly makes all areas of spaces comfortable and cool.

Note: This table shows values for the airflow rate in high mode.

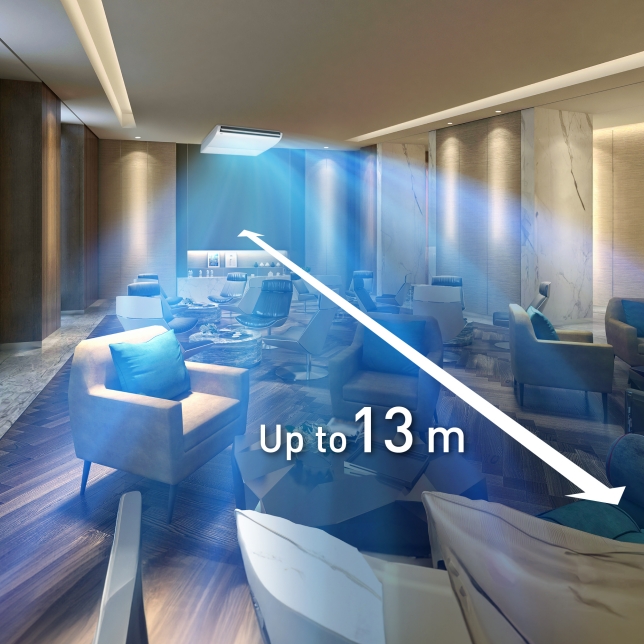

Delivers Cool Air Over a Long Distance

The shape of the outlet has been optimized to provide long-distance airflow distribution. Cool air can reach up to 13 meters* away, so even deep and wide spaces are comfortable.

*S-3448PT3H-8 only. Results are based on specific testing conditions.

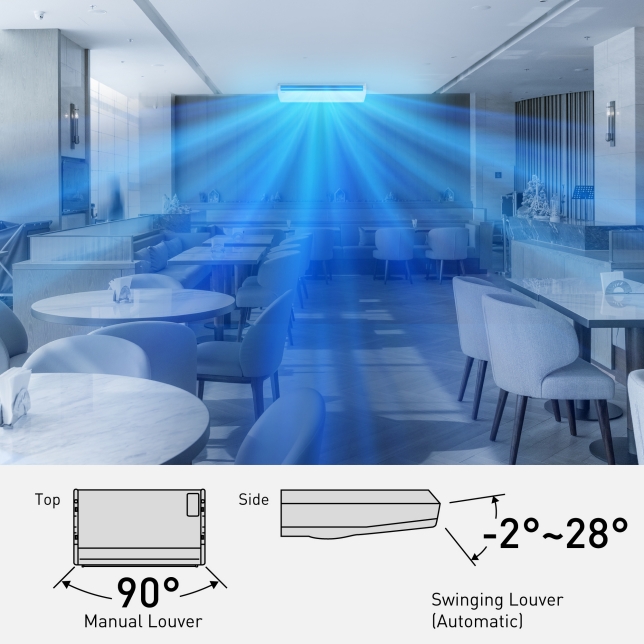

Cools Spaces in Their Entirety

In addition to the wide air discharge opening, the louvers can be adjusted manually up to 90 degrees left and right, and automatically up to 30 degrees up and down. You can choose to distribute cool air to every part of a large space or deliver cool air to only places where you want it to go. You can use the unit in any way you like.

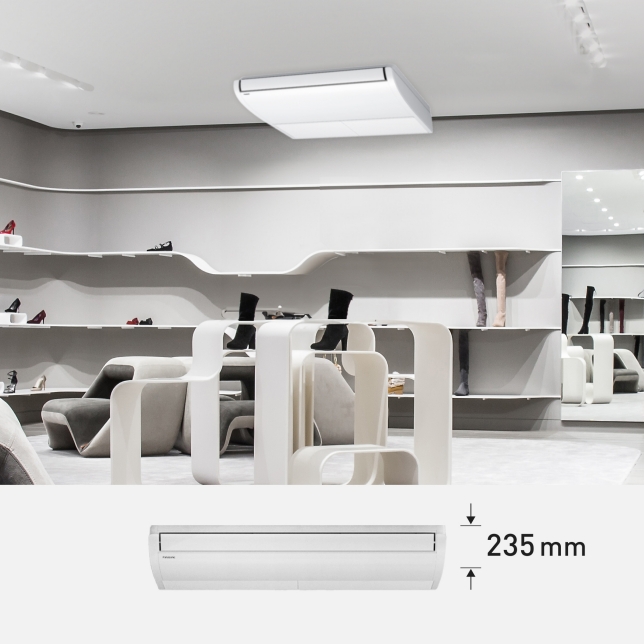

Compact Looking, Stylish Design

With its streamlined form, the unit looks slim and compact when installed for a neat appearance in any room. When not operating, the louver closes to provide an elegant look while keeping the unit clean.

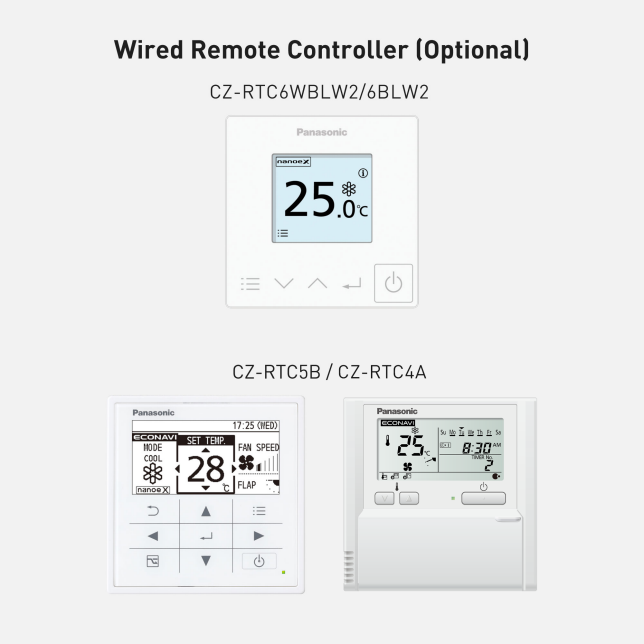

Wired Remote Controller

Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4A are also available.

LEARN MORE

Specs

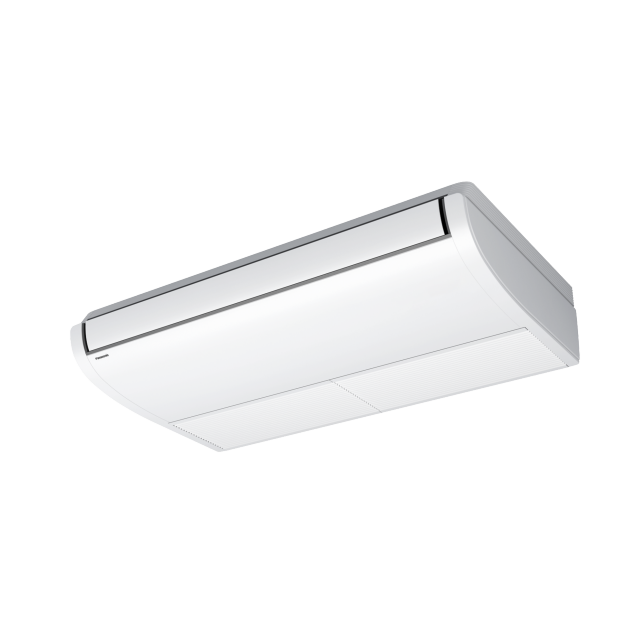

S-6071PT3E

S-1014PT3E

nanoe™ X
Comfort Cloud
CONEX
Inverter

nanoe™ X patented air purification technology

CONEX: A next-generation remote control

The slim design makes thickness only 235 mm

Compact-looking, stylish design

Comfortable, long-distance airflow distribution

Wireless remote controller included

	S-6071PT3E	S-1014PT3E
Dimension (Indoor)	H235 x W1,275 x D690 mm	H235 x W1,590 x D690 mm
Net Weight (Indoor)	34 kg	40 kg
Number of Fan Speeds	5	5
Drain Piping	VP-20mm	VP-20 mm
6.0 kW: Air Volume (Cooling) (H/M/L)	334/283/242 L/s	-
6.0 kW: Air Volume (Heating) (H/M/L)	334/283/242 L/s	-
6.0 kW: Sound Pressure Level (Cooling) (H/M/L)	38/34/29 dB(A)	-
6.0 kW: Sound Pressure Level (Heating) (H/M/L)	38/34/29 dB(A)	-
6.0 kW: Sound Power Level (Cooling) (H/M/L)	56/52/47 dB	-
6.0 kW: Sound Power Level (Heating) (H/M/L)	56/52/47 dB	-
6.8 kW: Air Volume (Cooling) (H/M/L)	350/300/258 L/s	-
6.8 kW: Air Volume (Heating) (H/M/L)	350/300/258 L/s	-
6.8 kW: Sound Pressure Level (Cooling) (H/M/L)	39/35/30 dB(A)	-
6.8 kW: Sound Pressure Level (Heating) (H/M/L)	39/35/30 dB(A)	-
6.8 kW: Sound Power Level (Cooling) (H/M/L)	57/53/48 dB	-
6.8 kW: Sound Power Level (Heating) (H/M/L)	57/53/48 dB	-
9.5 kW: Air Volume (Cooling) (H/M/L)	-	501/417/384 L/s
9.5 kW: Air Volume (Heating) (H/M/L)	-	501/417/384 L/s
9.5 kW: Sound Pressure Level (Cooling) (H/M/L)	-	42/37/34 dB(A)
9.5 kW: Sound Pressure Level (Heating) (H/M/L)	-	42/37/34 dB(A)
9.5 kW: Sound Power Level (Cooling) (H/M/L)	-	60/55/52 dB
9.5 kW: Sound Power Level (Heating) (H/M/L)	-	60/55/52 dB
10.0 kW: Air Volume (Cooling) (H/M/L)	-	501/417/384 L/s
10.0 kW: Air Volume (Heating) (H/M/L)	-	501/417/384 L/s
10.0 kW: Sound Pressure Level (Cooling) (H/M/L)	-	42/37/34 dB(A)
10.0 kW: Sound Pressure Level (Heating) (H/M/L)	-	42/37/34 dB(A)
10.0 kW: Sound Power Level (Cooling) (H/M/L)	-	60/55/52 dB
10.0 kW: Sound Power Level (Heating) (H/M/L)	-	60/55/52 dB
12.1/12.5 kW: Air Volume (Cooling) (H/M/L)	-	567/467/400 L/s
12.1/12.5 kW: Air Volume (Heating) (H/M/L)	-	567/467/400 L/s
12.1/12.5 kW: Sound Pressure Level (Cooling) (H/M/L)	-	46/40/35 dB(A)
12.1/12.5 kW: Sound Pressure Level (Heating) (H/M/L)	-	46/40/35 dB(A)
12.1/12.5 kW: Sound Power Level (Cooling) (H/M/L)	-	64/58/53 dB
12.1/12.5 kW: Sound Power Level (Heating) (H/M/L)	-	64/58/53 dB
13.4/13.6 kW: Air Volume (Cooling) (H/M/L)	-	584/484/417 L/s
13.4/13.6 kW: Air Volume (Heating) (H/M/L)	-	584/484/417 L/s
13.4/13.6 kW: Sound Pressure Level (Cooling) (H/M/L)	-	47/41/36 dB(A)
13.4/13.6 kW: Sound Pressure Level (Heating) (H/M/L)	-	47/41/36 dB(A)
13.4/13.6 kW: Sound Power Level (Cooling) (H/M/L)	-	65/59/54 dB
13.4/13.6 kW: Sound Power Level (Heating) (H/M/L)	-	65/59/54 dB

Documents

PAC Full Line-up Catalog 2023 AU (PDF - 20.1 MB)

NX Series Inverter Under Ceiling R32 Spec AU (PDF - 108 KB)

NX Series Inverter Under Ceiling R32 Dimension AU (PDF - 483 KB)

Combination

R32 Inverter NX Series Deluxe

R32 Inverter NX Series Deluxe delivers superior energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units guarantee powerful operation even in extremely hot environments.

R32 Inverter NX Series Compact Model

R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.
