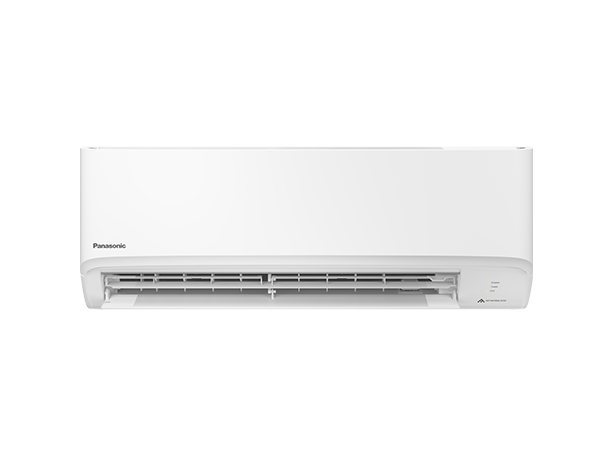

CS/CU-RZ25XKR
290 x 779 x 209mm
Specs
Model
-
CS-RZ25XKRW
Cooling Capacity (kW)
-
2.50 (0.95-3.70)
Heating Capacity (kW)
-
3.00 (0.90-4.40)
Air Flow (L/s)
-
188/200
Dehumid (L/h)
-
1.5
Running Current (A)
-
2.50/2.80
Power Input (kW)
-
0.57 (0.22-1.20)/0.64 (0.19-1.29)
AEER/EER (W/W)
-
4.32/4.39
ACOP/COP (W/W)
-
4.63/4.69
Star Rating
-
4.0/6.5
Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo)
-
40/25/19
Outside Sound Pressure Level (dB) (Hi/S-Lo)
-
48/43
Sound Power Level (db) (Hi/S-Lo)
-
63/58
Net Weight – Indoor (Outdoor)
-
8 (25)
Dimensions – Indoor (Outdoor) (h x w x d)
-
290 x 779 x 209mm/542 x 780 x 289mm
Refrigerant Pipe Diameter – Liquid Side (mm/(in))
-
6.35 (1/4)
Refrigerant Pipe Diameter – Gas Side (mm/(in))
-
9.52 (3/8)
Pipe Extension Length Min-Max (m)
-
3~20
Pipe Length for Additional Gas (m)
-
7.5
Additional Gas Amount (g/m)
-
10
Power Supply
-
Outdoor
Operating Range (Outdoor) – Cooling (C)
-
-10 ~ +46
Operating Range (Outdoor) – Heating (C)
-
-15 ~ +24
Refrigerant Type
-
R32
