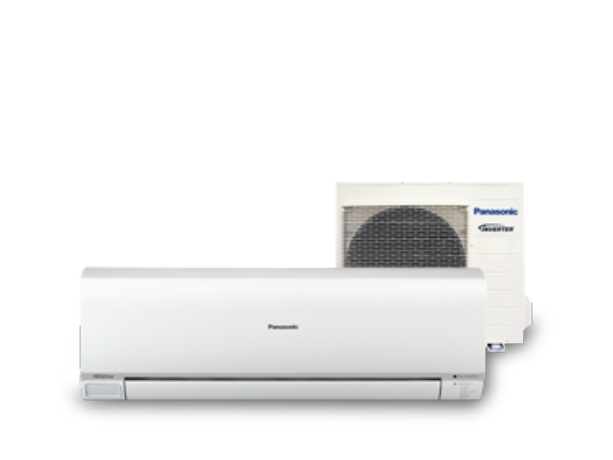

Photo of CS/CU-E15PKR
Cooling Energy Star Rating 2.5
Heating Energy Star Rating 2.5
Moisture Removal L/h 2.4
Pt/h 5.1
Air Circulation (indoor/Hi) Cooling L/s 225
m3/min. 13.5
ft3/min. 475
Air Circulation (indoor/Hi) Heating L/s 233
m3/min. 14
ft3/min. 495
Sound Pressure Level dB (A) (Cooling) Inside (Hi/Lo/S-Lo) 45/30/23
Outside (Hi/S-Lo) 46/41
Sound Pressure Level dB (A) (Heating) Inside (Hi/Lo/S-Lo) 43/31/27
Outside (Hi/S-Lo) 46/41
Sound Power Level dB (Cooling) Outside (Hi/S-Lo) 61/56
Sound Power Level dB (Heating) Outside (Hi/S-Lo) 61/56
Indoor Unit Height 290 mm
Width 870 mm
Depth 214 mm
Net Weight 9 kg
Outdoor Unit Height 795 mm
Width 875 mm
Depth 320 mm
Net Weight 51 kg
Refigerant Pipe Diameter Liquid Side 6.35 mm
Gas Side 12.7 mm
Pipe Length Min 3 m
Max 15 m
Add Gas Amount g/m 20
Outdoor Operation Range (deg C) Cooling +5C to + 46C
Heating -15C to + 24C
