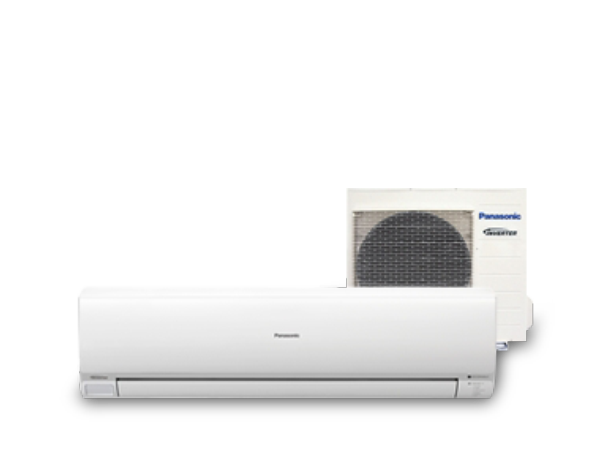

Photo of CS/CU-E18PKR
Cooling Energy Star Rating 2.5
Heating Energy Star Rating 2.5
Moisture Removal L/h 2.8
Pt/h 5.9
Air Circulation (indoor/Hi) Cooling L/s 283
m3/min. 17
ft3/min. 600
Air Circulation (indoor/Hi) Heating L/s 295
m3/min. 17.7
ft3/min. 625
Sound Pressure Level dB (A) (Cooling) Inside (Hi/Lo/S-Lo) 45/34/31
Outside (Hi/S-Lo) 47/42
Sound Pressure Level dB (A) (Heating) Inside (Hi/Lo/S-Lo) 42/33/29
Outside (Hi/S-Lo) 47/42
Sound Power Level dB (Cooling) Outside (Hi/S-Lo) 61/56
Sound Power Level dB (Heating) Outside (Hi/S-Lo) 61/56
Indoor Unit Height 290 mm
Width 1070 mm
Depth 240 mm
Net Weight 12 kg
Outdoor Unit Height 795 mm
Width 875 mm
Depth 320 mm
Net Weight 52 kg
Refigerant Pipe Diameter Liquid Side 6.35 mm
Gas Side 12.7 mm
Pipe Length Min 3 m
Max 20 m
Add Gas Amount g/m 20
Outdoor Operation Range (deg C) Cooling +5C to + 46C
Heating -15C to + 24C
