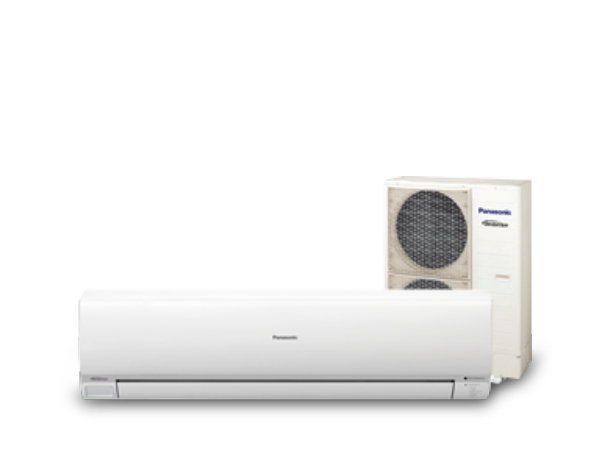

Photo of CS/CU-E28PKR
Cooling Energy Star Rating 2
Heating Energy Star Rating 2
Moisture Removal L/h 4.7
Pt/h 9.9
Air Circulation (indoor/Hi) Cooling L/s 340
m3/min. 20.4
ft3/min. 720
Air Circulation (indoor/Hi) Heating L/s 349
m3/min. 20.9
ft3/min. 740
Sound Pressure Level dB (A) (Cooling) Inside (Hi/Lo/S-Lo) 49/38/35
Outside (Hi/S-Lo) 53/48
Sound Pressure Level dB (A) (Heating) Inside (Hi/Lo/S-Lo) 48/38/35
Outside (Hi/S-Lo) 53/48
Sound Power Level dB (Cooling) Outside (Hi/S-Lo) 71/66
Sound Power Level dB (Heating) Outside (Hi/S-Lo) 71/66
Indoor Unit Height 290 mm
Width 1070 mm
Depth 240 mm
Net Weight 12 kg
Outdoor Unit Height 1170 mm
Width 900 mm
Depth 320 mm
Net Weight 74 kg
Refigerant Pipe Diameter Liquid Side 6.35 mm
Gas Side 15.88 mm
Pipe Length Min 3 m
Max 30 m
Add Gas Amount g/m 30
Outdoor Operation Range (deg C) Cooling +16C to + 46C
Heating -15C to + 24C
