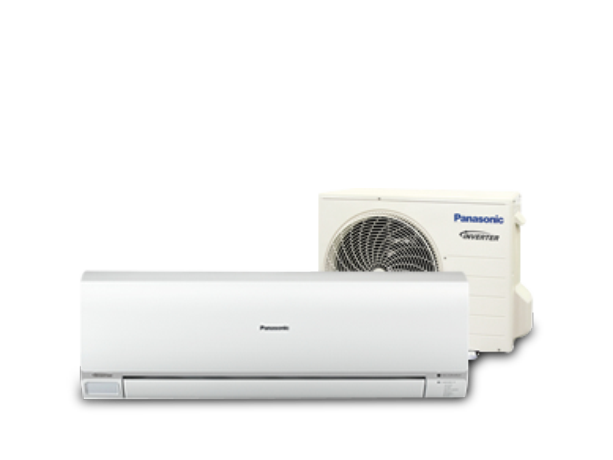

Photo of CS/CU-E9PKR
Cooling Energy Star Rating 4.5
Heating Energy Star Rating 4.5
Moisture Removal L/h 1.6
Pt/h 3.4
Air Circulation (indoor/Hi) Cooling L/s 182
m3/min. 10.9
ft3/min. 385
Air Circulation (indoor/Hi) Heating L/s 202
m3/min. 12.1
ft3/min. 425
Sound Pressure Level dB (A) (Cooling) Inside (Hi/Lo/S-Lo) 41/25/21
Outside (Hi/S-Lo) 46/-
Sound Pressure Level dB (A) (Heating) Inside (Hi/Lo/S-Lo) 39/27/21
Outside (Hi/S-Lo) 46/-
Sound Power Level dB (Cooling) Outside (Hi/S-Lo) 61/-
Sound Power Level dB (Heating) Outside (Hi/S-Lo) 61/-
Indoor Unit Height 290 mm
Width 870 mm
Depth 214 mm
Net Weight 9 kg
Outdoor Unit Height 619 mm
Width 824 mm
Depth 299 mm
Net Weight 33 kg
Refigerant Pipe Diameter Liquid Side 6.35 mm
Gas Side 9.52 mm
Pipe Length Min 3 m
Max 15 m
Add Gas Amount g/m 20
Outdoor Operation Range (deg C) Cooling +5C to + 46C
Heating -15C to + 24C
