| GENERAL |
Type of Split System Air Conditioner |

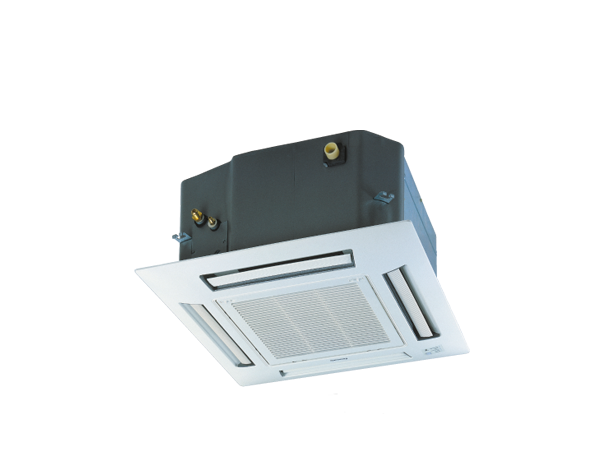

Inverter 4 Way Mini Cassette |
| Indoor Unit |
CS-E9SB4RW |
| Outdoor Unit |
CU-E9SB4R |
| Inverter Equipped |
Yes |
| Function |
Cooling + Heating |
| PERFORMANCE |
Electrical Voltage (V) |
240 |
| Phase |
1 |
| Cooling Capacity (kW) |
2.5 |
| Cooling Capacity Range - Min ~ Max (kW) |
0.85 ~ 3.20 |
| Heating Capacity (kW) |
3.2 |
| Heating Capacity Range - Min ~ Max (kW) |
0.85 ~ 4.70 |
| EER (w/w) |
4.55 |
| COP (w/w) |
4.10 |
| Total Power Input - Cooling / Heating (kW) |
0.55 / 0.78 |
| Cooling Operating Temperature Range (˚C) |
5 ~ 46 |
| Heating Operating Temperature Range (˚C) |
-15 ~ 24 |
| Compressor Type |
Inverter |
| Refrigerant Type |
R410A |
| SPECIFICATIONS |
No. of Indoor Units |
1 |
| Indoor Unit Dimensions W x H x D (mm) |
575 (125) x 260 x 575 (125) |
| Outdoor Unit Dimensions W x H x D (mm) |
824 x 619 x 299 |
| Net Weight - Indoor Unit (kg) |
18 |
| Net Weight - Outdoor Unit (kg) |
33 |
| Air Volume - Indoor - Cooling (L/s) |
175 |
| Air Volume - Indoor - Heating (L/s) |
182 |
| Sound Pressure Level - Indoor - Cooling- H / M / L (dB(A)) |
34 / 26 / 23 |
| Sound Pressure Level - Indoor - Heating- H / M / L (dB(A)) |
35 / 28 / 25 |
| Sound Pressure Level - Outdoor - Cooling / Heating (dB(A)) |
46 / 46 |
| Sound Power Level - Outdoor - Cooling / Heating (dB(A)) |
61 / 61 |
| Pipe Length - min. ~ max. (m) |
3 ~15 |
| Maximum Chargeless Length (m) |
7.5 |
| Piping Connections - Liquid / Gas (mm) |
Ø6.35 / Ø9.52 |
| Drain Pipe Size (mm) |
VP-20 / VP-25 |
| Warranty |
5 Years Manufacturer's Warranty |
| FEATURES |
Remote Control |
Wireless / Wired Optional |
| Programmable Timer |
Yes |
