LUMIX GH6 Camera DC-GH6L

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

DC-GH6L

A New Creative Dimension

Hybrid mirrorless camera featuring new 25.2-megapixel Live MOS sensor, 4:2:2 10-bit C4K/4K 60p/50p video and unlimited recording time*.
*Under the guaranteed operating environment. When using a battery. The recording time depends on the capacity of the battery and the recording media.
Zoom In
Zoom Out
Close

Features

Firmware Version 2.0 / 2.2 / 2.3

RAW Video Data Output

The firmware update enables the output of RAW video data over HDMI to save it as ProRes RAW on ATOMOS NINJA V+ and NINJA V HDR monitor-recorders.* The Blackmagic RAW can also be recorded on Video Assist 12G HDR.**

*The firmware version 2.0 or later. ・Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+ or ATOMOS Ninja V. ・Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ・All functions may not be available depending on the situation. **The firmware version 2.3 or later. ・DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data. ・Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR. ・All functions may not be available depending on the situation. ・When recording in 4K 120p/100p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording.

RAW Video Data Output

A LUMIX first: Apple ProRes codec video

Using a CFexpress Type B card (MOV, 5.7K, 5728x3024, 29.97p/25.00p/24.00p), you can internally record ProRes 422 HQ and ProRes 422 codec videos, the professional industry standard, which deliver high image quality at low compression. This significantly reduces the load on the computer during post-production and allows NLE (non-linear editing) without transcoding, streamlining your workflow from start to finish.
Firmware version 2.0 supports 59.94p/50.00p at C4K (4096x2160) and FHD (1920x1080).
・Apple and ProRes are trademarks or registered trademarks of Apple Inc. in the United States and/or other countries.
A LUMIX first: Apple ProRes codec video

Direct recording to USB-SSD

With the firmware version 2.2, recording and playback is supported using an external SSD via USB. In addition, the ability to record Apple ProRes 422 HQ (maximum 1.9Gbps) and 4:2:2 10-bit All-Intra directly to SSDs, which combine portability and high capacity has improved efficiency in data backup and post-processing.

・A firmware update to version 2.3, an AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record HFR/VFR video of 61fps or higher on a USB-SSD. ・It is not possible to record video and photo on the SD card or CFexpress card simultaneously while recording it on the external SSD. ・Use an external SSD no more than 2 TB in size that is compatible with USB Type-C. We recommend using an external SSD whose operation has been confirmed by Panasonic. Note beforehand that this is not a guarantee of operation on all devices. ・Latest information on the external SSDs will be available at the following support site at the same time as firmware release: https://panasonic.jp/support/global/cs/dsc/connect/index.html

Direct recording to USB-SSD

5.7K 10-bit 60p/50p recording

With 5.7K (5728x3024) 4:2:0 10-bit 60p/50p (17:9) and 5.8K (5760x4320) 30p/25p/24p 4:2:0 10-bit anamorphic (4:3) modes, the LUMIX GH6 offers higher resolution and higher bit rates than ever before, and delivers the latest in high image quality, versatility, and expressive range needed for film, TV, and all types of video production.
5.7K 10-bit 60p/50p recording

Unlimited 4:2:2 10-bit C4K/4K 60p/50p video recording time

The first LUMIX to offer 4:2:2 10-bit C4K/4K 60p/50p internal recording, the GH6 delivers unlimited recording time* when used at the recommended operating temperature**. Ideal for small production teams and in demanding conditions where mobility and high-quality are a must. Also allows for simultaneous internal recording and external recording via HDMI output.
*Under the guaranteed operating environment. When using a battery. The recording time depends on the capacity of the battery and the recording media.
**-10–40℃.
・Corresponding to 4K (4096×2160) as defined by Digital Cinema Initiatives (DCI).
・CFexpress card or an SD memory card with Video Speed Class 90 is required.
Unlimited 4:2:2 10-bit C4K/4K 60p/50p video recording time

7.5-stop Dual I.S. 2 (Image Stabilizer)

5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 7.5 stops’ worth of correction.*
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.]
7.5-stop Dual I.S. 2 (Image Stabilizer)

HFR/VFR 10-bit recording

High-resolution slow-motion recording, recently gaining popularity in video production, is now made possible using C4K/4K 10-bit 120p/100p HFR (high-frame-rate) video recording with audio. The LUMIX GH6 also offers a wide range of 10-bit ALL-Intra recording modes for high-end editing, so you can shoot FHD 240p/200p HFR and FHD 240fps VFR (variable frame rate) video. With VFR you can record up to 12.5x super slow-motion video (FHD 10-bit 24p/300fps).
・Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
HFR/VFR 10-bit recording

New Venus Engine

The new Venus Engine delivers approximately twice the processing power as before, enabling high-speed processing of the new sensor's higher pixel counts and higher-resolution, higher-bit-rate video. Image quality performance is also greatly improved. New Intelligent Detail Processing offers higher resolution, and new 2D and high-performance 3D Noise Reduction (for videos) optimize noise reduction. The result is natural, 3D-like images with minimal noise even at high sensitivity. High-precision Dual 3D Color Control achieves improved color reproduction (brightness, saturation, and hue), resulting in more faithful and richer color expression.
New Venus Engine

New 25.2MP sensor

The LUMIX GH6 features the first Micro Four Thirds™ system standard 25.2-megapixel Live MOS sensor. With no low-pass filter, its design allows for both more pixels and higher resolution, for ultra-realistic detail. Its higher readout speed delivers C4K/4K 120p video recording and 75-frames-per-second burst shooting using the electronic shutter while also minimizing rolling shutter distortion.
・The Micro Four Thirds™ name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
New 25.2MP sensor

Get Inspired

Specs

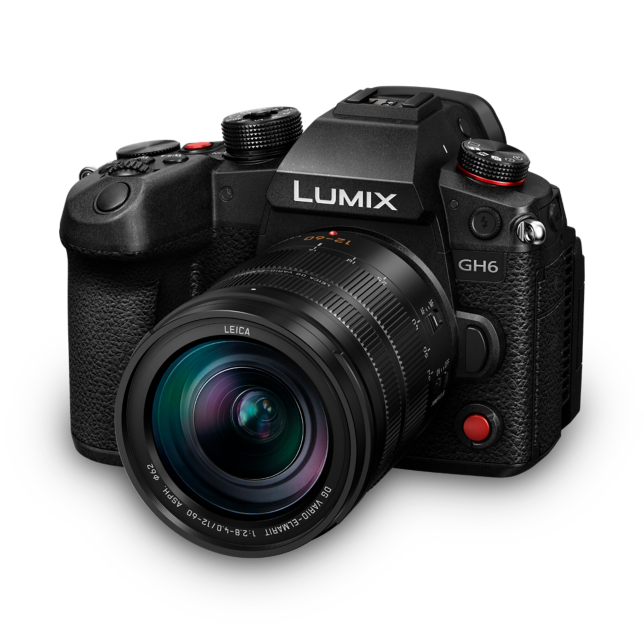

Photo of LUMIX GH6 Camera DC-GH6L

Size and Weight

Height
100.3mm
Width
138.4mm
Depth
99.6mm
Weight
823g

All values are approximate. Weight with SD card and battery. Lens is excluded. Body only 739g. Dimensions exclude protrusions.

  • Micro Four Thirds System StandardMicro Four Thirds System Standard
  • 25.2 Megapixels25.2 Megapixels
  • C4K/4K 4:2:2 10-bit 60p/50p videoC4K/4K 4:2:2 10-bit 60p/50p video
  • HFR/VFR 10-bit videoHFR/VFR 10-bit video
  • V-LogV-Log
  • 5-Axis Dual I.S. 2 (Image Stabilizer)5-Axis Dual I.S. 2 (Image Stabilizer)
  • 1840k-dot Tilt and Free-angle Monitor1840k-dot Tilt and Free-angle Monitor
  • 3680k-dot OLED Live View Finder3680k-dot OLED Live View Finder
  • Splash, Dust and Freeze-resistantSplash, Dust and Freeze-resistant
  • Wi-FiWi-Fi
  • BluetoothBluetooth

New 25.2-megapixel Digital Live MOS sensor

New Venus Engine

4:2:2 10-bit C4K/4K 60p/50p video and unlimited recording time

HFR/VFR 10-bit video and 5.7K 10-bit 60p/50p video

TYPE

  • Type

    • Digital Single Lens Mirrorless camera
  • Lens mount

    • Micro Four Thirds mount

IMAGE SENSOR

  • Type

    • Live MOS sensor (17.3 x 13.0 mm)
  • Camera effective pixels / Total pixels

    • 25.21 megapixels / 26.52 megapixels
  • AR (Anti Reflection) coating

    • Yes
  • Aspect ratio / Color filter

    • 4:3 / Primary color filter
  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • Dynamic Range Boost ON: 13+ stops (V-Log)
    Dynamic Range Boost OFF: 12+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31), RAW
  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1
  • File size (Pixels)

    • 4:3
      • 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode.
    • 3:2
      • 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode.
    • 16:9
      • 5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode.
    • 1:1
      • 4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode.
  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard
  • Color space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
      MP4: H.264/MPEG-4 AVC, H.265/HEVC
  • Audio format

    • MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      MP4: AAC (2ch 48kHz/16-bit)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz
  • Image area of video

    • Full / Pixel by Pixel
  • MOV (*¹) (*²) *HLG is selectable.

    • 59.94Hz [5.8K] 5760x4320 (4:3)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [4.4K] 4352x3264 (4:3)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 59.94Hz [C4K] 4096x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
    • 59.94Hz [4K] 3840x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
    • 59.94Hz [FHD] 1920x1080
      • 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
        **Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [5.8K] 5760x4320 (4:3)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [4.4K] 4352x3264 (4:3)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 50.00Hz [C4K] 4096x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
    • 50.00Hz [4K] 3840x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
    • 50.00Hz [FHD] 1920x1080
      • 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
        **Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [5.8K] 5760x4320 (4:3)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [4.4K] 4352x3264 (4:3)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 24.00Hz [C4K] 4096x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
    • 24.00Hz [4K] 3840x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
    • 24.00Hz [FHD] 1920x1080
      • 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*⁷)
  • MP4 (*¹)

    • 59.94Hz [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 59.94Hz [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 50.00Hz [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz -
      • -
  • Apple ProRes (*¹) (*²)

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p, 1.9Gbps (Apple ProRes 422 HQ) / 1.3Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [C4K] 4096x2160 (*⁵)
      • 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [FHD] 1920x1080 (*⁵)
      • 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p, 1.6Gbps (Apple ProRes 422 HQ) / 1.1Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [C4K] 4096x2160 (*⁵)
      • 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [FHD] 1920x1080 (*⁵)
      • 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [C4K] 4096x2160 (*⁵)
      • 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [FHD] 1920x1080 (*⁵)
      • 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

VARIABLE FRAME RATE

  • MOV (*¹) *HLG is selectable.

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [C4K] 4096x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 59.94Hz [4K] 3840x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 59.94Hz [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [C4K] 4096x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 50.00Hz [4K] 3840x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61 fps or higher on a USB-SSD. (*⁷)
    • 50.00Hz [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [C4K] 4096x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 24.00Hz [4K] 3840x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)
    • 24.00Hz [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*⁷)

EXTERNAL USB-SSD RECORDING (*⁶)

  • Yes (ON / OFF)

HDMI RAW DATA OUTPUT (*⁵)

  • Compatible external devices

    • ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V"
      *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+ or ATOMOS Ninja V.
      *Recording of some recording qualities is not available with the "Ninja V".
      *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*⁷)
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data.
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR.
      *All functions may not be available depending on the situation.
      *When recording in 4K 120p/100p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording.
  • Rec quality

    • NTSC (59.94Hz) [5.8K] 5760x4320 (4:3)
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • NTSC (59.94Hz) [5.7K] 5728x3024 (17:9)
      • 59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • NTSC (59.94Hz) [4.4K] 4352x3264 (4:3)
      • 59.94p, 12-bit (LPCM)
    • NTSC (59.94Hz) [C4K] 4096x2160 (17:9)
      • 119.88p, 12-bit (LPCM)
        59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • PAL (50.00Hz) [5.8K] 5760x4320 (4:3)
      • 25.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [5.7K] 5728x3024 (17:9)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [4.4K] 4352x3264 (4:3)
      • 50.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [C4K] 4096x2160 (17:9)
      • 100.00p, 12-bit (LPCM)
        50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
  • Audio format

    • LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

VIEWFINDER

  • Type

    • OLED Live View Finder
  • Pixels

    • Approx. 3.68 million dots
  • Field of view / Magnification

    • Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
  • Eye sensor

    • Yes

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control
  • Monitor size

    • Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
  • Pixels

    • Approx. 1.84 million dots
  • Field of view

    • Approx. 100%

FOCUS (*³)

  • Type

    • Contrast AF system
  • DFD technology

    • Yes
  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF
  • AF mode

    • Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
      *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
  • AF detective range

    • EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  • AF assist light

    • Yes
  • AF lock

    • Set the Fn button in custom menu to AF lock
  • Focus ring control

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted
  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)
  • Mode dial

    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
      *The same exposure operations as P/A/S/M mode is available.
  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)
  • Dynamic Range Boost

    • ON / OFF
  • ISO sensitivity (Standard output sensitivity)

    • Still image
      • [Normal]
        Auto / 50 (Extended ISO) / 100-25600

        [V-Log]
        Auto / 125 (Extended ISO) / 250-12800

        *Switchable between 1/3 or 1 EV step.
    • Motion picture
      • [Normal]
        Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800

        [V-Log]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [Hybrid Log Gamma]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [HDMI RAW Data Output] (*⁵)
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800 (*⁶)

        *Switchable between 1/3 or 1 EV step.
  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • B.I.S. (5-axis / 7.5-stop*)
    *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

    Dual I.S. 2 (7.5-stop**)
    **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter
  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
      Motion picture: 1/25,000 - 1/25
      Creative Video M mode / MF mode: 1/25,000 - 1/8
  • Self timer

    • 10sec, 3 images / 2sec / 10sec / Custom Time
  • Remote control

    • Remote control by DMW-RS2 (sold separately)
  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture bracket

    • 3, 5 or all positions
  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels
  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
    • Electronic shutter
      • SH75: 75 frames/sec (AFS/MF)
        SH60: 60 frames/sec (AFS/MF)
        SH20: 20 frames/sec (AFS/MF)
        H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
  • Number of recordable images

    • H/M/L*
      RAW+JPEG: More than 40 images
      RAW: More than 65 images**, More than 50 images***
      JPEG: More than 95 images**, More than 90 images***
      *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
      **When using a card with CFexpress Type B
      ***When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

      SH
      RAW / RAW+JPEG / JPEG: 200 images

TIME LAPSE SHOT

  • Yes

STOP MOTION ANIMATION

  • Yes

FLASH

  • Flash type

    • TTL External Flash (sold separately)
  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.
  • Flash output adjustment

    • 1/3EV step ±3EV
  • Synchronization speed

    • Less than 1/250 second
  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
  • Flash sync socket

    • Yes

EXTRA TELE CONVERSION

  • 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10
  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

MOTION PICTURE FUNCTION

  • Master pedestal level

    • 31 steps
  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023
  • Wave form monitor / Vectorscope

    • Selectable
  • LUT view assist

    • Supported file types: .vlt, .cube
      Monitor / HDMI
  • HLG view assist

    • Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
  • Synchro scan

    • Yes
  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
  • Color bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes
  • Knee control

    • Yes (in Like709 mode)
  • Red REC frame indicator

    • ON / OFF

VERTICAL POSITION INFORMATION

  • Still image / Motion picture (ON/OFF)

LEVEL GAUGE

  • Yes

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*⁵) / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

  • Please refer to "OSD" Sheet

PRINT

  • PictBridge compatible

INTERFACE

  • USB

    • USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
  • HDMI (*⁴)

    • HDMI
      • HDMI TypeA
        Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
        4K/120p / 4K/100p (*⁷)
        Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
    • Playback
      • 59.94Hz: 8K/30p* / C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
        50.00Hz: 8K/25p* / C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
        24.00Hz: 8K/24p* / C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p
        *Only for still image playback. **Only for playback.
  • Remote input

    • φ2.5mm
  • Audio

    • Build-in microphone
      • Stereo
        Wind Noise Canceller: OFF / Standard / High
    • External microphone / External audio device input
      • φ3.5mm for external microphone / external audio device
        MIC (Plug-in Power) / MIC / LINE
        Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
        Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
    • XLR microphone
      • Yes with DMW-XLR1 (sold separately)
    • 4ch mic input
      • Yes with DMW-XLR1 (sold separately)
    • Speaker
      • Monaural
    • Headphone output
      • φ3.5mm
  • Card slot

    • Slot 1: CFexpress Card (CFexpress Type B)
      Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

  • TC IN/OUT

    • Yes with BNC Converter Cable (bundled)
  • Count up

    • Rec Run / Free Run
  • Time code mode

    • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
  • HDMI time code output

    • ON / OFF
  • External TC setting

    • TC Synchronization / TC Output Reference

FAN

  • Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.

LAMP

  • Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac)
      Security: WPA/WPA2/WPA3
      Please refer to "Wi-Fi" sheet
  • Bluetooth

    • Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • Yes.
    *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging, USB power delivery
  • Battery life (CIPA standard)

    • When using CFexpress Card
      • Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using SD memory card
      • Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using external USB-SSD (*⁶)
      • Approx. 320 images with H-ES12060 / DMW-BLK22
        Approx. 330 images with H-FS12060 / DMW-BLK22
        *Using a Samsung external SSD (T5_1TB). Under the test conditions specified by Panasonic based on CIPA standard.
  • Continuous recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
    • When using external USB-SSD (*⁶)
      • MP4 [4K/60p]: Approx. 70 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 80 min with H-ES12060 / H-FS12060
  • Actual recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060
    • When using external USB-SSD (*⁶)
      • MP4 [4K/60p]: Approx. 35 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 40 min with H-ES12060 / H-FS12060

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)
  • Weight

    • Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
      Approx. 739g / 1.63 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*⁵)

    • -10°C to 40°C (14°F to 104°F)
  • Operating humidity

    • 10%RH to 80%RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

        LUMIX Sync
        ・This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
        https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
    • Playback / Editing
      • ・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
  • Standard accessories

    • DC-GH6 Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, BNC Converter Cable

      DC-GH6L Kit / DC-GH6M Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, , BNC Converter Cable, Lens Cap, Lens Hood, Lens Rear Cap

      ・The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

  • (*1) About motion picture recording

    - The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
    Motion pictures with 72Mbp or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
    Motion pictures with 200Mbp or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
    Motion pictures with 400Mbp or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
    Motion pictures with 600Mbp or less: CFexpress card, SD memory card with Video Speed Class 90
    Motion pictures with 800Mbp or more, variable frame rate with ALL-Intra, or Apple ProRes: CFexpress card

    - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
    Motion pictures with less than 72Mbps: 30 minutes
    Motion pictures with 72Mbp or more: the maximum file size is 4 GB

    - A new file will be created to continue recording if the file size exceeds the following conditions.
    [MP4] in [FHD]: 4GB
    [MP4] in [4K]: 96GB
    [MOV] in 600Mbps or less: 192GB
    [MOV] in 800Mbps: 640GB
    [ProRes] in [5.7K]: 640GB

    - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.

    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

    (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
    (*3) About AF
    - Continuous AF is not available for High Frame Rate video shooting above 120p (200p or 240p). It will be the AFS operation for 1-Area AF. 200p High Frame Rate video shooting requires a firmware update for the compatible lens.
    - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
    - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

    (*4) To output motion pictures with 4K or higher,use an Ultra High Speed HDMI cable (Type A–Type A plug, up to 1.5 m (4.9 feet) long).

    (*5) Firmware must be updated to version 2.0.

    (*6) Firmware must be updated to version 2.2.

    (*7) Firmware must be updated to version 2.3.

Kit Variations

Reviews

USER REVIEWS

Photo of LUMIX GH6 Camera DC-GH6L

Customer Reviews

Accessories

Lenses

XLR Microphone Adaptor / Microphones

DMW-XLR1

XLR Microphone Adaptor

Photo of DMW-XLR1

DMW-VMS10

Microphone

Photo of DMW-VMS10

Flashes / Video Light

DMW-FL200L

External Flash

Photo of DMW-FL200L

VW-LED1

LED Video Light

Photo of VW-LED1

Get Support

for LUMIX GH6 Camera DC-GH6L
