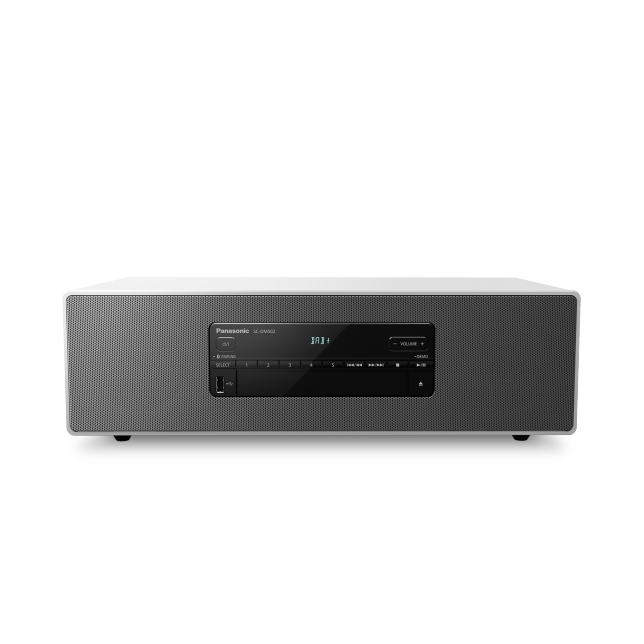

Premium-quality Compact Sound System SC-DM502

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

SC-DM502

Premium Stereo System with Bluetooth Connection

Our SC-DM502 provides clear, rich sound from bass to treble with a great interior structure. It is compatible with various sources and its ergonomically based design will meet all your listening needs.
Zoom In
Zoom Out
Close

Features

Wooden Enclosure contributes to rich sound

Wooden Enclosure is highly rigid, reducing vibration and reverberation and faithfully reproducing the original sound in the low frequency range, with a natural tone unique to wooden materials.
Wooden Enclosure contributes to rich sound

Aero-dynamic port produces clear, deep bass

The aero-dynamic port helps to deliver smoother airflow and reduce air turbulence. The compounded effect of the wooden enclosure and the aero-dynamic port results in stronger and accurate low frequencies.
Aero-dynamic port produces clear, deep bass

Copper Cap for smooth, clear treble

Copper Cap cuts fluctuations in voice coil inductance in the high frequency range, improves magnetic flux, and achieves smooth high sound without distortion.
Copper Cap for smooth, clear treble

Supports a variety of music sources

In addition to FM radio, the DM502 delivers various music sources. This includes DAB/DAB+ access to versatile radio stations, Bluetooth connection for transferring music from a smartphone, and AUX connection.
Supports a variety of music sources

Superior sound quality improves your TV

The DM502 is equipped with Optical Input terminals for easy connection with a TV. With the equaliser including settings optimised for Cinema and News, you can enjoy superb sound quality along with images on screen.
Superior sound quality improves your TV

Start your day with the radio

The DM502 comes with a Play Timer that automatically plays content at a specific time every day. The audio source and volume can be set in advance, so you can enjoy your favourite songs without tedious setting.
Start your day with the radio

Ergonomically based, natural user experience

Overall design is simple and sophisticated, blending into any interior, while details are ergonomically designed to be intuitive. It’s stress-free and comfortable to use, as every day items you use in daily life.
Ergonomically based, natural user experience

Specs

Size and Weight

Height
127mm
Width
400mm
Depth
219mm
Weight
3.9kg
  • Total Output Power 40WTotal Output Power 40W
  • D.BassD.Bass
  • dab+dab+
  • Radio Data SystemRadio Data System
  • FMFM
  • AUX-INAUX-IN
  • Optical InputOptical Input
  • CDCD
  • USBUSB
  • BluetoothBluetooth

Great structure for sound with wooden enclosure, aero-dynamic port, and copper cap

Easy setup and connectivity: CD, USB, Bluetooth, Optical Input, DAB+, FM and AUX Input

User-friendly design with the tact switch and 5 preset buttons

Amplifier

  • Amp Type

    • LincsD-Amp™
  • RMS Output Power

    • Total RMS Stereo Mode Power
      • 40W
    • Front Speaker (Left / Right)
      • 20W + 20W (8 Ohm, 1kHz, 10%THD)

Speaker System

  • Unit

    • 8cm full range x 2
  • Type

    • 1way, 1speaker system (Bass reflex)
  • Bass Expand

    • Bass Reflex Port

Sound Function

  • Super Sound EQ, Super Bass Sound

    • D.Bass
  • Preset EQ

    • Heavy
      • Yes
    • Soft
      • Yes
    • Clear
      • Yes
    • Vocal
      • Yes
    • News
      • Yes
    • Cinema
      • Yes
  • Manual EQ

    • Bass/Treble + Surround
  • Re-Master

    • The Bluetooth® Re-Master
  • My Sound Setting

    • Yes

Network

  • Bluetooth

    • Version
      • Bluetooth® Ver 4.2
    • Class
      • Class 2
    • Codec
      • SBC
    • Bluetooth Standby Mode
      • Yes
    • Hands Free
      • -
    • NFC
      • -
    • Multi Connect Mode (Multi Point)
      • -
  • WiFi

    • Standard
      • -
    • Frequency Band
      • -
  • Smartphone App

    • Music Streaming App *²
      • -
    • Panasonic Music Control App *²
      • -

CD

  • Mecha.Type

    • 1CD loading
  • Playback Disc *¹

    • CD-R / RW
  • Format

    • CD-DA / MP3
  • Codec / Decorder

    • MP3
  • Hi-Speed CD Rec Function

    • -

Tuner

  • Band / Station Preset

    • FM/30, DAB Plus/20
  • Radio Data System

    • Yes
  • Antenna

    • External

Terminals

  • Audio In

    • AUX
      • 1AUX(Pin Jack)
    • Opt-in
      • Yes
  • Audio Out

    • -
  • Mic Jack

    • -
  • LAN

    • -
  • USB

    • USB Port
      • Type A x 1
    • Host Play / Rec
      • Play
    • Codec / Decorder
      • MP3
    • iPod Play
      • -
    • Charging for smartphone
      • Up to 1.5A
  • Antenna Terminals

    • 75 ohm unbalance

Design

  • Display

    • Size (View area)
      • 56.2mm x 7.3mm
    • Type
      • FL (Union Jack)
  • Tact switch / Touch sensor

    • Tact switch
  • Preset Keys

    • 5 Direct Preset Keys on Main Set
  • Handle

    • -
  • Horizontal/Vertical Placement

    • -

General

  • Main Unit

    • Power Supply
      • AC 220 - 240 V, 50 Hz
    • Power Consumption *³ Normal Use
      • 25W
    • Power Consumption *³ Network Standby Off
      • 0.2W
    • Power Consumption *³ Network Standby On
      • 0.3W
  • Dimmer

    • Yes
  • Auto OFF

    • Yes
  • Timer Function

    • Sleep
      • Yes
    • Clock
      • Yes
    • Play Timer
      • Yes
    • Rec Timer
      • -
  • Battery

    • Battery Operation
      • Yes R6(AA) size dry battery x 1
    • Battery Level Indication
      • Yes

Dimensions, Weight

  • Dimensions (W x H x D)

    • 400mm x 127mm x 219mm
  • Weight

    • 3.9kg

Color

  • Black / White

Accessories

  • Remote

    • Remote Control
      • Yes
    • Dry Battery for Remote
      • Yes
  • AC Cord

    • Yes (1.5m)
  • Operating Instruction

    • Yes
  • Quick Setting Guide

    • -
  • Other

    • Speaker Stack Parts
      • -
    • AV Cable
      • -

Note

  • *1 Playability may vary depending on the contents, discs and quality of the recording.
    *2 Download on the App Store. Download on Google Play™.
    *3 Specifications are subject to change without notice. All numbers given here are approximate.

TRADEMARK NOTICE:

  • Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

    Google Play is a trademark of Google LLC.

    The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
