Seri-Para I/O Unit for Outdoor Unit

CZ-CAPDC2

Demand Control and Forced Stop for VRF Outdoor Units

Effortlessly control up to 4 outdoor units using the central control device. Perform mode changes, batch operations, and batch stops, all essential for demand control purposes.
Zoom In
Zoom Out
Close

Specifications

CZ-CAPDC2

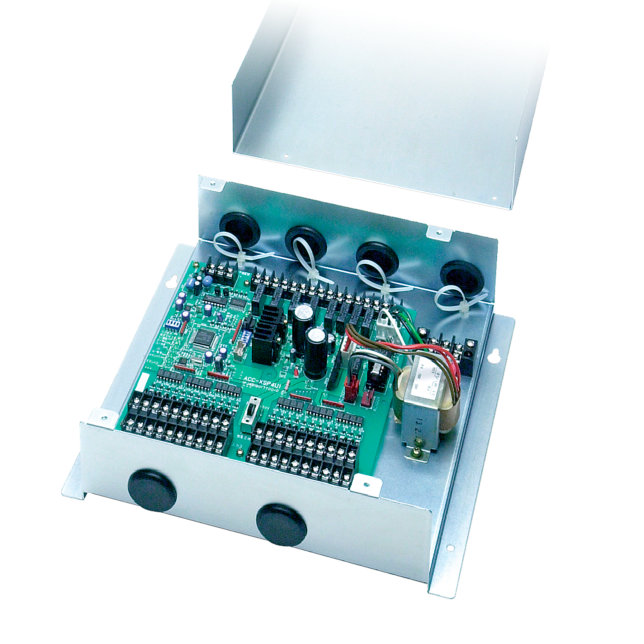

Photo of CZ-CAPDC2

Control up to 4 outdoor units.

Mode change and batch ON/OFF are possible from the central control device.

Required for demand control.

CZ-CAPDC2
Rated Voltage Single-phase 110-120 / 220-240V ~
Rated Frequency 50-60Hz
Power Consumption Approx. 18W
Weight 3.2kg

Documents

Case Studies

Features

Seri-Para I/O Unit for Outdoor Unit

Input: Batch operation/batch stop (non-voltage contact/24V DC, pulse signal). Cooling/heating (non-voltage contact/static signal). Demand 1/2 (non-voltage contact/static signal) (local stop by switching). Output: Operation output (non-voltage contact). Alarm output (non-voltage contact).
1) Central Control Device
* Wiring length: Indoor/outdoor operation lines: Total length 1km. Digital signal: 100m or shorter.
