Interface Adaptor to Panasonic S-Link


Universal Integration for Comprehensive Control

Adaptor to connect Single Split System and Multi Split System to S-Link system for full centralised control.
Zoom In
Zoom Out

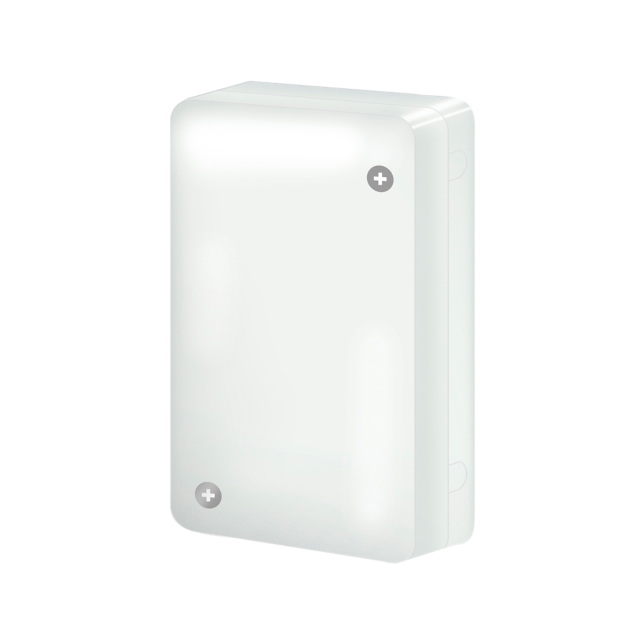

Photo of CZ-CAPRA1

Basic functions: ON/OFF, mode select, temperature setting, fan speed, flap setting, etc.

External input: ON/OFF control signal, abnormal stop signal.

External output for Relay * : Operation status [ON/OFF], alarm status output.

* Because current CN-CNT connector can not provide the power for external output relay, additional input power for external relay is necessary.

Dimensions (mm) H 120 x W 70 x D 32.5
Weight 155g
Temperature / Humidity Range 0 to 40˚C / 20 to 80% (No condensation)
*Indoor use only.
Power Source DC 12V (Supplied with room air conditioner)


Case Studies


Easy Integration for Comprehensive Control

This is the connecting adaptor for RAC/PAC range to Panasonic communication bus line for commercial systems (S-Link).
Full control is now possible by Panasonic centralised controllers.
1) Centralised controller
