Schedule Timer

CZ-ESWC2

Simple Centralised Timer Controls

Achieve simplified, centralised control of up to 64 air-conditioning units (64 groups, 64 indoor units) throughout the entire building. Primarily enabled by the timer function, this system makes HVAC management effortless.
Zoom In
Zoom Out
Close

Specifications

CZ-ESWC2

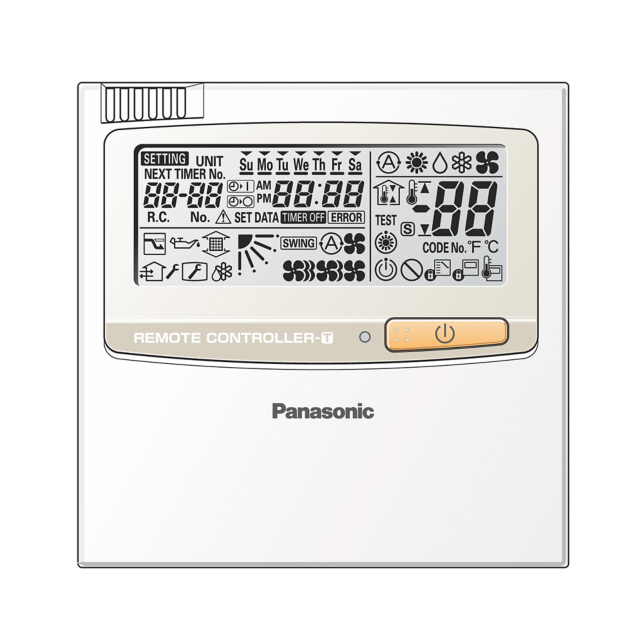

Photo of CZ-ESWC2

Control up to 64 groups, max 64 indoor units centrally.

Pre-set up to 6 settings per day, up to 56 per week. Set up to 8 groups of settings.

CZ-ESWC2
Dimensions (mm) H 120 x W 120 x D 16
Net Weight 200g
Storage Temperature -30 to 60˚C
Voltage DC 12V (Power supply from the indoor unit or CZ-ANC3 On/Off controller unit)
Working Condition Operating temperature range (Indoor: 20~40˚C, Outdoor: -20~60˚C)
Operating humidity range (20~80% RH)
Timer Errors The timer errors shall be within ±30 sec at 25˚C in a month.

Documents

Case Studies

Features

Efficient Weekly AC Timer

Pre-set up to 6 settings per day, up to 56 per week.
Set up to 8 groups of settings, adjusted to the needs of various sections of the building.
Efficient Weekly AC Timer
