LUMIX DC-S5 Full-Frame Mirrorless Camera - Body Only

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

DC-S5

Moving Images Forward

The LUMIX S5 combines cinema-quality video performance with exceptional stills quality. All in a compact full-frame mirrorless camera body.
Zoom In
Zoom Out
Close

Features

Perfect for Hybrid Shooting

This hybrid Full-frame mirrorless camera, provides exceptional image quality for photo and video across the sensitivity range within an ergonomic body designed for the quality conscious content creator.
Perfect for Hybrid Shooting

Full-Frame 24.2MP CMOS Sensor with Dual Native ISO Technology

The CMOS Sensor has been optimised to deliver exceptional image quality for both stills and video, while the Dual Native ISO provides a greater level of flexibility when shooting in lower light conditions without the usual increase in visible noise when shooting video.



Find out more >

Full-Frame 24.2MP CMOS Sensor with Dual Native ISO Technology

Beyond Photography

Whether you prefer shooting using the full touch capabilities of the 3.0inch 1.84Mio. dot Free-angle LCD in both recording and playback modes or the OLED Live Viewfinder have confidence in what you are shooting. The Timelapse and Stop-Motion features offer you that a little extra creativity while the improved High Resolution Mode photos can now be saved directly as a JPEG for extremely detailed, 96-megapixel-equivalent images for those moment when resolution is everything.
Beyond Photography

Professional Video Options

The needs of the content creator vary from job to job, the LUMIX S5 includes recording modes 4K 60p 4:2:0 10-bit and 4K 30p 4:2:2 10-bit — plus 4K 8-bit with no limitation of video recording time. In the 10-bit setting, 4:2:2 10-bit HDMI output is supported along with SD card recording, means flexibility and creativity are available whenever you head out on a shoot.



Find out more >

Professional Video Options

Dual Image Stabilisation

Image Stabilisation is a requirement for content creators on the run. The 5-axis Dual I.S. II system combines In-body and lens stabilisation giving you up to 6.5 stops of benefit on the LUMIX S5, giving you greater confidence that you will get the shot you need.
Dual Image Stabilisation

Production tool for the content creator

Creative options at your fingertips, the LUMIX S5 gives you a range of features and functions that will help your ability to tell stories in new and creative ways. V-Log and V-Gamut come preinstalled. With 14+ stops of dynamic range and a wide colour gamut, performance to rival high-end production cameras.
Production tool for the content creator

Advanced Focus Technology

The updated Auto-Focus system in the LUMIX S5 offers all the inherent benefits of a contrast based AF system with improved tracking performance. The updated system features high-speed, high-precision AF, and deep learning technology for recognition of human bodies, heads, faces and eyes as well as animals, for improved reliability



Find out more >

Advanced Focus Technology

Compact & tough camera body

The LUMIX S5 is 30% lighter than the S1 weighing only 714g and smaller than the GH5 without compromising on image quality for either stills or video, featuring a premium design and build quality, with a magnesium alloy frame and splash and dust resistance* construction providing you with peace of mind when shooting in a range of environments.
*Dust and splash resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Compact & tough camera body

Select the right lens

The LUMIX S5 camera is using the L-Mount lens mount standard allowing to choose from a wide range of high quality lenses from Panasonic, Leica and Sigma.
Select the right lens

Get Inspired

Specs

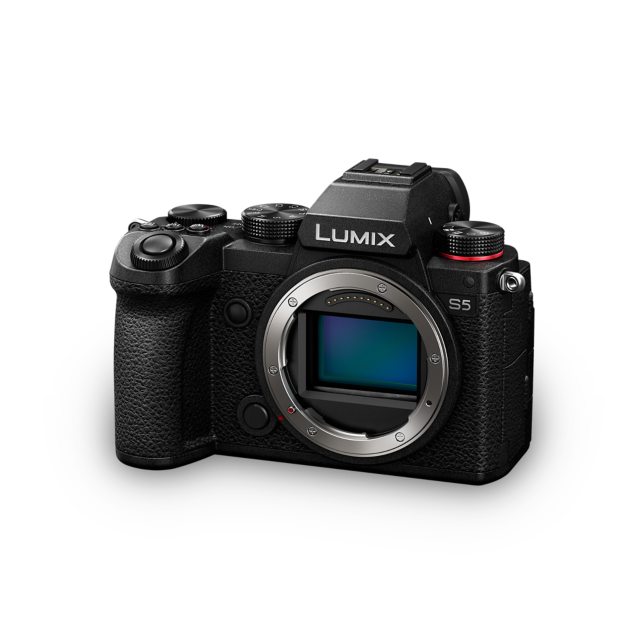

Photo of LUMIX DC-S5 Full-Frame Mirrorless Camera - Body Only

Size and Weight

Height
97.1mm
Width
132.6mm
Depth
81.9mm
Weight
714g

All values are approximate. Weight with SD card and battery. Lens is excluded. Dimensions exclude protrusions.

  • L-MountL-Mount
  • 24.2 Megapixels24.2 Megapixels
  • 4K Video Recording Capability4K Video Recording Capability
  • 14+ stops V-Log14+ stops V-Log
  • 5-Axis Dual I.S. 2 (Image Stabilizer)5-Axis Dual I.S. 2 (Image Stabilizer)
  • 2360k-dot OLED Live View Finder2360k-dot OLED Live View Finder
  • 1840k-dot Free-angle Monitor1840k-dot Free-angle Monitor
  • Splash and Dust-resistantSplash and Dust-resistant
  • Wi-FiWi-Fi
  • BluetoothBluetooth

A photo/video hybrid mirrorless camera with a compact, lightweight body.

24.2MP full-frame CMOS sensor with Dual Native ISO technology.

4K 60p 4:2:0 10-bit, 4K 30p 4:2:2 10-bit, 4K 8-bit with no limitation of video recording time and 14+ stops of V-Log/V-Gamut.

High-speed, high-precision AF and deep learning technology for human / animal recognition.

TYPE

  • Type

    • Digital Single Lens Mirrorless camera
  • Recording media

    • SD Memory Card / SDHC Memory Card / SDXC Memory Card
      Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
      Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.
  • Lens mount

    • L-Mount

IMAGE SENSOR

  • Type

    • 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
  • Camera effective pixels / Total pixels

    • 24.20 megapixels / 25.28 megapixels
  • Aspect ratio / Color filter

    • 3:2 / Primary color filter
  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • LATITUDE

    • 14+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • Still image
      • JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
    • 6K PHOTO** / 4K PHOTO**
      • 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
        4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
        Extracted still images: JPEG (DCF, Exif 2.31)
    • Aspect ratio
      • 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
  • File size (Pixels)

    • When using full-frame lenses 3:2
      • 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode.
        5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses 4:3
      • 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode.
        4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses 16:9
      • 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode.
        3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses 1:1
      • 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode.
        2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses 65:24
      • 6000x2208(L)
    • When using full-frame lenses 2:1
      • 6000x3000(L)
    • When using APS-C/Super 35mm lenses 3:2
      • 3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO)
    • When using APS-C/Super 35mm lenses 4:3
      • 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)
    • When using APS-C/Super 35mm lenses 16:9
      • 3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
    • When using APS-C/Super 35mm lenses 1:1
      • 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)
    • Image quality
      • RAW / RAW+Fine / RAW+Standard / Fine / Standard
    • Color space
      • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit))
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
  • Switch NTSC / PAL

    • Yes (NTSC (59.94Hz) / PAL(50.00Hz))
  • MOV**

    • NTSC (59.94Hz) Full-frame
      • [4K] 3840x2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [4K] 3840x2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • NTSC (59.94Hz) APS-C / Pixel by Pixel
      • [4K] 3840x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
        [4K] 3840x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [4K] 3840x2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • PAL (50.00Hz) Full-frame
      • [4K] 3840x2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • PAL (50.00Hz) APS-C / Pixel by Pixel
      • [4K] 3840x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
        [4K] 3840x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        [FHD] 1920x1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
  • MP4**

    • NTSC (59.94Hz) Full-frame
      • [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • NTSC (59.94Hz) APS-C / Pixel by Pixel
      • [4K] 3840x2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • PAL(50.00Hz) Full-frame
      • [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • PAL(50.00Hz) APS-C / Pixel by Pixel
      • [4K] 3840x2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

SLOW & QUICK

  • NTSC (59.94Hz) Full-frame

    • [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
      *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.
  • NTSC (59.94Hz) APS-C / Pixel by Pixel

    • [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      1, 2, 5, 10, 15, 30, 60 fps
  • PAL (50.00Hz) Full-frame

    • [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
      *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.
  • PAL (50.00Hz) APS-C / Pixel by Pixel

    • [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
      1, 2, 5, 10, 15, 30, 60 fps

VIEWFINDER

  • Type

    • OLED Live View Finder
  • Pixels

    • Approx. 2.36 million dots
  • Field of view / Magnification

    • Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
  • Eye point / Diopter adjustment

    • Approx. 20 mm at infinity; -1.0 m-1 / -4.0 - +4.0 (dpt)
  • Eye sensor

    • Yes
  • Display speed

    • 120fps / 60fps
  • Display time lag

    • Approx. 0.005sec

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control
  • Monitor size

    • Free-angle, 3.0-inch (7.5cm), 3:2 aspect
  • Pixels

    • Approx. 1.84 million dots
  • Field of view

    • Approx. 100%

FOCUS

  • Type

    • Contrast AF system
  • DFD technology

    • Yes
  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF
  • AF mode

    • Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
      (Full area touch is available) (Scalable AF frame size and flexible AF position)
  • AF detective range

    • EV -6 - 20 (F1.4, ISO100 equivalent, AFS)
  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  • AF assist lamp

    • Yes
  • AF lock

    • Set the Fn button in custom menu to AF lock
  • Post Focus / Focus Stacking

    • Yes / Yes
  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted
  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)
  • Exposure mode

    • Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
  • ISO sensitivity (Standard output sensitivity)

    • Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
  • Dual Native ISO

    • [Normal]
      Native ISO: 100, 640
      Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO

      [V-Log]
      Native ISO: 640, 4000
      Auto: Auto / 320* / 640-51200 *Extended ISO

      [HLG]
      Native ISO: 400, 2500
      Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 200, 1250
      Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)
  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • IMAGE STABILIZATION SYSTEM

    • Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
      Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter
  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
      Motion picture: 1/16,000 - 1/25
      Creative Video M mode / MF mode: 1/16,000 - 1/2
  • Self timer

    • 10sec, 3 images / 2sec / 10sec
  • Remote control

    • Remote control by DMW-RS2 (sold separately)
  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture bracket

    • 3, 5 or all positions in 1 EV step
  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels
  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
        AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    • Electronic shutter
      • AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
        AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  • Number of recordable images

    • RAW / RAW+JPEG: More than 24 images
      JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)
      * When recording is performed under the test conditions specified by Panasonic.

6K PHOTO** / 4K PHOTO**

  • Burst speed

    • 6K PHOTO: 30 frames/sec
      4K PHOTO: 60 frames/sec, 30 frames/sec
  • Exif information

    • Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

  • Flash type

    • TTL External Flash (sold separately)
  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.
  • Flash output adjustment

    • 1/3EV step ±3EV
  • Synchronization speed

    • Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

  • EXTRA TELE CONVERSION

    • 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10
  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • FILTER

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
      *For photos only.

MOTION PICTURE FUNCTION

  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023
  • Wave form monitor

    • Yes
  • LUT display

    • LUT View Assist (Monitor) / LUT View Assist (HDMI)
  • Time code

    • Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
  • Knee control

    • Yes (in Like709 mode)

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Waveform Monitor / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default
  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

LEVEL GAUGE

  • LEVEL GAUGE

    • Yes

OSD LANGUAGE

  • OSD LANGUAGE

    • Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian

PRINT

  • PRINT

    • PictBridge compatible

INTERFACE

  • USB

    • SuperSpeed USB 3.1 Gen1 Type-C
  • HDMI***

    • Monitor-through
      • When a mode other than [4K/60p]/[4K/50p] is selected for [Picture Quality]:
        4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit

        When [4K/60p]/[4K/50p] mode is selected in [Rec Quality]:
        4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit.

        Info Display: ON / OFF (selectable)
        HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)
  • Playback

    • microHDMI TypeD / VIERA Link, Audio: Stereo
      NTSC (59.94Hz): Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
      PAL (50.00Hz): Auto /4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
  • Remote input

    • φ2.5mm
  • External microphone / external audio device input

    • φ3.5mm for external microphone / external audio device
      MIC (Plug-in Power) / MIC / LINE is selectable.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
  • Headphone output

    • φ3.5mm
  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
  • XLR microphone

    • Yes with DMW-XLR1 (sold separately)
  • Speaker

    • Monaural
  • SD card slot

    • SD Memory Card, SDHC Memory Card, SDXC Memory Card
      Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
      Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
      1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

  • DUST AND SPLASH RESISTANT*

    • Yes.
      *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging
  • Battery life (CIPA standard)

    • Approx. 440 images (rear monitor), 470 images (LVF), 1,500 images (Power Save LVF mode*) with S-R2060
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  • Continuous recordable time (Motion picture)**

    • MP4 [4K/60p]: Approx. 110 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.
      MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 100 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.
  • Actual recordable time (Motion picture)**

    • MP4 [4K/60p]: Approx. 55 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.
      MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 50 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged.
  • Battery grip

    • DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 132.6 x 97.1 x 81.9 mm / 5.22 x 3.82 x 3.22 inch (excluding protrusions)
  • Weight

    • Approx. 714g / 1.58 lb (SD Memory Card x 1, Battery, Body)
      Approx. 630g / 1.39 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature

    • 0oC to 40oC (32oF to 104oF)
  • Operating humidity

    • 10%RH to 80%RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
    • Playback / Editing
      • ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
        https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
        ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
  • Standard accessories

    • DC-S5 Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C)


      ・ The DC-S5 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

  • NOTE

    • *** About motion picture recording / 6K PHOTO/4K PHOTO recording
      - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
      - Use a card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4 (under 28Mbps)].
      - Use a card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K], [MOV], [S&Q], [6K PHOTO] or [4K PHOTO].
      (SD speed class is the speed standard regarding continuous writing.)
      - Recording stops when the continuous recording time exceeds 30 minutes in [4K/60p] [4K/50p] [4K-A/50p] [4K/4:2:2 10-bit] [4K-A/4:2:2 10-bit] [4K/4:2:0 10-bit] [4K-A/4:2:0 10-bit] [S&Q].
      - Recording stops when the continuous recording time exceeds 15 minutes in [6K PHOTO] [4K PHOTO].
      - MP4 motion pictures with [MP4] in [4K]:
      - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes, but the motion picture file will be divided and recorded/played back separately.
      - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - MP4 motion pictures with [MP4] in [FHD]:
      - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - MOV motion picture with [MOV]
      - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes, but the motion picture file will be divided and recorded/played back separately.
      - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
      The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
      It may cause problems such as freezing when played on these devices.
      - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

      *** For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".

Reviews

USER REVIEWS

Photo of LUMIX DC-S5 Full-Frame Mirrorless Camera - Body Only

Customer Reviews

Accessories

Get Support
