R32 Inverter NX Series Splittable Ducted PE4

Splittable chassis design ducted for comfort throughout the house

R32 Inverter NX Series Splittable Ducted offer improved design flexibility for extended duct layouts thanks to their increased external static pressure. A new IoT remote controller also provides greater accessibility and convenience.
  • nanoe™ X
  • Comfort Cloud
  • CONEX
  • Inverter
Zoom In
Zoom Out
Close
R32 Inverter NX Series Splittable Ducted PE4
Contact UsOpen new window

Features

Capacity (kW)

Cooling

6.0

7.1

10.0

12.5

14.0

16.0

18.0

20.0

22.4

Heating

6.0

7.1/8.0

12.5/10

12.5/10.0

14.0/12.5

14.0/12.5

16.0/14.0

16.0/14.0

16.0

18.0

20.0

22.4

25.0

Phase

1Ø Phase

1Ø Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

1Ø Phase

3Ø Phase

Indoor Unit
*Equipped with an R32 leak detector

S-60PE4R

S-71PE4R

S-100PE4R

S-125PE4R

S-140PE4R

S-160PE4R/
S-160PE4RA*

S-180PE4R

S-200PE4R

S-224PE4R

Outdoor Unit
(Deluxe)

ー

U-71PZH3R5

U-100PZH3R5

U-100PZH3R8

U-125PZH3R5

U-125PZH3R8

U-140PZH3R5

U-140PZH3R8

U-160PZH3R5

U-160PZH3R8

U-180PZH3R5

U-180PZH3R8

U-200PZH3R8

U-224PZH3R8

Outdoor Unit
(Compact)

U-60PZ4R5

U-71PZ4R5

U-100PZ4R5

U-100PZ4R8

U-125PZ4R5

U-125PZ4R8

U-140PZ4R5

U-140PZ4R8

ー

ー

ー

ー

ー

ー

Ducted Air Conditioning. Year Round Comfort

Deliver the Comfort Through Entire House

Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.
Deliver the Comfort Through Entire House

Heat and Cool Each Room Individually Through Zoning

With individual zones for your home’s ducted air-conditioning system, everyone can enjoy their own airflow. Save on energy and running costs by turning off the airflow when rooms aren’t in use..
LEARN MORE
Heat and Cool Each Room Individually Through Zoning

A New Level of Air Quality with nanoe X Generator Mark3

24-hour nanoe™ X Air Purification

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

LEARN MORE
24-hour nanoe™ X Air Purification

nanoe™ X Effectiveness Proven in Large Space

The nanoe™ X fan mode reduced adhered odour by 0.7 levels* compared to natural reduction after 2 hours of exposure.
*A 1 level reduction in odour intensity is equivalent to a reduction of 90%. Note: (1) Testing method: Verified using the six-level odour intensity scale method in an approximately 378 m³ sized test room (2) Inhibition method: nanoe X Generator Mark2 released (3) Test substance: Surface-attached cigarette smoke odour (4) Test result: Odour intensity reduced by 0.7 levels in 2 hours (KT-19-015089-1)
LEARN MORE
nanoe™ X Effectiveness Proven in Large Space

Effective at Eliminating Odours in Only 30 Minutes

The nanoe X Generator Mark3 reduces odours by as much as 1.8 levels* in just 30 minutes. This is half the time required to achieve the same effect compared to the conventional nanoe X Generator Mark 2.
*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more. [Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

Note: The test result is obtained using a 4-Way Cassette. **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe X Generator Mark3 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 30 minutes (R21HM003-0)
Effective at Eliminating Odours in Only 30 Minutes

Benefit from nanoe™ X Even with Long, Curved Ductwork

Combined with the strong static pressure, this model ensures pristine nanoe™ X air travels unaffected, even through multiple duct shapes at lengths of 10 meters, as well as making them ideal for use in larger spaces.
Benefit from nanoe™ X Even with Long, Curved Ductwork

Smart Power Saving with IoT

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

Smart Management of Power Consumption

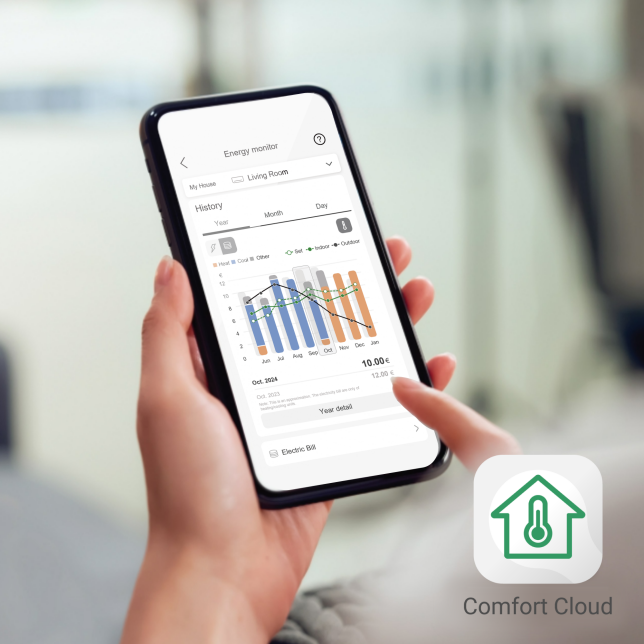

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC2 External WLAN Adaptor or CZ-RTC6WBLW2/6BLW2 are required per unit.

LEARN MORE
Smart Management of Power Consumption

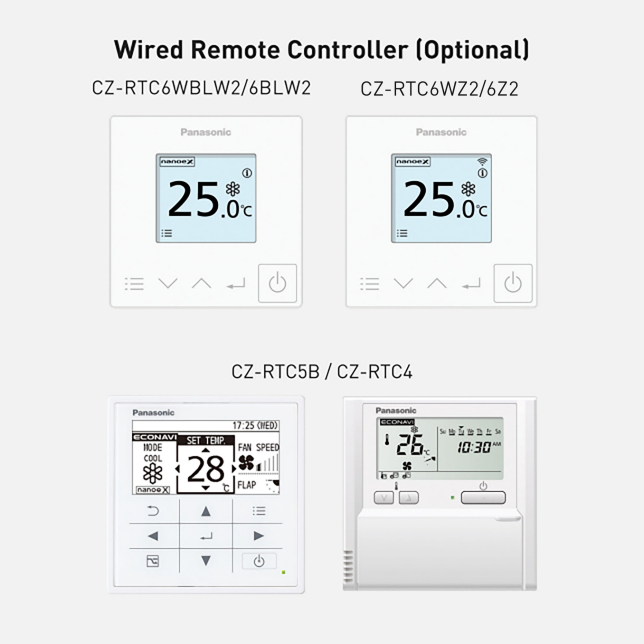

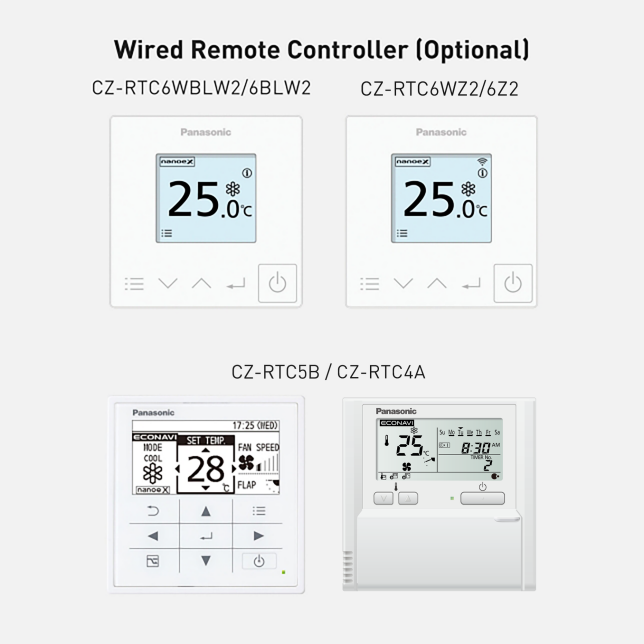

Wired Remote Controller

Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
LEARN MORE
Wired Remote Controller

Easy Installation

Panasonic Splittable Ducted offers flexible installation in tight ceiling spaces, ideal for both renovations and new homes.

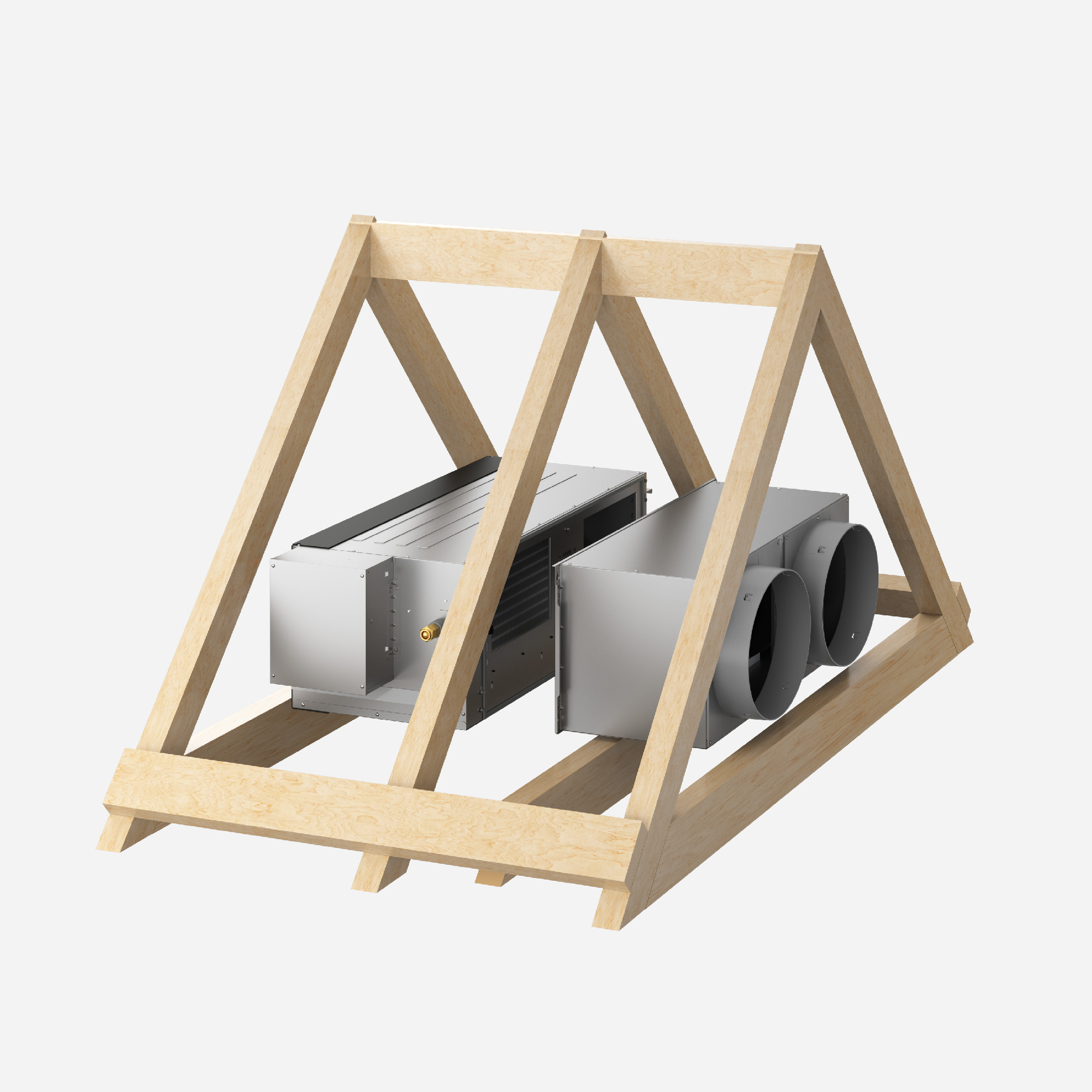

Optimized for Roof Truss Installation

Assembly takes three easy steps, even in limited spaces.
Note: Images are for the 16.0 kW model.

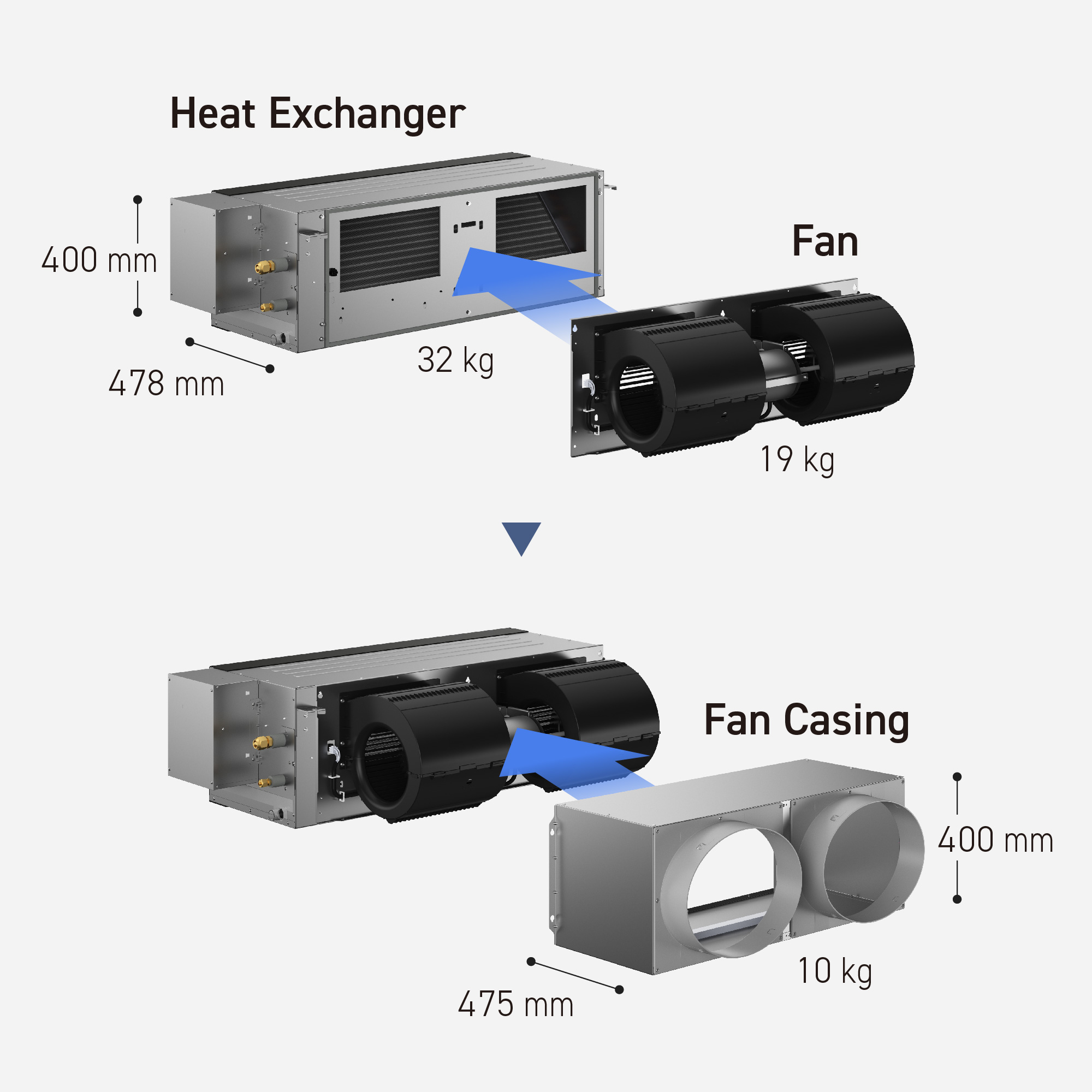

Splittable Chassis Design

Assembly takes three easy steps, even in limited spaces.
Note: Images are for the 22.4 kW model.
Splittable Chassis Design

Part of the keyhole is newly designed with a bell shape to reduce the burden of installation. It also enables temporary attachment.
Bell Shaped Keyhole for Weight Support

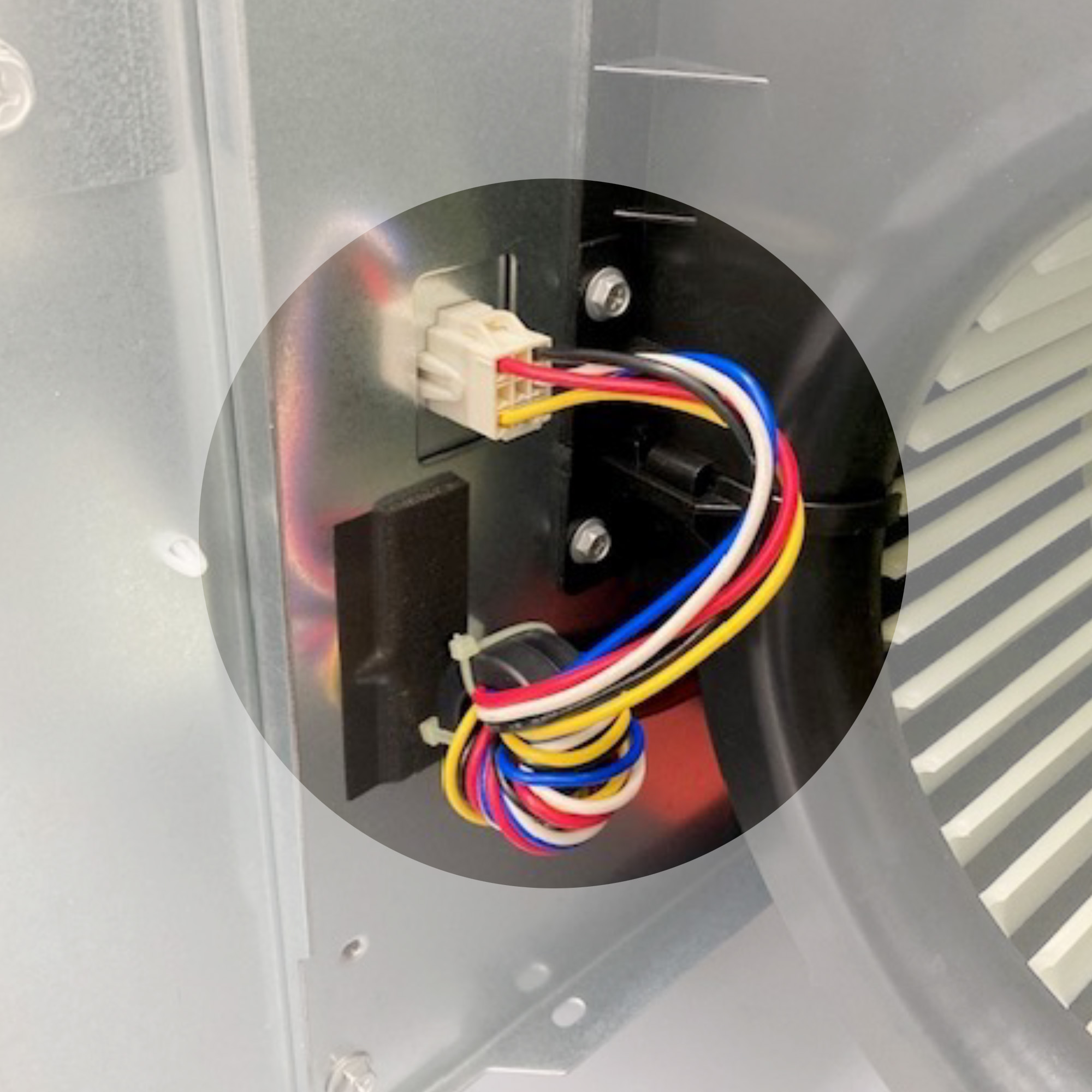

The single wire connector offers fast, hassle-free installation.
Note: For the 6 .0 - 16.0 kW model.
Single Wire Connector

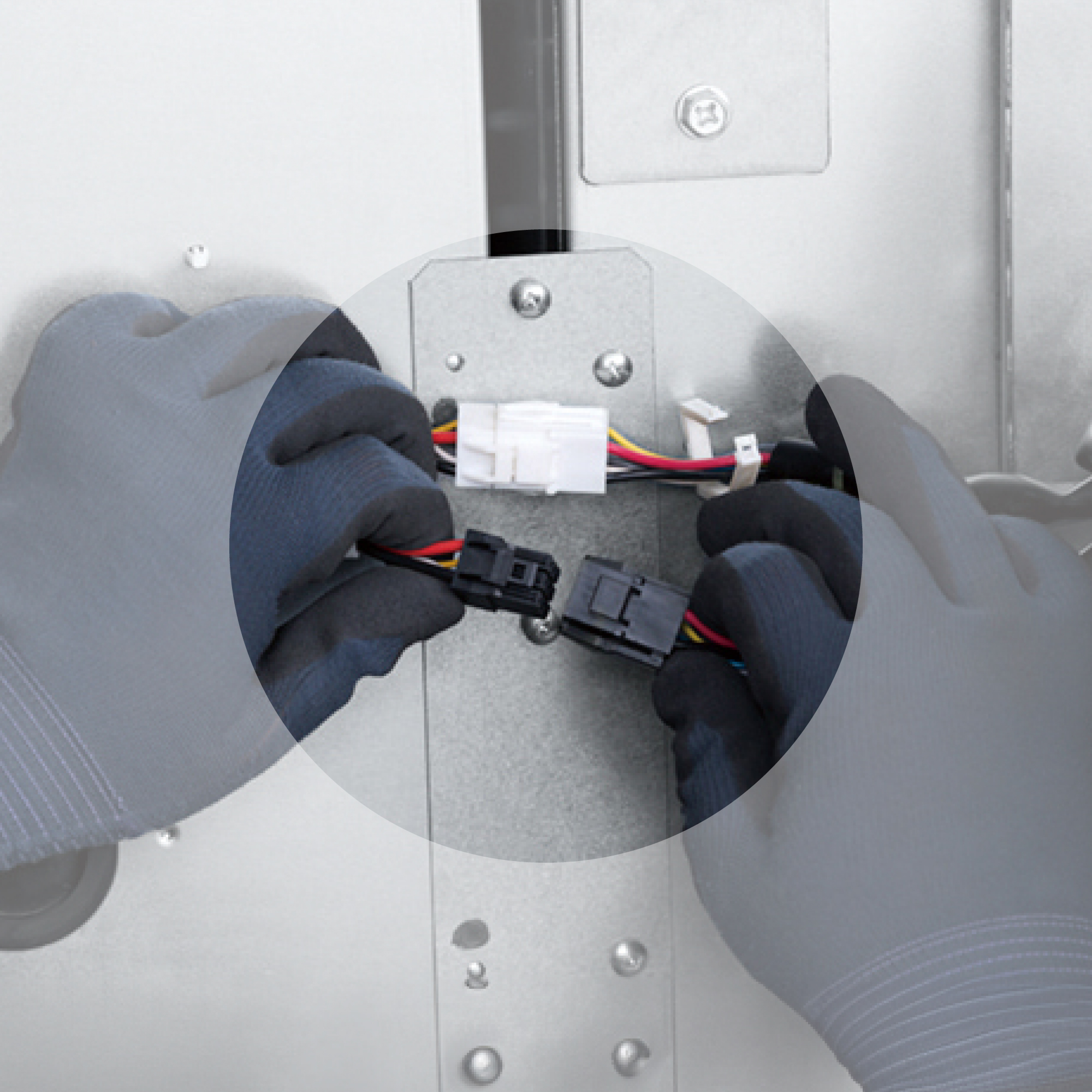

With only 2 wire connectors,installation has become much easier and faster.
Note: For the18.0 - 22.4 kW model.
2 Wire Connectors

Specs

S-60PE4R

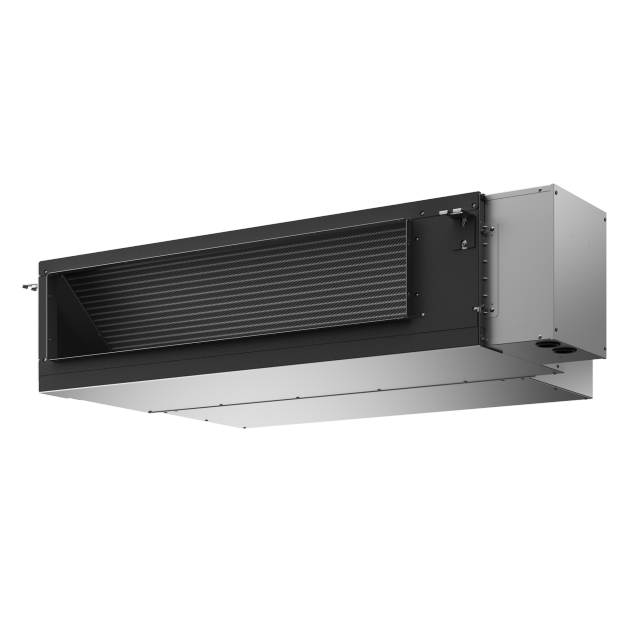

Photo of S-60PE4R

S-71PE4R

Photo of S-71PE4R

S-100PE4R

Photo of S-100PE4R

S-125PE4R

Photo of S-125PE4R

S-140PE4R

Photo of S-140PE4R

S-160PE4R

Photo of S-160PE4R

S-160PE4RA

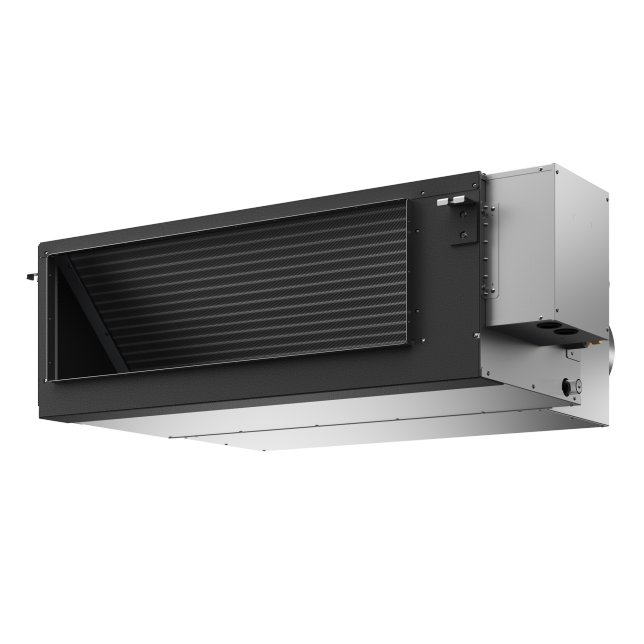

Photo of S-160PE4RA

S-180PE4R

Photo of S-180PE4R

S-200PE4R

Photo of S-200PE4R

S-224PE4R

Photo of S-224PE4R
  • nanoe™ Xnanoe™ X
  • Comfort CloudComfort Cloud
  • CONEXCONEX
  • InverterInverter

Further advanced air purification technology, nanoe™ X by new Generator Mark3

nanoe™ X effectiveness proven in large space by 3rd party

CONEX: A next-generation remote control

Easy installation with splittable chassis design

Design flexibility thanks to high static pressure and large air volume

Discharge air temperature control to reduce cold drafts during heating operation

S-60PE4R S-71PE4R S-100PE4R S-125PE4R S-140PE4R S-160PE4R S-160PE4RA S-180PE4R S-200PE4R S-224PE4R
Air Volume (Cooling) (H/M/L) 22.0/20.0/16.0 m³/min 30.0/26.0/22.0 m³/min 42.0/34.0/29.0 m³/min 50.0/46.0/36.0 m³/min 60.0/50.0/42.0 m³/min 60.0/50.0/42.0 m³/min 60.0/50.0/42.0 m³/min 1,202/1,052/885 Ls 1,202/1,052/885 Ls 1,402/1,202/985 Ls
Air Volume (Heating) (H/M/L) 22.0/20.0/16.0 m³/min 30.0/26.0/22.0 m³/min 42.0/34.0/29.0 m³/min 50.0/46.0/36.0 m³/min 60.0/50.0/42.0 m³/min 60.0/50.0/42.0 m³/min 60.0/50.0/42.0 m³/min 1,202/1,052/885 Ls 1,202/1,052/885 Ls 1,402/1,202/985 Ls
External Static Pressure 80 Pa (10/150 Pa) 80 Pa (10/150 Pa) 80 Pa (10/150 Pa) 80 Pa (10/150 Pa) 80 Pa (50/150 Pa) 80 Pa (50/150 Pa) 80 Pa (50/150 Pa) 60 Pa (100/150 Pa) 75 Pa (120/180 Pa) 75 Pa (130/200 Pa)
Sound Pressure Level (Cooling) (H/M/L) 38/36/32 dB(A) 43/39/35 dB(A) 42/37/34 dB(A) 42/39/34 dB(A) 45/41/37 dB(A) 45/41/37 dB(A) 45/41/37 dB(A) 46/44/41 dB (A) 46/44/41 dB (A) 47/45/42 dB (A)
Sound Pressure Level (Heating) (H/M/L) 38/36/32 dB(A) 43/39/35 dB(A) 42/37/34 dB(A) 42/39/34 dB(A) 45/41/37 dB(A) 45/41/37 dB(A) 45/41/37 dB(A) 46/44/41 dB (A) 46/44/41 dB (A) 47/45/42 dB (A)
Sound Power Level (Cooling) (H/M/L) 64/62/58 dB 69/65/61 dB 68/63/60 dB 68/65/60 dB 71/67/63 dB 71/67/63 dB 71/67/63 dB 78/76/73 dB 78/76/73 dB 79/77/74 dB
Sound Power Level (Heating) (H/M/L) 64/62/58 dB 69/65/61 dB 68/63/60 dB 68/65/60 dB 71/67/63 dB 71/67/63 dB 71/67/63 dB 78/76/73 dB 78/76/73 dB 79/77/74 dB
Current (Cooling) (rated) 1.06/0.94 A 1.46/1.34 A 1.82/1.70 A 1.83/1.71 A 2.61/2.61 A 2.61/2.47 A 2.61/2.47 A 3.30/3.20 A 3.40/3.30 A 4.20/4.10 A
Current (Heating) (rated) 1.06/0.94 A 1.46/1.34 A 1.82/1.70 A 1.83/1.71 A 2.47/2.47 A 2.61/2.47 A 2.61/2.47 A 3.30/3.20 A 3.40/3.30 A 4.20/4.10 A
Dimension H300 x W1,297 x D877 mm H300 x W1,297 x D877 mm H300 x W1,297 x D877 mm H400 x W1,297 x D949 mm H400 x W1,297 x D949 mm H400 X W1,297 X D949 mm H400 X W1,297 X D949 mm H486 x W1,456 x D916 mm H486 x W1,456 x D916 mm H486 x W1,456 x D916 mm
Net Weight 51 kg 51 kg 51 kg 61 kg 61 kg 61 kg 61 kg 82 kg 83 kg 87 kg
Number of Fan Speeds 5 5 5 5 5 5 5 3 3 3
Drain Piping VP-25 mm VP-25 mm VP-25 mm VP-25 mm VP-25 mm VP-25 mm VP-25 mm VP-25 mm VP-25 mm VP-25 mm

Documents

Combination

R32 Inverter NX Series Deluxe

R32 Inverter NX Series Deluxe delivers superior energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units guarantee powerful operation even in extremely hot environments.

R32 Inverter NX Series Compact Model

R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.
