R410A Non-Inverter Mini Cassette


R410A Non-Inverter Mini Cassette

Compact 4-way airflow system

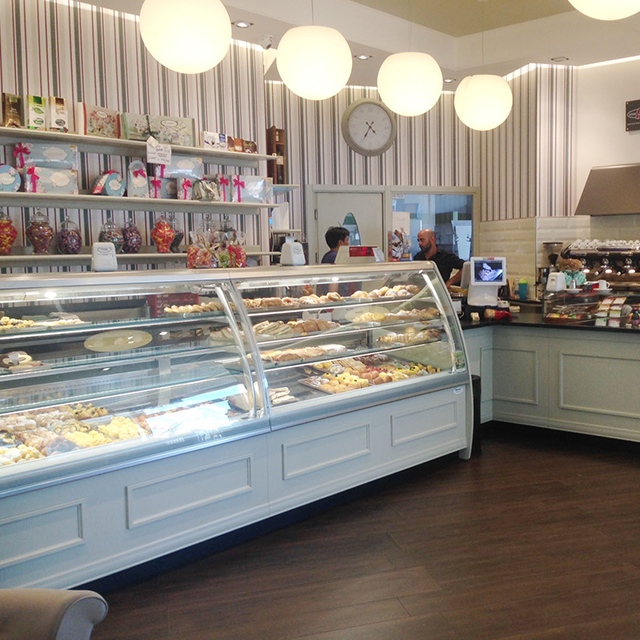

R410A Non-Inverter Mini Cassettes are compact and particularly suitable for small- to medium-sized offices and restaurants.
  • R410A
Zoom In
Zoom Out
R410A Non-Inverter Mini Cassette


Btu/h (rated)




1Ø Phase

1Ø Phase

Indoor Unit



Outdoor Unit



Compact Design

The panel is a compact (700 x 700mm) so it can be installed even in a small room where space is limited.
Compact Design

Comfortable and Uniform Airflow

4-way and auto swing louvers offer comfortable and uniform airflow to all corners of room.
Comfortable and Uniform Airflow

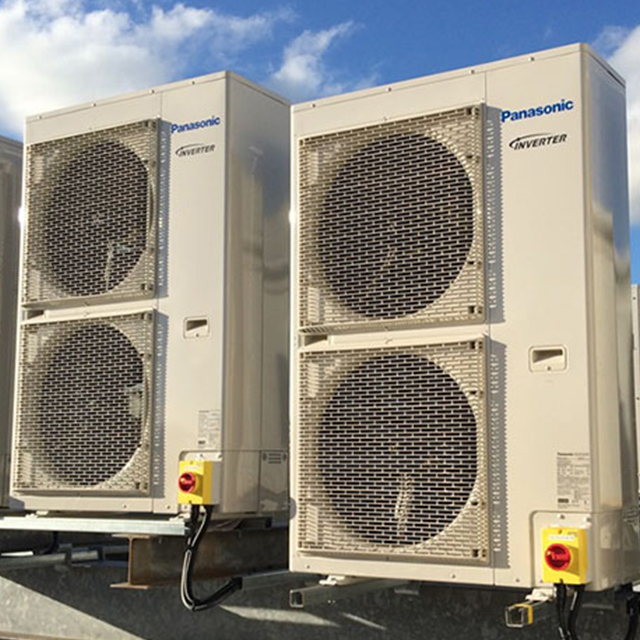

Compact Outdoor Unit for Mini Cassette

Panasonic outdoor units are built to be compact with versatile piping and draining methods and offer side-by-side installation capability.
Compact Outdoor Unit for Mini Cassette

Precise Control, Easy Comfort

The Panasonic Non-inverter Type Mini Cassette wireless remote controller is designed with user comfort in mind. Multiple settings are available so airflow and air quality can be regulated according to preferences.
Note: A wireless remote controller is in the same package with the indoor unit.
Precise Control, Easy Comfort



Photo of CS-PV18RB4H-1_CU-PV18RB4H-1


Photo of CS-PV24RB4H-1_CU-PV24RB4H-1
  • R410AR410A

4-way airflow system

LCD wireless remote controller

Random auto restart

Removal washable panel

Dew prevention control

Anti-freezing control

Power Source 230 V, 1 phase - 50 Hz 230 V, 1 phase - 50 Hz
Indoor CS-PV18RB4H-1 CS-PV24RB4H-1
Outdoor CU-PV18RB4H-1 CU-PV24RB4H-1
Panel CZ-BT20HW-1 CZ-BT20HW-1
Cooling Capacity: Rated 5.35 kW, 18,300 Btu/h 6.65 kW, 22,700 Btu/h
Current 7.7 A 11.0 A
Power Input: Rated 1.72 kW 2.45 kW
EER 3.11 W/W, 10.64 Btu/hW 2.71 W/W, 9.27 Btu/hW
Indoor Unit: Air Volume 13.7 m³/min, 485 cfm 13.7 m³/min, 485 cfm
Indoor Unit: Sound Pressure Level (Hi/Lo) 44/34 dB (A) 45/36 dB (A)
Indoor Unit: Dimension H260 × W575 × D575 mm H260 × W575 × D575 mm
Indoor Unit: Panel Dimension H51 × W700 × D700 mm H51 × W700 × D700 mm
Indoor Unit: Net Weight 19.0 kg 19.0 kg
Indoor Unit: Panel Net Weight 2.5 kg 2.5 kg
Outdoor Unit: Sound Pressure Level 53 dB (A) 56 dB (A)
Outdoor Unit: Dimension H695 x W875 x D320 mm H695 x W875 x D320 mm
Outdoor Unit: Net Weight 47.0 kg 53.0 kg
Outdoor Unit: Piping Connection (Gas Pipe) 12.70 mm (1/2 inch) 15.88 mm (5/8 inch)
Outdoor Unit: Piping Connection (Liquid Pipe) 6.35 mm (1/4 inch) 6.35 mm (1/4 inch)
Outdoor Unit: Pipe Length (Min-Max) 3.0-25.0 m 3.0-25.0 m
Outdoor Unit: Elevation Difference 20.0 m 20.0 m
Outdoor Unit: Maximum Chargeless Length (Max) 7.5 m 7.5 m
Outdoor Unit: Additional Gas 20 g/m 30 g/m
Outdoor Unit: Operating Range, Outdoor (Min-Max) 16-43 °C 16-43 °C
